comparison of product parameters
|
Application |
hospitals , supermarkets , factories , offices ,household ,etc |
Input Voltage(V) |
AC85-265V |
|
Tube Length(ft) |
2, 3, 4, 8 |
Color Temperature(CCT) |
6000K (Daylight Alert) |
|
Color Rendering Index(Ra) |
90 |
IP Rating |
IP65 |
|
Lifespan (Hours) |
50000 |
Lamp Luminous Efficiency(lm/w) |
100 |
|
Warranty(Year) |
2-Year |
Support Dimmer |
No |
|
Lamp Body Material |
Aluminum |
Lighting solutions service |
Lighting And Circuitry Design |
|
Place of Origin |
Guangdong, China |
Working Temperature(℃) |
-20 - 50 |
|
Lamp Luminous Flux(lm) |
3200 |
LED Chip |
SMD2835 |
|
Driver |
isolated driver |
Type |
T5 T8 T10 T12 |
|
Color Temperature |
warm white, natural white, cool white |
Beam Angle |
120 degree 180degree 270degree |
|
Optional |
PIR sensor / Microwave sensor |
Application |
hospitals , supermarkets , factories , offices ,household ,etc |
Lighting & Electrical Performance

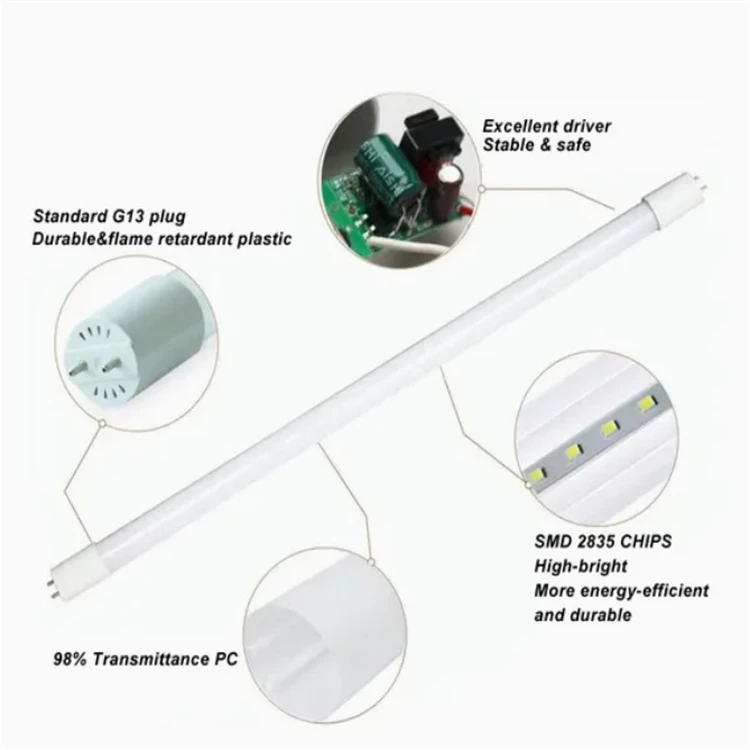

Equipped with high‑performance SMD2835 LED light source chips, outstanding luminous efficiency up to 130‑150 lm/W, high brightness output.
Wide working input voltage range 85V‑277V AC, perfect for unstable grid voltage conditions in different countries and regions.
Beam angle reaches 330°, wide‑angle omnidirectional light emission, no dark shadow spots for even surface illumination.
Built‑in dedicated constant‑current isolated LED driver; effective anti‑surge capability, suppress instantaneous voltage spikes. Flicker‑free light output, protects human eyes from stroboscopic injury for long‑time viewing.

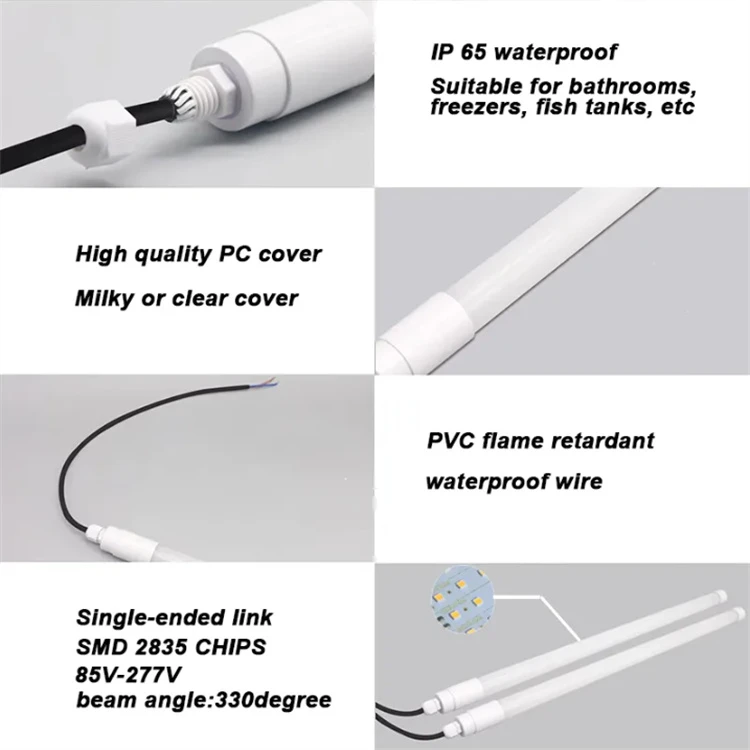

Two housing diffuser options available: milky frosted PC cover for soft diffused lighting or transparent clear PC cover for maximum lumen output; high‑transmittance anti‑aging PC material ensures stable light transmission performance.
Flame‑retardant PVC waterproof power cord matched for outdoor & moist‑area wiring application. Single‑end power feeding design, convenient for multi‑units daisy‑chain series linking to simplify on‑site wiring work.
Service Life & Light Decay / Loss Performance
Rated long service life up to 50,000 working hours under normal operating conditions.
Slow lumen depreciation design: premium LED chips with excellent thermal dissipation performance effectively slow down light fading during long continuous running.
Optimized internal thermal management structure removes operating heat efficiently, avoids overheating burnout of LED chips and driving components even during non‑stop long‑hour operation inside cold storage or humid premises.
Significantly lower failure rate compared with conventional fluorescent waterproof tubes; reduces frequent maintenance & replacement labour cost for commercial & industrial lighting projects. Minimal luminous loss in early‑mid usage cycle, brightness stays stable for years of continuous operation.
Great lifespan stability even under low‑temperature freezer working surroundings, no premature lamp failure inside cold refrigeration facilities.
Ingress Protection & Environmental Protection Grade

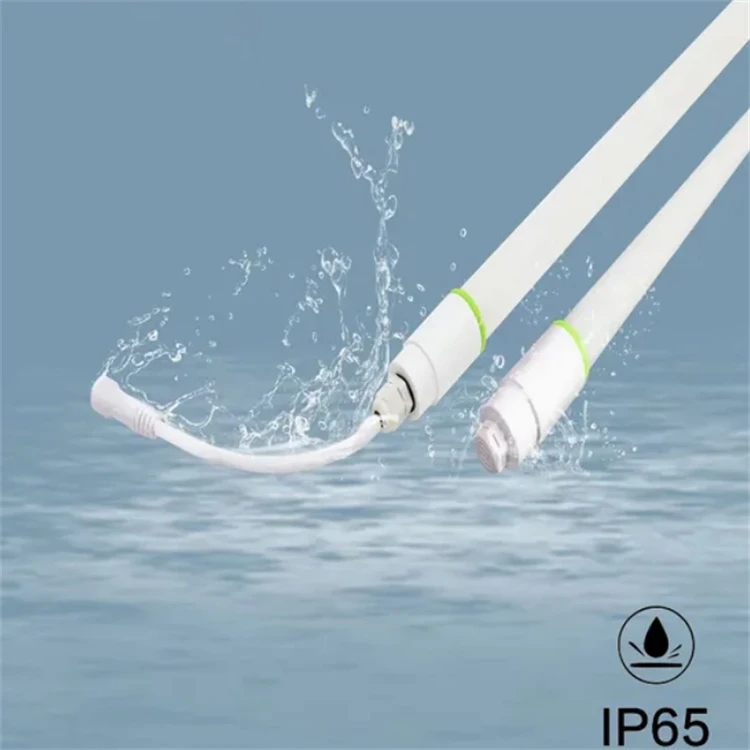

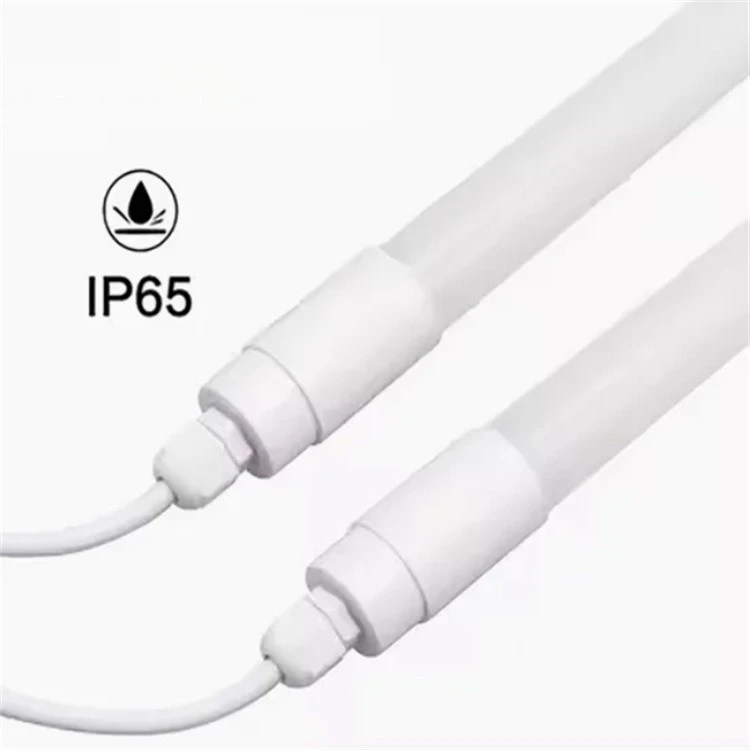

Official IP65 Ingress Protection Rating: First digit "6": Completely dust‑tight, full protection against fine dust particle penetration into the tube internal electronics. Zero dust ingress even in dusty workshop environments. Second digit "5": Protected against low‑pressure water jet spraying from any direction. Resists splashing water, sprayed water, wet moisture, condensation water inside cold freezer cabinets.

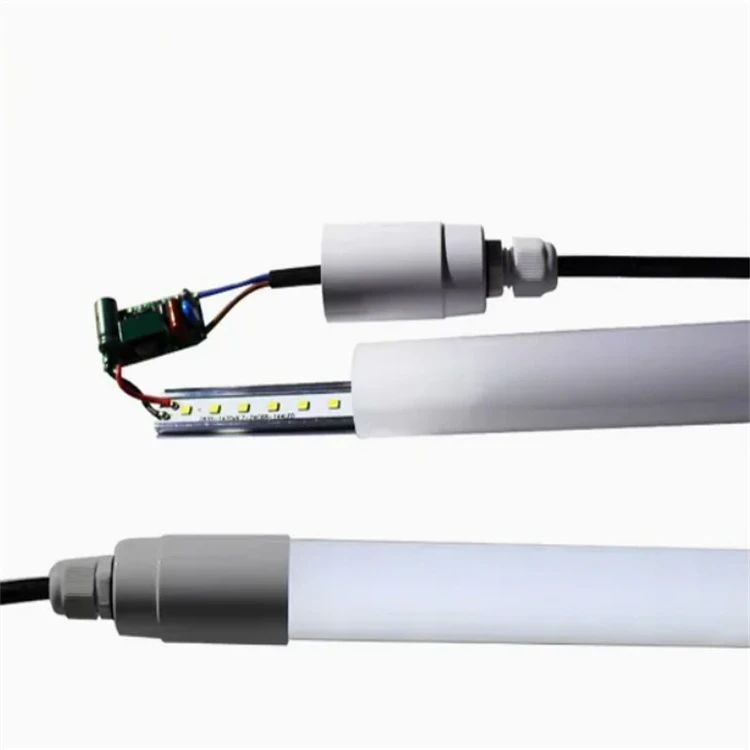

Fully sealed waterproof cable gland end cap assembly design creates reliable sealing performance on both tube end sides, stops water vapour and moisture seeping into the lamp interior.
Robust PC tube shell is anti‑corrosion, moisture‑resistant, suitable for cold room, freezer, fish tank, bathroom, car‑wash zone, covered outdoor canopy lighting scenarios.
Anti‑humidity performance guarantees stable lighting output in high‑relative‑humidity working environment, short‑circuit risk caused by condensed water is greatly eliminated.
