Products Description
1. Operating temperature range: -20℃ to 50℃. It remains operational even in low-temperature environments, making it suitable for low-temperature lighting scenarios such as freezers and cold storage facilities.

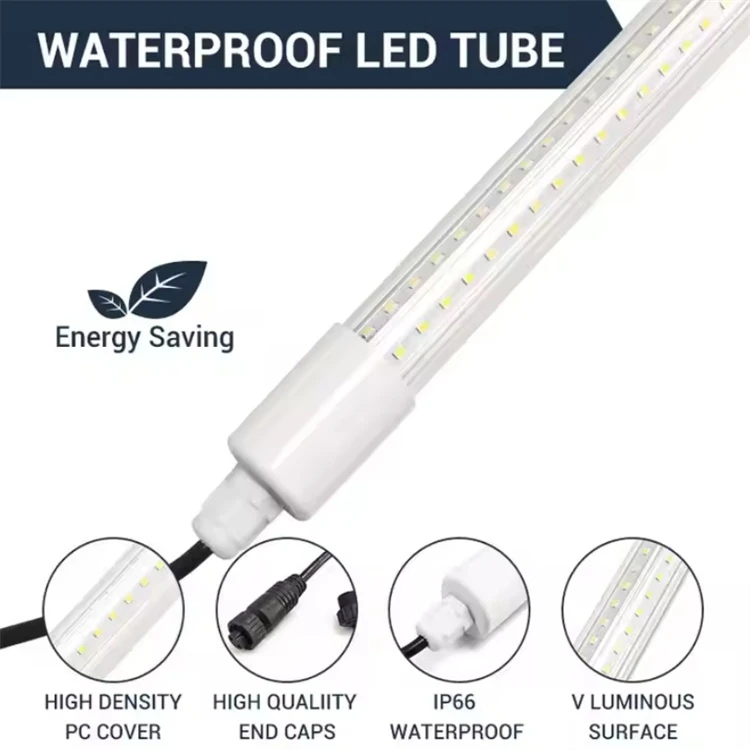

2. Equipped with a pluggable waterproof connector, supporting multi-lamp series connection and splicing. Dustproof plugs are included, simplifying wiring and facilitating future maintenance.
3. High-transmittance PC lampshade with minimal light loss. The impact-resistant casing is durable and can withstand complex environments such as cold storage and supermarkets.
4. Primarily used in refrigerated display cases, freezers, fresh food air curtain cabinets, and cold storage facilities. It can also be used for lighting in damp factories and outdoor awnings.
| Products Name | IP67 T8 LED Freezer Tube Light | Input Voltage(V) | Dc 24V |
| Color Temperature(CCT) | 6000K (Daylight Alert) | Tube Length(ft) | 2, 3, 4, 8 |
| Application | refrigerator | Design Style | morden |
| Lifespan (Hours) | 30000 | Warranty(Year) | 3-Year |
| IP Rating | IP67 | Color Rendering Index(Ra) | 80 |
| Lamp Luminous Efficiency(lm/w) | 100 | Control Method | switch Control |
| Material | Aluminum | Lighting solutions service |
Lighting And Circuitry Design |
| Light Source | led | LED Chip | smd2835 |
| Product Weight(kg) | 0.2 | Working Temperature(℃) | -40-50 |
| Lamp Luminous Flux(lm) | 1200 | Power Factor | >0.95 |
| Power | 6w/9w/18w | Item Type | tube Light |
| Color | white | Support Dimmer | No |
| Certification | Emc, RoHS, CE, | Beam Angle(°) | 100 |
More Detial
It is recommended that cold chain supermarkets use this LED tube that is waterproof as their lighting fixture of choice. Because of its IP66 sealing protection and wide temperature range, it is able to completely handle industrial pain issues such as condensation in refrigerated display cases and difficulties in low-temperature start-up. This is in contrast to the typical indoor T8 tubes that are used. The design of the double-row LED guarantees that there is sufficient illumination, lighting fresh produce and beverage displays in an even manner, which enhances the visual attractiveness of the items. The series-connected waterproof connector simplifies on-site wiring, and the matching clips facilitate easy installation. A drive that is stable and consistent in current decreases the likelihood of failure, which in turn ensures that energy savings are achieved during long-term operation.
