Ip67 Waterproof Led Refrigerator Freezer Tube Light

Ip67 Waterproof Led Refrigerator Freezer Tube Light
Details:

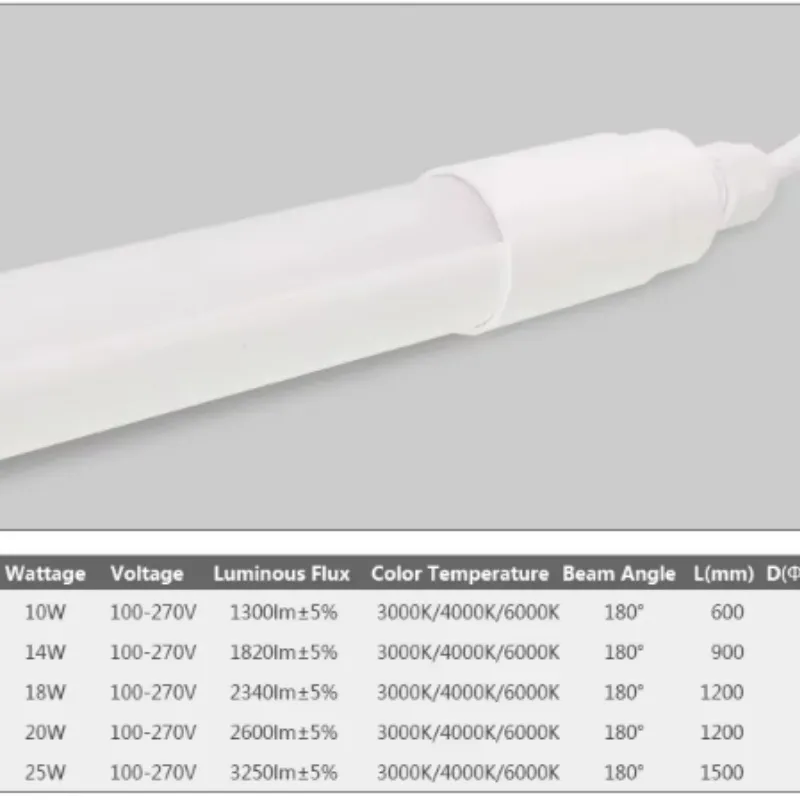

1. The product series has segmented lengths from 600mm to 1500mm and five power ratings: 10W, 14W, 18W, 20W, and 25W. At 180° beam angle, 3000K (Warm White), 4000K (Neutral White), and 6000K (Pure White) colour temperatures are available. The display cabinet length and item type may be used to choose specifications to fulfil the varying lighting needs of retail and supermarket displays.
2. The tube's high-density, totally sealed PC shell and watertight locking connections at both ends protect it against water, dust, and mildew. This design prevents moisture and condensation from reaching the light fixture, allowing it to operate reliably in freezers and refrigerated display cases. This lighting system is designed for cold chain equipment.
3. The fixture's high-quality brand-name SMD LED chips provide enough brightness and a high Colour Rendering Index (CRI), accurately recreating fresh food, fruits, vegetables, and drinks. Excellent heat dissipation allows the chips to operate at low temperatures without depleting lumens. Additionally, energy usage is far lower than standard fluorescent bulbs, reducing power costs over time.
Send Inquiry
Description
Send Inquiry





Features



Ip67 Waterproof Led Refrigerator Freezer Tube Lighting

1. Includes a 100–270V wide-voltage constant-current driver. With reliable power supply, it provides flicker-free lighting in voltage-varying settings. It preserves staff vision and eliminates stroboscopic effects from detracting from fresh product displays, making it a solid solution for businesses with unreliable power grids.

2. The tube's inside is a 6063 aluminium substrate with an anti-aging PC cover. The aluminium effectively distributes LED chip heat, while the PC case is impact- and shatter-resistant. Unlike traditional glass tubes, it will not become brittle or yellow in a freezer, extending its service life far beyond conventional lighting solutions.

3. The tube has watertight male and female connections on both ends. Install the tube in the display freezer's slot and power it directly to light one unit. Daisy-chaining tubes in series by connecting the male and female ends end-to-end eliminates the requirement for separate wire lines in multi-unit systems. This minimises time and labour when retrofitting or updating supermarket and commercial refrigeration equipment.

4. Made for supermarket air-cooled fresh-keeping cabinets, upright beverage freezers, fresh-food island display cases, and deli display coolers. It is appropriate for cold storage warehouses, fresh-food processing workshops, outdoor open-air exhibition cases, and other low-temperature, high-humidity, and high-moisture situations









Product Parameters
Products Name Ip67 Waterproof Led Refrigerator Freezer Tube Light Input Voltage(V) AC 100-277V
Materials Plastic+PC Color Temperature(CCT) 2700-6500K
Color Rendering Index(Ra) 80 Working Temperature(℃) -40-40
Lifespan (Hours) 50000 Applicaiton Freezer Light supermarket tube
LED Chip SMD2835 Warranty(Years) 5
Power Factor >0.90 IP Rate IP67
Feature Low temperature resistance,Customizable Certificated CCC,EMC,RoHS
Angle 180

Control Method

Switch Control

Installation

Surface mounted Color white
Luminous Efficacy(lm/w) 130 Support Dimmer NO
Design Style Modern Power 10w/14w/18w/20w/25w
Length T8 Tube/t5 Tube

Lamp Luminous Flux(lm)

2200LM

Light Source LED Product Weight(kg) 1.2



More detail



Led Refrigerator Freezer T8 Tube Light

This sealed, waterproof, tri-proof LED tube lamp is ideal for cold chain refrigeration equipment. From structural design to materials, everything has been optimised for low-temperature, high-humidity settings. It solves the industry-wide problem of condensation and moisture corrosion damaging light fixtures with fully sealed waterproof connectors and a one-piece PC housing, making it ideal for supermarket refrigerated display units. It can complement any unit-from a countertop display case to a central-island fresh food cabinet-with its wide variety of wattage, length, and colour temperature choices. The integrated constant-current driver and high-quality LED chips vividly restore the fresh, vibrant colours of food products, improving merchandise presentation for retailers and reducing electricity costs compared to fluorescent tubes. The male-to-female plug-and-play serial connection technology greatly minimises retail lighting retrofit labour and wiring expenses. This tri-proof LED tube is the best cold chain lighting option for new store installs or replacing fluorescent-lit cabinets due to its low-temperature resistance, waterproof durability, and simplicity of installation. Beyond refrigeration, it may be used in humid storage facilities and semi-outdoor display containers, exhibiting its flexibility and usefulness.
