comparison of product parameters
|
IP Rating |
7 |
Input Voltage(V) |
AC 220V( ± 10%) |
|
Lifespan (Hours) |
50000 |
Lamp Luminous Efficiency(lm/w) |
100-110 |
|
Color Temperature(CCT) |
2700-3200K&4000-4500K&5500-6000K |
Surface Treatment |
Brushed Stainless |
|
Base Type |
Custom |
Color Rendering Index(Ra) |
>80 |
|
Warranty(Year) |
3-Year |
Support Dimmer |
No |
|
Lighting solutions service |
Lighting And Circuitry Design, Onsite Metering |
Light Source |
LED |
|
Item Type |
Refrigerator Lamps |
Place of Origin |
China |
|
Lamp Luminous Flux(lm) |
100-110 |
Working Temperature(℃) |
-20 - 50 |
|
Product Name |

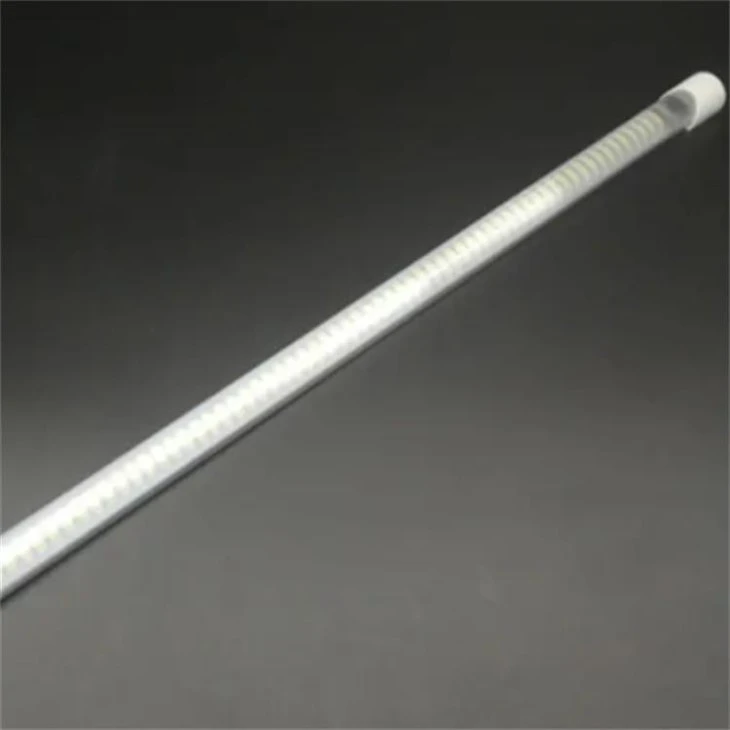

Led Freezer Light |
Application |

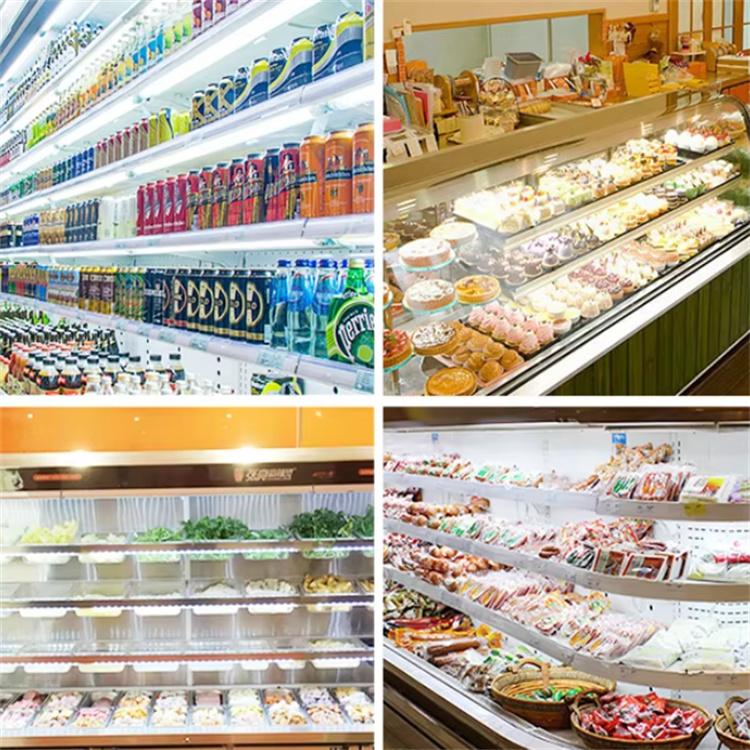

Supermarket, freezer shelf, fresh-keeping product shelf |
|
Input voltage |
AC100-240V 50 / 60Hz |
Color temperature |
2700K-7000K |
| Ra |
≥80 |
beam angle |
120° |
|
waterproof level |
IP67 |
working hours |
working temperature |
⚡ Performance
High-Efficiency SMD LED Chips: Premium-grade SMD2835 LEDs deliver exceptional luminous efficacy of up to 120 lm/W, producing bright, shadow-free illumination across the entire cabinet.
Uniform Light Distribution: Optimized PC diffuser cover ensures 180° wide beam angle with zero glare, hotspots, or dark zones - every product on every shelf is evenly lit.
High Color Rendering Index (CRI ≥ 85): Reveals the true, vivid colors of fresh food, beverages, and packaged goods, making merchandise look more appealing and boosting sales.
Color Temperature Options: Available in 6000K–6500K Cool White (ideal for frozen food & beverage displays) and 3000K–3500K Warm White (perfect for bakery & deli cases).
Instant Full Brightness: No warm-up delay, no flickering - reaches 100% output the moment it is switched on, even at −30°C.
Flicker-Free Constant Current Driver: Built-in wide-voltage (AC 85–265V) driver maintains stable current output, eliminating stroboscopic effects that cause eye strain and product appearance distortion.
Excellent Heat Dissipation: Integrated aluminum substrate + PC housing provides efficient thermal management, keeping LED junction temperatures low even in continuous 24/7 operation.
Wide Operating Temperature Range: Reliably performs from −30°C to +45°C (−22°F to +113°F), engineered for the harshest cold storage conditions.
Multiple Power & Length Options: Available in 9W / 12W / 15W / 18W / 20W / 24W across 30cm / 60cm / 90cm / 120cm / 150cm lengths to fit any cabinet dimension.
Low Power Consumption: Replaces 30W–60W fluorescent tubes with only 9W–24W LED output, delivering equivalent or superior brightness.
🔋 Lifespan & Energy Savings
Ultra-Long 50,000-Hour Lifespan: Rated for over 50,000 hours of continuous operation - that is more than 5.7 years of 24/7 use or over 13 years at 10 hours/day.
Low Light Decay: Less than 3% lumen depreciation after 3,000 hours and under 30% at end of life (L70 standard), ensuring consistent brightness year after year.
Up to 70% Energy Savings: Compared with conventional fluorescent freezer lighting, cuts electricity consumption by up to 70%, delivering rapid ROI and lower operating costs.
Reduced Cooling Load: Emits minimal heat (IR-free), placing less thermal strain on refrigeration compressors and further reducing overall energy expenditure.
No Mercury, No UV: Environmentally friendly - contains no hazardous mercury, emits no UV radiation, and requires no special disposal.
Minimal Maintenance: Long service life means fewer replacements, less labor cost, and zero downtime for bulb changes in busy retail environments.
Surge & Over-Voltage Protection: Built-in driver protection against voltage spikes, short circuits, and over-current extends both LED and driver lifespan.
🛡️ Protection Rating & Durability
IP65 Waterproof & Dustproof: Fully sealed housing with silicone-gland cable entries protects against water jets, condensation, frost, and dust - safe for direct wash-down and high-humidity cold rooms.
Moisture & Frost Resistant: Special anti-condensation design prevents moisture buildup inside the tube, eliminating the #1 cause of freezer light failure.
Corrosion-Resistant Materials: Premium PC (polycarbonate) tube + aluminum core resists rust, oxidation, and chemical degradation from cleaning agents.
IP65 Waterproof Connectors: Male/female quick-connect plugs with rubber O-ring seals enable daisy-chain installation while maintaining full waterproof integrity.
Impact-Resistant PC Cover: Shatterproof polycarbonate diffuser withstands bumps and impacts - no broken glass risk in food-handling environments.
UV-Stabilized Housing: Resists yellowing and brittleness from long-term UV exposure and temperature cycling.
CE / RoHS Certified: Complies with European safety, health, and environmental standards for commercial lighting equipment.
Built-In Fuse Protection: Integrated safety fuse automatically cuts power in the event of electrical fault, protecting both the fixture and your facility.
