comparison of product parameters
|
IP Rating |
IP66 |
Input Voltage(V) |
AC 110V ( ± 10%) |
|
Lifespan (Hours) |
50000 |
Lamp Luminous Efficiency(lm/w) |
120 |
|
Color Temperature(CCT) |
5000k |
Surface Treatment |
Plastic |
|
Base Type |
G13 |
Color Rendering Index(Ra) |
80 |
|
Warranty(Year) |
3-Year |
Support Dimmer |
No |
|
Lighting solutions service |
Lighting And Circuitry Design |
Light Source |
LED |
|
Item Type |
Refrigerator Lamps |
Place of Origin |
Guangdong, China |
|
Lamp Luminous Flux(lm) |
3600 |
Product Weight(kg) |
1 |
|
Working Temperature(℃) |
-25 - 40 |
Product Name |
Waterproof Led Tube Light |
|
Power |
30W |
Length |
8ft |
|
Voltage |
AC120V 50/60Hz |
Lumenous |
3600LM |
|
Power factor |
0.90 |
Shape |
V-shape PCB Board |
Key Selling Points & Technical Performance

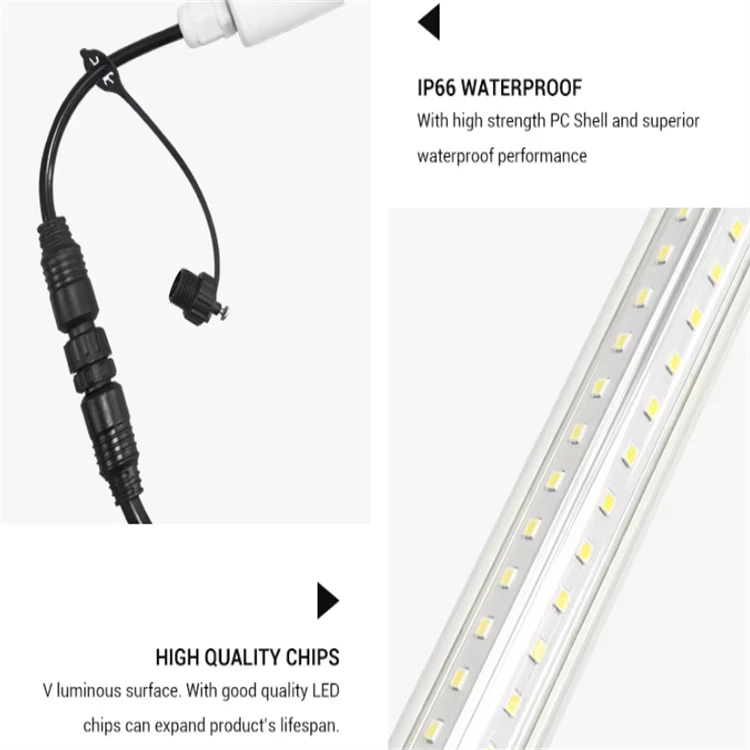

Ingress Protection Rating: IP66 Fully rated IP66 dust‑tight & powerful water‑jet resistant protection grade. The sealed end‑cap construction plus waterproof threaded knob‑style cable connector effectively blocks fine dust, splashing water and powerful water spray. The unit can reliably work in damp, wet, humid or dusty working environments without short‑circuit risk.

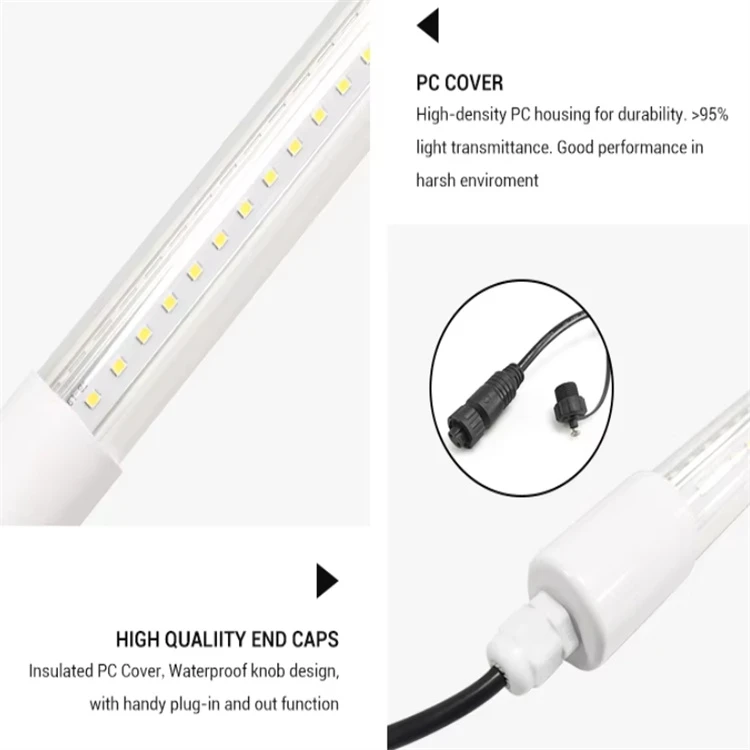

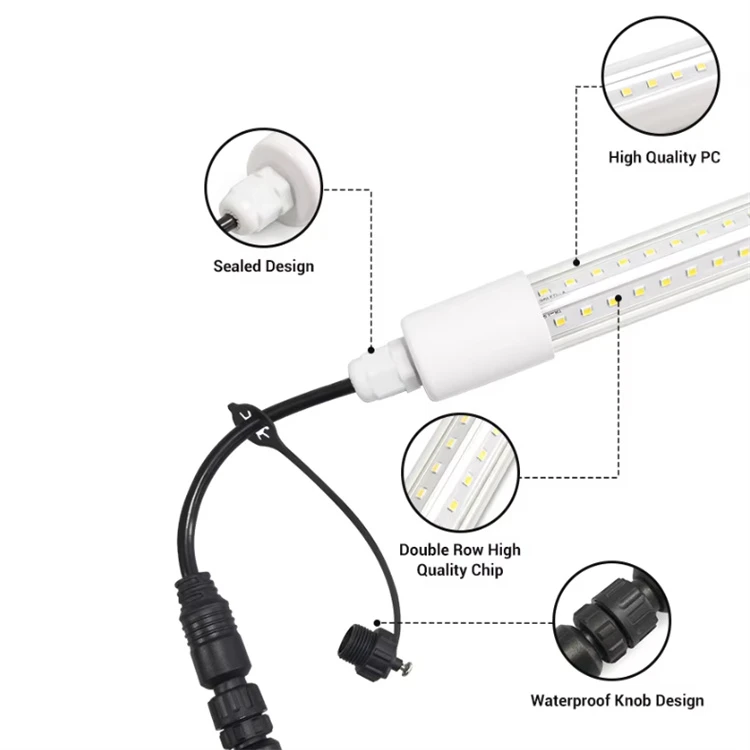

Light Source & Luminous Performance Adopts premium double‑row high‑density SMD LED chips, forming a V‑shaped multi‑angle luminous surface. It realizes wide‑angle even light distribution, eliminates local dark spots. High‑transmittance clear PC cover achieves over 95% light transmittance, minimizing optical loss inside the tube for high effective lumen output.
Key Selling Points & Technical Performance
Service Lifespan & Power Loss / Light Decay Superior‑quality LED semiconductor chips reduce internal thermal attenuation. With optimized internal thermal management design, the rated average service life reaches up to 50,000 working hours. Slow lumen depreciation performance: long‑term continuous operation maintains gentle light decay rate; effective suppression of rapid brightness drop after long‑hour usage. Compared to traditional fluorescent tubes, this LED model drastically cuts luminous attenuation loss, avoids frequent early lamp failure, and greatly lowers your frequency for lamp replacement and maintenance workload.
Housing & Mechanical Durability High‑strength high‑density polycarbonate (PC) outer casing. Anti‑impact, shatter‑resistant material stands accidental knocks and vibration. Insulated sealed plastic end caps improve overall structural tightness for long‑term stability under fluctuating ambient temperature.
Key Selling Points & Technical Performance

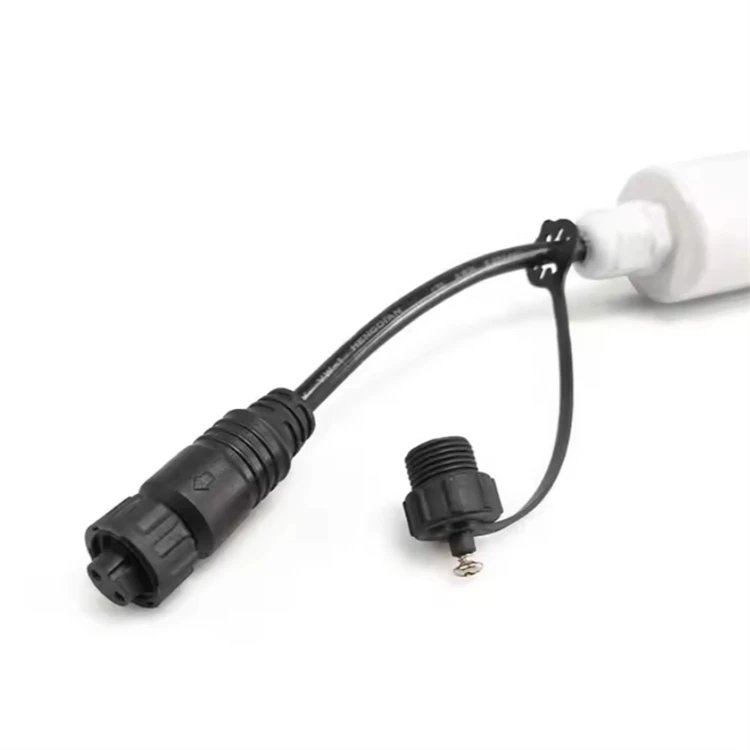

Convenient Quick Series‑Connection Installation Professional male‑female mating waterproof plug connector enables daisy‑chain series linking of multiple tubes on‑site. Each lamp comes with a small rubber protective dust cap tethered on the cable: you can cap the unused output connector when you do not extend further lamps, preserving full waterproof performance of the spare port. Installation mounting clips and fixing hardware accessories are supplied for simple surface mounting job.
Remarkable Energy‑Saving Property & Operational Loss Reduction Low power consumption design cuts electricity operating expense significantly. It eliminates huge reactive power loss of old‑style magnetic ballast fluorescent lamps. Less heat generation also reduces extra thermal load inside cold rooms or freezer warehouses.
