Products Description
1. Features a die-cast aluminum housing with a finned heat dissipation structure; this design ensures rapid thermal conductivity and resistance to corrosion and oxidation, effectively managing temperature rise during prolonged high-power operation and slowing down lumen depreciation.
2. Equipped with a durable, honeycomb-patterned PC lens that is dustproof and impact-resistant; it protects the internal LED chips while ensuring uniform and soft light distribution.
3. Comes with a sturdy, thickened iron mounting bracket featuring an adjustable angle and pre-drilled holes, making installation convenient whether mounted on poles, suspended, or fixed to walls.
4. Delivers a luminous efficacy of 100–130 lm/W, offering lower energy consumption compared to traditional stadium lighting and resulting in significant electricity cost savings during long-term, large-scale use.

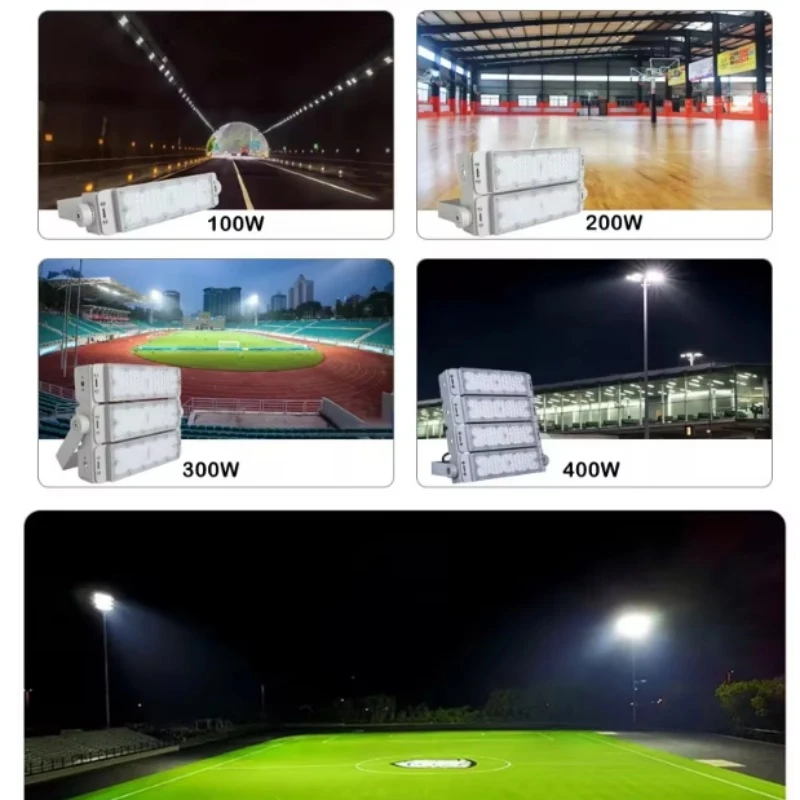

5. Suitable for various sports venues-such as soccer fields, basketball courts, and baseball diamonds-as well as large-scale outdoor lighting applications including airports, docks, construction sites, outdoor billboards, architectural facade lighting, and transportation hubs.
| Products Name | Waterproof Outside LED Sport Stadium Light | Input Voltage(V) | AC100-265V |
| Color Temperature(CCT) | 3000-6500K | Lamp Luminous Efficiency(lm/w) | 100-110lm/w |
| Application | Sports Stadiums, Tunnel, Squares, Parks, Bridges | Switch Mode | Manual Button |
| Lifespan (Hours) | 30000 | Warranty(Year) | 5-Year |
| Beam Angle | 70-140° | Color Rendering Index(Ra) | 80 |
| Support Dimmer | no | Certification |
Emc, RoHS, CE, LVD |
| Material | PC+Aluminum | Lighting solutions service |
Lighting And Circuitry Design |
| Light Source | LED | Product Weight(kg) | 19.47 |
| Color | Gray | Feature | Water Resistant, High Brightness |
| Control Method | Switch Control | Working Temperature(℃) | -15-50 |
| Design Style | modern | Power Factor | >0.90 |
| Power | 100W/200W/300W/400W/500W/600W/800W/1000W/1200W | LED Type | SMD3030 Chip |
| IP rate | IP65 |
Lamp Luminous Flux(lm) |
1800-21000 |
| LED Driver | Isolated and waterproof Driver | Installation | High Pole |
More Detial

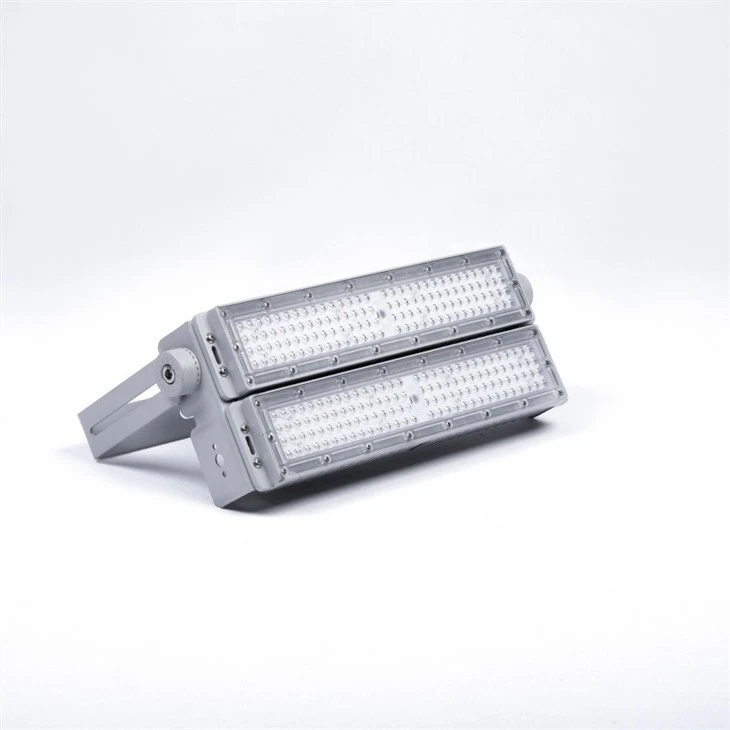

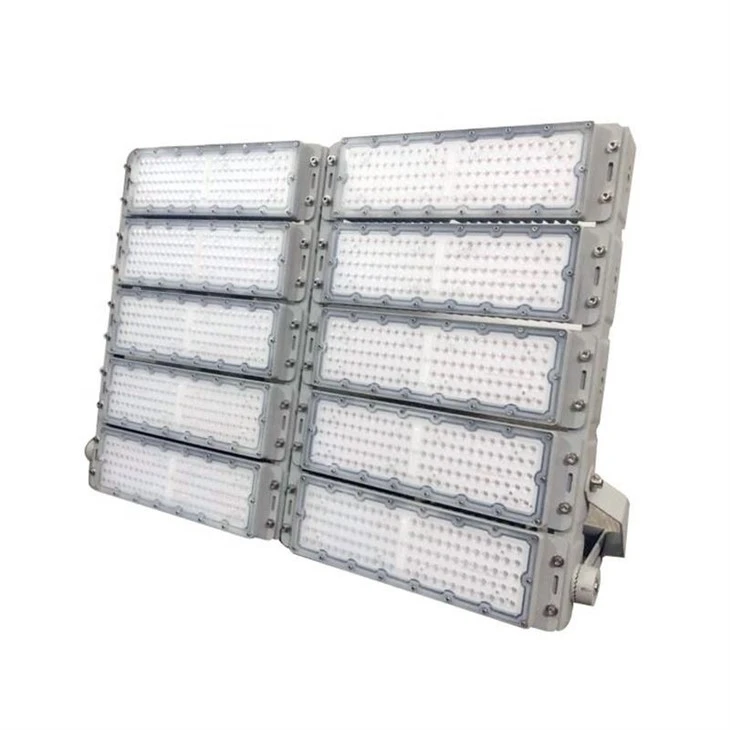

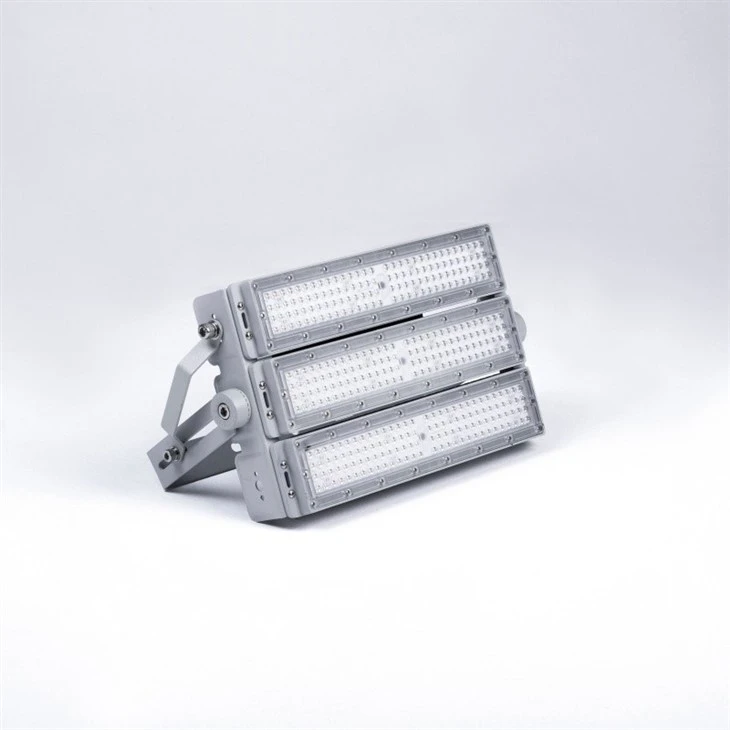

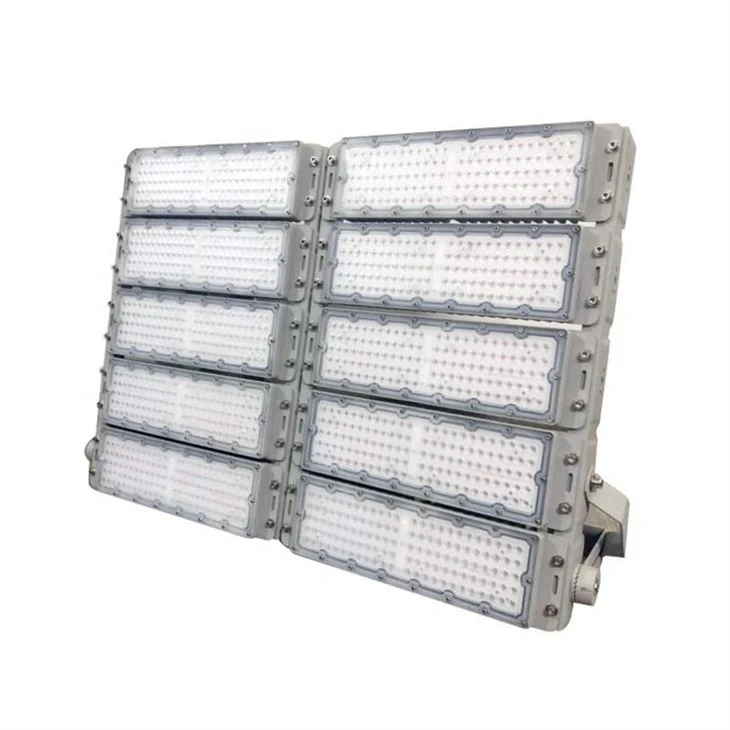

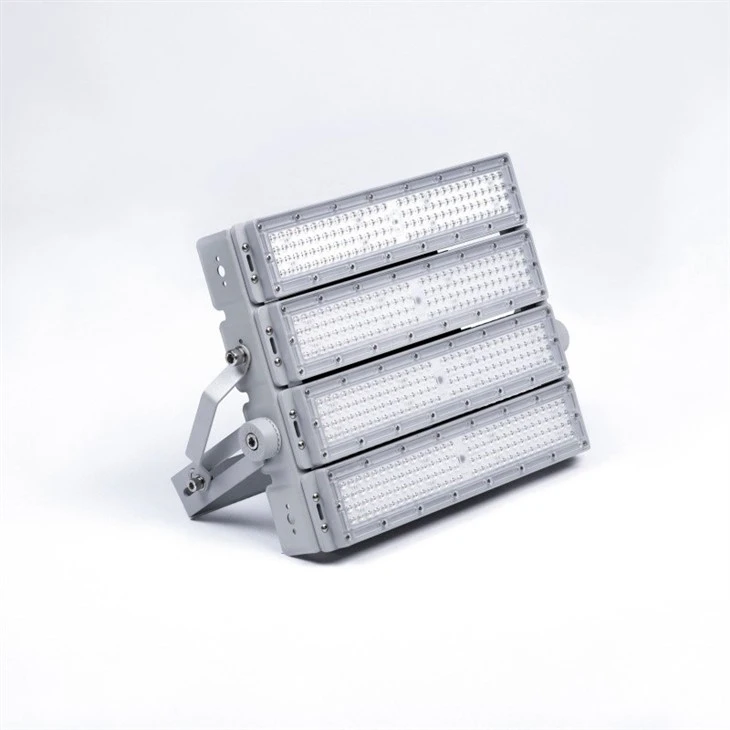

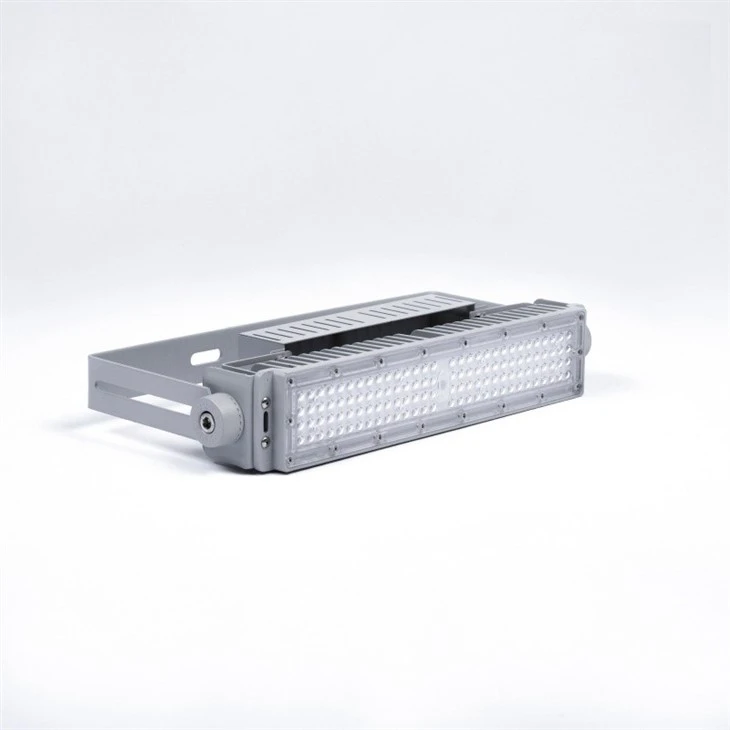

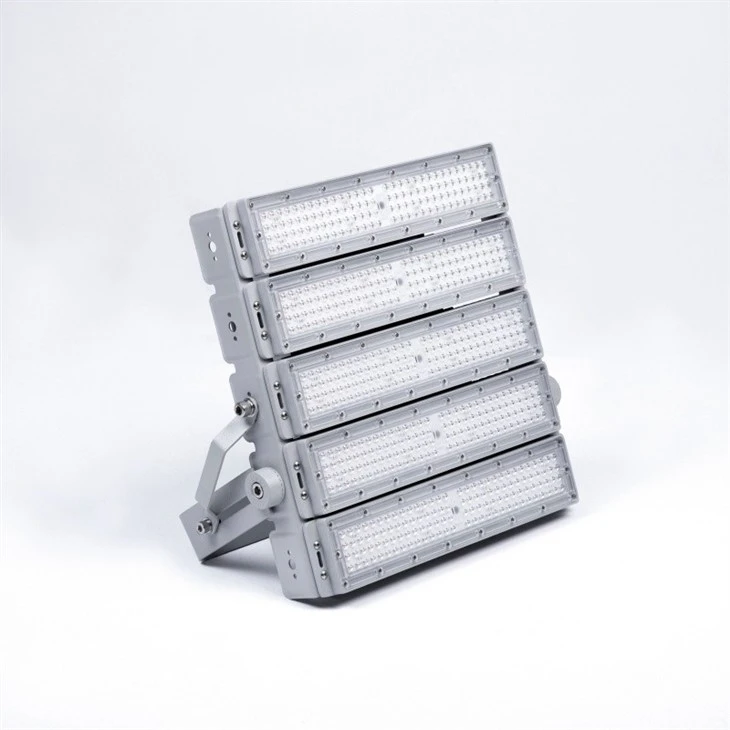

This modular LED high-mast floodlight features a split-module design that allows for flexible customization-ranging from wattage and beam angles to mounting methods-making it suitable for outdoor venues of all sizes. The unit utilizes a die-cast aluminum finned heat dissipation structure and boasts an IP66 rating, ensuring resistance to rain, dust, and corrosion for stable, long-term performance in harsh environments such as open-air sites, construction zones, and coastal terminals. A rigid honeycomb PC lens balances protection with uniform light distribution, while a 180° adjustable bracket significantly simplifies on-site installation. Equipped with high-efficacy LED chips (100–130 lm/W), it offers substantial energy savings compared to traditional metal-halide or sodium lamps, drastically reducing long-term electricity and maintenance costs.
