comparison of product parameters
| Type | Led Lights | Place of Origin | Guangdong, China |
| Brand Name | Benwei | Product name | OEM available outdoor swimming pool underwater par56 led lights |
| Voltage | 12v | Feature | Ip68 Water Proof |
| Colors available | Beige | Mateal | ABS+UV |
| Keyword | Underwater pool lights | Logo | Customized logo |
Light Source & Lighting Performance
Light Source Configuration
Adopts dense array high-luminance SMD LED lamp beads with independent optical packaging, built-in full-spectrum RGB three-primary-color chip architecture, precisely calibrated red-green-blue luminescence wavelength to realize seamless single-color static lighting, gradient fade, strobing and cyclic rainbow color shift modes. Every LED bead undergoes strict constant-current aging screening, eliminating uneven light decay and dead pixel issues common in low-end pool lamps; modularized light source layout ensures uniform luminous output across the entire illuminated surface.
Optical & Lighting Efficiency

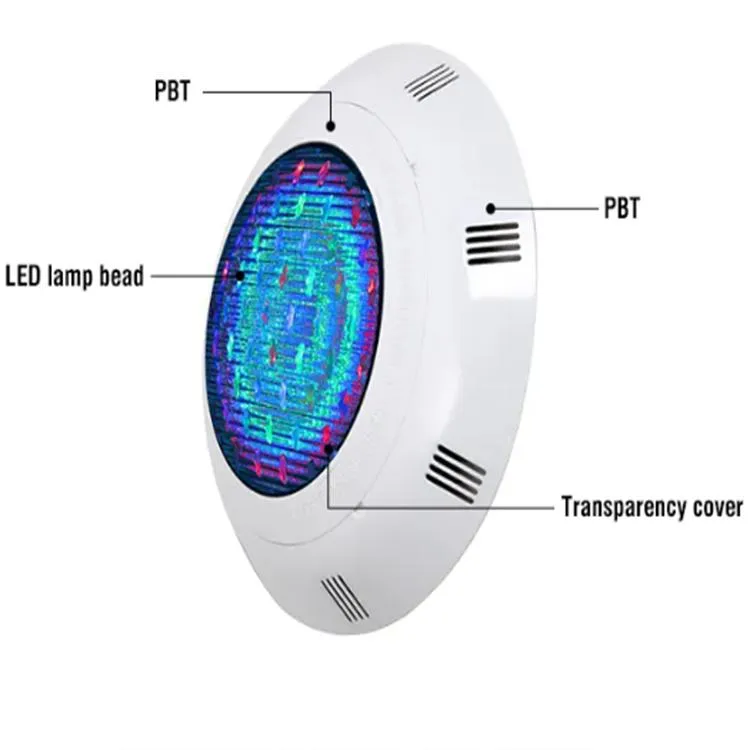

Outfitted with high-clarity textured PC transparent cover with professional inner prism refraction microstructure, which effectively refracts and diffuses outgoing light to eliminate concentrated glare, achieving wide-angle floodlight emission with >120° beam spread. High light transmittance of the PC cover exceeds 92%, minimizing luminous loss caused by shell blocking; high luminous efficacy reaches up to 110lm/W, delivering saturated, vivid underwater color rendering (CRI＞85). Even underwater with refractive water medium, the fixture maintains consistent soft light penetration, forming layered gorgeous water glow and immersive ambient visual effect for pool water.
Power Supply & Energy Consumption
Power Supply Specification
Standard low-voltage AC12V/24V safety input design, isolating high-voltage leakage risk for underwater application, compatible with conventional pool lighting transformer power supply system widely used in global pool engineering; built-in isolated constant-current drive power module inside lamp body, with overvoltage, overcurrent and short-circuit protection circuits, resisting instantaneous voltage fluctuation from outdoor unstable power grid. Separate remote control matching optional for wireless color mode switching without extra wiring modification.
Energy Saving & Power Consumption
Latest high-efficiency LED semiconductor luminescence principle cuts power consumption by over75% compared with traditional halogen pool lights of equivalent luminous output. Multiple power options available (12W/18W/24W/35W) to match different pool cubic capacities; low heat generation feature avoids extra thermal loss, alongside heat-dissipation slotted design around PBT lamp housing to accelerate passive heat dissipation of internal LED components, drastically lowering long-term operating electricity expense and reducing replacement frequency to cut post-maintenance cost for end-users.
Installation Instruction
Surface Flush Mount Installation (No Pool Grooving Required, Core Advantage)

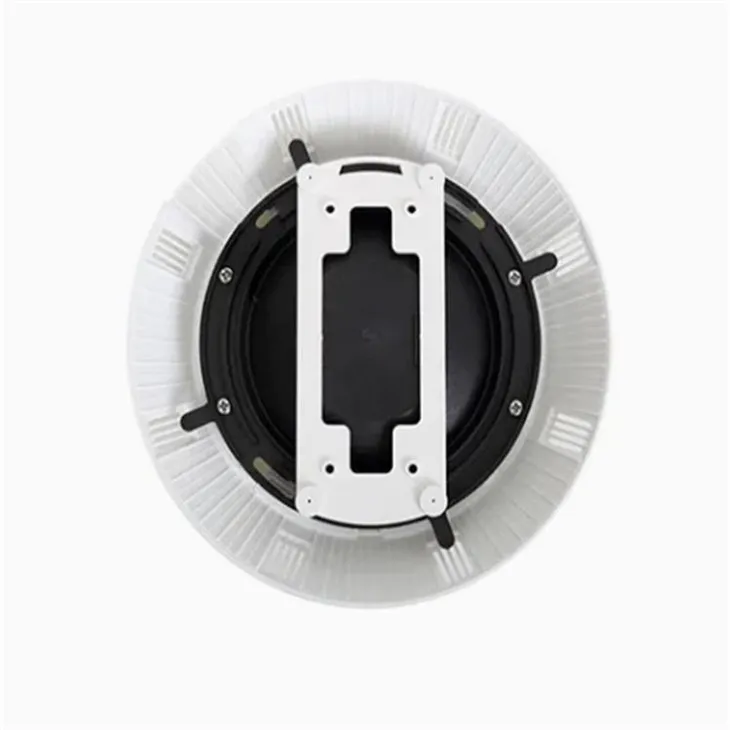

Pre-fix the customized white metal mounting bracket onto pre-reserved pool wall flat surface with expansion screws; no need to chisel embedded recess on existing pool concrete wall, greatly reducing construction cost and pool wall damage.
Align the back fixed buckle of pool lamp with installed mounting bracket, snap the lamp body firmly onto bracket for locked fixation.
Lead out lamp power cable via pre-reserved wall wire conduit, connect cable to matched 12V/24V pool dedicated waterproof transformer, seal wiring junction with waterproof glue to reach IP68 water-resistant grade.
Submerge the lamp completely under pool water after full installation, test power-on to verify color switching and luminous performance.
