Features

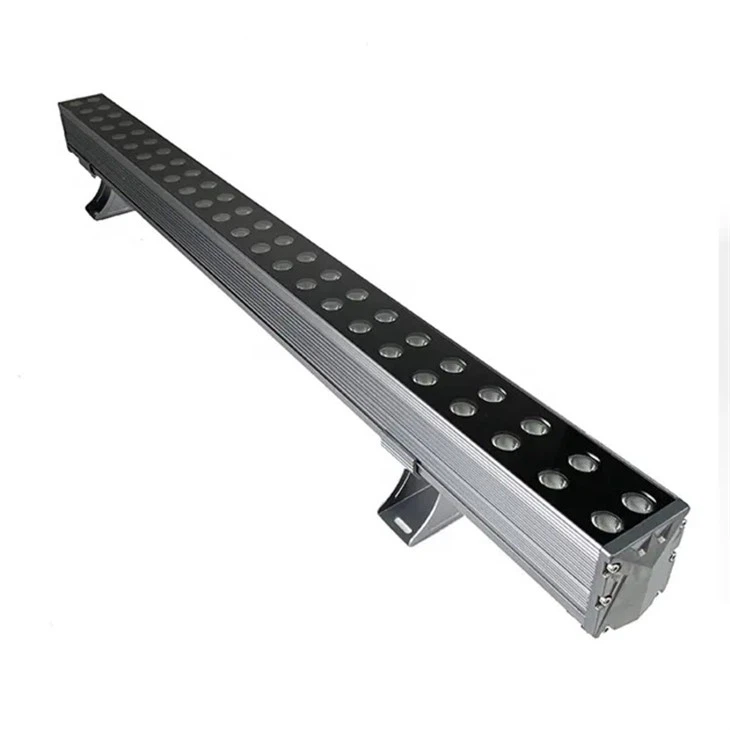

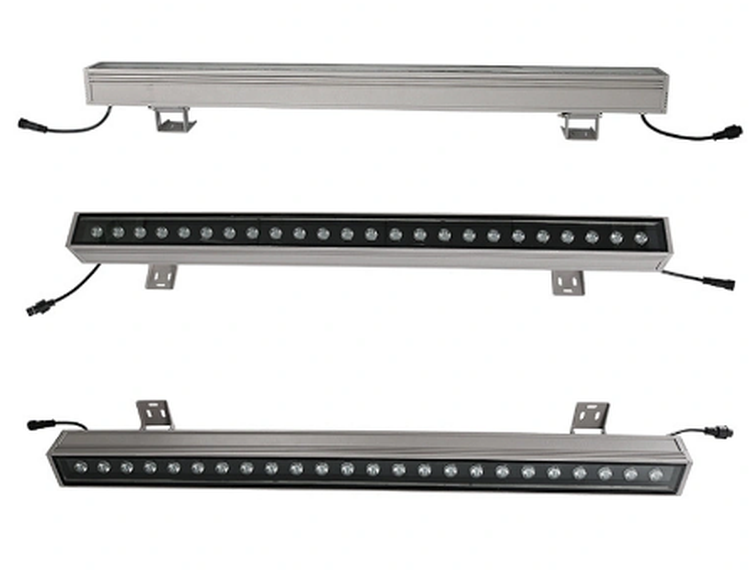

1. This 1000mm digital rigid led bar soldered by 2 pcs 500mm length PCB, every 6 LEDs drived by 1 pcs IC
2. PCB: white only, PCB width 50mm
3. Input voltage,AC85-265V,DC12V,24V led driver is also available
4. Protection grade is IP 65
5. PMAM lens,15°30°45°60° for your choice

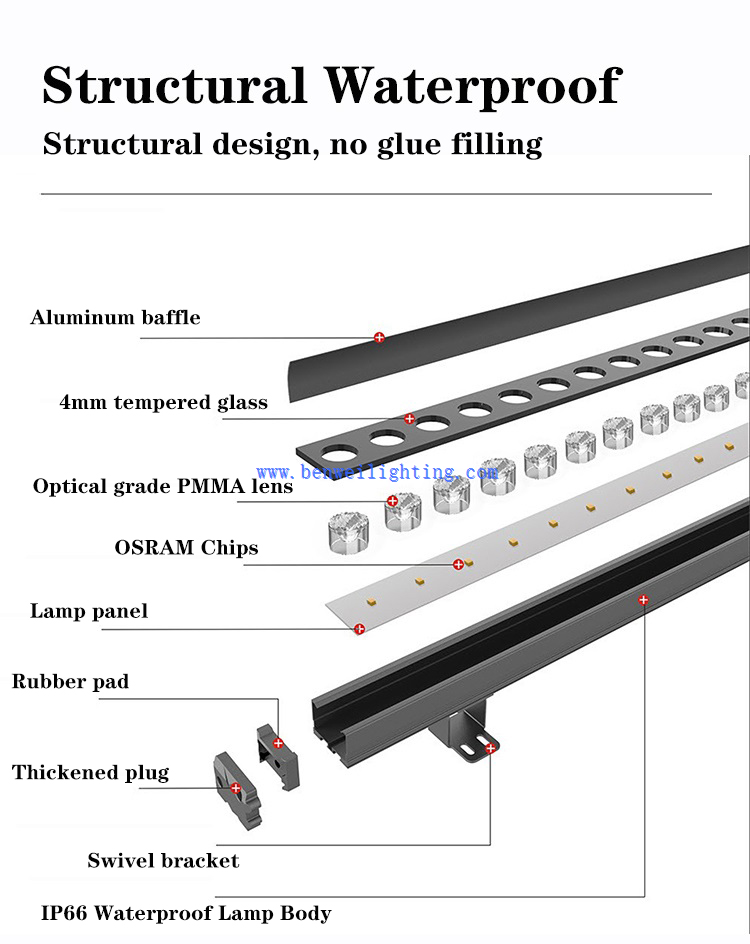

6. Ligt body is made of aluminum and tempered glass
Specification
| Model NO. | 18W/24W/36W/45W/72W |
| Chip brand | Epistar |
| Lumens | 90-100lm/w |
| Color Temperature | Single Color/RGB/RGBW |
| Working voltage | AC85-265V/12V/24V |

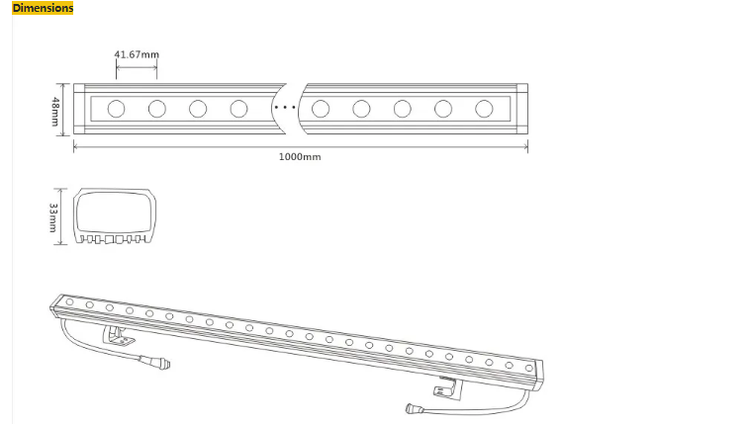

| Length | 0.5M, 1M |
| Beam angle | 10/25/30/45/60/90 Degree |
| Material | aluminum alloy & tempered glass |
| Usage | Outdoor Wash Effect |
| Lifetime | 50000H |
More details

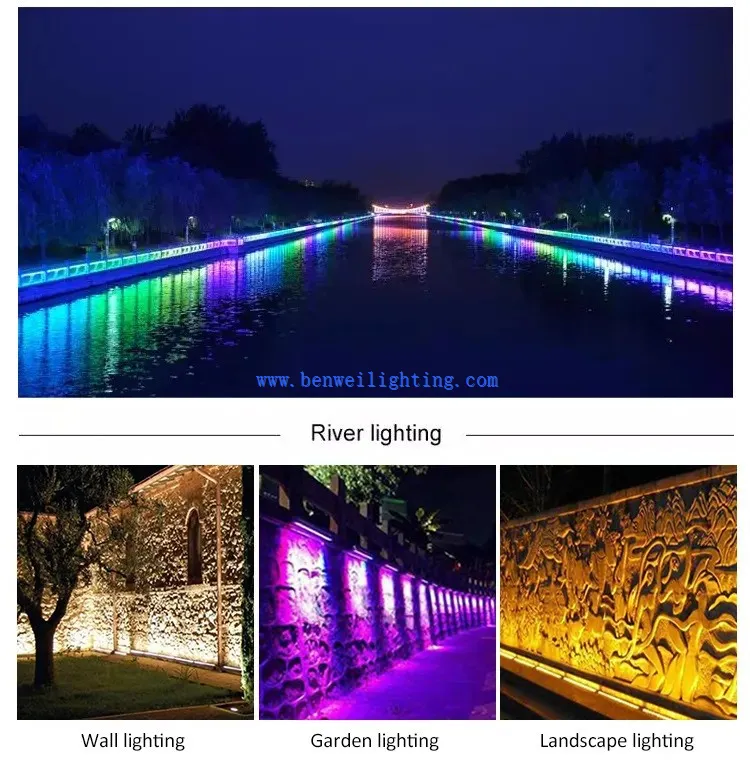

Applications
1.Architectural decorative lighting
2.Archway, canopy and bridge edge lighting
3.Amusement park, theater and aircraft cabin mood lighting
4.Emergency hallway lighting
5.Auditorium walkway lighting
6.Stairway accent lighting
7.Concealed lighting
8.Backlighting for signage letters
9.Channel letter lighting
10.Emergency exit path lighting
11.Cove lighting
12.Edge-lit acrylic panel lighting
