Products Description

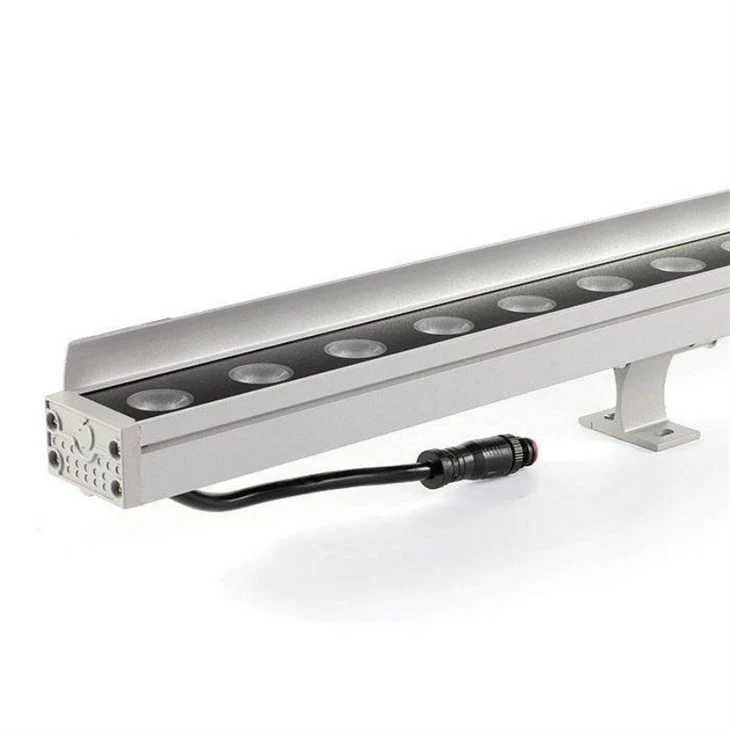

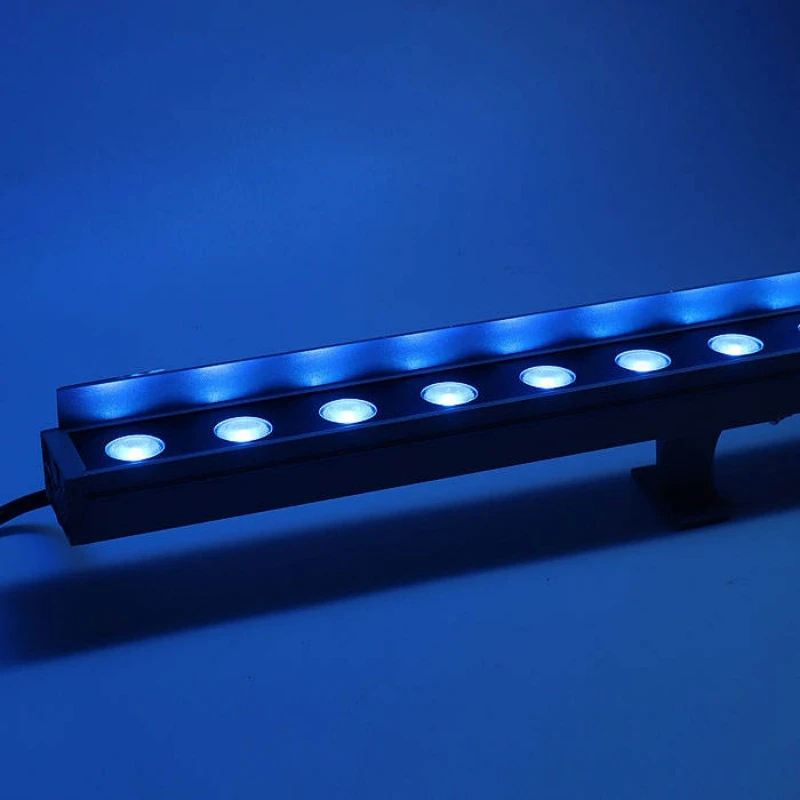

1. The top of the fixture features an outward-extending light shield, which focuses the beam more precisely onto the wall surface, minimizes upward light spill, creates cleaner light-and-shadow effects on the facade, and helps control light pollution.

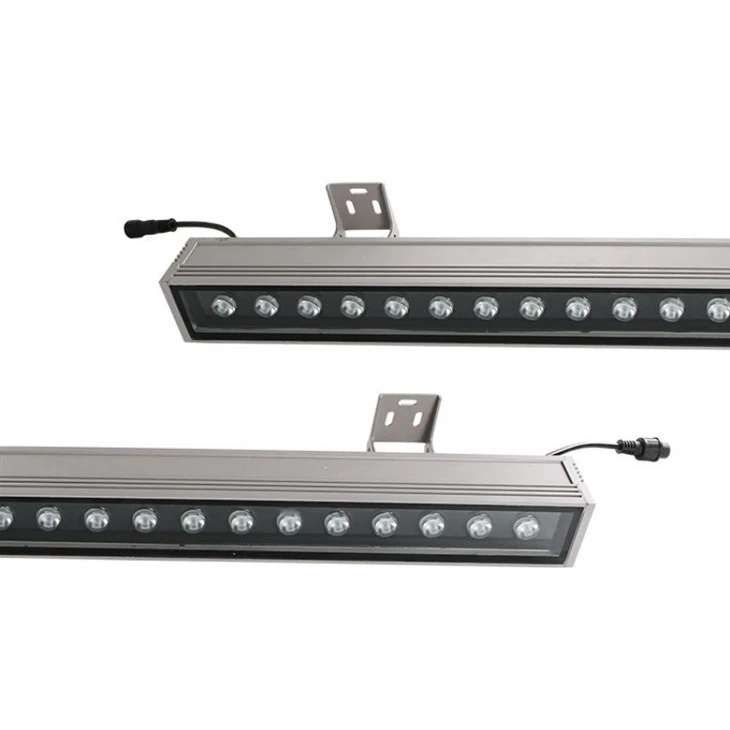

2. The fixture is equipped with adjustable mounting brackets, allowing for direct attachment to walls, cornices, or platforms. Installation is completed simply by tightening the screws-no need for cutting grooves or channels, making the construction process more efficient and hassle-free.

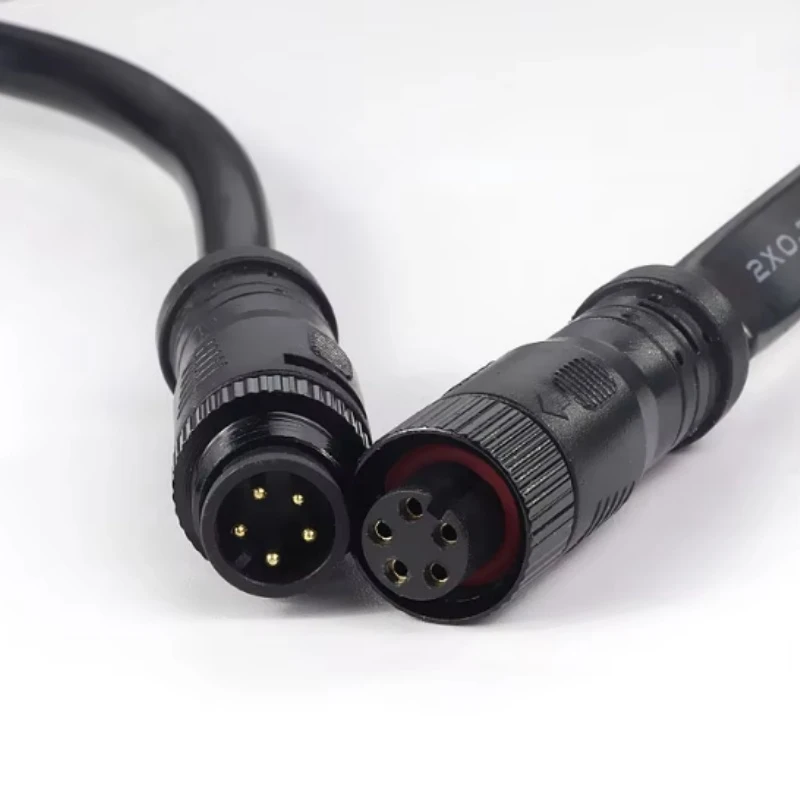

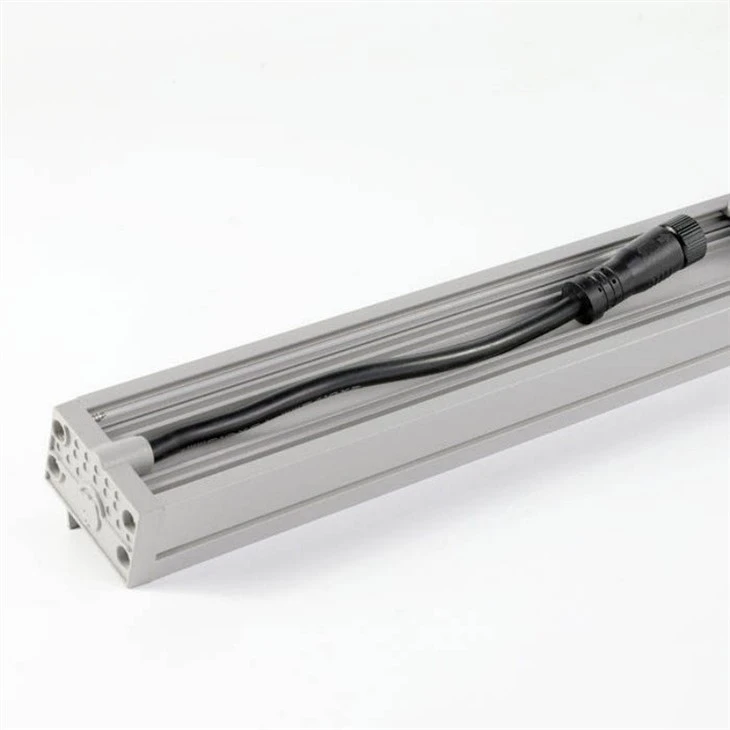

3. Each unit comes with cables featuring waterproof connectors at both ends, ensuring a secure, sealed connection. Multiple fixtures can be daisy-chained together, resulting in neat wiring and enhanced reliability for long-term outdoor use.

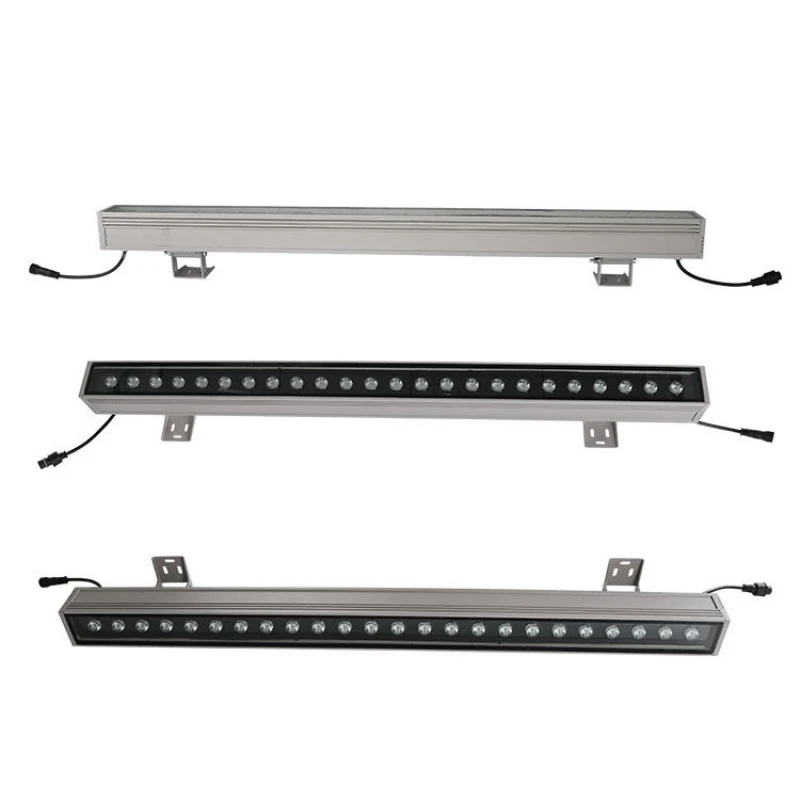

4. Connections can be made at either end of the fixture, facilitating seamless, continuous installation along the contours of a building. Whether for a small facade spanning a few meters or an extensive cornice line stretching dozens of meters, the system offers flexible configuration options.
| Products Name | IP65 Outdoor Waterproof LED Wall Washer Light | Input Voltage(V) | DC24V (AC100~265V version optional |
| Color Temperature(CCT) | 2700K,3000K,4000K,6000K | Installation | wall mounted |
| Application | wall bridge | Design Style | modern |
| Lifespan (Hours) | 50000 | Warranty(Year) | 5-Year |
| IP Rating | IP65 | Color Rendering Index(Ra) | 80 |
| Support Dimmer | no | Control Method | Switch control |
| Material | Aluminum | Lighting solutions service |
Lighting And Circuitry Design |
| Light Source | LED | MOQ | 2 |
| Control method | switch Control | Working Temperature(℃) | -20-50 |
| Certification | CE/RoHS | Power Factor | >0.90 |
| Power | 24w | Item Type |
LED wall washer Lights |
| Beam Angle(°) | 60 90 | Lamp Luminous Efficiency(lm/w) | 80 |
| PF | 0.90 | Lamp Luminous Flux(lm) | 1800lm |
| Switch Type | Touch On/Off Switch | Inner box size | 1068*85*75mm |
More Detial

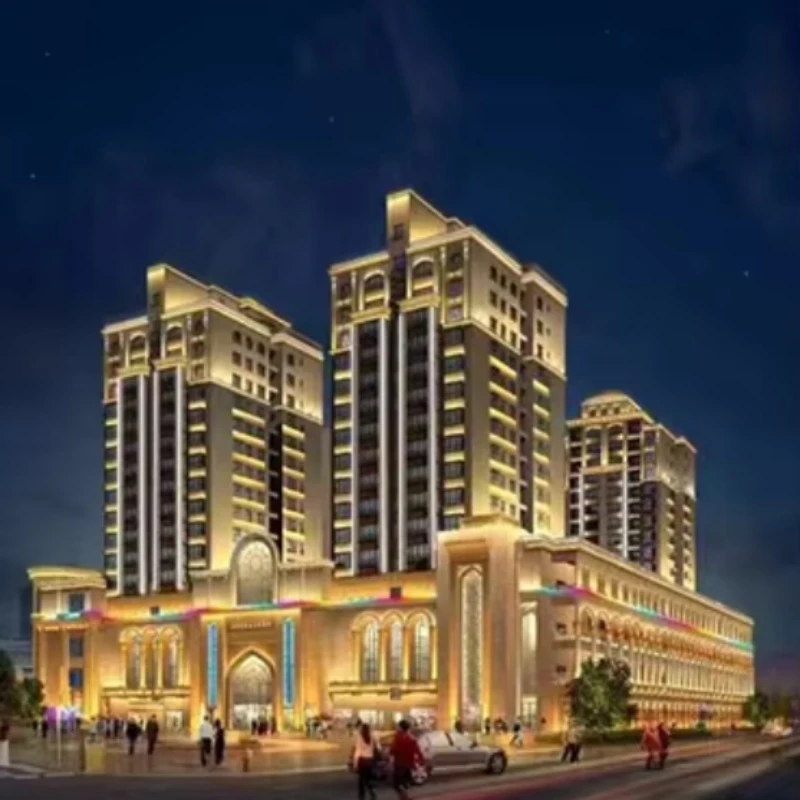

The quality of a wall-washer light hinges on three key factors: the uniformity of the light strip, ease of installation, and outdoor durability-areas where this particular product demonstrates a well-thought-out design. By arranging the LED beads in a single line and incorporating light-shielding edges along with waterproof connectors, it ensures that the light is focused precisely onto the wall surface while remaining resistant to the elements. For contractors, the ability to daisy-chain units and adjust colors helps minimize the required wiring and number of controllers, making it straightforward to create gradient lighting effects across a building facade.
