comparison of product parameters
| Input Voltage(V) | Dc 24V | IP Rating | IP65 |
| Color Temperature(CCT) | 5000K (Daylight), 6000K (Daylight Alert), 2000k, 3000k, 4000k | Lamp Luminous Efficiency(lm/w) | ≥80 |
| Lifespan (Hours) | 15000 | Lamp Body Material | Aluminum |
| Application |
Outdoor |
Color Rendering Index(Ra) | 80 |
| Warranty(Year) | 3-Year | Lighting solutions service | Onsite Metering, Project Installation, Auto Cad Layout, Agi32 Layout |
| Feature | Water Resistant, High Brightness | Light Source | LED |
| Item Type | Wall Washers | Place of Origin | Guangdong, China |
| Lamp Luminous Flux(lm) | ≥80 | Product Weight(kg) | 1 |

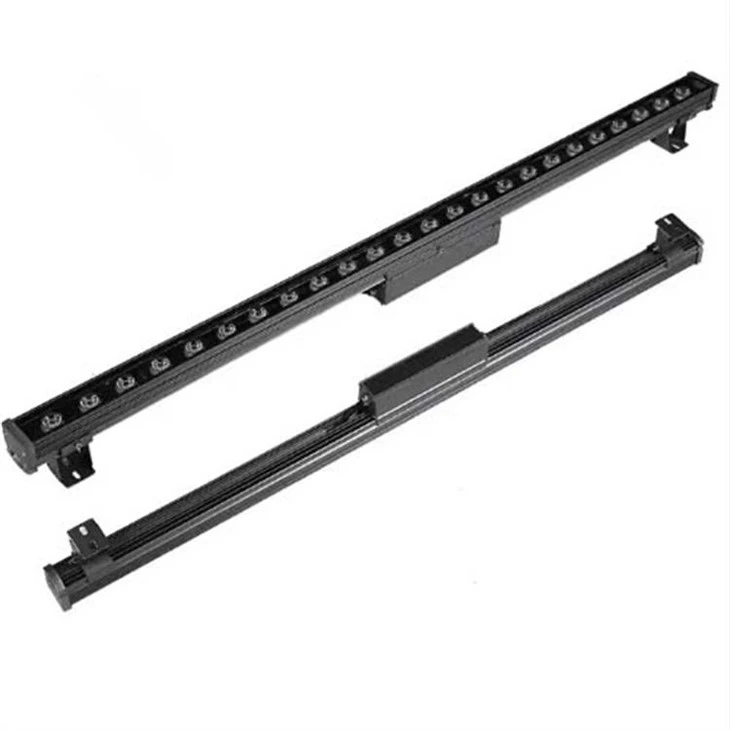

Superior Luminous & Optical Performance for Architectural Lighting
Adopts premium imported high-efficiency SMD LED light source chips, luminous efficiency up to 130lm/W, 75% energy saving compared to traditional halogen wall wash lights
High color rendering index CRI＞85, monochrome versions provide pure saturated single-color light; RGB/RGBW multi-color models support seamless gradient, strobing and dynamic color chasing effects for vivid building decoration
Independent convex optical lens for each LED bead, precisely controls beam angle (8°/15°/25°/30° optional), eliminates light scattering and dark gaps between adjacent lamps to achieve smooth, uniform long-distance wall washing coverage
Zero flicker constant-current power supply design, stable continuous light output without strobing, compliant with international landscape lighting safety standards
Multiple customizable color modes: warm white, neutral white, cool white, single red/green/blue, full-color RGB, RGBW 4-in-1 for diverse architectural atmosphere demands
Dimmable control compatibility: support DMX512, PWM and 0-10V dimming systems, easily connected to intelligent outdoor lighting control cabinets for programmable lighting shows
Low light decay optical design, centralized light energy projection without wasteful stray light, maximizing illumination distance and wall coverage area
Multi-Layer Dual Waterproof Sealing Technology
Thick elastic anti-aging silicone rubber sealing ring around the entire lamp panel edge, anti-crack and anti-hardening under long-term UV sunlight exposure
Corrosion-resistant metal waterproof cable gland for power wire outlet, dual protection of metal locking ring + silicone waterproof sleeve to stop water penetration along the cable

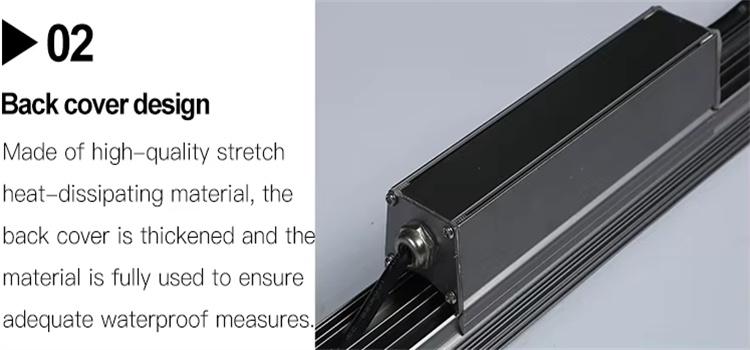

Fully enclosed isolated driver compartment with independent waterproof silicone gaskets, separate sealing from the main lamp cavity for double water resistance
Optimized anti-explosion internal circuit layout, isolated wiring structure to eliminate leakage risk caused by damp or dust buildup inside the lamp
Wide adaptive operating temperature range: -40°C ~ +60°C, stable lighting output in freezing winter snowfield and high-temperature summer coastal open-air environments
Salt fog resistant surface coating treatment, ideal for coastal buildings, port landscapes and seaside tourist attraction lighting projects without corrosion damage
Official Rated Lifespan & Lumen Depreciation
Nominal total service lifespan: 50,000 continuous working hours
8-hour daily landscape lighting operation: stable reliable performance for over 17 years
12-hour all-night building facade lighting: consistent brightness for more than 11 years
Strict lumen loss control standard (far better than cheap plastic thin-shell wall washers):
After 10,000 hours non-stop running: ≤4% total brightness attenuation
After 25,000 hours working: ≤7% lumen depreciation
After 40,000 hours working: only ≤12% light loss
At full 50,000-hour rated lifespan: maximum 16% light decay, while inferior wall washers lose over 40% brightness within 20,000 hours
Component Wear & Long-Term Loss Control Advantages
One-piece integrated aluminum shell with anti-corrosion electrostatic spraying coating, no rust, oxidation or deformation under long-term exposure to rain, salt fog and UV sunlight; zero housing replacement cost within 10 years
Reinforced adjustable stainless steel mounting bracket with anti-slip locking nuts, thousands of angle adjustments without slipping or loosening, no frequent hardware maintenance
Fully sealed isolated waterproof driver, driver service life reaches 48,000 hours, matching the long lifespan of LED chips, reducing repeated power supply replacement expenses
Linear splicing compatible structure: single faulty lamp can be removed independently without shutting down the entire building lighting circuit, avoiding large-area facade blackout loss for engineering projects
