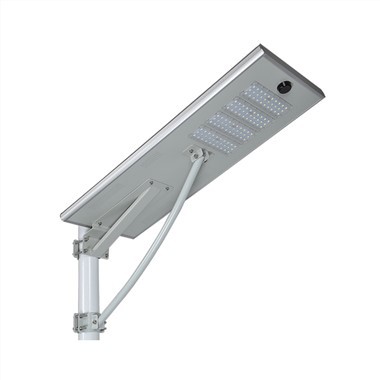

Like the other lights in the LKG line, the LKG-60W is a high-performance solar street lamp made for poles that are 8 to 10 meters high. The main parts are an 80W monocrystalline silicon solar panel that works very well (18% to 20% efficiency), a 12.8V/30AH lithium iron phosphate battery, and a 200LM/W SMD 3030 LED light source. The battery and processor are in different parts of the body, which is made up of separate modules. It works with thermal sensors and clever fading based on time segments. The lamp is 1318 mm long, 345 mm wide, and 135 mm high. Its base is IP65 waterproof and only 3.7 cm thick. Along city streets, in industrial parks, and other places, it can be used. The MPPT/PWM dual-mode processor saves energy in the best way, so the lighting system doesn't use any power and lasts a long time.
Detailed parameters
| Solar panel | 18 V / 80 W Monocrystalline Silicon | Size: 1310 mm × 340 mm |
| Battery | Lithium iron phosphate 12.8 V / 30 AH | Supports -30℃ cold start |
| Light effect | 200 LM / W | 12,000 lumens of total luminous flux |
| Overall size of the lamp | 1318 × 345 × 135mm | |
| Led chip | Philips3030, 250 PCS | |
| Controller | MPPT, PWM selectable | |
| Lighting mode | Infrared sensing + segmented time control + intelligent control | |
Application scenario
Municipal main road branch road
Two-way, four-lane road with poles 8 to 10 meters high and an uneven 70° to 140° light spot that illuminates 30 meters apart and has a consistency greater than 0.65, getting rid of the zebra pattern.
Port Area Industrial Zone
Channels for port supplies and dock work areas. The body's smooth shape cuts wind resistance by 30%, and the amount of lightning protection can be raised to 10kV.
Renovation of traditional street lamps
The city's project to upgrade the streetlights doesn't use wire, which saves 50% on cable costs. It works with Ø60–114mm round rods and U-shaped arms, and old poles don't need to be welded back together.
Off-grid transportation node
Service places and parking lots on the highway. The solar panels' tilt angle can be changed by ±15°, which means they can work in latitudes ranging from 20° to 45°. This makes sure that they charge efficiently in high-latitude areas during the winter.
