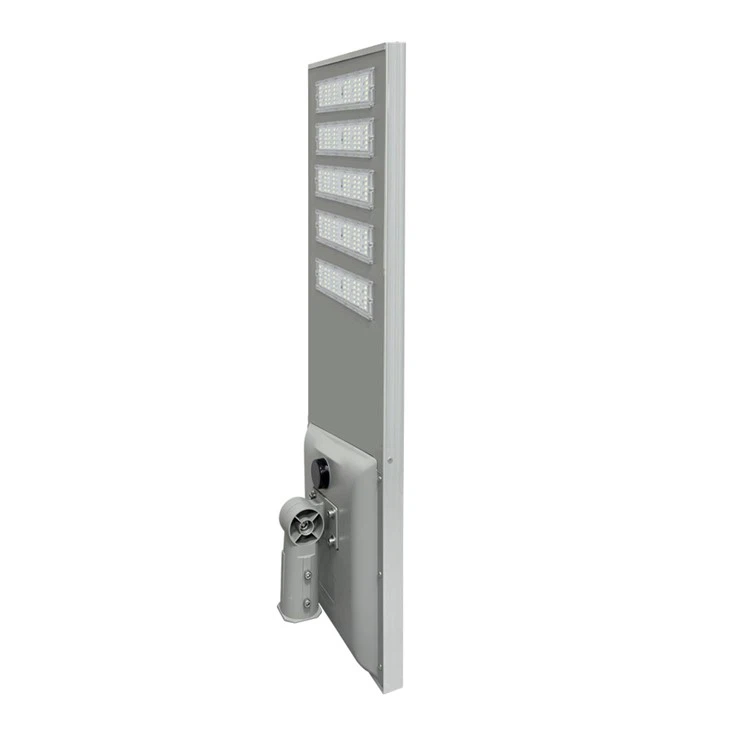

The LKG-60W is a high-performance solar street lamp in the LKG line made for medium-high poles that are 8 to 10 meters high. The core is made up of an 80W monocrystalline silicon solar panel that is very efficient (18% to 20%), a 12.8V/30AH lithium iron phosphate battery, and an SMD 3030 LED light source that is 200LM/W. The battery and processor are in different sections, and the structure is split modular. It supports infrared sensors and time-segment intelligent fading. The lamp is 1318 x 345 x 135 mm and has an IP65 waterproof body that is only 3.7 cm thick. It can be used for city side roads, industrial parks, and other places. The MPPT/PWM dual-mode processor makes the best use of energy, achieving a lighting system that uses no power and lasts a long time.
01
High luminous efficiency output
200LM/W luminous efficacy, 60W power output, 12,000LM luminous flux, covering an area of 80 square meters, with brightness enhanced by 40% compared to traditional 60W sodium lamps.
02

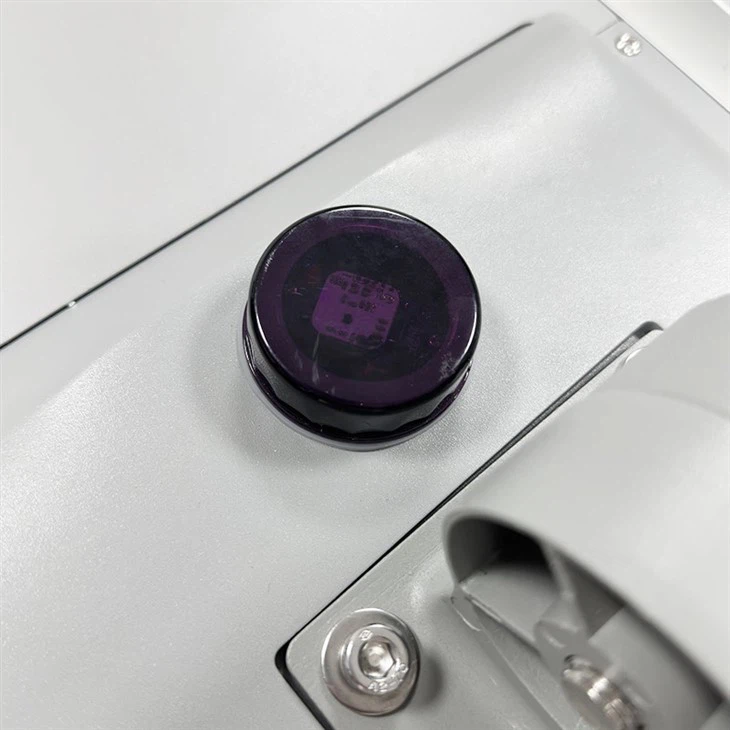

Intelligent Energy-saving System
Infrared sensing + four-level time-limited dimming: When people or vehicles approach, the power instantly reaches 100% (60W). Once they leave, it will automatically adjust according to the preset time period (for example, it will drop to 30% during the night). The overall energy-saving rate is over 60%.
03
High environmental resilience
The MPPT controller increases the charging efficiency on rainy days by 30%. The 12.8V high-voltage battery system supports cold start at -30℃. It has IP65 protection and 4K lightning protection to withstand rain and salt fog. The 6063 aluminum alloy radiator has passed the 240km/h wind tunnel test.
04
Precise Energy Management
An 80W high-power solar panel (1310×340mm) is paired with a 30AH battery, ensuring continuous power supply for 2 days in rainy conditions and throughout the night (12 hours per night).
Detailed parameters
| Solar panel | 18V / 80W Monocrystalline Silicon | Size: 1310×340 mm |
| Battery | Lithium iron phosphate 12.8 V / 30 AH | Supports -30℃ cold start |
| Light effect | 200LM/W | 12,000 lumens of total luminous flux |
| Overall size of the lamp | 1318×345×135mm | |
| Led chip | Philips3030, 250PCS | |
| Controller | MPPT, PWM selectable | |
| Lighting mode | Infrared sensing + segmented time control + intelligent control | |
Application scenario
Municipal main road branch road
Two-way four-lane road (pole height 8-10 meters), with 70°×140° asymmetric light spot achieving 30-meter spacing illumination, uniformity > 0.65, eliminating the zebra pattern.
Port Area Industrial Zone
Port logistics channels, dock operation areas. The streamlined body reduces wind resistance by 30%, and the lightning protection level can be upgraded to 10kV.
Renovation of traditional street lamps
The city's circuit lamp upgrade project features a no-wiring design, which saves 50% of cable costs; it is compatible with Ø60-114mm round rods/U-shaped arms, and there is no welding required for the renovation of old poles.
Off-grid transportation node
Highway service areas and parking lots. The inclination angle of the solar panels can be adjusted by ±15° (latitude range adaptable from 20° to 45°), ensuring the charging efficiency in high-latitude regions during winter.
Product features
The LKG-60W, with its three core competitive advantages of municipal-level light output, all-weather resilience, and intelligent energy management, has become the benchmark choice for medium and high pole road lighting. Its precise ratio of 80W photovoltaic panel to 30AH high-voltage battery ensures high brightness output while reducing the total life cycle cost by 40% (compared to conventional street lamps), making it particularly suitable for low-carbon urban infrastructure and industrial area lighting upgrades.
Optical engineering design
The light-blocking lens limits upward spillage of light to less than 5%. The rectangular light spot precisely matches the road contour. The 93% light transmittance PC lens with UV protection layer reduces insect aggregation.
Minimalist maintenance architecture
The quick-release battery compartment and controller module enable on-site maintenance to be completed in less than 10 minutes; the independent IP65 sealed chamber effectively prevents moisture and dust from entering.
Long-life core components
The lithium iron phosphate battery can be cycled more than 2,000 times (approximately 8 years), with aluminum substrate heat conduction and silicone seal for the light source, and the light attenuation is less than 5% over 50,000 hours.
Smart IoT Expansion
Reserve a 4G module interface (compatible with the remote control platform), and support APP control of lighting strategies, battery level alerts, and fault group management.
