comparison of product parameters
| Application | Street | Input Voltage(V) | AC100-305V |
| IP Rating | IP66 | Light Source | LED |
| Color Temperature(CCT) | 3000-6500K |
Color Rendering Index(Ra) |
70 |
| Lamp Body Material | Aluminum Alloy | Shade material | Plastic |
| Lifespan (Hours) | 50000 | Warranty(Year) | 5-Year |
| Power Supply | AC | Lighting solutions service | Lighting And Circuitry Design, Project Installation, Auto Cad Layout |
| Material | Aluminium | Place of Origin | Guangdong, China |
| Working Temperature(℃) | -30~+50℃ | Product name | Led Street Lamp |
| Usage | Outdoor Garden Landscaping Decorative | Power | 100/150/200/300W |
Core Optical Performance & Customizable Lens System
Adopts high-transmittance integrated PC optical lenses with multi-angle beam distribution options to meet diverse site lighting requirements
Available light distribution types: Type II, Type III, Type IV, Type V industry standard street light optical patterns
Optional beam angles: 120×50°, 145×100°, custom angles acceptable per client project specifications
High light transmittance lens material reduces light loss by over 15% vs generic flat covers, maximizing ground illumination uniformity
Anti-glare curved lens design eliminates dazzling light spill to adjacent buildings, fully compliant with international outdoor lighting anti-light pollution standards
Precision one-piece injection molding lens, resistant to yellowing and UV aging under long-term sun exposure

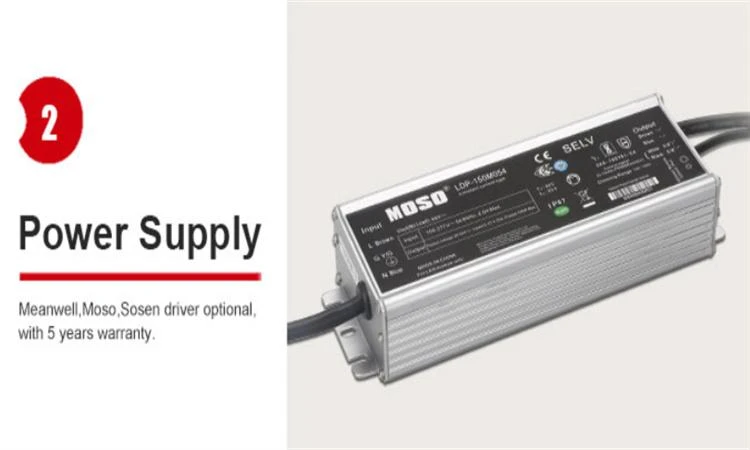

Premium Power Supply (LED Driver) & Long Service Lifespan Guarantee
Supports three world-renowned brand drivers as optional configurations: Mean Well, Moso, Sosen, all certified SELV safe low-voltage output
Full wide AC input range: 100-277V, stable constant current output, strong anti-surge & lightning protection up to 4kV
Intelligent constant current control chip avoids current fluctuation caused by grid voltage instability, protecting LED chips from burnout
Driver service warranty: Standard 5-year manufacturer warranty, low failure rate below 0.3% within warranty period
Matched with high-efficiency LED chips with 70,000-hour rated lifespan; L70 lumen maintenance reaches 60,000 hours (only 30% light attenuation after 60,000 working hours)
Ultra-low standby power consumption below 0.5W when idle, greatly lowering long-term operational electricity costs for commercial projects
Built-in over-voltage, over-current, over-temperature and short-circuit multi-layer protection circuits to extend overall fixture service life

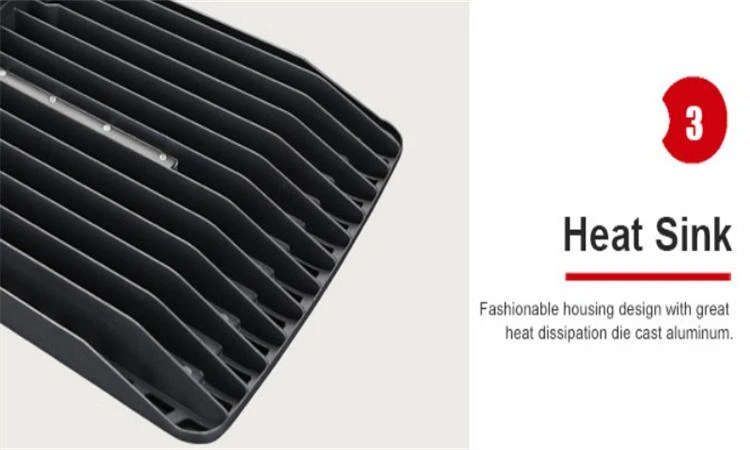

High-Efficiency Die-Cast Aluminum Heat Sink, Low Light Decay Performance
Whole lamp housing manufactured via pressure die-cast aluminum molding, forming integral thick fin heat sink structure
Multi-layer staggered deep groove heat dissipation design expands heat exchange surface area by 80% compared to smooth shell street lights
Rapidly conduct and radiate heat generated by LED chips and driver, effectively lowering internal working temperature by 12-18℃
Strictly control chip junction temperature below 75℃ under full load operation, fundamentally slowing light decay speed
Light decay test data: Less than 5% lumen loss after 10,000 hours continuous operation; only 18% lumen depreciation after 40,000 hours
Matte anti-corrosion electrostatic spraying surface treatment, anti-oxidation, anti-rust, maintains stable heat conduction efficiency for decades
Compact streamlined housing design balances heat dissipation performance and lightweight transport advantages, reducing shipping cost burden

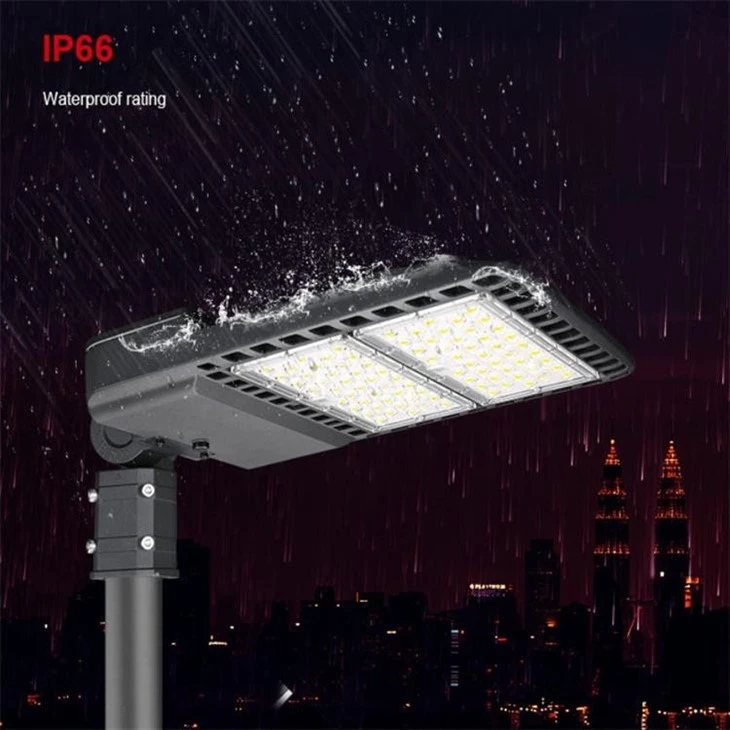

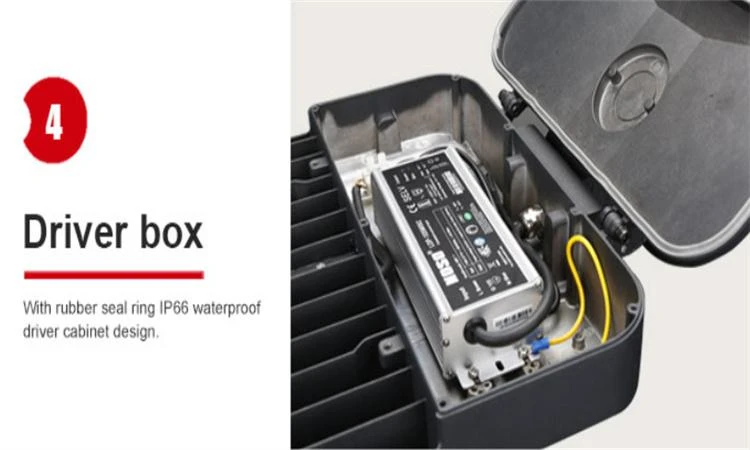

Independent Sealed Driver Box, IP66 Superior Waterproof & Dustproof Protection
Independent separated driver cabinet design with thick rubber sealing ring fully wrapped around the cover joint
Global standard IP66 ingress protection rating: completely dust-tight, resistant to powerful high-pressure water jet splashing from all directions
Double-layer silicone waterproof gaskets on lamp panel and driver box dual sealing positions, zero water leakage risk in heavy rain, snow and fog weather
All wiring ports equipped with waterproof cable glands, preventing rainwater and moisture from penetrating internal electrical components
Anti-corrosion internal coating inside driver box, avoids circuit board corrosion caused by coastal salt fog or industrial...
