comparison of product parameters
| Lamp Luminous Efficiency(lm/w) | 200 | Light Source | LED |
| Solar Cell |
Mono-Si |
IP Rating |
IP65 |
| Warranty(Year) | 3 | Certification | CCC, CE |
| Color Temperature(CCT) | 2700-6500K |
Color Rendering Index(Ra) |
70 |
| Power Supply | Battery | Application | Road |
| Support Dimmer | Yes | Lighting solutions service | Lighting And Circuitry Design, Dialux Evo Layout |
| Beam Angle(°) | 70*150 |
Place of Origin |
Guangdong, China |
|
Working Temperature(℃) |
-50-50 |
Product name |
Integrated Solar Led Street Light |
|
Material |
Die-casting Aluminum Alloy |
Keyword |
Solar Led Street Light Lamp |
|
Name |
Led Solar Light Outdoor |
Usage |
Street Road Garden Square Highway |
|
Solar panel |
Monocrystalline Silicon |
Battery |
Lithium LiFePO4 |
|
LED Light Source |
5050/5054SMD |
Item Type |
Solar Integrated Street Lamp |
Performance Specifications

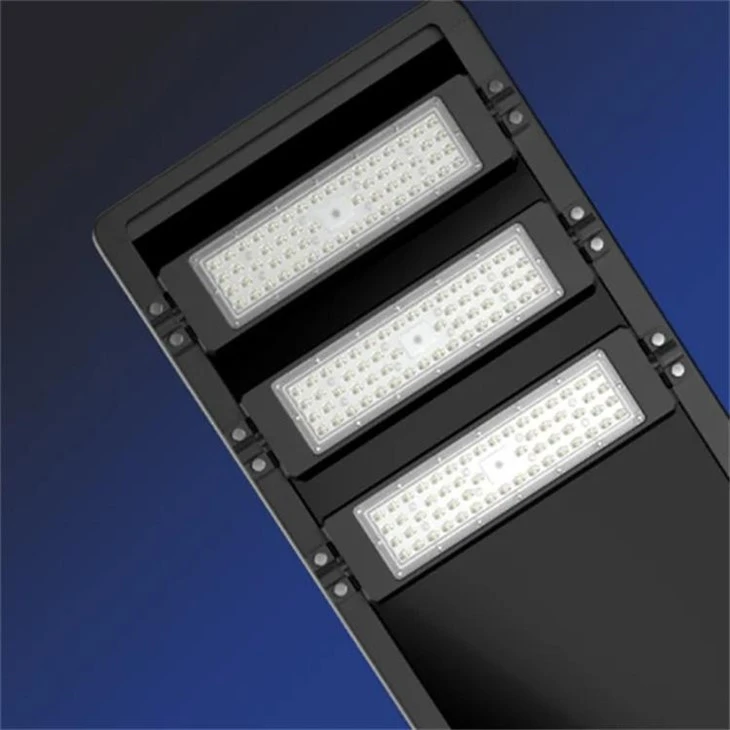

High-Brightness LED Engine: Equipped with premium-grade LED chips delivering outstanding luminous efficacy of 110–130 lumens per watt. The 200W configuration produces a powerful luminous flux of approximately 30,000 lumens, ensuring superior brightness and uniform light distribution across wide areas.
PC Optical Mask for Uniform Illumination: The precision-engineered polycarbonate mask ensures exceptional light uniformity, eliminating hotspots and dark spots to provide consistent, comfortable illumination across the entire coverage area. This optical design minimizes light pollution while maximizing usable light output.
Energy Savings Up to 70%: Compared to conventional street lighting technologies, this solar LED solution delivers energy savings of up to 70%, significantly reducing operational costs and carbon footprint.
Dual-Mount Lamp Holder Interface: The versatile lamp holder features an adaptable interface that accommodates two different mounting configurations, providing maximum installation flexibility for various pole types and site requirements.
Solar-Powered, Zero-Emission Operation: Harnesses free, renewable solar energy during daylight hours, storing power for nighttime illumination. This energy-saving and environmentally friendly design eliminates electricity costs and reduces dependency on traditional power grids.

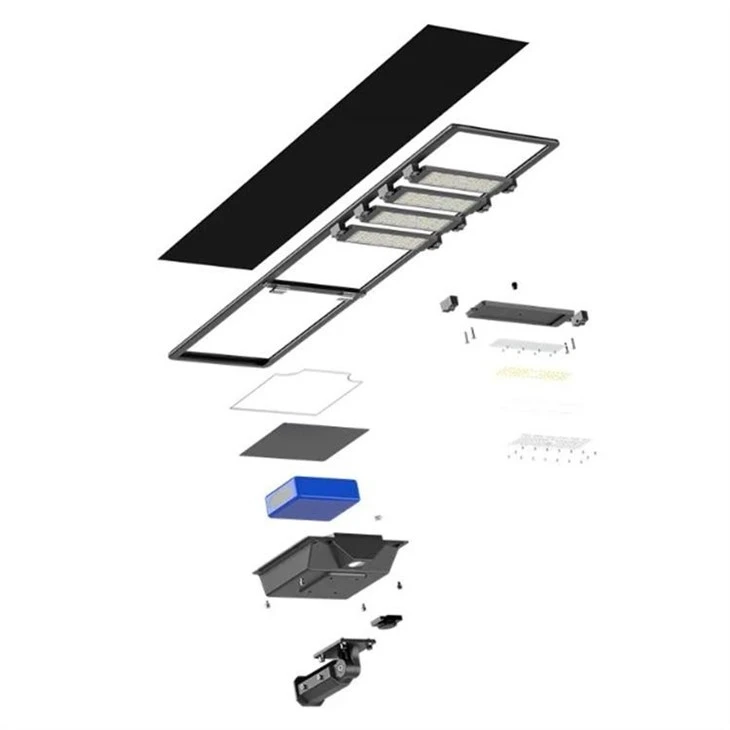

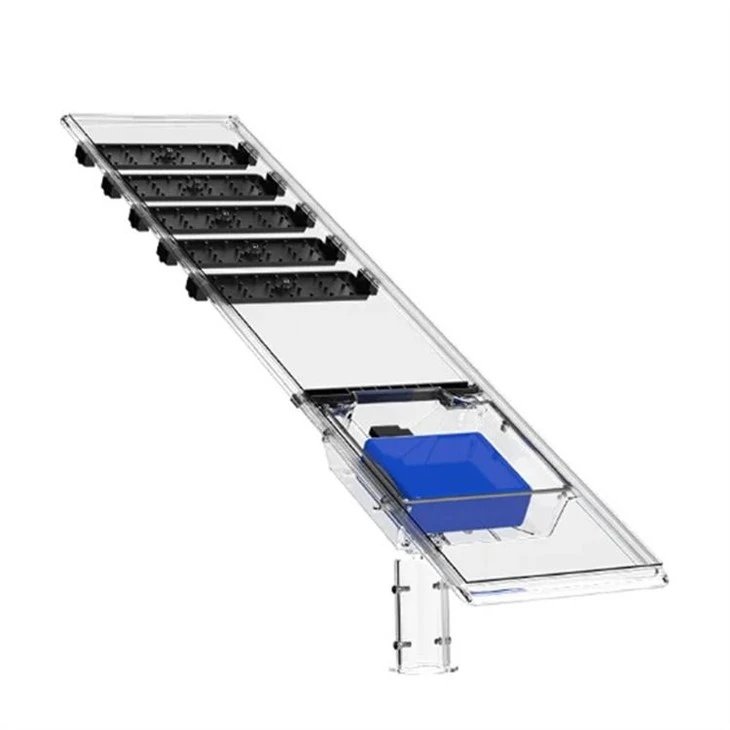

All-in-One Integrated Architecture: The self-contained unit incorporates the solar panel, battery, controller, and LED luminaire within a single compact housing, eliminating complex wiring, reducing installation time, and minimizing the risk of wiring errors.
Wide Operating Temperature Range: Engineered to perform reliably in extreme climates with an operating temperature range of -30°C to +50°C (-22°F to +122°F), making it suitable for deployment in diverse geographical regions.
High Color Rendering Index (CRI): Utilizing multi-chip encapsulation technology with premium imported LED modules, this luminaire delivers superior color rendering for enhanced visual clarity and safety.
MPPT Charge Controller: The built-in Maximum Power Point Tracking controller optimizes solar energy harvesting, intelligently regulates voltage, and protects the battery from overcharging and deep discharge.
Multiple Color Temperature Options: Available in a range of color temperatures from 3500K to 6000K to suit different application requirements and aesthetic preferences
Lifespan & Degradation
LED Service Life – 50,000+ Hours: The high-quality LED chips are rated for a minimum of 50,000 hours of operation at L70 lumen maintenance, meaning the light output will not drop below 70% of initial brightness throughout this period. This translates to over 15 years of reliable service based on 8–10 hours of nightly operation.
LiFePO₄ Battery – 3,000–5,000 Cycles: The integrated lithium iron phosphate battery delivers an exceptional 3,000 to 5,000 charge/discharge cycles, providing approximately 8 to 12 years of dependable performance under standard street-lighting duty cycles. This advanced battery chemistry offers superior thermal stability, safety, and longevity compared to conventional lead-acid or gel batteries.
Solar Panel – 25-Year Lifespan: The high-efficiency monocrystalline solar panel is engineered with a service life exceeding 25 years, ensuring decades of consistent energy harvesting with minimal degradation.
Minimal Lumen Depreciation: Advanced thermal management and premium-grade LED components ensure gradual, predictable lumen depreciation, maintaining consistent illumination quality throughout the product's operational life.
Low Maintenance Design: With no moving parts and sealed components, this luminaire requires minimal maintenance over its lifetime. The battery is the only component requiring eventual replacement, typically after 5–7 years of service.
Intelligent Battery Management System: The built-in BMS (Battery Management System) actively monitors cell balancing, temperature, and charge/discharge parameters to maximize battery lifespan and prevent premature failure.
Flexible Installation Structure

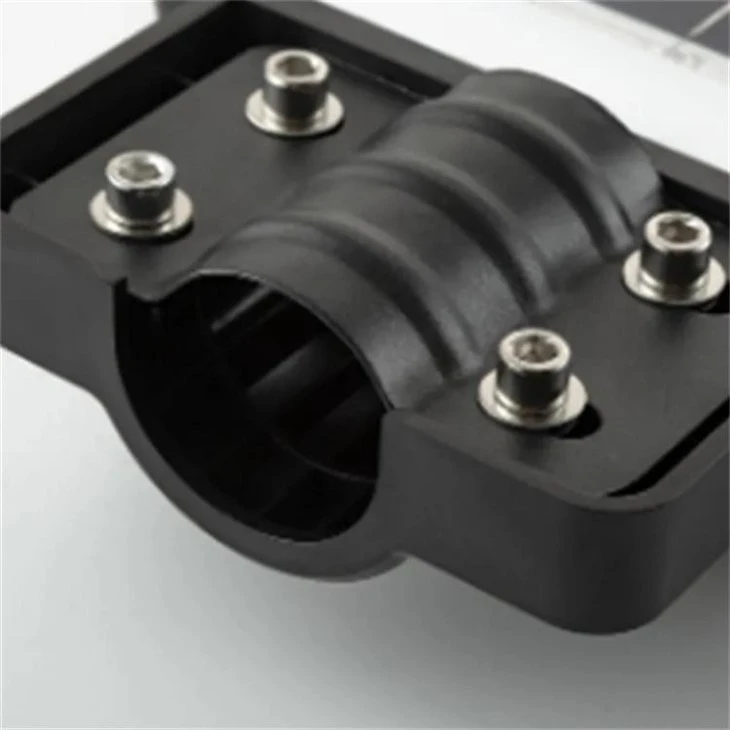

The dual-mode adjustable light holder interface allows for wall and vertical pole mounting to accommodate various installation requirements.
Users may adjust the mounting angle to maximise energy collection by fine-tuning the solar panel reception angle and lighting irradiation direction.
Fast assembly structural design reduces labour expenses by requiring only one person to complete installation without complex auxiliary equipment.
