product Specification
| Input Voltage(V) | Solar | Light Source | LED |
| Lamp Luminous Efficiency(lm/w) | 100 | Lifespan (Hours) | 50000 |
| Color Temperature(CCT) | 6000K (Daylight Alert) | Color Rendering Index(Ra) | 80 |
| Lighting solutions service | Lighting And Circuitry Design | Working Temperature(℃) | -20 - 60 |
| Warranty(Year) | 3-Year | Lamp Body Material | ABS |
| Product Weight(kg) | 10 | Support Dimmer | Yes |
Core Product Features
1. All-in-One Integrated Design: 5-Minute Fast Installation
Unlike traditional split solar street lights that require separate installation of solar panels, batteries, and controllers, this fixture integrates everything into a single compact unit: high-efficiency solar panel, large-capacity lithium battery, premium LED modules, and intelligent control system. This revolutionary design eliminates the need for costly trenching, wiring, and professional electrical work, cutting installation time by 90% and labor costs by up to 70%. Simply mount it to any standard light pole, tighten the screws, and it's ready to use-perfect for quick retrofits and new construction projects.
2. 20-25% High-Efficiency Monocrystalline Solar Panel
Equipped with premium monocrystalline silicon photovoltaic panels, this solar street light achieves an industry-leading energy conversion rate of 20-25%. It fully charges its built-in battery in just 6-8 hours of direct sunlight, and a single full charge provides 5-7 consecutive days of illumination-even during prolonged rainy or cloudy weather. This ensures your roads and public spaces stay lit 24/7, no matter what the forecast brings.
3. High-Brightness Modular LED Chips with Long Lifespan

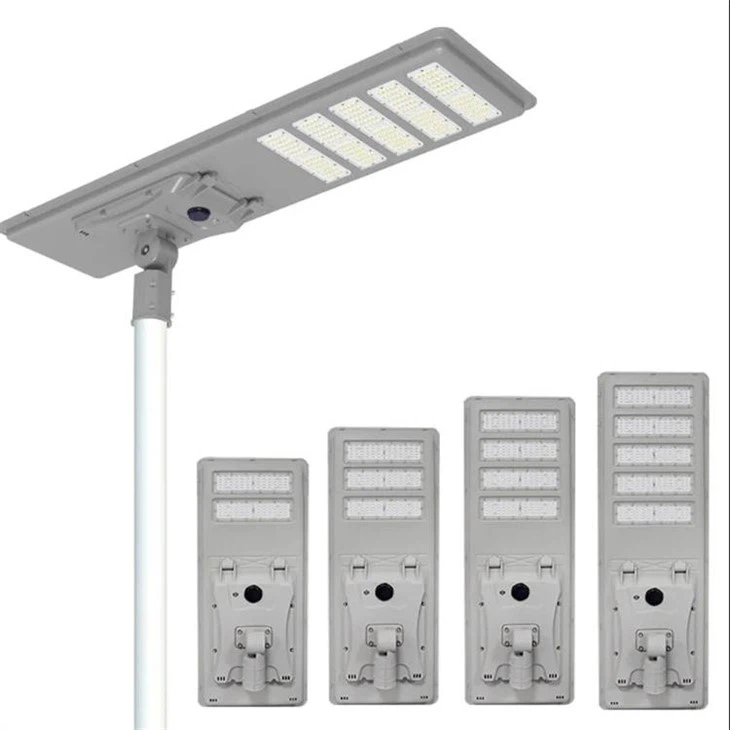

Featuring industrial-grade SMD LED chips arranged in a modular design, this street light delivers powerful, uniform illumination with exceptional color rendering. Available in four power options (100W, 150W, 200W, 250W), it can cover roads of different widths and meet various lighting requirements. The die-cast aluminum housing acts as an efficient heat sink, dissipating heat rapidly to extend the LED lifespan to over 50,000 hours-meaning you'll enjoy decades of reliable performance with zero bulb replacements.
Core Product Features

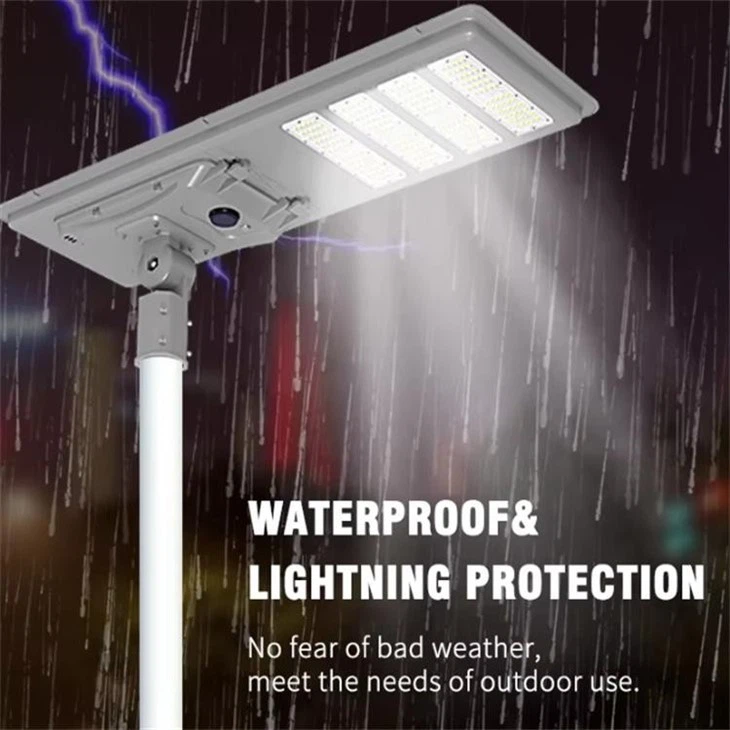

4. IP66 Waterproof + Lightning Protection for Extreme Durability
Built to withstand the harshest outdoor environments, this street light boasts an IP66-rated fully sealed housing that is completely dustproof and resistant to heavy rain, snow, and high-pressure water jets. It also features built-in lightning protection technology that safeguards the internal components from voltage surges and lightning strikes. Whether installed in tropical regions with heavy rainfall or arid areas with frequent sandstorms, it will keep shining bright year after year.
5. 180° Adjustable Bracket for Precision Lighting
The heavy-duty rotatable support arm allows the entire fixture to tilt up to 180 degrees, so you can fine-tune the lighting angle to perfectly match your specific needs. Whether you're illuminating a narrow residential street, a wide highway, or a large parking lot, you can direct the light exactly where it's needed to eliminate dark spots and ensure maximum visibility and safety.
6. Intelligent Automatic Control System
The built-in smart controller features light sensor and PIR motion detection technology for fully automatic operation:
Light Control: Automatically turns on at dusk and off at dawn, no manual intervention required.
Motion Sensor: Increases brightness to 100% when motion is detected, and dims to 30% power when no one is around to save energy and extend battery life.This intelligent system maximizes energy efficiency while ensuring safety and convenience.
🛠️ Super Easy Installation & Usage Guide
This solar street light is designed for tool-free, DIY installation that anyone can complete in minutes:
Step 1: Prepare the Mounting Surface
Ensure your light pole is sturdy and has a diameter compatible with the included mounting bracket (fits most standard 60-76mm poles).
Step 2: Mount the Fixture
Slide the adjustable bracket onto the top of the light pole.
Tighten the three locking bolts securely to hold the bracket in place.
Attach the integrated solar street light unit to the bracket using the included screws.
Step 3: Adjust the Lighting Angle
Loosen the adjustment knob on the support arm, tilt the fixture to your desired angle (0-180°), then retighten the knob to lock it in place. For optimal solar charging, angle the solar panel to face south (in the Northern Hemisphere) or north (in the Southern Hemisphere) at a 30-45° tilt.
Step 4: Activate the System
Turn on the main power switch located on the back of the fixture. The system will automatically enter intelligent mode: it will charge during the day and turn on automatically at night.
Maintenance Tips
Clean the solar panel surface with a soft cloth every 2-3 months to remove dust and dirt, which can reduce charging efficiency.
Inspect the mounting bolts and connections annually to ensure they are tight and secure.
The lithium battery has a lifespan of 5-8 years and can be easily replaced when needed.
