comparison of product parameters
|
Lamp Luminous Efficiency(lm/w) |
140 | Light Source | LED |
| IP Rating | IP65 | Lifespan (Hours) | 50000 |
| Warranty(Year) | 5-Year | Certification | RoHS, CE |
| Color Temperature(CCT) | 6000K (Daylight Alert) | Color Rendering Index(Ra) | 80 |
| Power Supply | Solar | Application | Road |
| Support Dimmer | Yes | Lighting solutions service | Lighting And Circuitry Design, Onsite Metering, Project Installation |
| Input Voltage(V) | AC 85-165V | Place of Origin | Guangdong,China |
| Beam Angle(°) | 140 | Lamp Luminous Flux(lm) | 70000 |
| Product Weight(kg) | 10 | Working Temperature(℃) | -30 - 60 |
| Product name | Integrated Solar Led Street Light | LED Light Source | 3030 / 5050 |
| Working mode | Automatic Sensing+remote Control | Color Temperature(CCT) | 3000-6000K |
| Material | Aviation Aluminum | Color | Black |
LED Lighting Module Performance & Luminous Output

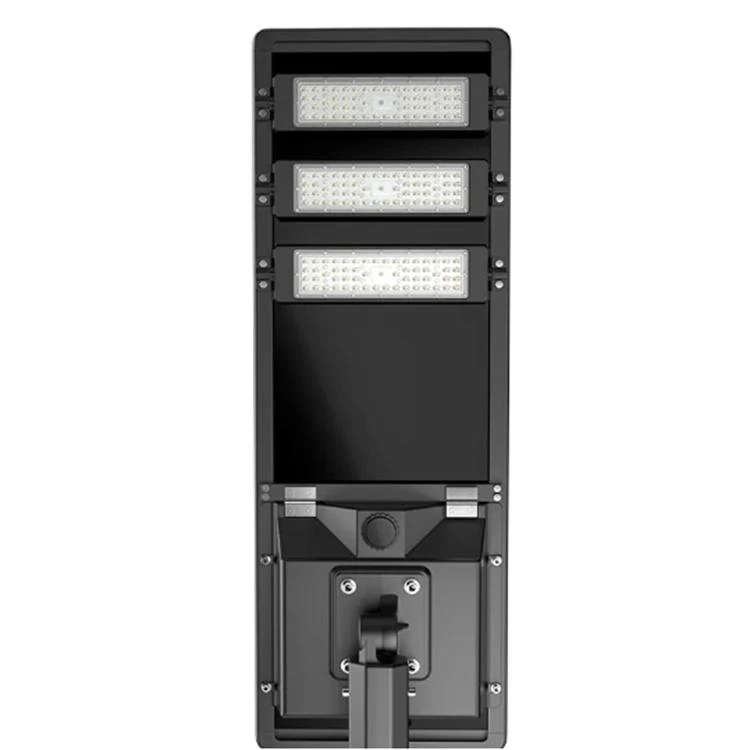

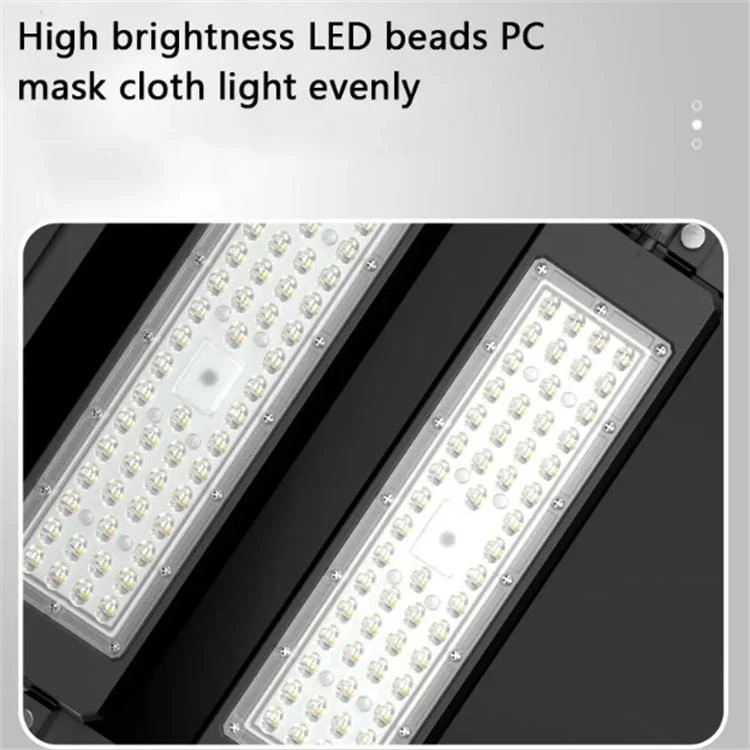

Uses three separate, detachable light modules with high-density, high-brightness SMD LED beads, allowing for power customisation from 100W to 300W to meet various road illumination width needs.
With a high-transmittance PC optical mask diffuser and a light refraction structure that has been scientifically optimised to remove uneven light spots, it can provide wide-angle homogeneous flood lighting without edge dark zones or center over-brightness.
excellent CRI ≥80, pure neutral white 6000K colour temperature, excellent luminous efficiency up to 180lm/W, and restoration of genuine object colour for unobstructed nighttime vision.
Modular split lamp board design significantly reduces post-maintenance costs and part waste by allowing the replacement of a single broken LED module without replacing the whole lamp.
The low glare anti-dazzle optical lens design conforms with international outdoor road lighting anti-glare requirements and prevents light pollution of adjacent residential windows.
Solar Panel Power Generation Performance
Large-scale, premium monocrystalline silicon solar panels that are built in have a conversion efficiency of up to 22%, which is much greater than that of traditional polycrystalline panels.
Under poor sunlight (dawn, dusk, overcast weather), the panel surface coated in scratch-resistant tempered glass with an anti-reflection coating increases the rate of light absorption.
Water seepage gaps are eliminated by the integrated seamless bonding between the solar panel and lamp housing, and a self-cleaning coating on the panel's surface minimises the buildup of dust and bird droppings to maintain consistent charging efficiency throughout the year.
The lamp body's optimised MPPT intelligent charge controller automatically modifies the charging current to optimise solar energy collection and shields the battery pack from overcharging, overdischarging, and short-circuit damage.
IP Protection Grade & Full Weather Resistance
The whole light unit has an official verified IP65 full waterproof certification.
Dust protection level 6: Completely dust-tight; no internal short circuit brought on by dust buildup; zero fine dust penetration into internal LED, battery, and circuit components.
Water protection level 5: Internal circuit compartments use double-layer silicone rubber sealing strips to prevent water vapour entry; completely withstands heavy rain, thunderstorms, and seasonal snow melting water; resists low-pressure water jet splash from any angle.
With a broad operating temperature range of -40°C to +60°C, it can withstand both very cold northern winters and hot tropical summers without experiencing brightness fading or battery failure.
Under prolonged exposure to intense sunlight, the UV-resistant PC light mask and aluminium shell anti-aging treatment stop the shell from yellowing, splitting, and becoming brittle.
For outdoor, open-air installations, an integrated lightning protection circuit embedded into the control board protects interior electronic components from thunderstorm surge damage.
