comparison of product parameters
|
Application |
Parking Lot |
Input Voltage(V) |
AC 85-265V |
|
Certification |
CE |
IP Rating |
IP65 |
|
Light Source |
LED |
Lamp Luminous Efficiency(lm/w) |
other |
|
Light Distribution Shape |
Type III |
Color Temperature(CCT) |
other |
|
Color Rendering Index(Ra) |
70 |
Lamp Body Material |
Aluminum alloy |
|
Shade material |
Aluminum |
Lifespan (Hours) |
50000 |
| Warranty(Year) | 3 |
Power Supply |
AC |
|
Lighting solutions service |
other |
Material |
Aluminium |
|
Place of Origin |
Guangdong, China |
Lamp Luminous Flux(lm) |
23000 |
|
Product Weight(kg) |
6 |
Working Temperature(℃) |
-30~50 |
|
Power supply mode |
Alternating current |
Input Voltage |
AC100-305 |
|
Protection level |
IP65 |
Shell material |
Aluminium |
Core Features & Performance

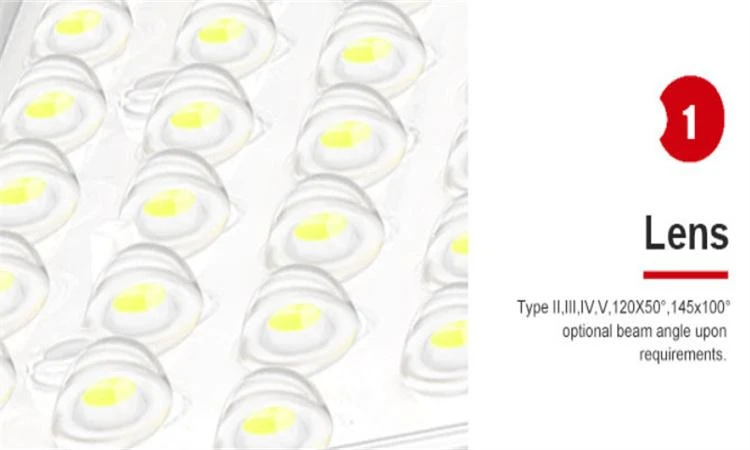

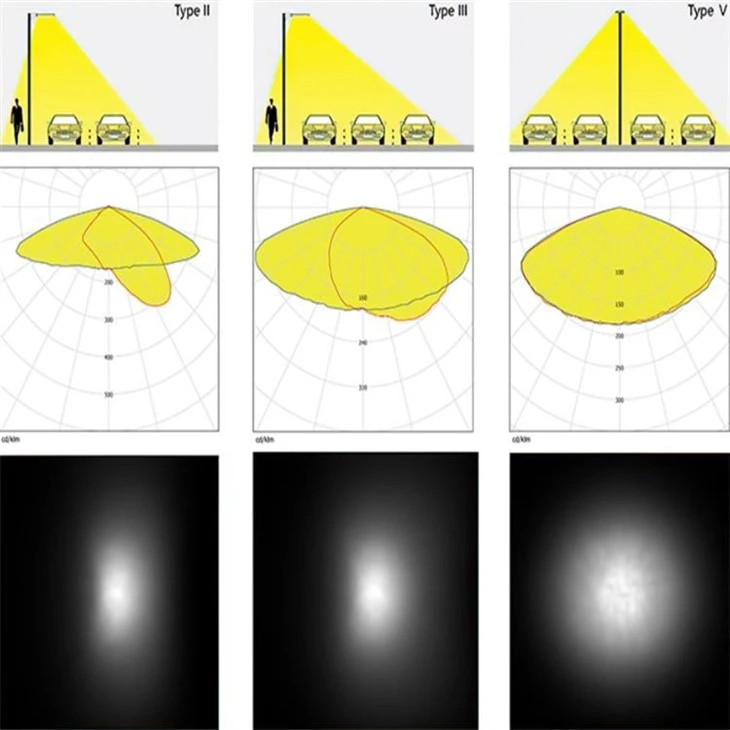

✅ Advanced Independent Optical Lens System Equipped with customized PC optical lenses, multiple light distribution options available: Type II / III / IV / V, optional beam angles 120×50°,145×100°. Precisely controls light output, eliminates light waste & glare, achieves uniform illumination, greatly improving road and ground lighting utilization.

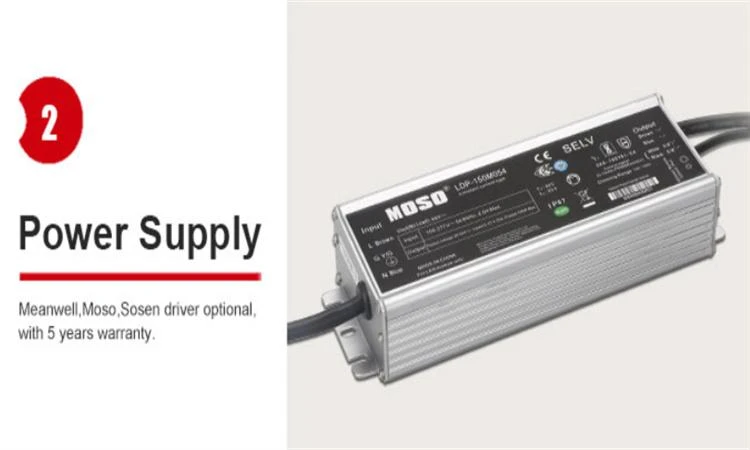

✅ Premium Branded Constant Current LED Driver Support Meanwell, Moso, Sosen international famous drivers as optional selection. Stable constant current output, wide voltage input range, excellent surge & lightning protection. Comes with 5-year official warranty, effectively lowering failure risks in long-running outdoor environments.

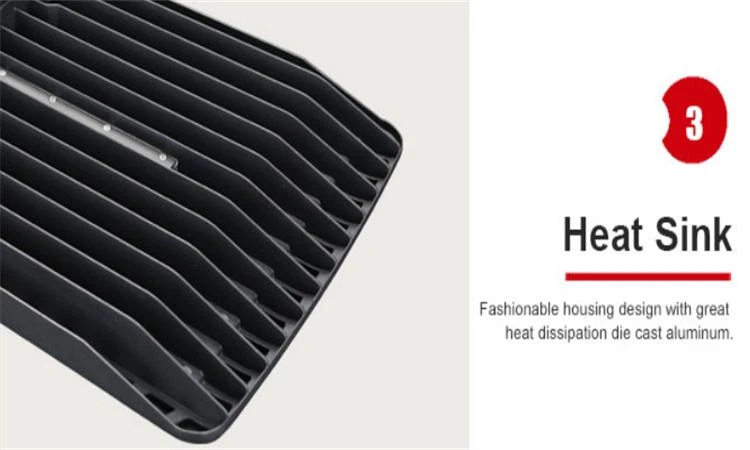

✅ Optimized Die-Cast Aluminum Heat Sink Structure Adopts grooved ribbed die-cast aluminum heat sink. Large heat dissipation contact area, rapid heat convection, efficiently transfer heat generated by LED chips. Low working temperature for light source and driver, suppresses light decay significantly.
Core Features & Performance

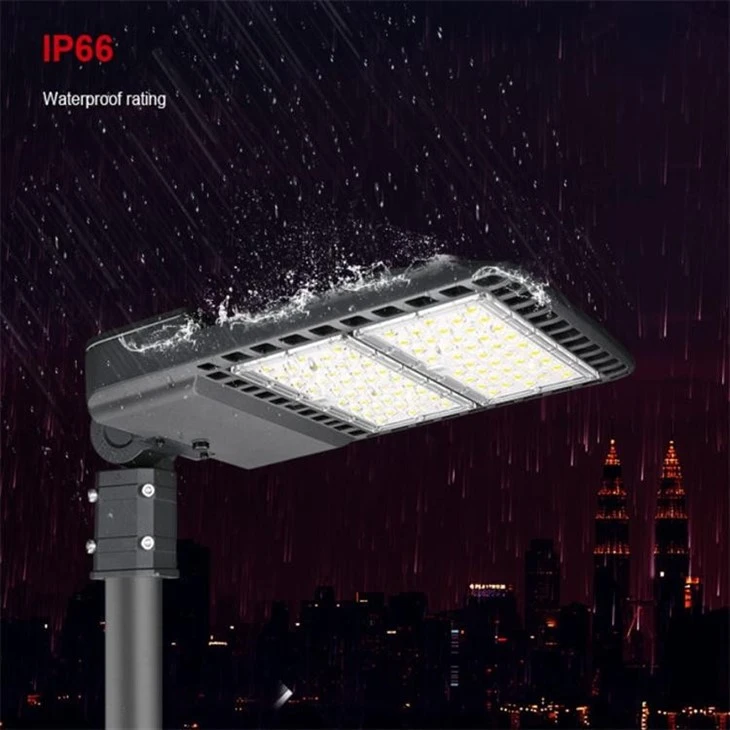

✅ Superior IP66 Waterproof & Dustproof Rating Full sealed structural design reaches IP66 protection grade. Effectively blocks rainwater, dust, moisture and sand intrusion. Perfect for all-weather outdoor scenarios, stable performance under heavy rain, high humidity and dusty conditions.
✅ Long Service Life & Low Light Attenuation High-quality LED chips with ultra-low luminous depreciation. Scientific thermal management keeps LED junction temperature within safe range. Rated average lifespan over 50,000 hours. Slow light decay ensures consistent brightness for years, greatly reducing lamp replacement frequency.

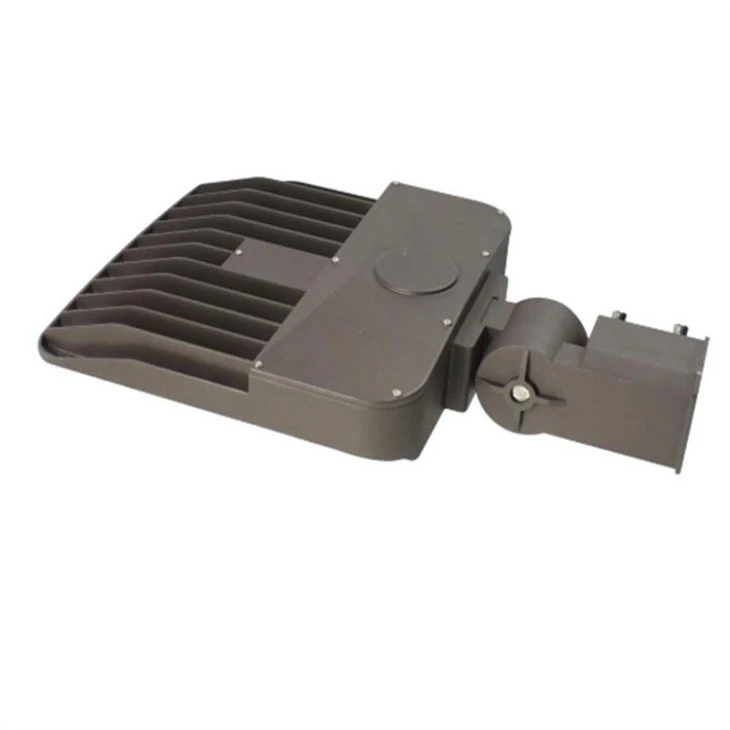

✅ Flexible Adjustable Mounting Bracket Integrated rotatable mounting bracket allows flexible angle adjustment during installation. Compatible with pole mounting for street light poles, easy installation and on-site lighting angle calibration.
Core Features & Performance
✅ Robust Anti-Corrosion Housing Surface treated with anti-oxidation coating, resistant to corrosion, ultraviolet radiation and aging. Not easy to fade even under long-term outdoor sunlight exposure, maintains complete appearance for long-term use.
✅ Zero Warm-up Time, Instant Full Brightness Turns on instantly to full brightness without preheating; supports frequent switching. No flickering, no stroboscopic effect, provides comfortable and stable outdoor lighting.
✅ Wide Application Scenarios Widely applicable for parking lots, municipal roads, highways, factory yards, campus roads, community plazas, logistics parks and other outdoor area lighting projects.
