LKG-20W is an ultra-compact stand-alone solar street lamp in the LKG series, specially designed for low-pole lighting scenarios. Its core configuration includes a 35W high-efficiency monocrystalline solar panel, a 3.2V/36AH lithium iron phosphate battery, and a 210LM/W light efficiency SMD 3030 LED light source. It adopts a modular detachable structure, supports infrared sensing + time-segment intelligent dimming, and has an IP65 protection rating with a body thickness of only 3.7cm. It is compatible with 4-5-meter low-pole installations, providing zero-cost electricity and no-wiring precise lighting solutions for community walkways, courtyards, and other scenarios. The overall size of the lamp is 638×345×135mm, and its weight is only 6.2kg.
01
Low power, high brightness
Outputting 20W power with a luminous flux of 4,200LM (210LM/W × 20W), covering an area of 30 square meters, its brightness is 40% higher than that of similar products in the industry with the same power.
02
Intelligent Energy-saving System

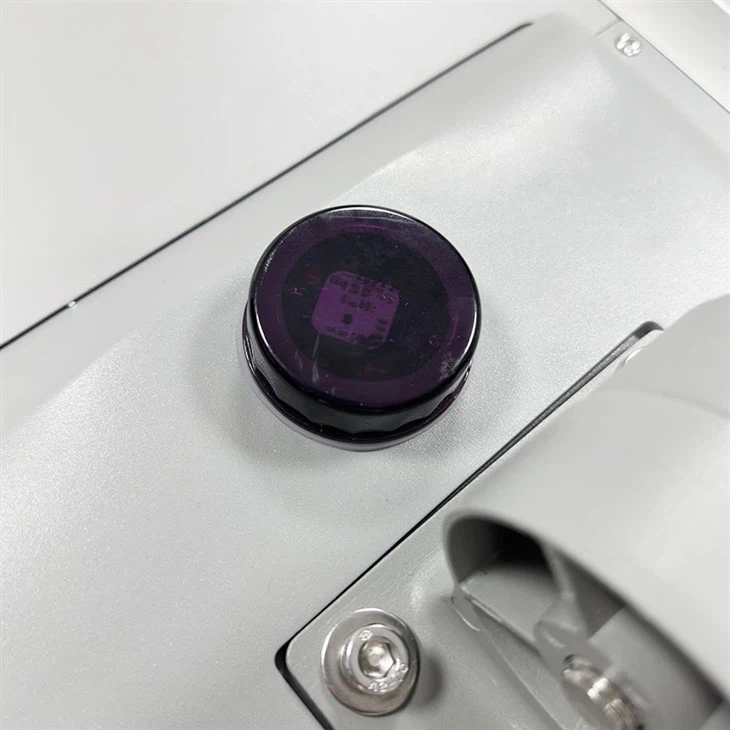

Three-level dimming logic (infrared sensing + time control): When people or vehicles approach, the power is at 100% (20W). Once they leave, the power is automatically reduced in stages to 30% (6W). The overall energy-saving rate is over 65%.
03
Disruptive maintenance design
The battery compartment can be quickly disassembled independently (without requiring the entire lamp to be disassembled). The replacement process takes less than 5 minutes, and the maintenance efficiency is increased by 90% (traditional lamps require crane operations).
04
Tolerance to extreme environments
6063 aluminum alloy radiator with thickened anti-corrosion paint, passed salt spray test (in accordance with ASTM B117 standard for 500 hours); -20℃ low-temperature self-starting battery, suitable for cold regions.
Detailed parameters

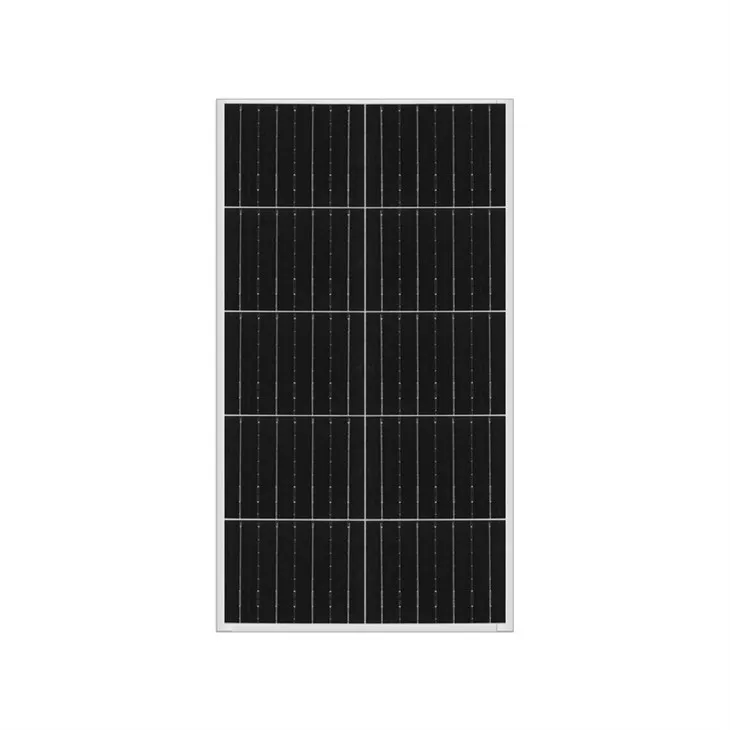

| Solar panel | 18V/35W Monocrystalline Silicon | Size: 630 × 334 mm |
| Battery | Lithium iron phosphate 3.2V/36AH | Low-voltage safety architecture |
| Light effect | 210LM/W | The average power consumption per unit in the industry is approximately 160 lumens per watt. |
| Overall size of the lamp | 638×345×135mm | |
| Led chip | Philips3030, 100PCS | |
| Controller | MPPT, PWM selectable | |
| Lighting mode | Infrared sensing + segmented time control + intelligent control | |
Application scenario
Community Precision Lighting
At the entrance of the residential units and on the walkways (with poles 4-5 meters high), an 8-meter sensing radius ensures precise response to residents' passage, avoiding disturbing residents with glare at night.
Landscape and Cultural Tourism Projects
Park lawn paths, villa courtyards. With a 3.7cm ultra-thin body, it blends seamlessly into the environment. The 93% light transmittance UV lens prevents insect attachment.
Emergency lighting in areas without power grid connection
Mountain village roads, camping sites, can withstand rain for 2 days; EVA anti-seismic packaging enables off-road transportation, and installation does not require cable laying.
High-security requirement areas
Children's activity area, school corridors. The 3.2V low-voltage battery system completely eliminates the risk of electric shock.
Product features
The LKG-20W features modular maintenance, low-voltage safety and ultra-thin wind resistance, making it a benchmark product in the field of community micro lighting. Its optimal 35W solar panel and 36AH battery ratio ensures a 2-day power supply during rainy days, while reducing the overall cost by 40% (compared to traditional street lamps), making it particularly suitable for old city renovation and low-carbon tourism projects.
Optical Precision Engine
70°×140° asymmetric light distribution, pavement uniformity > 0.6, eliminates zebra stripe light spots; PC lens with 93% light transmission rate and UV protection layer.
Engineering-friendly design

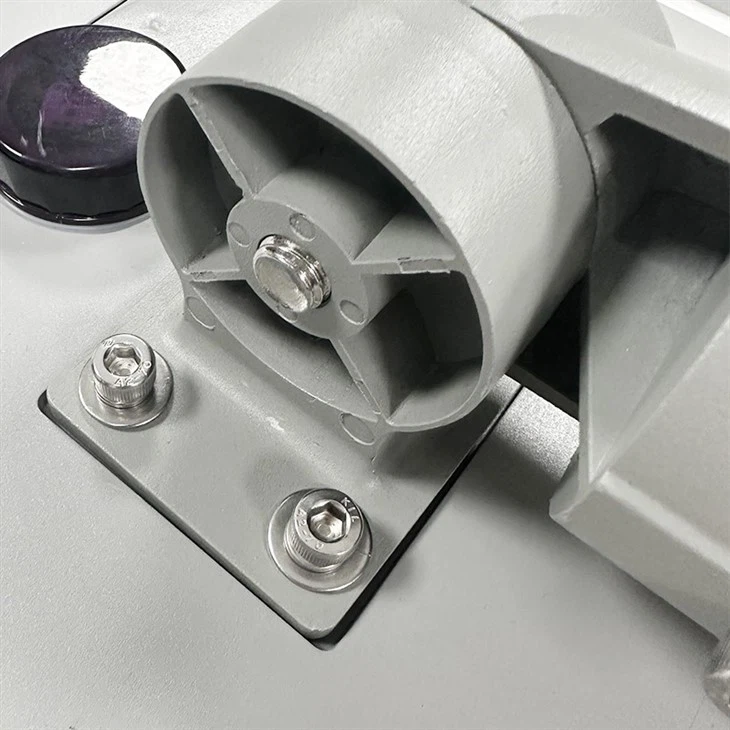

Supports box installation, arm installation, and wall mounting, suitable for retrofitting old lamp posts; completed installation by one person within 20 minutes (including solar panel angle adjustment).
Multiple protective measures guarantee
IP65 waterproof and dustproof + 4K-level lightning protection (can be upgraded to 10kV), operating within a wide temperature range of -20℃ to 50℃.
Wisdom Expansion Capability
Reserved RS485 interface (optional), supports connection to the remote management platform, enabling power consumption monitoring / lighting strategy group control.
