comparison of product parameters
| Lamp Luminous Efficiency(lm/w) | 170 | Light Source | LED |
| Solar Cell | Mono-Si | IP Rating | IP65 |
| Lifespan (Hours) | 50000 | Warranty(Year) | 3-Year |
| Certification | RoHS, CE | Color Temperature(CCT) | 2700-6500K |
| Color Rendering Index(Ra) | 80 | Power Supply | Solar |
| Application | Road | Control Method | Remote Control |
| Lamp Body Material | ABS | Material | ABS Plastic |
| Shade material | Plastic | Lighting solutions service | Lighting And Circuitry Design, Project Installation, Dialux Evo Layout, Auto Cad Layout |
| Input Voltage(V) | DC 6 V | Place of Origin | Guangdong, China |
| Lamp Luminous Flux(lm) | 8500 | Working Temperature(℃) | -20 - 50 |
| Power | 30w/50w/100w/200w | Usage | Street Road Garden Square Highway |
| Battery | LiFePO4 Lithium Battery | Charging time | 4-6 Hours |
Light Source & Luminous Efficiency
LED Light Source Configuration

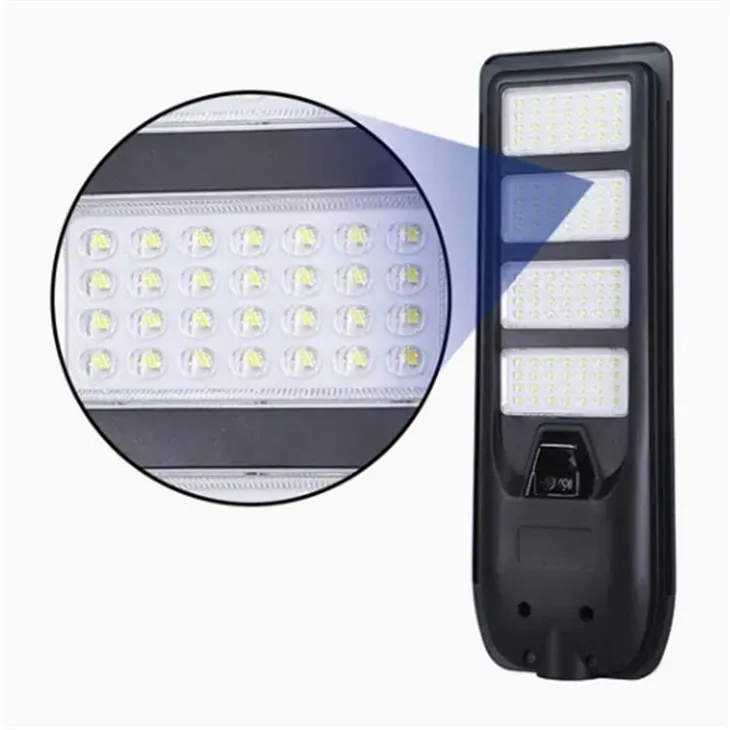

Adopts high-grade high-power 2835 SMD LED chips arranged in modular split array layout(2/3/4/5 modular lamp beads options available as shown), each modular panel is densely populated with industrial-grade anti-decay LED lamp beads. The LED core is built with high-purity gallium-based epitaxial wafer, low thermal resistance copper substrate packaging technology to restrain luminous decay effectively, avoiding traditional lamp bead light failure, yellowing and rapid brightness attenuation issues.
Luminous Performance & Optic Design
Custom precision PMMA optical lens paired with professional secondary light distribution design, precisely adjust beam angle to 120° wide flood lighting range, no central glare or uneven dark zone on pavement. Luminous efficacy reaches up to 180LM/W, far exceeding conventional LED street lamp's 100~120LM/W industry standard; under full rated power, multi-module model delivers ultra-high total lumen output ranging from 6000LM to 25000LM based on different specifications. Color rendering index CRI＞75, 6500K pure cool white natural daylight spectrum restores object true color, optimizing road visibility for night driving & pedestrian safety. Long service lifespan of LED source hits 50,000 working hours with less than 3% lumen depreciation after 5000hrs continuous lighting.
Power Supply & Energy Consumption
Solar Power Generation System
Embedded high-efficiency monocrystalline silicon solar panel with conversion efficiency up to 22%, superior to polycrystalline counterparts. Under standard AM1.5 sunlight condition, only 6~8 hours daytime sunlight charging fully replenishes the built-in large-capacity lithium iron phosphate battery. The panel is covered with scratch-resistant tempered glass and sealed with integrated silicone waterproof structure, anti-oxidation & anti-aging to maintain stable power generation even under extreme high/low temperature environment.
Energy Storage & Intelligent Energy-Saving Control
Equipped with long-cycle LiFePO4 lithium battery, featuring 3000+ deep charge-discharge cycles, wide operating temperature from -30℃~+60℃, no thermal runaway risk compared with ternary lithium cells. Built-in intelligent MCU energy management chip + PIR human body infrared motion sensor + photosensitive dusk/dawn sensor triple control system:
Auto mode: Automatically turns ON at dusk and OFF at dawn via light sensing;
Motion energy-saving mode: Keeps low-power standby illumination when no pedestrian passes, boosts to full brightness instantly once human/vehicle movement detected, drastically cutting unnecessary idle power waste;
Custom timing function via matched remote controller, supports fixed 3H/6H/8H programmable runtime as needed.
Ultra-low Zero Grid Energy Consumption

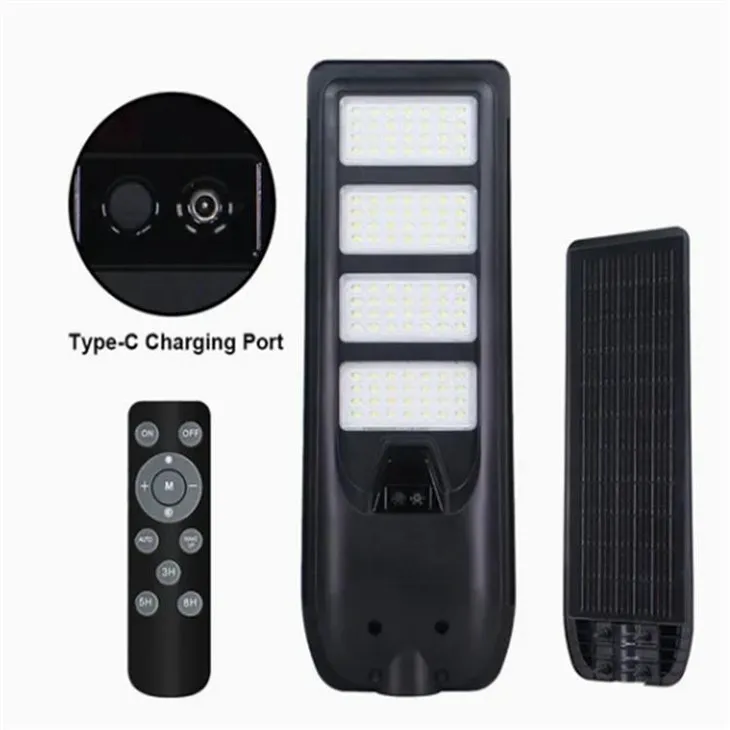

Entire working cycle 100% powered by solar harvested electricity, completely off-grid with no AC cable wiring required, zero ongoing electricity cost after one-time installation. Fully charged battery sustains continuous full-bright lighting for 8~10 hours per night, and retains regular working performance for 3~5 consecutive rainy/cloudy days thanks to large battery reserve capacity. Extra Type-C reserve charging port is reserved for emergency manual supplementary charging in prolonged overcast weather to ensure uninterrupted lighting. Total standby power consumption of whole drive circuit is less than 0.5W, outstanding energy-saving performance slashes end-users' long-term operation & maintenance expenditure drastically.

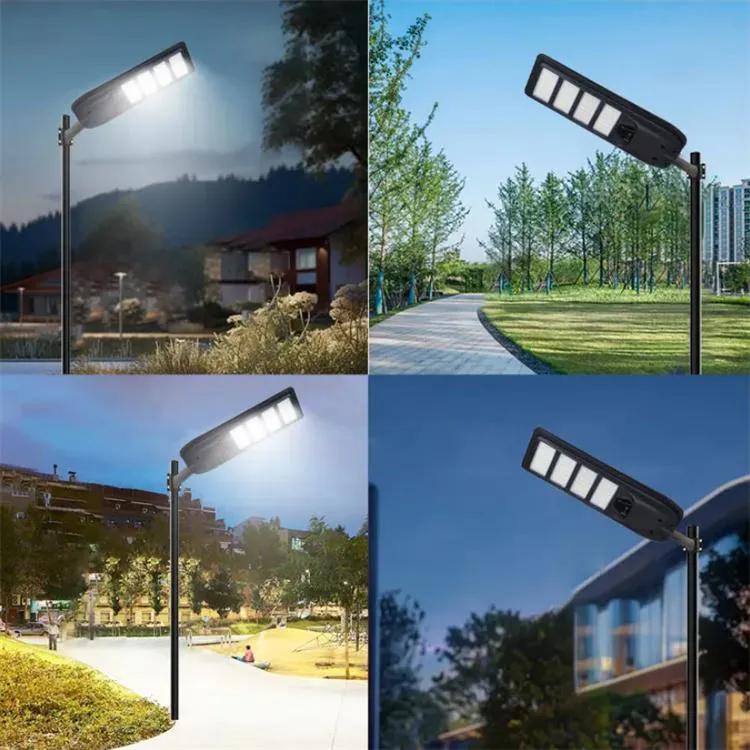

Application Scenarios
Municipal & Traffic Infrastructure: Urban viaduct road, rural township highway, country lane, suburban bypass, park driveway, scenic spot access road, community internal motor vehicle road, pedestrian footpath and bridge roadside lighting;
Residential & Estate Outdoor: Villa courtyard, gated residential compound garden path, backyard driveway, farm ranch perimeter, countryside homestead outdoor yard;
Commercial & Public Premises: Industrial park perimeter road, logistics warehouse parking lot, shopping mall outdoor pedestrian zone, school campus pathway, hospital outer courtyard, gas station auxiliary lighting;
Off-grid Remote Projects: Mountain village remote area without municipal grid, island outlying regions, construction temporary site, plantation & aquaculture farm access, outdoor campsite and remote ecological reserve lighting.
