comparison of product parameters
| Input Voltage(V) | AC 85-265V/AC 175-265V | Support Dimmer | Optional, customizable |
| IP Rating | IP45/65 |
Light Source |
LED |
| Lamp Luminous Efficiency(lm/w) | 100-190 | Lifespan (Hours) | 50000 |
| Color Temperature(CCT) | 3000/4000/6000K | Color Rendering Index(Ra) | 80/95 |
| Warranty(Year) | 2/3/5 | Feature | Easy Installation |
| Lighting solutions service | Lighting And Circuitry Design | Application | Warehouse, Office, Residential, Other |
| Place of Origin | Guangdong, China | Brand Name | OEM |
| Beam Angle(°) | 30/60/90/120 | Dimension | LR-IR-100W-LHB |
| Lamp Luminous Flux(lm) | 12000 | Product Weight(kg) | 5 |
| Type | LR-IR-100W-LHB | Power | 100W/150W/200W/300W |
Light Source & Luminous Efficiency
Light Source

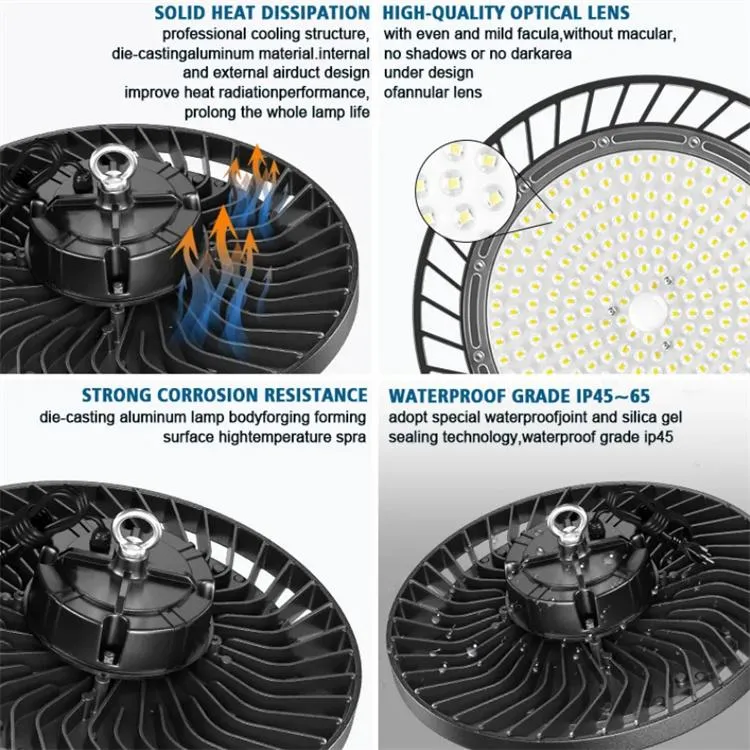

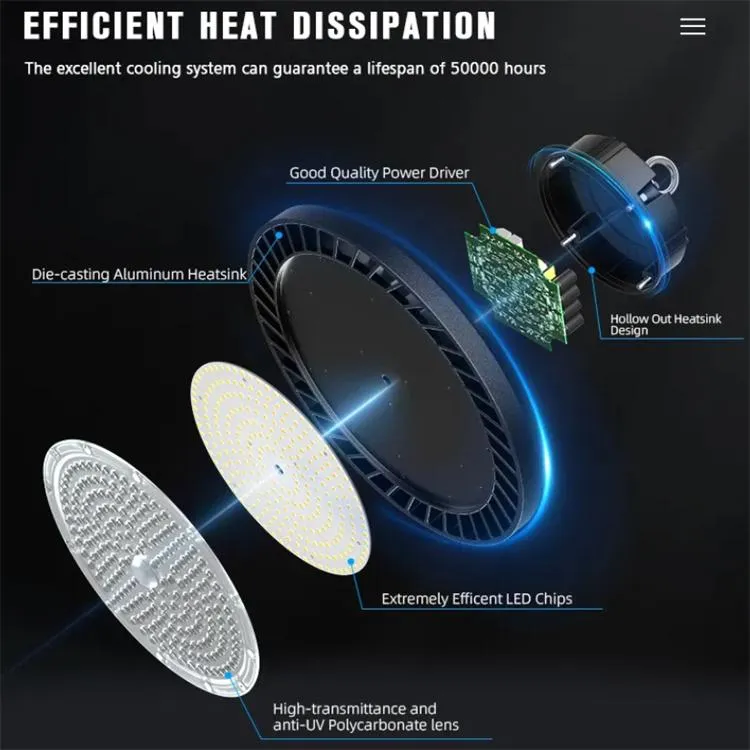

Equipped with high-grade SMD2835/3030 ultra-efficient LED chips, neatly arrayed on high thermal conductivity aluminum PCB substrate. Every single LED bead is strictly screened for low light decay, low thermal resistance and stable lumen output; matched with high-transmittance anti-UV polycarbonate annular optical lens, the lens achieves uniform facula distribution with zero macular shadow, dark spot or uneven illumination. The annular secondary optical design flexibly controls beam angle (60°/90°/120° optional per demand), precisely concentrating light onto target working surface without stray light waste.
Luminous Efficacy
Boasts industry-leading luminous efficacy up to 130~150LM/W, far surpassing conventional HID/halogen workshop lamps. Compared with outdated traditional industrial lights, it generates identical or even higher overall brightness with far fewer power consumption; lumen maintenance rate retains over 92% after 50000hrs rated lifespan, extremely low luminous depreciation ensures consistent lighting performance in long-term continuous operation.
Power Supply & Energy Consumption
Power Supply Configuration
Fitted with built-in certified constant-current isolated LED driver, supporting wide universal AC input voltage range AC85~265V, compatible with global mainstream commercial grid power. The driver integrates overvoltage, overcurrent, short-circuit and surge protection modules, effectively resisting instantaneous grid voltage fluctuation and thunder surge interference to secure stable continuous lighting; isolated design isolates circuit interference, greatly extending whole lamp service life.
Energy Saving & Energy Consumption
Up to 70%~80% power saving rate versus traditional metal halide high bay lights. For example, a 150W UFO LED high bay can fully substitute 400W conventional HID high bay lamp, cutting massive monthly industrial electricity cost. Zero warm-up waiting time, instant full brightness on power on without idle power waste; no reactive power loss as traditional inductive ballast lamp, power factor ≥0.95 to optimize power utilization and reduce extra industrial power consumption penalties from power grid.
Application Scenarios

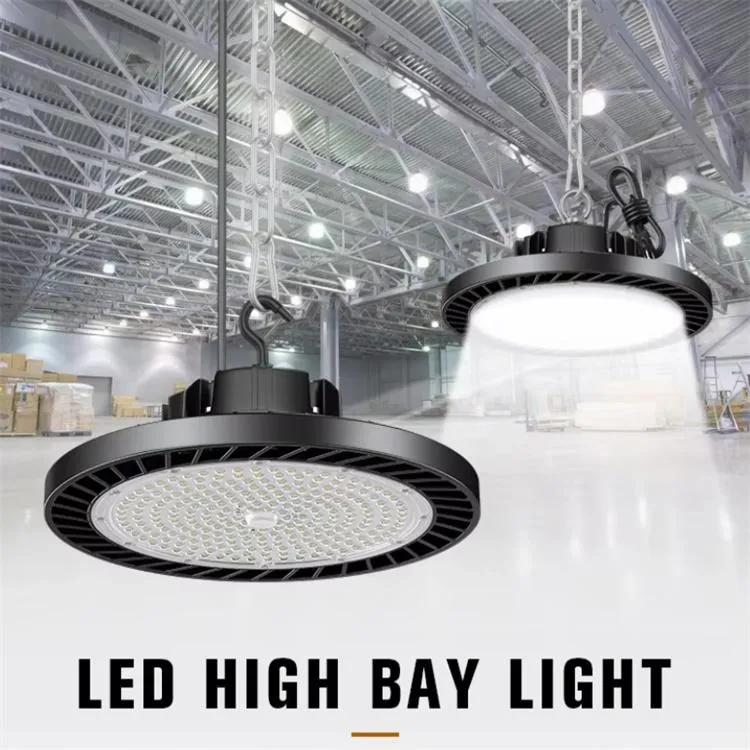

Ideal for high-ceiling indoor & semi-open lighting occasions: large manufacturing factories & production workshops, logistics warehouses & distribution centers, supermarket hypermarket high rack area, indoor sports stadium & gymnasium, exhibition halls, automobile repair garages, livestock breeding barns, large cold storage plants, shopping mall atrium, industrial plant hangar and other high-space commercial & industrial lighting projects; IP45~IP65 waterproof rating also allows usage in semi-outdoor covered loading dock and canopy area.
