Utilising LED lights need not be challenging. You have likely conceived an innovative lighting concept that you have not previously attempted to construct. What is the reason behind this? I contend that the majority of individuals, including yourself, perceive themselves as insufficiently educated or qualified to independently develop the LED lighting concept.
I have information to convey to you. Cease entertaining the concept of 'but I cannot.' This post will demonstrate the simplicity of setting up LED lights using appropriate supplies.
Requirements for Constructing an LED Light
Have you ever desired to construct an LED lamp? You may now achieve this with only two components!

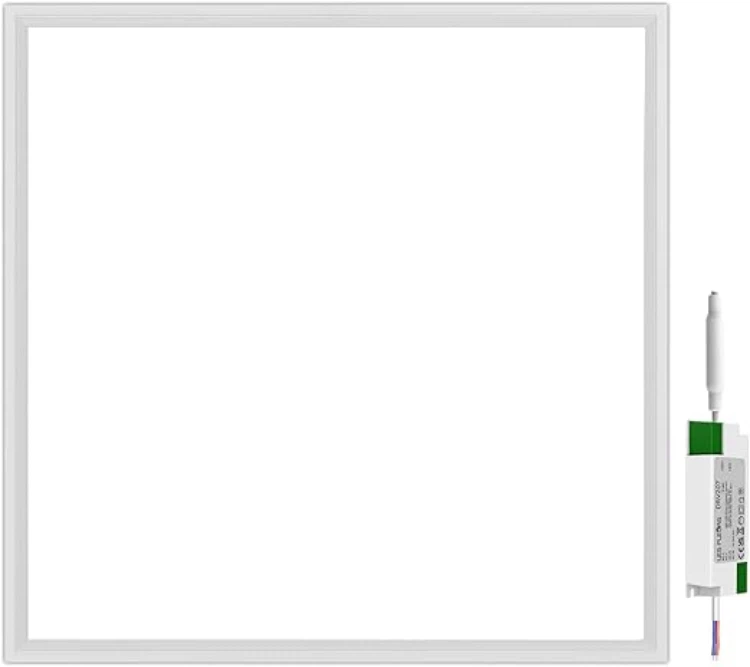

Due to the increasing popularity of LED lighting, several individuals have enquired and reached out to me regarding the creation of small LED lights, LED lamps, LED panel lights, downlights, and similar products. This would initiate a discourse over the many components required to finalise an LED configuration:
Surface Mount Device (SMD) LEDs or LED Modules
Constant Current Regulators
AC/DC Power Supplies and Heatsinks
This list may obviously perplex a novice and render that appealing lighting project appear burdensome. Prior to relegating the project to the 'Save for Later/Someone Else' category, it is important to recognise that there exists a method to utilise all these components for a singular, uncomplicated light. LED light engines require only a power supply and creativity to produce LED lighting for both little and extensive applications.
Intuitive LED Technology - 'LED Light Engines'
What constitutes an LED light engine? It is the LED counterpart of a traditional light. A light engine typically comprises a light emitting diode (LED) affixed on a circuit board equipped with electrical and mechanical fastenings, rendering it suitable for installation in the luminaire.
Our LED light engines are engineered to integrate the aforementioned components into a unified package. This removes the obstacles for individuals, such as yourself, who aspire to create an LED lighting system without becoming overwhelmed. Does it seem excessively favourable to be credible? Examine the design of these LED lights.
Onboard Drivers
When using SMD LED lights, a constant current driver or a current limiting resistor is essential. The electrical characteristics of LED lights fluctuate with temperature; a driver ensures that the LED maintains a safe current, preventing excessive draw and potential burnout.
The objective was to construct compact on-board drivers directly onto the LED board, rather than use an external driver. These little drivers function as variable resistors on the circuit board, enabling the input of a constant DC voltage (e.g., 12 volts) while regulating the current permitted to traverse the board.
This assists you in three principal ways:
On-board drivers eliminate the necessity for an external driver, which typically costs between $10 and $15.
On-board drivers are significantly smaller, resulting in a more compact and discreet configuration.
Eliminates the burden of pairing a driver with your LED circuit.
No Heatsink Required
Thermal management of LEDs is another aspect that might be perplexing when beginning to deal with LED lights. LEDs generally conduct a significant amount of power through a diminutive source, resulting in heat accumulation. A heatsink is required to disperse heat, transferring it away from the LED to prevent irreversible damage.
While heatsinking is generally advisable, the objective was to design compact LED lights that required just a power supply. Heatsinks are typically cumbersome and significantly increase the dimensions of your arrangement. During the design of the LED board by LuxDrive, we ensured the temperature was tested to confirm that the LED light engines could operate without any cooling.
Simplified LED Connectivity
"What is the method for connecting multiple LEDs in conjunction?" This is a frequently posed inquiry I receive daily. SMD LED lights may be wired in either series or parallel configurations. These two distinct wire configurations will exhibit markedly different electrical behaviours.
Our objective was to develop an LED that could be easily daisy-chained. This simplifies the connection process, as the primary considerations are wattage and ensuring that the power source can adequately provide the system's requirements.
High-Quality Light Emission at a Reasonable Price
Ultimately, it was crucial to possess an efficient, luminous LED that would render the LED light engine economically viable. The final phase required the most effort, as we needed to identify a diode that was sufficiently efficient to produce a strong light without overwhelming the system.
