From Garage to Post-Top Lights: A Versatile E27 LED Corn Bulb for Every Space

The global shift toward solid-state lighting (SSL) has brought unprecedented energy efficiency. However, it has also introduced an overwhelming variety of form factors, base types, and optical distributions.

Historically, a commercial facility manager might need to stock dozens of different bulb types: incandescent for the breakroom, fluorescent tubes for the warehouse aisles, Metal Halide for the high-bays, and High-Pressure Sodium (HPS) for the outdoor parking lot. This fragmentation creates complex inventory management, increased procurement costs, and a steep learning curve for maintenance staff. Residential consumers face a similar dilemma, often struggling to find the correct bulb for their garage door opener, porch light, or basement utility room.

The Edison Screw (ES) base, specifically the E27 standard (27mm diameter), is the most widely adopted lightbulb socket in the world, dominant across Europe, Asia, Africa, and South America. While North America primarily uses the E26 (26mm), the two are functionally interchangeable in most applications. By engineering a high-performance LED Corn Bulb around this universal E27 base, we have unlocked a new paradigm of lighting versatility.

Our E27 LED Corn Bulb is not just a light source; it is a comprehensive lighting infrastructure upgrade. It is designed to operate flawlessly across an extreme spectrum of environments. Whether it is subjected to the dust and vibration of an underground parking garage, the freezing rain of an outdoor post-top street fixture, or the intense heat of an industrial high-bay, this single bulb delivers unwavering reliability and a staggering 135 lumens per watt (lm/W) of high-efficiency illumination.

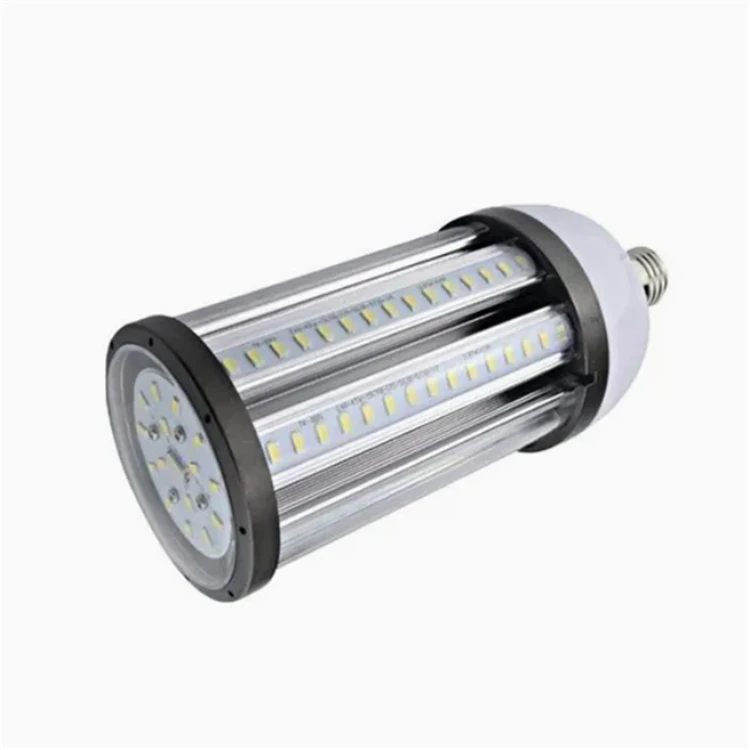

led corn lamp

The interface between the lamp and the fixture is the critical point of failure in many lighting systems. The E27 standard requires precision engineering to ensure safety and longevity.

The E27 base consists of a threaded metal shell and a bottom contact point.

Solid Electrical Conductivity: As highlighted in our design, the lamp holder features a robust, thick metal construction. This solid device ensures good electrical conductivity, minimizing I2RI2R (heat) loss at the connection point.

Worry-Free Installation: The precision thread tolerances ensure a snug, wobble-free fit. This is crucial in outdoor post-top lights, where wind vibration could otherwise loosen a poorly manufactured bulb, leading to intermittent power or arcing.

While the E27 base connects the bulb to the grid, the internal connections distribute the power to the LEDs. We utilize Japanese JAE (Japan Aviation Electronics Industry) Connectors.

Low Contact Resistance: JAE connectors utilize premium-grade phosphor bronze contacts with precision plating. This ensures ultra-low contact resistance, maximizing electrical conductivity.

Vibration Resistance: Engineered for aviation and automotive applications, these connectors feature secure locking mechanisms that withstand severe mechanical shocks. This guarantees that the internal circuitry remains intact, even when installed in a garage subjected to heavy door vibrations or a street light buffeted by highway winds.

While the E27 is our flagship model, we understand the need for global compatibility. The same internal engineering is available in E26 (North America), E39 (North American Mogul), and E40 (European Mogul) bases, making this versatile bulb a global standard for retrofitting.

The true test of versatility is performance across diverse, demanding environments. Here is how the E27 LED Corn Bulb excels in various spaces.

A garage is a transitional space-often unheated, dusty, and used for hazardous tasks.

Instant On: Unlike fluorescent tubes that struggle to start in cold temperatures, our LED Corn Bulb provides 100% brightness instantly, even at sub-zero temperatures.

Dust Tight Protection: The IP65 rating ensures that the heavy dust and debris common in workshops will not enter the lamp housing and cause a short circuit.

Shadow-Free Light: The 320-degree/360-degree radial design eliminates the harsh shadows cast by single-direction LED panels, allowing mechanics and homeowners to see clearly under the hood or in the corners of the garage.

In a high-ceiling logistics center, lamps must produce massive lumen output and endure continuous operation.

High Luminous Efficacy: At 135lm/W, our bulb provides immense brightness. A 100W E27 LED Corn Bulb replaces a 400W Metal Halide lamp, slashing energy costs by up to 80%.

Thermal Mastery: Warehouses can reach extreme ambient temperatures near the ceiling. The 6063 Aviation-Grade Aluminum Heat Sink with its radial fin design creates a powerful passive cooling effect (convection). This prevents thermal throttling and ensures the Rubycon driver operates at optimal temperatures.

Omnidirectional Distribution: When installed in an existing high-bay bell reflector, the 360-degree light output is bounced downward at optimal angles, creating highly uniform lighting across the warehouse floor.

This is arguably the most demanding application. Post-top street lights (acorn style) require omnidirectional light to illuminate the surrounding sidewalk and roadway.

Weather Resistance (IP65): The bulb is fully sealed against rain, snow, and dust. The Transparent PC (Polycarbonate) Cover protects the internal components and is highly impact-resistant. Unlike glass, it will not shatter from hail or errant projectiles.

Anti-UV and Anti-Yellowing: Municipal lights are exposed to direct sunlight. The PC cover is manufactured with an anti-UV stabilizing agent, preventing the plastic from turning yellow and degrading the light output over time.

Uniform Light Distribution: The average beam angle (50%) of 204.2 degrees ensures that light is cast evenly in all directions, mimicking the look of traditional incandescent post-top lamps while providing vastly superior energy efficiency.

The versatility of this bulb is made possible by a convergence of advanced materials science and electronic engineering.

A standard directional LED bulb is useless in a post-top fixture; it would direct all its light downward, leaving the upper half of the glass fixture dark.

2835 SMD LED Architecture: By densely populating high-efficiency 2835 SMD chips onto multiple vertical PCB boards in a radial configuration, plus an array on the top cap, we achieve true omnidirectional illumination.

Glare Reduction: This radial design also disperses the light intensity, reducing the harsh glare that can cause eye strain and visual fatigue, making it comfortable for residential use and safe for roadway illumination.

Heat is the primary enemy of LED lifespan. The bulb features a massive 6063 Aluminum Heat Sink.

Superior Conductivity: 6063 aluminum boasts a thermal conductivity of over 200 W/m·K, vastly superior to cheap die-cast aluminum or plastic housings.

Lifespan Extension: By rapidly drawing heat away from the sensitive 2835 LEDs and the driver, the heat sink keeps the internal junction temperature low. This prevents lumen depreciation and ensures a lifespan exceeding 50,000 hours.

The driver is the heart of any LED bulb. We utilize premium Japanese Rubycon electrolytic capacitors.

Ripple Filtering: These capacitors act as shock absorbers, filtering out voltage fluctuations and AC ripple. This results in a pure, constant DC current to the LEDs, eliminating flicker (which causes eye strain) and protecting the LEDs from premature failure.

Surge Protection: In outdoor street lighting, voltage spikes from lightning or grid switching are common. The Rubycon driver's robust construction absorbs these surges, ensuring the bulb continues to function flawlessly.

For B2B procurement managers and facility engineers, versatility directly translates to financial savings.

By standardizing on the E27 LED Corn Bulb, a facility can replace multiple different bulb types (incandescent, CFL, HID) across garages, warehouses, and outdoor areas. This drastically reduces the number of SKUs maintained in inventory, simplifying procurement, reducing storage costs, and ensuring that maintenance crews only need to carry one type of replacement bulb.

The 135lm/W efficiency is the most powerful financial tool. Consider a small municipality with 500 post-top street lights.

Legacy: 500 x 150W HPS lamps. Annual energy cost (12 hours/day at $0.12/kWh) = **$39,420**.

Our LED: 500 x 50W LED Corn Bulbs. Annual energy cost = $13,140.

Annual Savings: $26,280 per year, with an ROI in under a year.

In a high-bay warehouse or on a street light pole, the labor cost to change a bulb (scissor lifts, bucket trucks, safety harnesses) is often 10 times the cost of the bulb itself. With a 50,000-hour lifespan backed by the Rubycon driver and the 6063 aluminum heat sink, maintenance costs drop to zero. The bulb pays for itself through the elimination of labor alone.

The E27 LED Corn Bulb represents the pinnacle of lighting versatility. It is engineered to be the single solution for a multitude of problems. From the cold, dusty environments of a residential garage to the harsh, weather-beaten heights of municipal post-top lights, this bulb delivers unwavering performance.

By combining the universal E27 interface with the aerospace reliability of Japanese JAE connectors, the stable power of a Rubycon driver, the supreme thermal management of a 6063 aluminum heat sink, and the physical protection of an IP65 PC cover, we have created a lighting asset that protects your investment and maximizes your energy savings.
