How do I change the angle of the Adjustable Downlight?

Adjustable downlights are core embedded lighting fixtures widely used in modern architectural lighting design, covering residential interior spaces, commercial office environments, exhibition halls and hotel landscapes. Different from fixed downlights with single luminous direction, adjustable downlights adopt movable bracket and rotatable lamp holder structures, which support multi-dimensional angle adjustment of light beams. This structural feature enables the lighting equipment to flexibly adjust the light projection direction according to spatial lighting demands, highlight key decorative areas, eliminate local lighting dead angles, and realize personalized and refined lighting layout.

In practical engineering application and daily use, the preset factory angle of adjustable downlights often cannot match the actual spatial lighting demand, resulting in unreasonable light projection range, insufficient local illumination or wasted light energy. Accurate angle calibration is an essential technical operation to optimize the lighting effect of downlights. Standardized adjustment procedures can not only maximize the functional value of adjustable downlights, but also avoid equipment damage, electrical safety hazards and structural looseness caused by non-standard operation. This paper systematically elaborates the professional operation process, key technical points and safety management specifications for adjustable downlight angle adjustment, so as to provide standardized practical guidance for lighting maintenance and engineering commissioning.

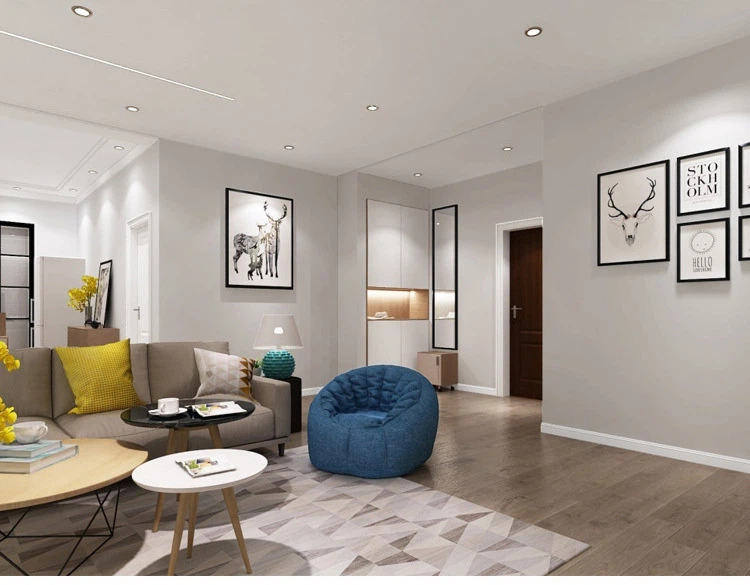

LED Downlight 9

The adjustable downlight is mainly composed of six core parts: embedded fixed chassis, elastic mounting clip, detachable faceplate, adjustable lamp holder bracket, locking fasteners and light source assembly. The embedded chassis is fixed inside the ceiling structure to provide overall structural support; the elastic clip is responsible for clamping and fixing the whole lamp body on the ceiling to ensure installation stability; the faceplate plays the role of dust prevention, beautification and structural protection; the movable bracket is the core functional component to realize multi-angle rotation of the light source; the locking screws and clips are used to fix the adjusted angle position and prevent angle deviation caused by vibration and gravity.

The angle adjustment function of the downlight relies on the flexible connection structure between the lamp holder and the fixed bracket. By loosening the locking fasteners, the limit constraint of the bracket on the lamp holder is released, and the lamp holder can realize multi-degree-of-freedom adjustment including vertical pitching and horizontal left-right deflection within the structural movable range. After the target light projection angle is calibrated, the locking structure is tightened to fix the relative position of the lamp holder and the bracket, so as to realize stable directional light output. The scientific matching of movable structure and locking device ensures the flexibility of angle adjustment and the long-term stability of lighting state.

Electrical safety isolation is the primary prerequisite for all lighting equipment maintenance and adjustment operations. Before disassembling and adjusting the adjustable downlight, it is necessary to completely cut off the power supply of the corresponding lighting circuit. Operators need to accurately locate the circuit breaker or fuse corresponding to the downlight loop in the power distribution box, turn off the circuit breaker or remove the fuse completely, and confirm the power-off state of the circuit through visual inspection or electrical testing tools. It is forbidden to carry out any disassembly operation in the live state, so as to avoid electric shock accidents, circuit short circuit and equipment burnout caused by misoperation. After power cut-off, wait for 1 to 2 minutes to release the residual capacitance power of the lamp circuit to ensure absolute safety of the operation environment.

The faceplate is the outer protective and decorative structure of the downlight, which is fixed by two mainstream fixing modes: elastic hidden clip and fixed screw. For the clip-type faceplate, operators need to gently hold the edge of the faceplate, apply uniform downward pulling force, and slowly separate the faceplate from the embedded chassis by overcoming the elastic clamping force of the internal clip. For the screw-fixed faceplate, a matched screwdriver is required to unscrew the fixing screws clockwise and store the screws in a classified manner to avoid loss.

In the disassembly process, excessive force should be strictly prohibited to prevent scratching the ceiling surface, damaging the faceplate coating or breaking the internal connecting clip. After the faceplate is removed, the internal lamp holder, bracket and locking structure are completely exposed, providing an operation space for subsequent angle calibration.

The angle adjustment operation is the core link of the whole process. First, aim at the locking screws or limit clips fixed on both sides of the lamp holder bracket, slowly unscrew the screws or loosen the limit clips to release the fixed constraint of the lamp holder. After the structure is flexible, according to the actual lighting demand, adjust the lamp holder in multiple dimensions: vertical up and down pitching adjustment is used to change the vertical projection height and range of the light beam, while horizontal left and right deflection adjustment is applied to modify the horizontal coverage direction of the light source.

In the adjustment process, real-time simulation of the light projection effect should be carried out according to the spatial lighting demand, and fine-tune the angle repeatedly until the light beam accurately covers the target lighting area, eliminates shadow dead angles, and achieves uniform and reasonable spatial illumination distribution. It is necessary to avoid excessive deflection beyond the structural limit range, so as to prevent structural jamming and component damage.

After the lamp holder angle is calibrated to the optimal state, the locking operation must be carried out immediately to fix the structural position. Align the adjusted lamp holder bracket with the fixed limit position, use a screwdriver to tighten the locking screws evenly, or reset and clamp the limit clips. The locking operation should follow the principle of uniform force and moderate tightness: excessive tightening will cause structural deformation and thread damage, while insufficient locking will lead to loose lamp holder and angle offset in long-term use.

After locking, manually shake the lamp holder slightly to check the structural stability, confirm that there is no displacement, looseness and jitter, and ensure that the lamp holder can maintain a fixed angle state in long-term operation, avoiding subsequent lighting deviation caused by structural instability.

On the premise of confirming the stable locking of the internal structure, start the reset assembly of the downlight faceplate. Align the faceplate with the mounting gap of the ceiling and the embedded chassis, calibrate the horizontal level and peripheral gap of the faceplate to ensure uniform and neat lap joint with the ceiling. For the clip-type faceplate, apply uniform upward pressure to make the internal elastic clip clamp the chassis firmly; for the screw-fixed faceplate, fix the reserved screw holes one by one and tighten the screws stably.

After assembly, check the fitting degree of the faceplate and the ceiling to eliminate uneven gaps, skew and loose clamping, ensure the overall aesthetic degree of the equipment installation and the tightness of the internal structure, and prevent dust and moisture from entering the lamp body to affect the service life.

After all assembly operations are completed, restore the circuit power supply, close the corresponding circuit breaker or reinstall the fuse, and turn on the lighting switch to start the equipment test. Observe the working state of the downlight, check whether the light source works normally without stroboscopic, dark light and circuit failure, and verify whether the adjusted light projection angle meets the preset lighting demand.

If the lighting effect has slight deviation, the power supply should be cut off again for secondary fine adjustment until the angle and illumination effect reach the optimal standard. This step completes the whole process of downlight angle adjustment and commissioning.

In the process of angle adjustment, all operations must be carried out in a power-off state, and live operation is strictly prohibited. The adjustment range shall be limited within the structural design range of the downlight, and forced deflection beyond the limit angle is not allowed to prevent structural fracture and line damage. The locking screws and clips shall be kept intact, and damaged parts shall be replaced in time to ensure the structural stability of the equipment. In addition, the disassembly and assembly process should protect the ceiling decoration structure to avoid secondary damage to the indoor decoration environment.

For operators without electrical operation experience and professional maintenance ability, it is not recommended to disassemble and adjust the downlight privately. Improper operation may easily cause electrical safety hazards, equipment damage and ceiling decoration damage. When encountering complex angle adjustment, structural jamming or circuit abnormal problems, professional electricians and lighting maintenance technicians should be consulted for operation. Regular inspection of the locking structure and angle stability of adjustable downlights is conducive to maintaining long-term stable lighting effect.

The angle adjustment of adjustable downlights is a standardized and procedural lighting equipment maintenance operation, which is based on the structural characteristics of movable lamp holders and follows the operation logic of safety isolation, disassembly, calibration, locking, assembly and debugging. Scientific and standardized angle adjustment operations can effectively optimize the light beam projection direction and spatial illumination distribution of downlights, give full play to the flexible lighting advantages of adjustable downlights, and improve the refinement and comfort of indoor lighting environments.

In the actual operation process, operators must strictly abide by electrical safety specifications and equipment operation standards, standardize each operation link, and take structural stability and personal safety as the primary principles. Standardized angle calibration and daily maintenance can effectively extend the service life of adjustable downlights, maintain stable and high-quality lighting effects, and provide reliable technical support for modern indoor lighting optimization and engineering commissioning.
