Introduction: Illuminating Your Pool with Intelligence and Elegance
When the sun sets, a family pool should not disappear into darkness. Instead, it can become a mesmerizing centerpiece of your backyard-safe, inviting, and brilliantly lit. However, choosing the right pool light is not merely about aesthetics; it is a decision that impacts safety, energy efficiency, and long-term reliability.

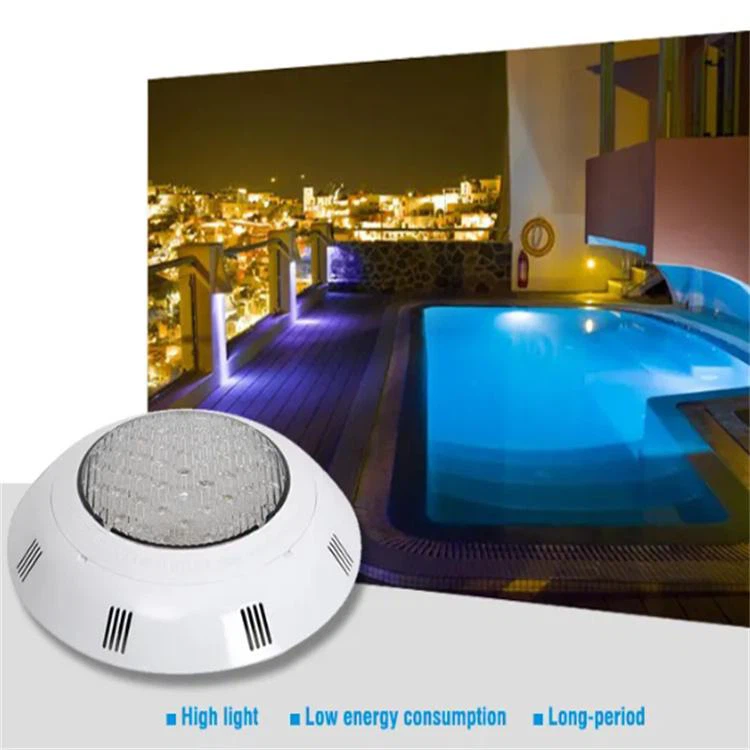

Our Low-Voltage LED Pool Light redefines underwater illumination. Engineered with aerospace-grade materials, advanced optical design, and multi-layer protection systems, this wall-mounted luminaire delivers exceptional brightness while consuming minimal power. Whether you are watching children swim, hosting evening gatherings, or simply enjoying a quiet night dip, this light transforms your pool into a stunning, secure environment.
Unlike conventional high-voltage fixtures that pose shock risks and suffer from rapid corrosion, our solution combines low-voltage operation with uncompromising build quality. In the following sections, we dissect its safety features, family-centric design, brightness technology, and practical applications-proving why it is the definitive choice for discerning homeowners.
Uncompromising Safety: Engineered to Protect Your Loved Ones
Water and electricity are a dangerous combination. Our light eliminates that risk through systematic, redundant safety engineering.
Low-Voltage Architecture – The Foundation of Safety
The entire system operates at a safe extra-low voltage (SELV), typically 12V or 24V AC/DC. This immediately reduces electric shock hazard to negligible levels-even if a cable is damaged or the housing cracks, the human body experiences no harmful current flow. The product clearly marks Positive Pole and Negative Electrode terminals, simplifying correct installation and preventing reverse polarity faults.
Robust Grounding and Corrosion Protection
High-quality 304 stainless steel forms the lamp body. Achieved through precision polishing, high-temperature oil sealing, and scientific surface treatment, this material actively resists rust and pitting-even in chemically treated pool water (chlorine, bromine, or salt systems). An integrated Earth Wire provides a direct fault current path, instantly tripping protection devices if an internal short occurs. Combined, these features ensure the housing remains electrically safe and structurally intact for over a decade.
Triple-Stage Waterproofing and Impact Resistance
Water ingress is the #1 killer of submersible lights. Our design implements a compression waterproofing system with three independent seals (Double/Triple construction):
Primary seal: Silicone O-ring at the lens interface.
Secondary seal: Compression gasket on the cable entry.
Tertiary seal: Potting compound inside the driver compartment.
The housing uses a PBT shell (polybutylene terephthalate) – a high-strength engineering plastic with exceptional dimensional stability, chemical resistance, and thermal endurance. Overlaying this is a PC mask (polycarbonate) that diffuses light evenly while absorbing impact forces. Even if a pool vacuum strikes the light, the PC mask cracks but does not shatter, keeping internal electronics dry. IP68 certification (tested at 2m depth for 72 hours) guarantees uninterrupted operation.
Why It Is Perfect for Family Pools – Beyond Just Illumination
Family pools have unique demands: children's safety, long operating hours, low maintenance, and visual appeal that suits both playtime and relaxation. This light checks every box.
Child‑Friendly Low Heat and No Sharp Edges
LED technology produces negligible heat compared to halogen or incandescent lamps. The PBT shell and PC mask remain cool to the touch even after hours of operation, eliminating burn risks when curious children touch the fixture. All exterior edges are polished and rounded-no burrs or sharp corners.
Ultra‑Long Life – Set and Forget
With a rated lifespan exceeding 50,000 hours (equivalent to 17 years of nightly 8-hour use), you will never need to drain the pool for a replacement. The high‑temperature treatment on the stainless steel and the sealed LED driver prevent common failure modes like capacitor drying or solder joint corrosion. For busy parents, "install once and forget" is priceless.
Energy Savings That Pay for Themselves
Our Low energy consumption design draws only 15–30W while delivering 2000–4000 lumens-comparable to a 150W halogen light. Running 8 hours per day, annual electricity cost is under 10(basedonUSaverage10(basedonUSaverage0.15/kWh). Over the product's lifetime, savings exceed $500 per fixture compared to traditional lights.
Aesthetic Versatility for Any Backyard Theme
The wall‑mounted form factor allows placement on vertical pool walls, steps, or spa benches. Its discreet design (low profile, matte stainless finish) blends with tile, stone, or liner pools. The high‑CRI (Color Rendering Index >80) LED chip renders swimsuits, faces, and pool finishes accurately-no eerie blue or green tint.
Super Bright Core Technology – Engineering Light That Pops
Brightness is not just about raw lumens; it is about perceived clarity, uniformity, and efficiency. Our light achieves stunning results through precise component selection and optical design.
High‑Efficiency LED Lamp Beads
At the heart are premium LED lamp beads sourced from top-tier manufacturers (e.g., Philips Lumileds or Osram). Each bead delivers High light output of 130–150 lm/W – far above the industry average of 90 lm/W. The chips are binned for consistent color temperature (choose 3000K warm white, 4000K natural white, or RGB color‑changing variants). No dark spots or flicker, even at dimmed levels.
Optimized Thermal and Optical Path
Heat is the enemy of LEDs. The high‑temperature oil sealing process bonds the LED board directly to the 304 stainless steel housing, turning the entire body into a heatsink. Junction temperature stays below 85°C even in 40°C pool water, preserving lumen maintenance (>90% after 50,000 hours).
The transparency cover (precision‑molded PC) features micro‑prism optics that spread light in a wide 120° beam, eliminating harsh hotspots and dark zones. Water‑cooling further enhances performance-submerged LEDs run cooler than in air.
Long‑Period Stability – No Degradation Over Time
The phrase "Long‑period" on our datasheet is a promise. Accelerated life tests (LM‑80) show less than 5% lumen depreciation after 6,000 hours. A constant‑current driver with surge protection (up to 2kV) isolates the LEDs from grid fluctuations. In a family pool, where lights may be turned on/off multiple times per night, this robustness prevents premature failure.
Correct Usage Methods and Ideal Scenarios – Maximizing Your Investment
Even the best light underperforms if improperly installed or used. Follow these guidelines to achieve optimal results and longevity.
Installation Best Practices
The light is designed for Wall mounted type applications:
Mounting height: 200–400 mm below the water surface (measured to the center of the lens). This provides wide pool coverage without blinding swimmers.
Orientation: Cable entry must face downward (or horizontal) to prevent water wicking into the connector. Use the supplied silicone grommet and sealing compound.
Electrical connection: Connect Positive Pole and Negative Electrode to a certified low‑voltage transformer. Always connect the Earth Wire to the pool's equipotential bonding grid.
Testing: Before filling the pool, submerge the light in a bucket of water for 1 hour and check for bubbles (indicating leaks). Then perform a ground‑continuity test.
Recommended Application Scenarios
Residential family pools (in‑ground or above‑ground): One fixture per 20 m² of surface area (e.g., a 8x4 m pool needs two lights on opposite walls).
Spa, hot tub, or plunge pool: Single light on the vertical wall, aimed slightly downward to light the seating area.
Water features (fountains, waterfalls, sheer descents): Mount the light below the water sheet to create radiant glow.
Koi ponds or decorative basins: Low‑voltage operation is safe for fish and plants – choose warm white at 2700K to avoid algae promotion.
Maintenance and Winterization
Quarterly: Wipe the PC mask with a soft cloth (no abrasives) to remove calcium deposits or biofilm.
Annually: Inspect the compression gland and cable sheath for cuts. Apply silicone grease to the O‑ring if the light is opened (not required for sealed units).
Winter draining: If the pool is emptied, remove the light or cover the niche to prevent freezing water from cracking the lens. For pools that remain full, the light can stay submerged – its PBT shell withstands ice expansion (tested to –20°C).
Why You Should Upgrade Today
Still using a dim, yellowed, or flickering pool light? Every day you delay, you risk:
Safety hazards (leaking voltage into water)
High electric bills (300–500W halogen lamps)
Frequent replacements (every 1–2 years)
