Introduction
Lighting plays an important role in our lives, and with the increase in energy costs, efficient lighting is becoming more prevalent. One of the aspects of efficient lighting is the ability to dim lights. There are various ways to dim lights, and this article will cover the differences between three popular methods-triac dimming, 0-10V dimming, and DALI dimming.

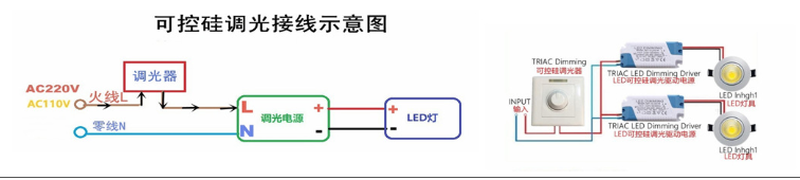

1) Triac Dimming
Triac dimming is a type of dimming that is commonly used in residential and small commercial applications. A triac is a type of semiconductor device that is used to control the flow of current. In the case of triac dimming, the triac is used to control the AC voltage applied to the light fixture. Essentially, the triac switches the light on and off rapidly, so the net effect is that the light is dimmed.
Advantages:
• Triac dimming is inexpensive and easy to implement, making it the most common type of dimming used in residential applications.
• It typically works with a standard wall dimmer switch, making it very easy to use.
• Triac dimming is known for its smooth dimming quality, meaning the light transition from its brightest state to its dimmest state is gradual and not jarring.
Disadvantages:
• While triac dimming is perfect for small residential and commercial applications, it doesn't work well for larger scale commercial applications or when there are many light fixtures involved.
• It can produce buzzing or humming sounds, especially when used with LED bulbs.
2) 0-10V Dimming
0-10V dimming is another type of dimming that is commonly used in commercial and industrial applications. It works by adjusting the voltage that is sent to the light fixture to control its brightness. Essentially, a control signal is sent to the dimming driver/controller which then adjusts the voltage to the light and hence the dimming effect.
Advantages:
• 0-10V dimming is more versatile than triac dimming and works well with both fluorescent and LED lighting.
• It can work with multiple fixtures and can be easily integrated into larger commercial systems.
• It provides complete 0-100% dimming capability, giving the user greater flexibility.
Disadvantages:
• It is more expensive to implement than triac dimming, making it less popular for residential settings.
• 0-10V dimming typically requires a special dimming driver/controller which can add to installation costs.
3) DALI Dimming
DALI (Digital Addressable Lighting Interface) is a protocol used for controlling lighting systems. It is typically used in commercial or industrial settings where many light fixtures are installed, and each light fixture needs to be individually controlled. DALI uses a digital communication protocol to control the lighting fixtures, allowing for individual control and synchronization.
Advantages:
• DALI dimming is extremely flexible and can be used for small or large-scale commercial systems.
• Individual fixtures can be controlled, allowing for greater precision in controlling lighting levels in a large room.
• It can be easily integrated into building automation systems and can work with multiple devices.
Disadvantages:
• DALI dimming is expensive to implement and requires complex wiring and control systems, making it better suited for large-scale commercial applications only.
• DALI requires a more specialized skillset to install and maintain.
Conclusion
The various types of dimming provide different capabilities and are suitable for different applications. Triac dimming is suitable for small residential or commercial applications where only a few light fixtures need to be dimmed. 0-10V dimming is more versatile and works well in commercial or industrial applications where more fixtures need to be controlled. DALI dimming is the most versatile and is suitable for large-scale commercial applications where intricate control is required. Each type of dimming can achieve a reliable, steady, and smooth transition from bright to dimly lit spaces.
