LED Batten Light 36W

LED Batten Light 36W
Details:

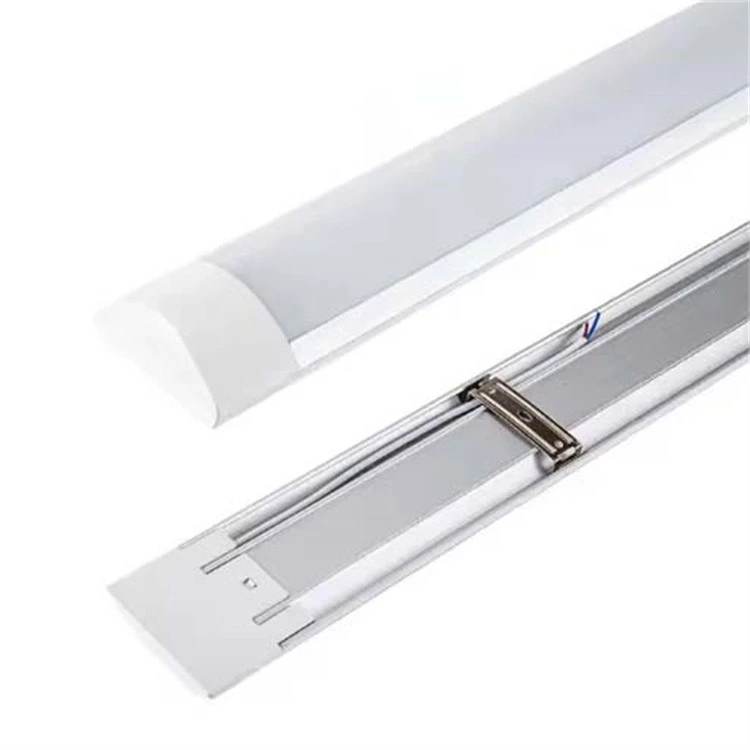

This LED linear batten light adopts high-quality 2835 LED chips, integrated aluminum alloy heat sink and high-transmittance PC cover. It features dustproof, insect-proof and moisture-proof performance, uniform 180° wide-angle illumination without dark zones. Simple installation and series-connectable design make it ideal for warehouses, offices, supermarkets, corridors and retail shops. It delivers stable low-flicker lighting, remarkable energy saving and ultra-long service life, a perfect replacement for traditional fluorescent tubes.
Send Inquiry
Description
Send Inquiry


comparison of product parameters

Input Voltage(V)

AC 165-265V

IP Rating

IP20

Lamp Luminous Efficiency(lm/w)

90

Lifespan (Hours)

30000

Color Temperature(CCT)

3000-6500k

Support Dimmer

No

Warranty(Year)

2-Year

Color Rendering Index(Ra)

70

Light Source

LED

Lighting solutions service

Auto Cad Layout, Lighting And Circuitry Design

Place of Origin

Guangdong, China

Lamp Luminous Flux(lm)

90/W

Product Name

LED Linear Lamp

Power

36w

Material

Aluminum+PC Cover

Color Temperature

3000-6500K

LED Chip

SMD 2835

PF

0.5
Type

Led Linear Ceiling Light

Length

1200mm

Application

Supermarket workshop Parking Lot

Keyword

led batten light



dimmable led batten

Key Features



✅ Extended Operational Lifespan with L70 Compliance Rated for a 50,000-hour L70 lifespan in a typical laboratory. Our batten light progressively deteriorates via mild luminous flux depreciation rather than abrupt failure, in contrast to fluorescent bulbs that burn out suddenly. It consistently lasts 15–18 years in 8-hour commercial operation; steady performance lasts 5–6 years in 24/7 continuous industrial usage. This endurance is only possible with high-quality parts, which removes the need for regular light replacement cycles and associated downtime expenses.

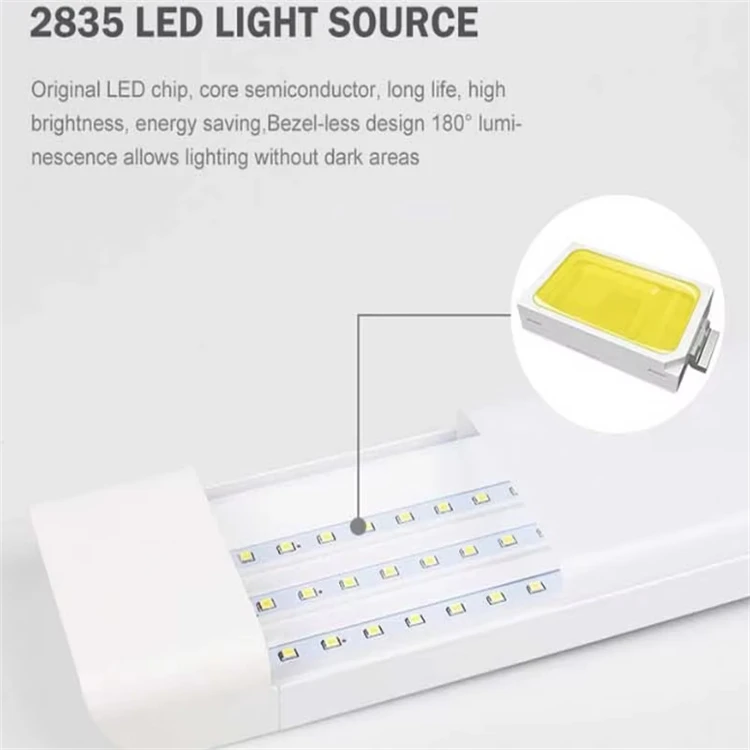

✅ Premium 2835 SMD LED Chips for Stable Light Output The original 2835 SMD chips convert most electrical input into visible light rather than wasted heat because of their excellent photoelectric conversion efficiency and low thermal resistance. Even light distribution over the 180° broad beam angle is ensured by uniform crystal particles, resulting in shadow-free lighting free of hotspots. Low-cost alternatives suffer from brightness drift and dead pixel problems, although chips can survive extended current loading.



Key Features



✅ Long-Term Luminous Consistency & Managed Light Attenuation Strictly controlled low light decay: less than 5% flux loss after 10,000 working hours, less than 15% loss after 30,000 hours, and more than 70% starting brightness after 50,000 hours. The anti-aging PC cover maintains good light transmittance year after year by resisting yellowing and embrittlement under prolonged illumination. No hazy illumination or progressive fading that necessitates early fixture replacement.

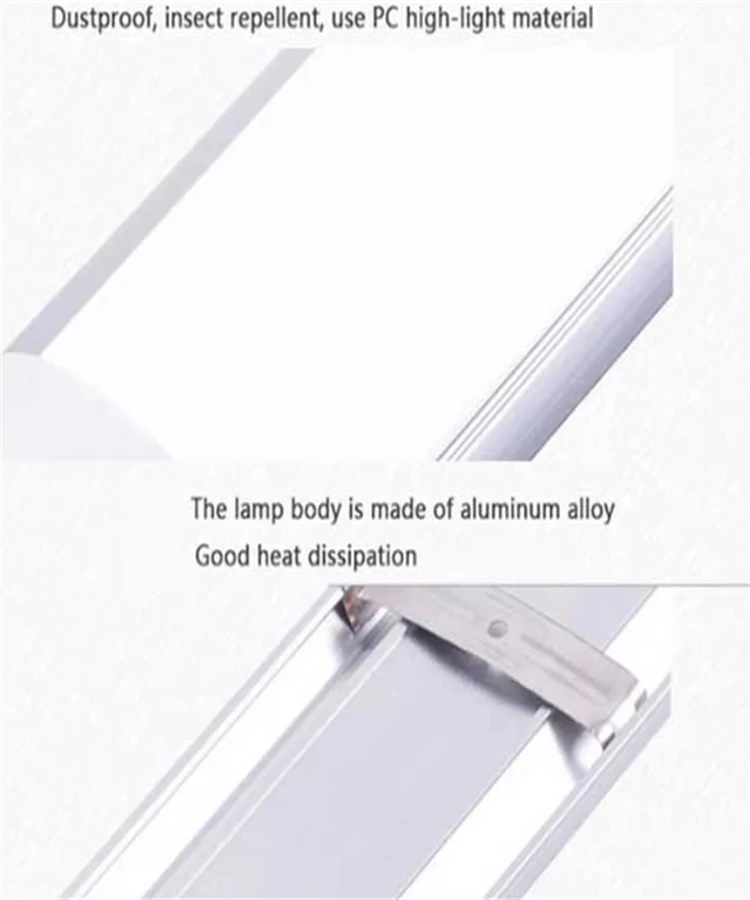

✅ Heat Dissipation System Integrated with Aluminium Alloy As a full-length heat sink, the one-piece extruded aluminium casing quickly conducts heat away from LED chips and disperses it into surrounding air. It prevents heat accumulation, which is the main reason why LEDs age more quickly. Junction temperature remains within a safe range even during continuous 24-hour operation, preventing chip deterioration and preserving the luminaire's whole specified lifetime. This heat management capabilities is unmatched by rivals' thin iron or plastic housings.

linkable led batten lights



led batten lights 4ft

Key Features





Remarkable Energy Savings & Lower Total Cost of Ownership Delivers high lumen output while consuming far less power than traditional fluorescent tubes, saving up to 60–70% on monthly electricity bills. Higher upfront purchase cost is quickly offset by minimal replacement and maintenance expenses. Less inventory stocking of spare lamps and fewer service visits create substantial long-term savings for facility managers and project contractors.

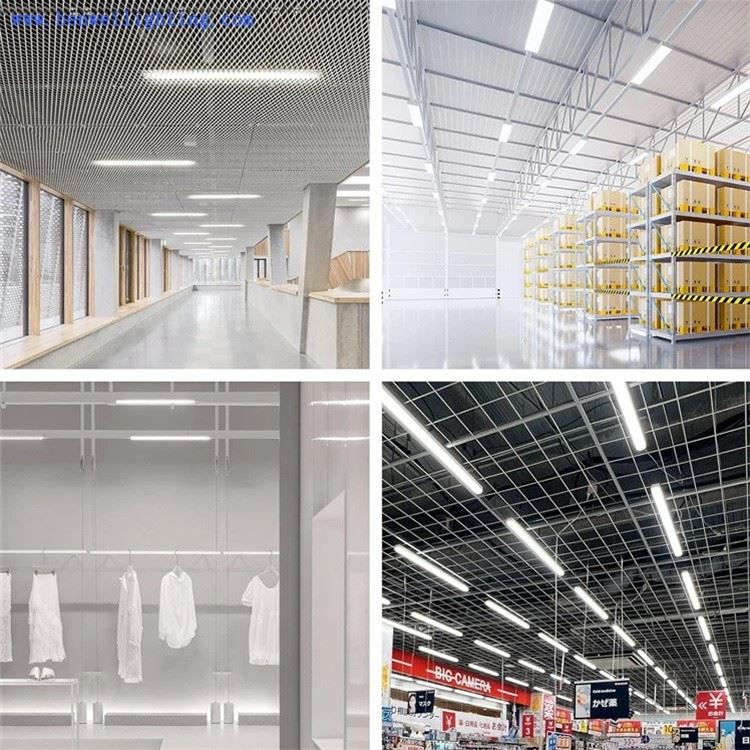

Wide Application Compatibility Versatile for indoor commercial and industrial environments: warehouses, manufacturing workshops, retail supermarkets, office corridors, classrooms, basements and underground parking lots. Suitable for both new lighting builds and retrofitting old fluorescent tube systems.



p20250522155814dabcc

How To Cooperate With Us?

Since we have our own facilities, we are pleased to have complete control over the production process and the quality of our goods. We are committed to giving our clients the finest prices since we are manufacturers rather than just brokers. We encourage buyers to see our samples first since we are certain that the cost and calibre of our items are transparent. Our dedication to excellence and client happiness motivates us to consistently provide superior products.
