comparison of product parameters
|
Input Voltage(V) |
AC 165-265V |
IP Rating |
IP20 |
|
Lamp Luminous Efficiency(lm/w) |
90 |
Lifespan (Hours) |
30000 |
|
Color Temperature(CCT) |
3000-6500k |
Support Dimmer |
No |
|
Warranty(Year) |
2-Year |
Color Rendering Index(Ra) |
70 |
|
Light Source |
LED |
Lighting solutions service |
Auto Cad Layout, Lighting And Circuitry Design |
|
Place of Origin |
Guangdong, China |
Lamp Luminous Flux(lm) |
90/W |
|
Product Name |
LED Linear Lamp |
Power |
36w |
|
Material |
Aluminum+PC Cover |
Color Temperature |
3000-6500K |
|
LED Chip |
SMD 2835 192pcs |
PF |
0.5 |
|
Type |
Led Linear Ceiling Light |
Length |
1200mm |
|
Application |

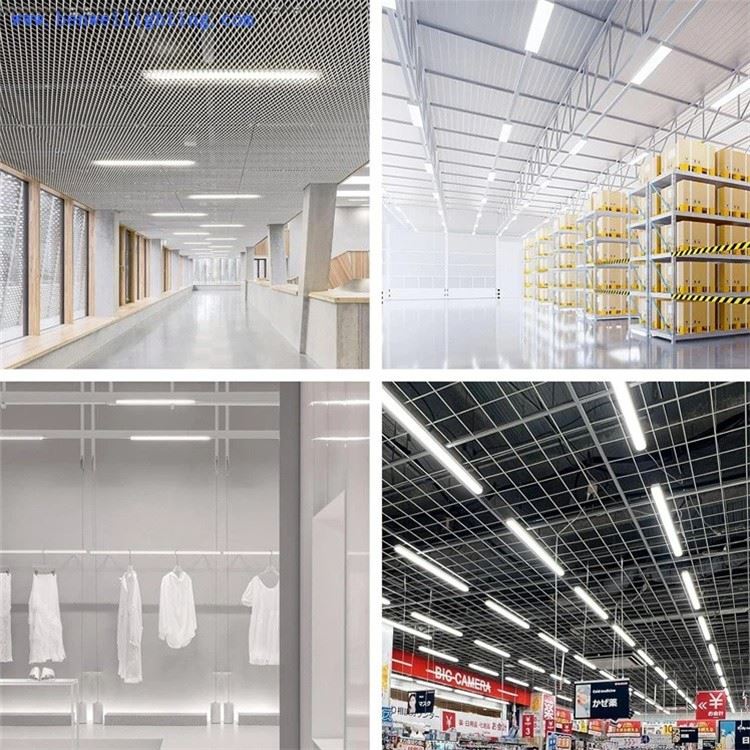

Supermarket workshop Parking Lot |
Keyword |
led batten light |
Key Feature
Adopts high‑grade 2835 original semiconductor LED chips with high luminous efficiency, achieving 180° wide‑angle bezel‑free lighting without dark spots or uneven brightness. Light output is soft yet powerful, eliminating harsh glare to create comfortable visual conditions for long‑time working environments.

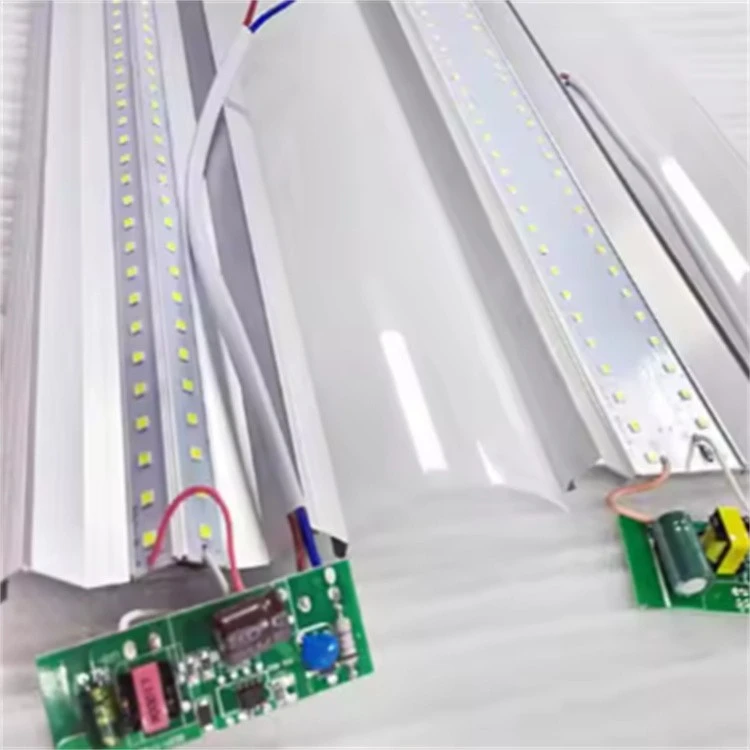

Equipped with wide‑voltage isolated constant‑current LED driver. It maintains stable current output under voltage fluctuation, effectively prevents flickering and stroboscopic light, features fire‑resistant structure and low operating temperature to reduce failure risks caused by overheating.
Key Feature

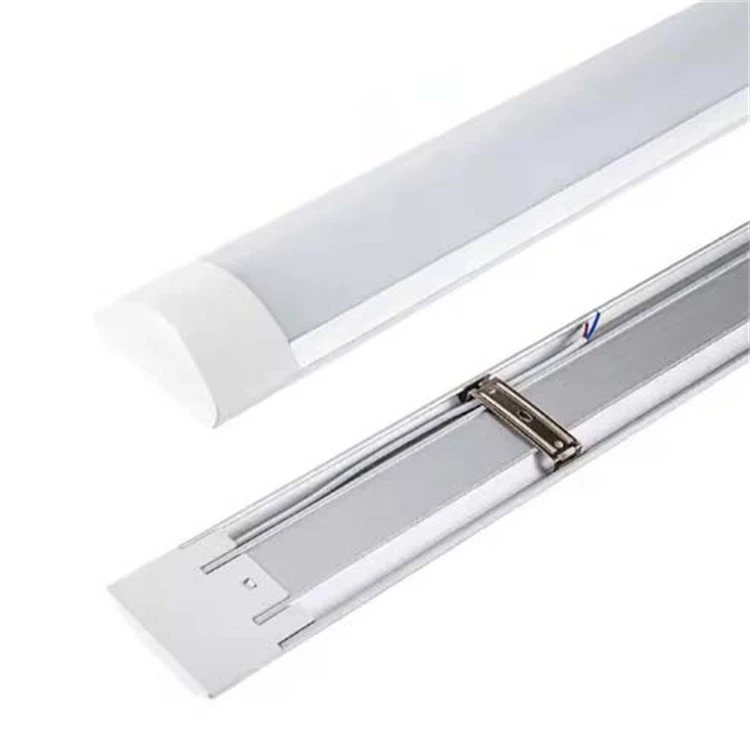

Premium aluminum alloy lamp body with integrated heat dissipation channels. Rapidly conducts internal heat outward, lowers junction temperature of LED chips and slows down light decay, greatly extending the whole service life of the luminaire.
High‑transmittance PC light cover with high light permeability, dustproof, insect‑repellent and moisture‑proof sealed construction. It blocks dust, flying bugs and humid air from entering the inner circuit, avoiding short circuit and light source damage caused by dampness or dirt accumulation.
Key Feature
Low luminous depreciation curve. Thanks to excellent heat dissipation and constant‑current power supply, brightness drops slowly during long‑term continuous use. No frequent lamp replacement is required, cutting maintenance labor cost and spare‑part expenditure for commercial buildings and factories.
Solid dust and moisture resistance structure. Although designed for indoor commercial scenarios, the fully enclosed assembly stops fine dust and airborne moisture invading internal LED boards and driver components, resisting aging and corrosion in slightly humid or dusty indoor spaces.
