Products Description
1. Spring-Clip Installation: Features an integrated spring-clip mechanism that automatically secures the light once inserted into the ceiling cutout, eliminating the need for additional mounting screws.

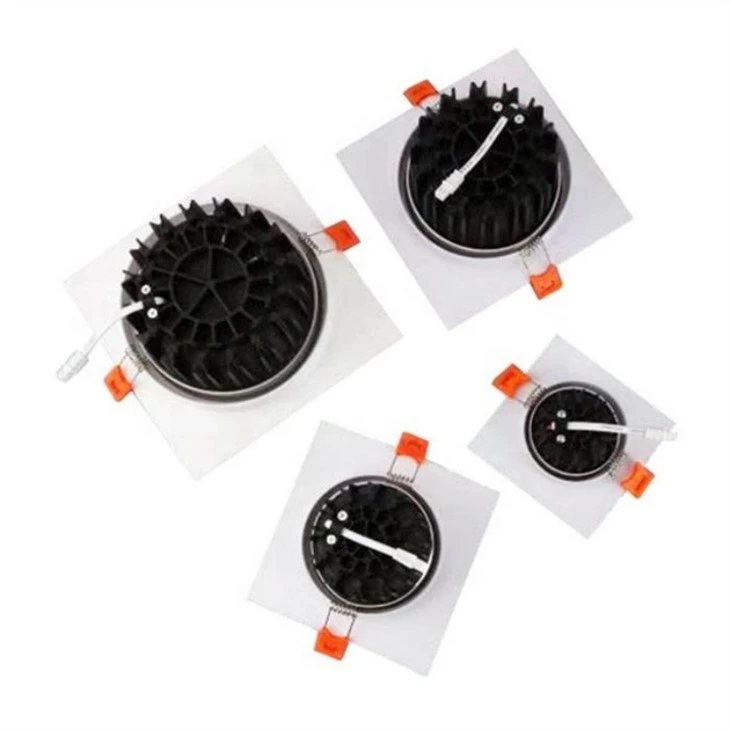

2. Aluminum Alloy Heat-Dissipating Housing: The fixture housing is made of aluminum and incorporates heat-dissipating fins to accelerate heat dissipation, thereby extending the lifespan of the LED chips.
3. Stable DC Driver: Equipped with a regulated DC driver that ensures stable current output, minimizes flickering, and protects the LED chips from premature degradation.

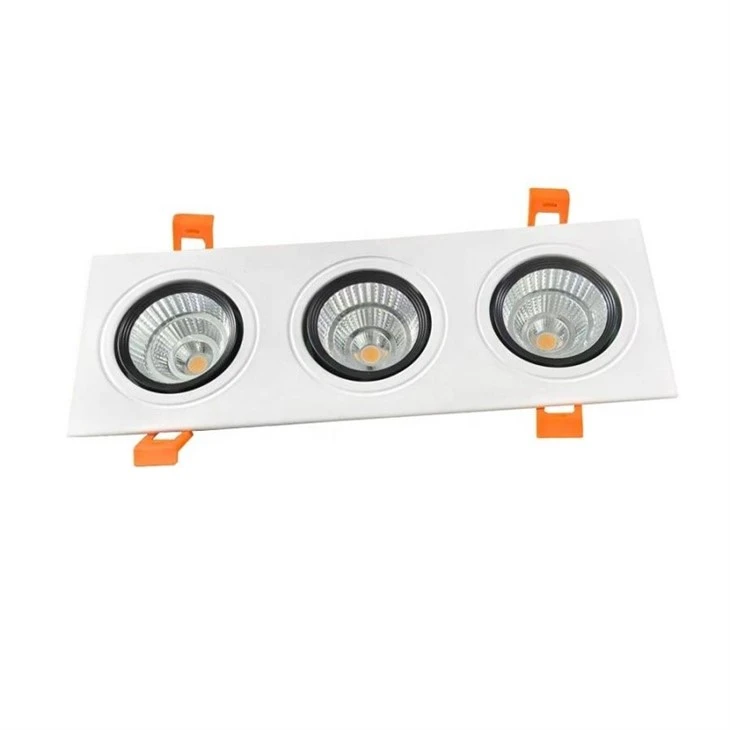

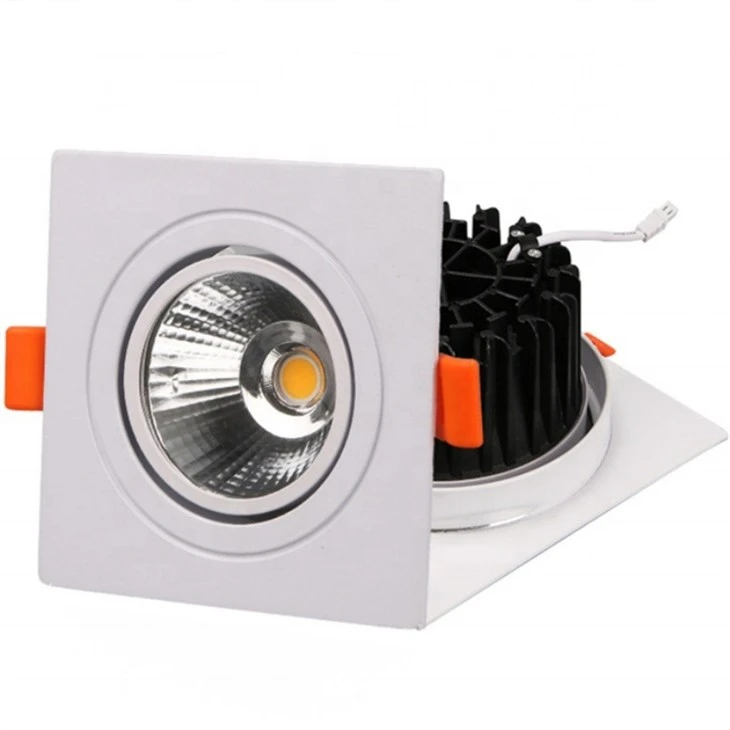

4. Adjustable Light Heads: Each light head allows for independent angle adjustment; dual- and triple-head models enable precise, targeted illumination of different objects.
5. Versatile Application: Suitable for various recessed installation scenarios-such as retail window displays, living rooms, entryways, and display cabinets-effectively highlighting the items on display.
| Products Name | 9W 12W Aluminum LED Spot DownLight | Input Voltage(V) | AC85-265V/ AC165-265V |
| Color Temperature(CCT) | 6000-6500K/4000-4500K/3000-3500K | Installation | Recessed Mounting |
| Application | Indoor/Living Room/Bedroom/Kitchen/Store | Design Style | modern |
| Lifespan (Hours) | 30000 | Warranty(Year) | 3-Year |
| IP Rating | IP44 | Color Rendering Index(Ra) | 80 |
| Support Dimmer | yes | Control Method | Switch control |
| Material | PC+ABS | Lighting solutions service |
Lighting And Circuitry Design |
| Light Source | cob | MOQ | 2 |
| Product Weight(kg) | 2 | Working Temperature(℃) | -20-50 |
| Certification | RoHS, CE, | Power Factor | >0.90 |
| Power | 3W/5W/7W/9W/12W | Item Type |
ceiling Light |
| Beam Angle(°) | 120 Degrees | Lamp Luminous Efficiency(lm/w) | 90-100 |
| Lamp Color | White+Orange | Lamp Luminous Flux(lm) | 270/450/630/810/1080 |
More Detial

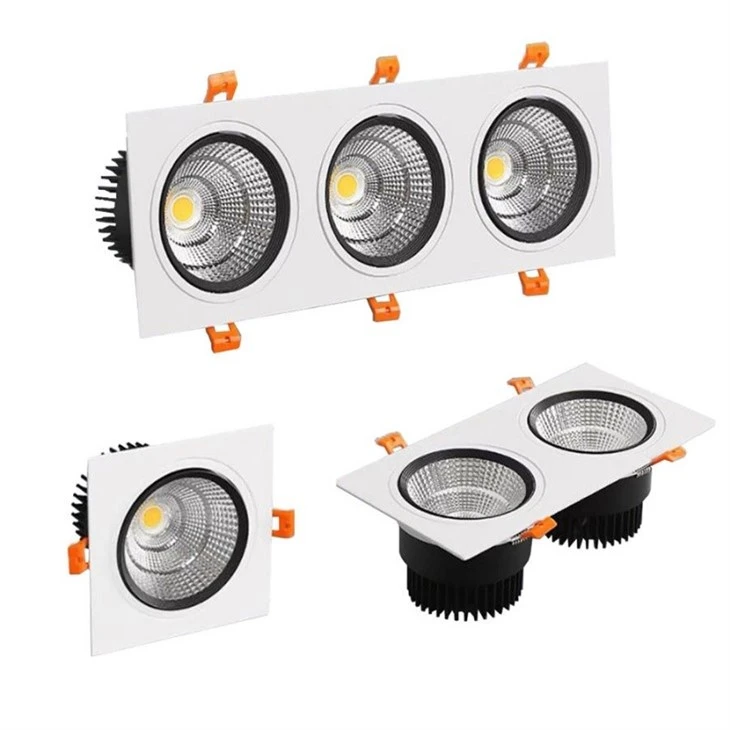

The design of this single-, double-, and triple-head COB recessed spotlight aligns closely with the practical needs of commercial display lighting. The series offers three configurations-ranging from one to three heads-allowing for flexible selection based on ceiling mounting points or the width of a display window, eliminating the need to purchase and assemble multiple separate fixtures to cover various lighting spots. It utilizes a practical spring-clip mounting mechanism common to this type of recessed light; once the cutout size is correct, the fixture can generally be secured with a simple push, making installation and removal far more convenient than traditional screw-based methods. The ability to independently adjust the angle of each light head is particularly advantageous for scenarios requiring the simultaneous illumination of multiple display items that are not perfectly aligned-such as merchandise arranged at varying heights and positions within a shop window.
