comparison of product parameters
|
Cut Out |
90-105mm, 115-130mm, 150-165mm, 190-210mm |
Installation Style |
Recessed |
|
Input Voltage(V) |
AC 220V( ± 10%) |
Application |
Office |
|
IP Rating |
IP20 |
Color Temperature(CCT) |
2700K (Soft Warm White), 3500K (Warm White), 4100K (Neutral White), 5000K (Daylight), 6000K (Daylight Alert) |
|
Lamp Luminous Efficiency(lm/w) |
100 |
Lifespan (Hours) |
50000 |
|
Warranty(Year) |
5-Year |
Support Dimmer |
Yes |
|
Light Source |
LED |
Lamp Body Material |
Aluminum |
|
Design Style |
Modern |
Feature |
Anti-Glare, Eco-Friendly, Durable, High Brightness, Easy Installation |
|
Switch Type |
Touch On/Off Switch |
Bulb Type |
LED |
|
Color Rendering Index(Ra) |
90 |
Beam Angle |
100° |
|
Lighting solutions service |
Lighting And Circuitry Design, Dialux Evo Layout, Litepro Dlx Layout, Agi32 Layout |
Place of Origin |
Guangdong, China |
|
Lamp Luminous Flux(lm) |
>100 lm/w |
Application |
Office |
|
Product name |

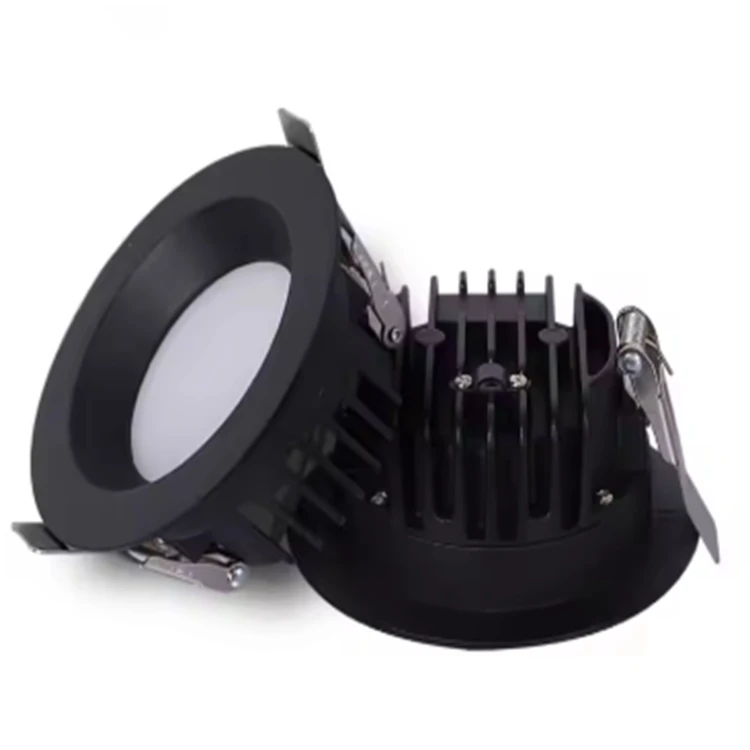

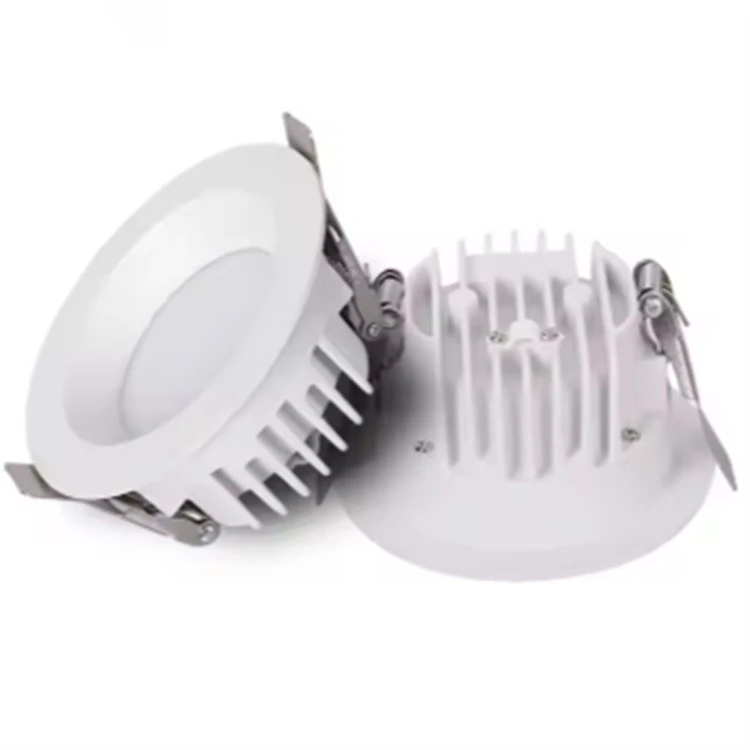

Led Recessed Downlight |
Keyword |
Ceiling Spot Downlight |
Key Feature
Equipped with authentic Sanan or OSRAM SMD2835 high‑efficiency LED chips, supplied with official LM‑80 aging test reports, guaranteeing stable luminous efficiency and consistent color rendering.
Deep recessed anti‑glare ring structure effectively restricts stray light, eliminates harsh dazzling glare, provides eye‑friendly soft and even lighting, greatly improving visual comfort for long‑time exposure.

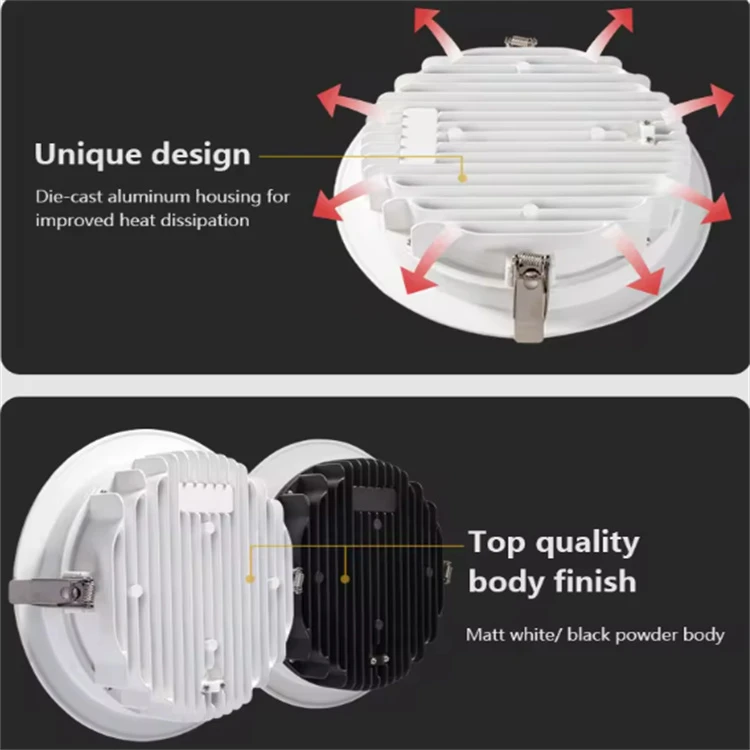

Adopts thickened die‑cast aluminum radiator with integrated fin‑type heat dissipation architecture. Multi‑directional heat conduction channels rapidly export internal operating heat, lower junction temperature of LED chips and avoid premature light aging caused by overheating.
Key Feature
Long rated service life reaches 50,000 hours under normal working conditions. Continuous long‑term operation will not cause sudden lamp failure, cutting your frequent replacement and maintenance expenses dramatically.
Excellent low lumen depreciation performance: L70 lifespan standard is achieved, lumen output retains more than 70% of initial brightness after 50,000 working hours. Slow brightness attenuation avoids obvious darkening of lighting effect in later usage.
Stable constant‑current driving power source, no stroboscopic flicker, no visible light fluctuation, protects human eyes from fatigue and strain; constant current output prevents burnout of LED beads from current surge.
Key Feature
Moderate IP40 protection grade. It can effectively block solid dust, debris and tiny particles from entering the lamp interior, prevent dust accumulation on LED chips and circuit boards, and reduce hidden danger of short circuit. Not suitable for direct water splashing environment, perfect for dry indoor commercial and household scenarios.
Wide color temperature optional range including warm white, natural white and cool white, high CRI restores true color of objects, satisfying decorative lighting and functional lighting demands at the same time.
Spring‑loaded metal clip installation design, simple and quick to embed into ceiling cut‑out, firm clamping without loosening or sagging after long‑time installation.
