Led Ceiling Panel Surface Mounted

Led Ceiling Panel Surface Mounted
Details:
1. Improved heat dissipation: Several vent holes guarantee a lifetime of more than 30,000 hours.

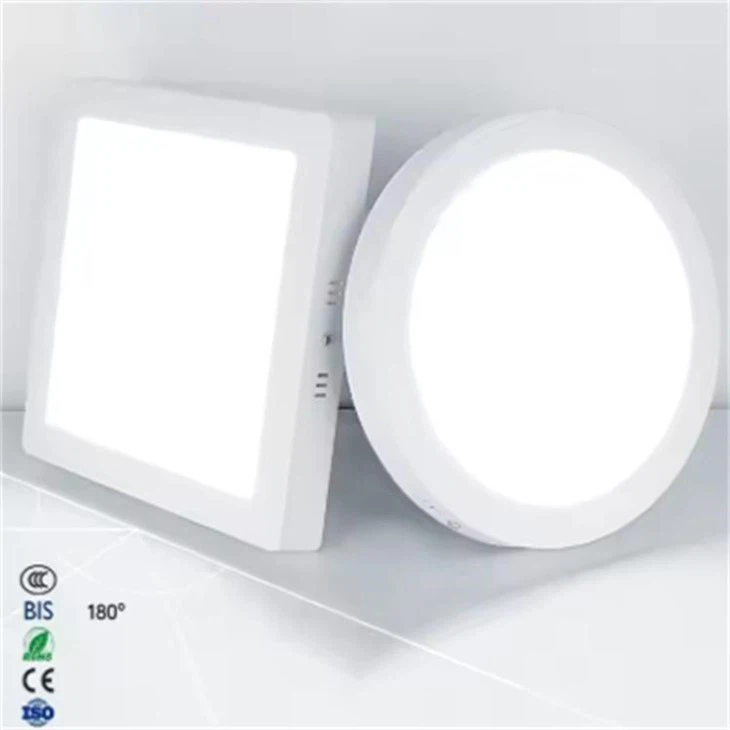

2. Dual shapes: Square or round alternatives to complement any home style.
3. Soft 180° light: ambient lighting that is eye-pleasing and flicker-free.
4. Simple surface mount: Ideal for retrofits, no ceiling cutting is required.
Send Inquiry
Description
Send Inquiry



Key attributes

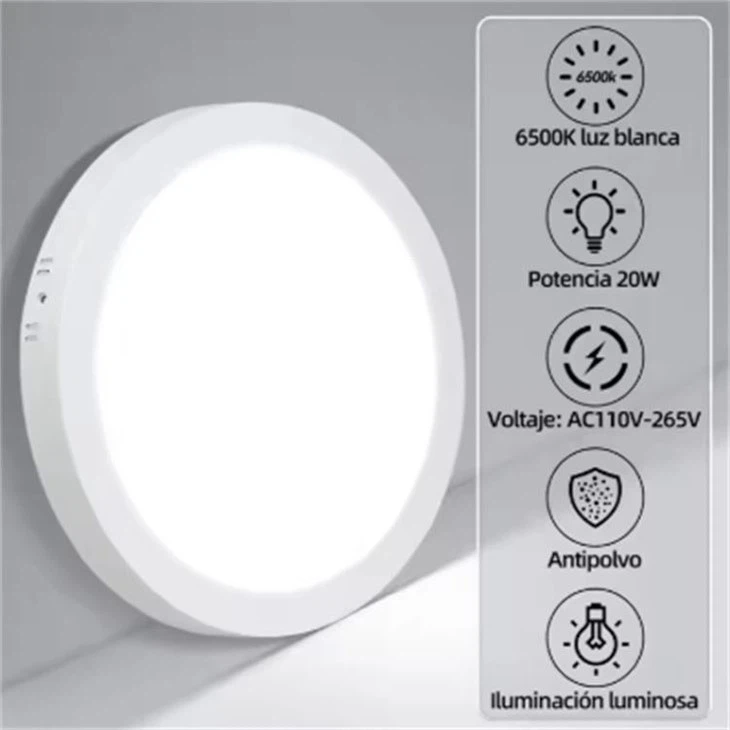

Lifespan (Hours) 30000 Color Temperature(CCT) 6500K
Lamp Luminous Efficiency(lm/w) 110 Warranty(Year)

5-Year

Material Aluminum Product Weight(kg) 0.3
Lighting solutions service Lighting And Circuitry Design, Dialux Evo Layout, Litepro Dlx Layout, Agi32 Layout, Auto Cad Layout, Onsite Metering, Project Installation Light Source LED
Lamp Luminous Flux(lm) 2113 Input Voltage(V) 85-265V



ceiling led panel light surface mounted

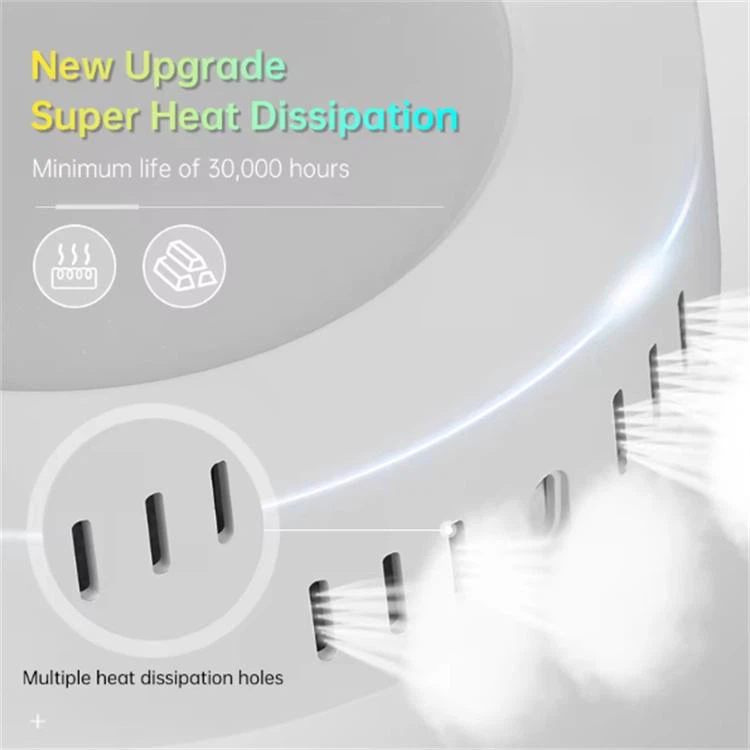

1. Better Design for Heat DissipationThis ceiling lamp effectively distributes heat to ensure steady performance thanks to its updated heat management technology and many heat dissipation holes. It lowers the frequency of replacements and long-term expenses by guaranteeing a minimum lifetime of 30,000 hours.


2. Two Adaptable Shape ChoicesPerfect for contemporary, minimalist, or classic home design, it comes in round and square forms to accommodate many interior styles. The low-profile, thin profile of both designs allows them to blend in well with ceilings.


3. Soft & Uniform Illumination: Provides flicker-free, 180° wide-angle light with superb color reproduction, producing a soft, aesthetically pleasing glow that is perfect for homes. Comfortable ambient lighting is ensured by the diffused panel, which removes harsh shadows.


4. Simple Installation of Surface-MountBecause it is designed for direct surface installation and doesn't need a ceiling cutting, it is perfect for both new construction and retrofitting applications.

Step 1: Mount the Bracket

First, use a screwdriver to fix the metal mounting bracket firmly to the ceiling. Ensure the bracket is level and securely attached to a stable ceiling structure.

Step 2: Connect the Power Cord

Important: Always turn off the main power supply first for safety. Then, connect the fixture's power cord to the household electrical wires (match live/neutral/ground wires as per local electrical standards).

Step 3: Attach the Light Fixture

Align the main body of the ceiling light with the pre-installed mounting bracket, and place it onto the bracket to hold it temporarily.

Step 4: Secure with Screws

Finally, use a screwdriver to fasten the light fixture to the bracket with screws, ensuring it is stable and flush against the ceiling.

surface mount led panel

surface mount led flat panel



How To Cooperate With Us?

Our firm prides itself on owning its own factory, guaranteeing complete control over the production process and the quality of our goods. We are not only agents; we are manufacturers committed to offering our clients the most competitive rates available. We invite consumers to evaluate our samples first, as we are assured that the quality and pricing of our items are self-evident. Our dedication to excellence and client satisfaction compels us to consistently perform at our best and provide superior quality products.

Our address

3rd Floor, 5th Building, Hebei Industrial Park, Hualian Community, Longhua District, Shenzhen, China

Phone Number

86-19308489145

E-mail

bwzm09@ledbenweilighting.com

p20250522155814dabcc



FAQ

Q1. Can I provide sample orders for your products?

A: Of course, you can check our quality before ordering.If you have any requirements, please contact us.



Q2. What is your delivery time?

A: It depends on the order quantity. Usually, it takes about 7-10 days after receiving the small deposit. Bulk ordering takes 20-25 days (more than 10,000 pieces per watt).



Q3. Do you have a minimum order quantity requirement? Can you accept mixed goods for FCL orders?

A: We have low MOQ requirement for 100pcs. We prefer you can mix items for FCL order for save both side cost..



Q4. How long will it take after placing an order?

A:Depends on the order volume. We will ship most online wholesale orders within 5 days of receiving payment.
