Key attributes
| Products name | Downlights | Color Temperature(CCT) | 2700K/3000K/4000K/5000K(±150K)/6000K (250K) |
| Lamp Luminous Efficiency(lm/w) | 95 | IP Rating | IP20 |
| Material | Aluminum | Color Rendering Index(Ra) | 80 |
| Lighting solutions service | Lighting And Circuitry Design | Lamp Luminous Flux(lm) | 2956 |
| Power | 30w | Beam Angel | 101° |

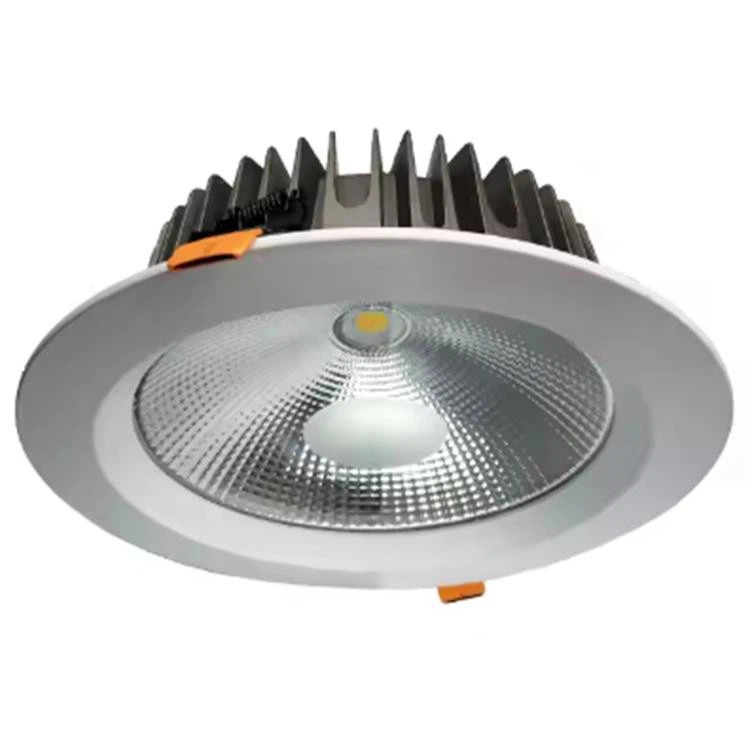

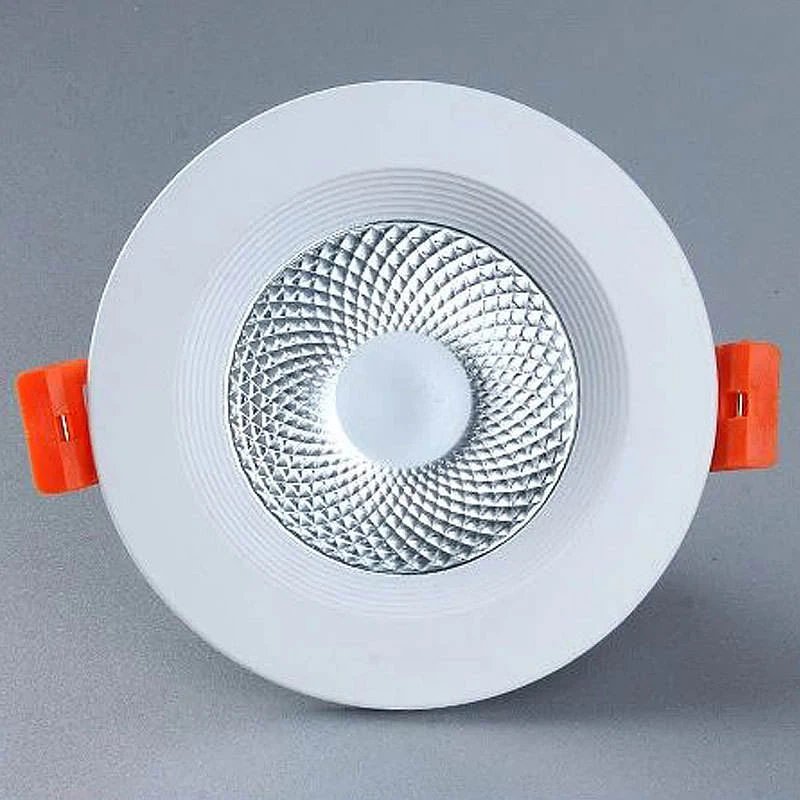

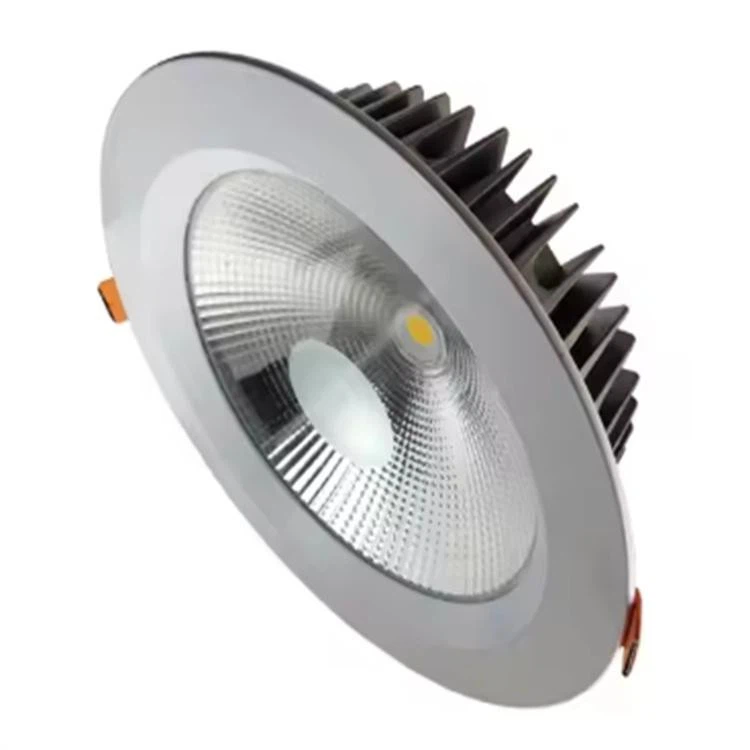

1. High-Performance LED Chip
Featuring premium LED chips with a Colour Rendering Index (CRI) >90 for accurate colour reproduction, 95lm/W high luminous efficacy for energy-efficient brightness, and a versatile colour temperature range of 2700K-6000K to accommodate different lighting conditions.
2. Anti-Glare & Efficient Light Output
The carefully designed LED reflector guarantees anti-glare illumination and high-efficiency light output, resulting in homogeneous, soft lighting that reduces visual discomfort.

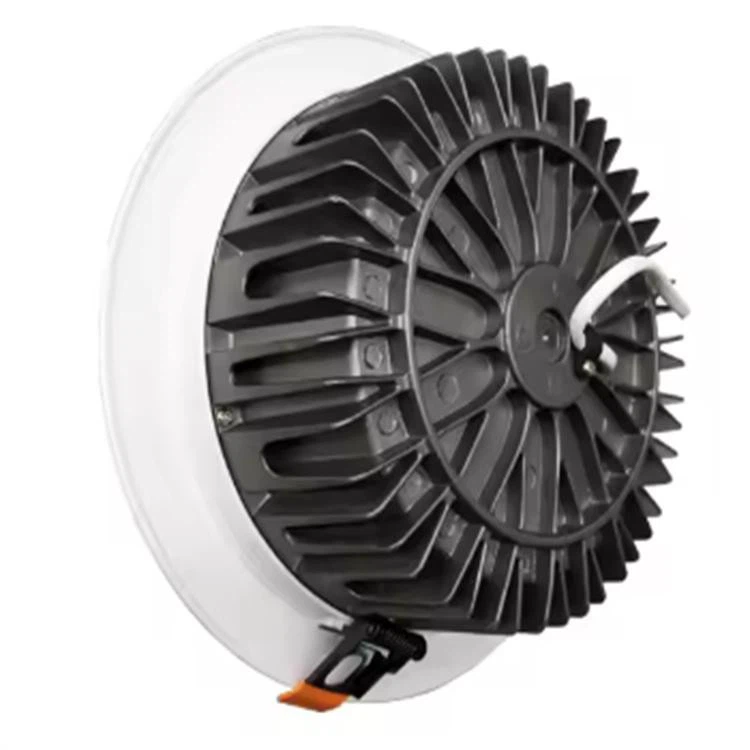

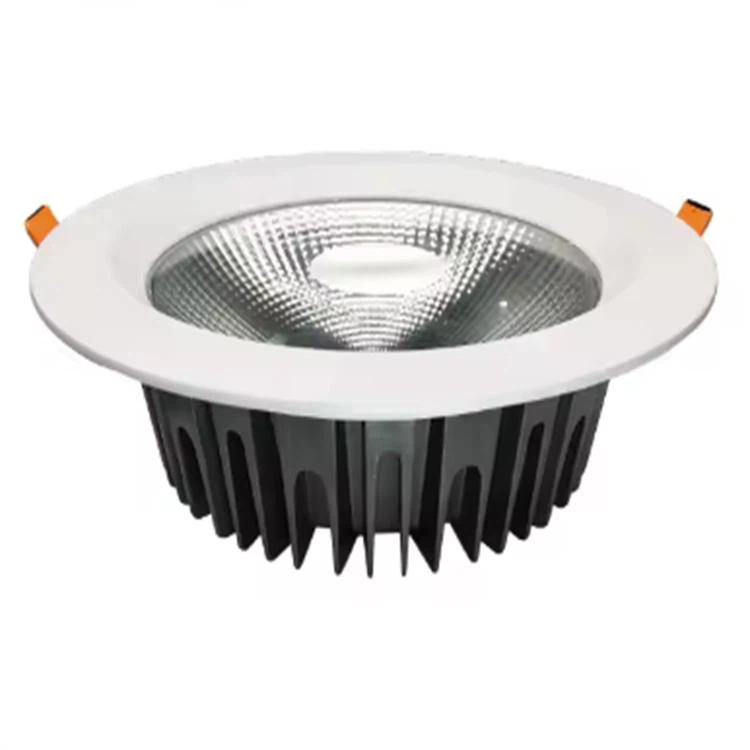

3. Superior Design for Heat Dissipation
The lamp body's finned heat sink structure and high-purity aluminium housing efficiently dissipate heat to sustain low operating temperatures and increase the product's lifespan.
4. Simple Installation of Embedded
It is perfect for both commercial and residential ceiling installations because it is made for embedded installation with quick-fit spring clips and provides a simple setup procedure.

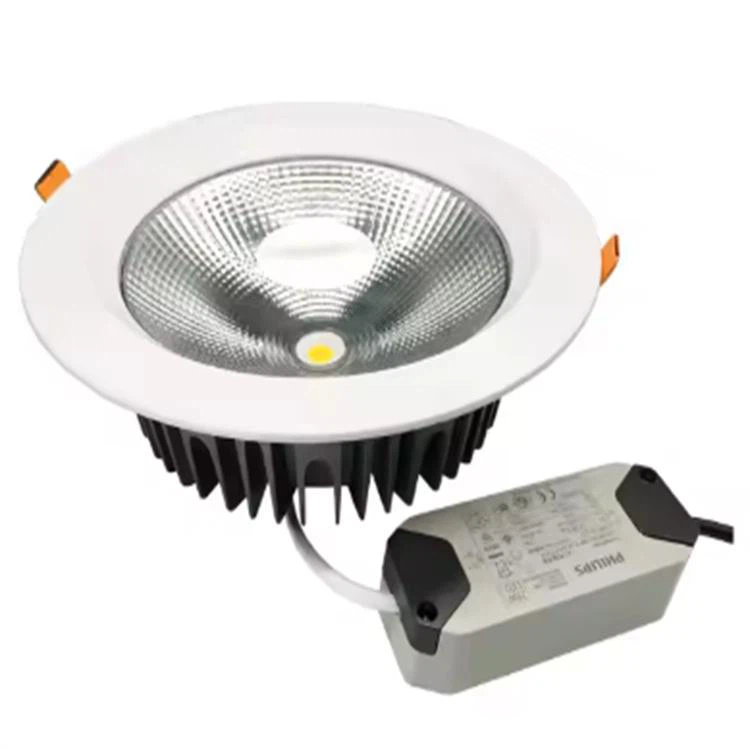

5. Reliable Power Supply (Optional)
Compatible with top-notch drivers (such the Philips driver) for steady voltage and current output, guaranteeing dependable performance and shielding the LED components from electrical harm.
1. Getting Ready for Installation
Examine the item: Make sure the driver, mounting clips, and LED downlight are all in good condition and have the voltage you need (e.g., AC100-240V).
Get the tools ready: Get a wire stripper, screwdriver, and hole saw ready for installation.
Mark the location: Mark the mounting location on the ceiling based on the cutout size of the product (e.g., Φ180-200mm).
2. Steps for Installation
Make a hole: At the indicated location, make a round hole in the ceiling using a hole saw.
Attach the wires: Connect the driver's output wires to the LED terminals of the lamp after connecting the driver's input wires to the mains power (L/N/PE) in accordance with local electrical regulations.
Mount the lamp by inserting the lamp into the pre-cut hole, pressing the spring clips on both sides of the lamp body inward, and then releasing the clips to secure the lamp firmly in the ceiling.
Power on: To test the lighting function, turn on the power source and make sure the lamp illuminates steadily and without flickering.
3. Usage & Operation Advice
Dimming function (optional): To change brightness and colour temperature (2700K-6000K) as needed, connect a dimmable driver to a suitable dimmer switch.
Cleaning and upkeep: Before cleaning, turn off the electricity. Use a gentle, dry towel to wipe the surface; avoid using corrosive cleaners.
Notes about safety: To prevent burns, keep your hands away from the heat sink while the lamp is operating. For the best heat dissipation, make sure the installation area has adequate ventilation.
