comparison of product parameters
|
Installation Style |
Downlights |
Input Voltage(V) |
AC 220V( ± 10%) |
| Application |
Mall |
IP Rating |
Ip20 |
|
Color Temperature(CCT) |
3000k, 4000k, 5000K,6000k |
Lamp Luminous Efficiency(lm/w) |
80 |
|
Lifespan (Hours) |
50000 |
Warranty(Year) |
2-Year |
|
Support Dimmer |
Yes |
Light Source |
LED |
|
Lamp Body Material |
Aluminum |
Design Style |
Modern |
|
Switch Type |
Touch On/Off Switch |
Color Rendering Index(Ra) |
90 |
|
Lighting solutions service |
Dialux Evo Layout |
Place of Origin |
Guangdong, China |
|
Product name |
Led Down Lights |
Color |
White/Black |
| CCT |
3000K/4000K/5000K/6000K |
Size |
D100*H50/D115*H50/D145*H55/D180*H55 |
|
Material |
Alumimum |
Beam angle |
120 |
| Voltage |
AC170-240V |
Certification |
ce EMC RoHS |

Lighting & Thermal Performance
Adopts premium anti‑UV PC diffuser cover, effectively resisting ultraviolet aging, keeping consistent white appearance without yellowing after long‑term usage; soft uniform light output, no glaring hot‑spots, comfortable eye‑friendly illumination.
Integrated black fin‑structured heat sink maximizes heat dissipation area. Fast heat evacuation keeps internal LED chip working temperature at a low level, which is the core guarantee for stable lighting performance under continuous long‑hour operation.
Compatible with wide‑range AC input voltage (85‑265V), strong voltage fluctuation resistance; no frequent flicker even under unstable local power grid conditions, delivering stable luminous output.
High CRI performance, faithfully restores the true color of objects, ideal for retail display, lobby & room ambient lighting.
Service Life & Luminous Decay
Designed for ultra‑long operational lifespan, rated service life reaches up to 50,000 hours under proper working condition.
Optimized thermal management drastically slows down light attenuation (lumen depreciation). Slow lumen loss ensures the lamp still maintains more than 70% of its initial luminous flux after years of continuous running, effectively postpones obvious dimming problems.
Significantly lower light decay rate compared with conventional downlights; cuts your frequent replacement & maintenance cost for large‑scale commercial lighting projects.

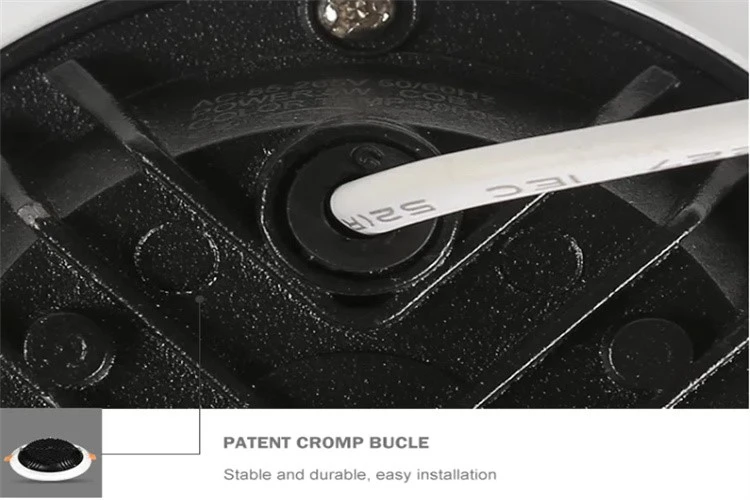

Solid patented cable locking buckle fixes internal power cord firmly, preventing wire loosening caused by vibration, reducing hidden failure risks and extending overall service lifetime of the whole fixture.

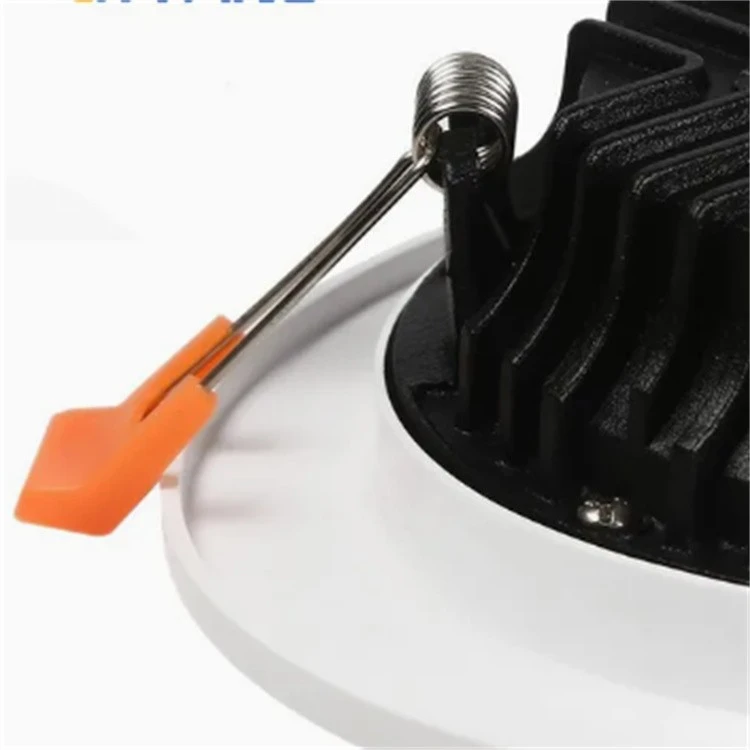

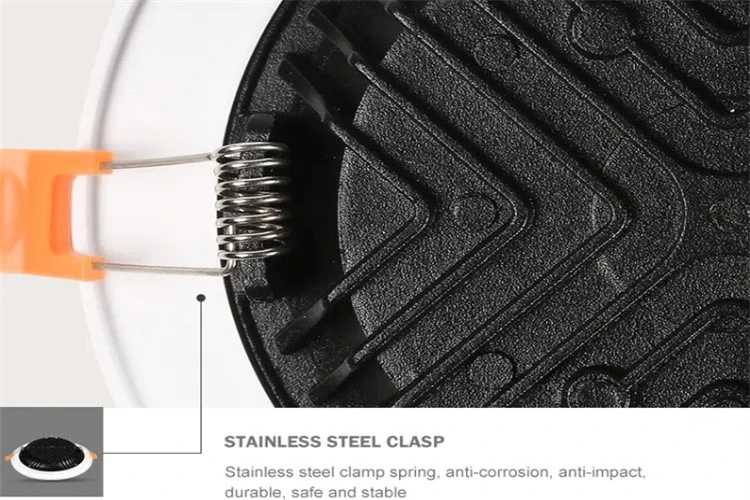

Robust stainless‑steel spring clamping hardware features anti‑corrosion & anti‑impact properties; springs will not lose elasticity easily after repeated installation or long‑time compression inside ceiling openings, securing long‑term installation reliability.


Protection Grade & Structural Durability
Ingress Protection Rating: IP20. It offers protection against finger‑touch of live internal components and solid foreign objects larger than 12mm; suitable for dry indoor ceiling installation (living rooms, hotel corridors, office ceilings, supermarket interior areas). Note: Not for damp bathroom or outdoor open‑air usage.
Anti‑aging PC face panel avoids discoloration under indoor lighting environment; the rugged injection‑molded back heat‑dissipation housing resists cracking under normal temperature variation.
The flexible orange plastic spring bracket enables quick & effortless embedded ceiling mounting; no complicated extra fixing tools required during site installation work, greatly improving on‑site construction efficiency.
Good anti‑shock performance, withstands minor vibration on ceiling structures, suitable for large‑volume engineering procurement.
