Adopt frst-line well-known brand power supply (optional Meanwell, Moso, DONE, Osram, Inventronics
Driver, etc.), with guaranteed quality and three guarantees;
The powersupply adopts the latest wide voltage technology, which has the characteristics
of constant current output, lightingprotection, surge protection, short circuit and
overvoltage protection, etc. The power factor is as high as 0.99, and the quality is more stable;
ATTRIBUTIVE

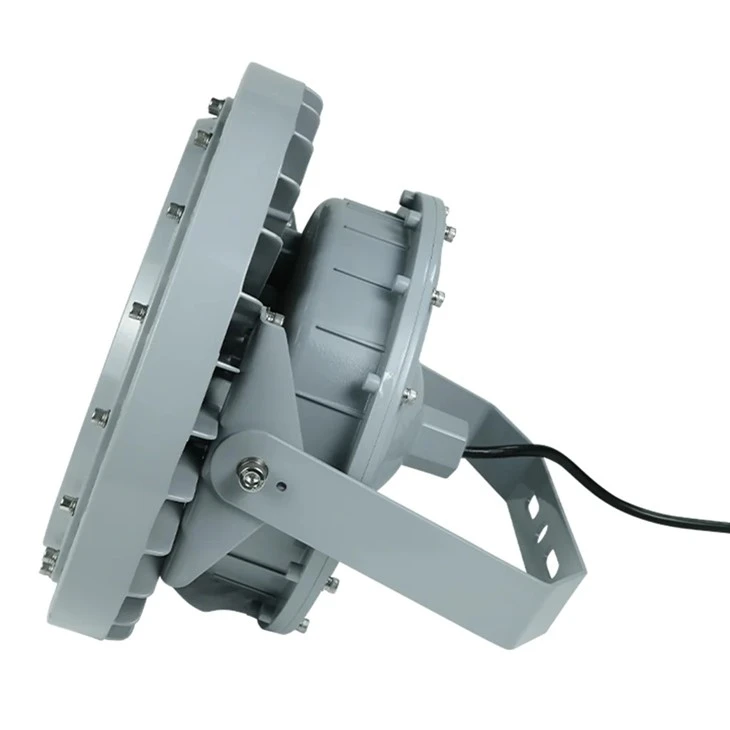

| Item Name | LED Explosion Proof Light |
| Power Consumption | 120W/150W/160W/180W/200W/ (EPL66 III) |
| Input Voltage | 220V AC (applied for 95-305V),DC |
| Frequency | 50/60Hz (applied for 47-63 Hz) |
| Beam Angle | 60°/90°/120°/140° |
| Explosion-proof Grade | II2GD Ex db e IIC T6,Gb, Ex tb IIIC T80ºC Db |
| Corrosion-proof Grade | WF2 |
| IP Grade | IP66 |
| Power Factor | 0.95 |
| Total Harmonic Current | 0.15 |
| Lamp Efficiency(%) | 0.9 |
| Color Temperature(K) | Warm white:2700-4000K; Pure white: 5000-6500K |
| Junction Temperature(TJ) | 65°C |
| Color Rendering Index (CRI) | 70 |
| Light Effect | 110-130lm/W |
| Ambient Environment | Temperature: -40°C-55°C; Humidity: 10-90%RH (25°C) |
| Lifespan | 50000Hrs |
| Material | Aluminum Alloy |
| Installation Height | 4~10m (flood light) / 10~30m (project light) |
| Dimension(mm) | 400*400*304 |
| Net Weight | 9.1Kg |
| Certificate | IEC EX, ATEX, cULus, CNEX, CE, RoHS |
