comparison of product parameters
|
Hazard Classification |
Other |
Temperature Code |
Other |
|
Input Voltage(V) |
AC100-265V |
Light Source |
LED |
|
IP Rating |
IP65 |
Lamp Luminous Efficiency(lm/w) |
100-110lm/w |
|
Lifespan (Hours) |
30000 |
Lamp Body Material |
Aluminum+ tempered glass |
|
Color Temperature(CCT) |
5500-6500K |
Mounting Location |
Wall Mount |
|
Support Dimmer |
No |
Base Type |
Other |
|
Color Rendering Index(Ra) |
80 |
Warranty(Year) |
3-Year |
|
Overall Dimensions |
Other |
Lighting solutions service |
Lighting And Circuitry Design, Dialux Evo Layout, Auto Cad Layout |
|
Working Temperature(℃) |
-40 - 50 |
Place of Origin |
Guangdong, China |
|
Product Name |
Explosion Proof Light |
Power |
50W/100W/150W |
|
Color Emerature |
5500-6500K |
Material |
Aluminum+ tempered glass |
|
LED chip |
SMD2835/3030 |
Lamp Luminous Efficiency(lm/w) |
100-110lm/w |
Core Optical & Luminous Performance

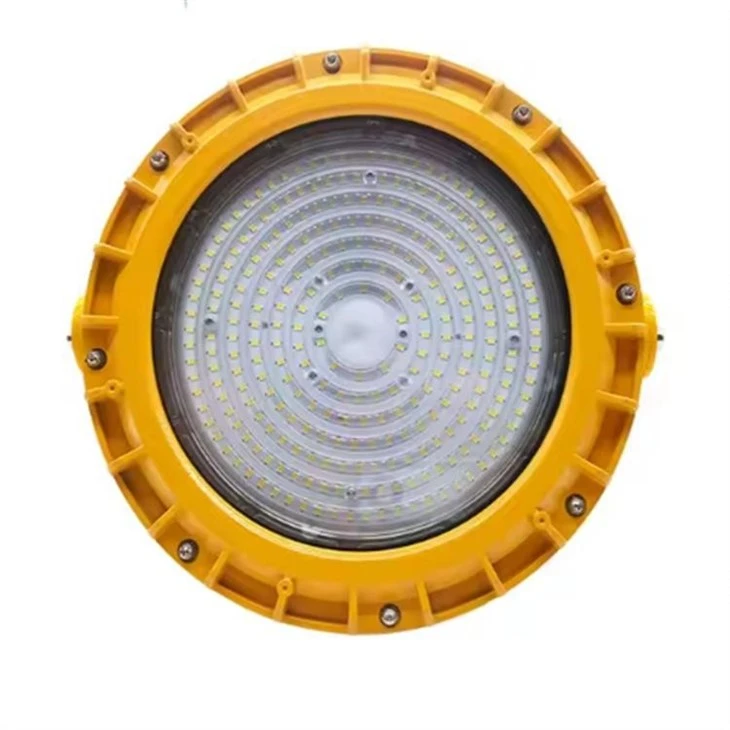

Adopts high-brightness SMD2835/3030 LED light beads with uniform circular array layout, high condenser concentric lens structure, light output efficiency up to 130-150lm/W, 30% brighter than traditional explosion-proof metal halide lamps.
Uniform soft light distribution without glare, no dark spots, no stroboscopic effect, effectively eliminate visual fatigue for long-hour factory operation workers.
Precise concentric refraction lens realizes targeted lighting projection, light utilization rate increased by over 45%, greatly cut redundant light waste and energy consumption.
Constant current isolated driver built-in, anti-surge, anti-fluctuation, stable luminous output even under unstable industrial grid voltage (AC85-265V wide voltage compatibility).
Explosion-Proof & Multi-Layer Protection Grade Standard
Full explosion-proof certification structural design, flameproof enclosure isolates internal electric spark from external flammable medium, effectively prevent explosion risk in Class 1 & Class 2 dangerous locations.

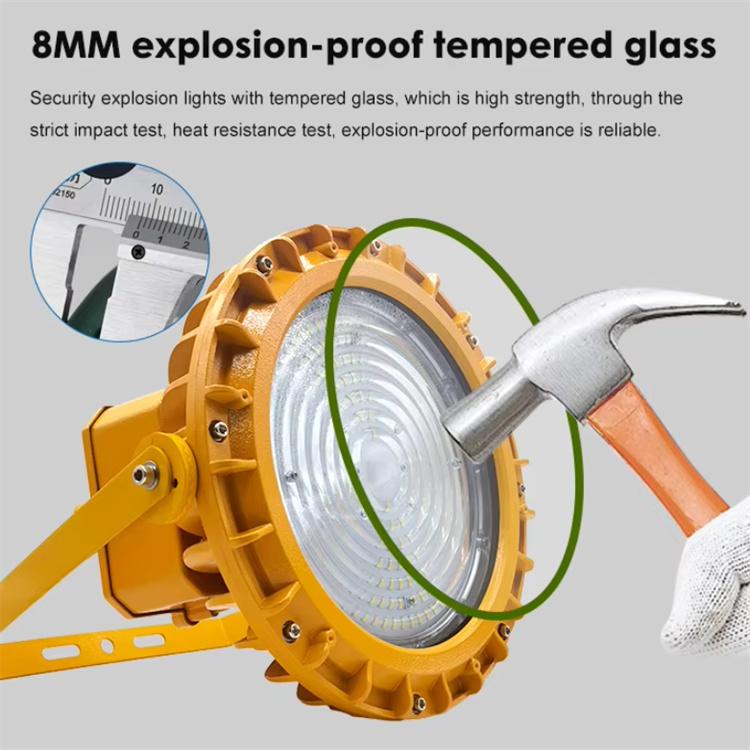

Front light window adopts 8MM thick explosion-proof tempered glass, passed strict professional impact resistance & high temperature resistance test; withstand heavy hammer impact without cracking, high mechanical damage tolerance.

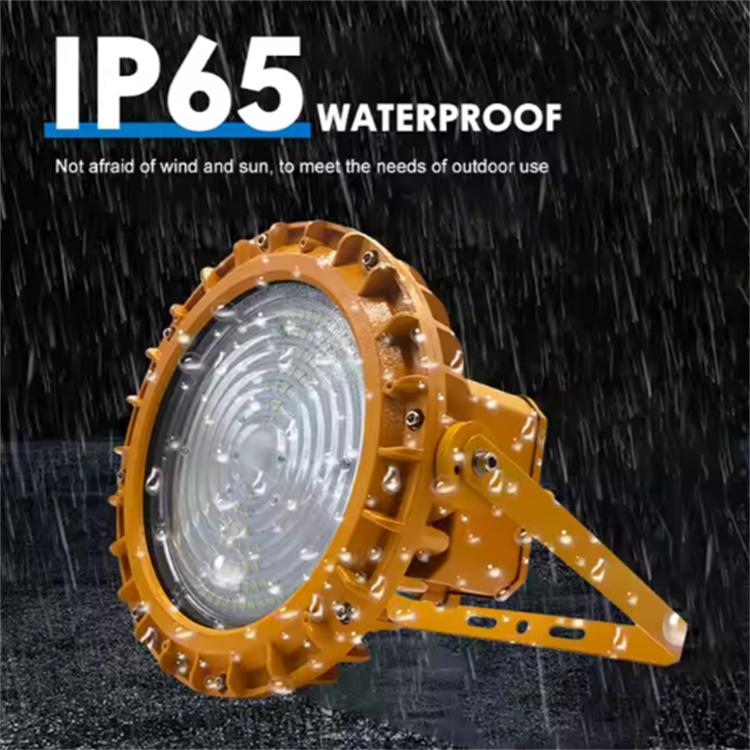

Industry-standard IP65 full protection rating:
Dust-proof Grade 6: Completely dust-tight, zero fine dust penetration into lamp internal cavity, avoid dust accumulation short circuit failure.
Waterproof Grade 5: Resist low-pressure splash water & heavy rain erosion, fully adapt outdoor open-air hazardous sites, no water infiltration inside lamp body.
Additional Industrial Practical Advantages
Adjustable angle mounting bracket with multi-position long slotted holes, freely adjust lighting irradiation angle, wall-mounted, ceiling-mounted, bracket vertical installation all supported, easy rapid installation.

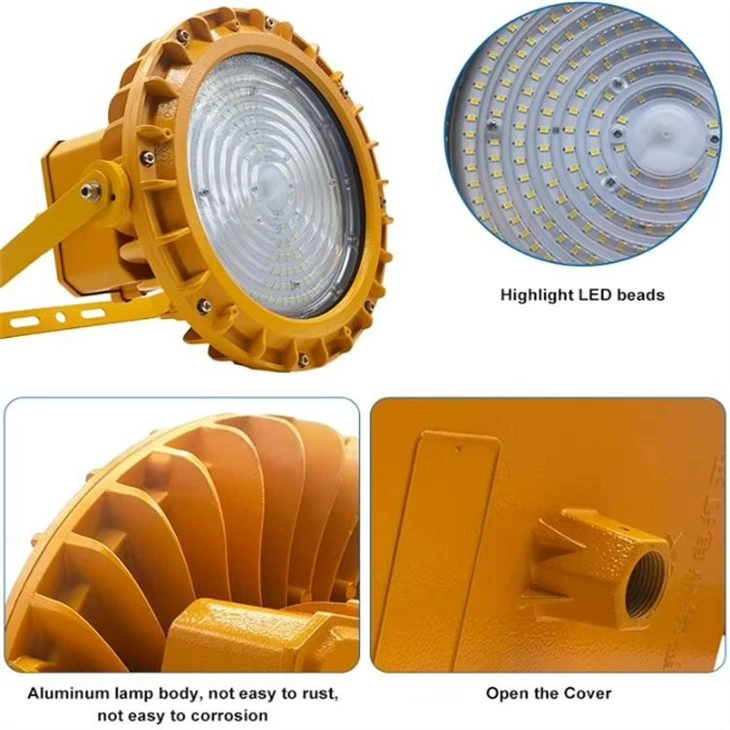

One-piece die-cast aluminum lamp body, high structural rigidity, shock & vibration resistant, adapt bumpy mining, factory pipeline vibration working scenes.
Fully modular structure, split lamp cover design for convenient internal circuit inspection and simple maintenance without complex disassembly tools.
Low power consumption, energy-saving rate up to 65% compared with traditional explosion-proof lighting, sharply cut factory long-term electricity operating cost.
