comparison of product parameters
| Application | Sports Stadiums | IP Rating | Ip67 |
| Input Voltage(V) | AC210V-230V | Lamp Luminous Efficiency(lm/w) | 100 |
| Working Hours | 30000 | Color Temperature(CCT) | 3000K-6000K |
| Lamp Body Material | Aluminum | Color Rendering Index(Ra) | 80 |
| Support Dimmer | Yes | Warranty(Year) | 3-Year |
| Lighting solutions service | Lighting And Circuitry Design, Auto Cad Layout, Project Installation | Certification | CCC, CE |
| Light Source | LED | Place of Origin | Guangdong, China |
| Beam Angle(°) | 120 Degree | Working Temperature(℃) | -20-60 |
| Voltage | AC210V-230V | Material | Aluminum + PC |
| Lifespan | 50000 hours | Warranty | 3 years |
| Application |
Hotel, Out Wall, Billboard,Square, Warehouse |
Brand Name | Benwei |
Light Source & Luminous Efficiency
Each lamp module comes pre-installed with independent packaged high-CRI LED light beads and is equipped with high-brightness isolated SMD LED chips from premium-grade semiconductor wafers. The modular split optical layout optimises the light distribution curve to effectively eliminate uneven lighting and dark zones.
Up to 130–155 lm/W of luminous efficacy, a high colour rendering index of Ra–80, and customisable colour temperature settings in 3000K warm white, 4000K natural white, and 5000K–6500K cool white.
High-transmittance anti-UV tempered PC lenses with precise secondary optical refraction treatment reduce light loss to less than 8%, provide consistent wide-beam flood lighting, and protect human eyes from harsh, blinding light thanks to their anti-glare design.

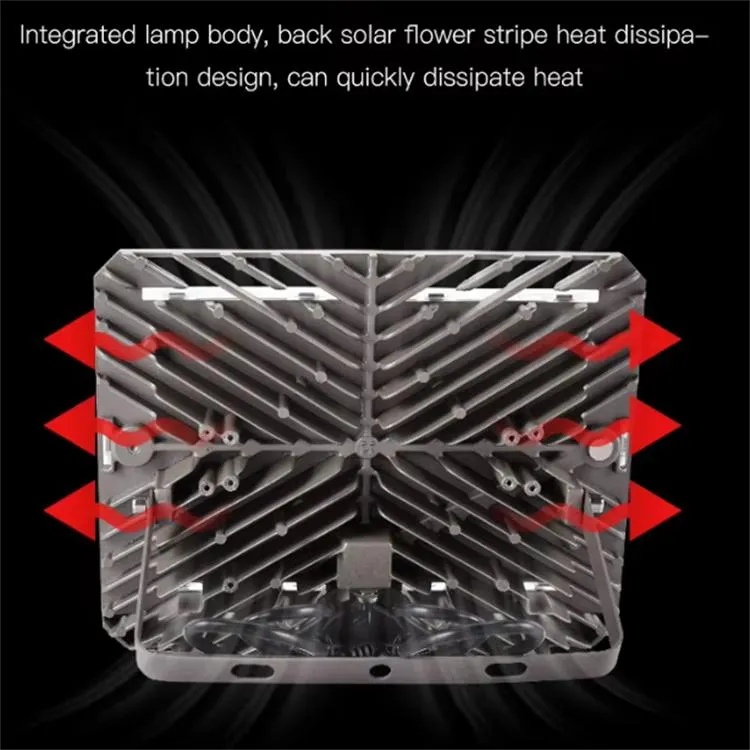

By replacing individual modules without discarding the whole lamp, an independent single-module light source structure significantly reduces post-maintenance costs and end users' downtime due to lighting failures. After 50,000 hours of continuous operation, the optimised heat-conduction route works with the rear sunflower-style finned heat sink to quickly export operational heat from LED chips, stabilising the lumen maintenance rate over 92% and successfully reducing luminous attenuation.
Power Supply & Energy Consumption
Designed with an AC wide-voltage direct drive constant current driver solution, it smoothly satisfies US/EU/AU/UK worldwide grid voltage standards without the need for an additional voltage converter. It is compatible with global common AC input AC85~265V 50/60Hz. In a challenging outdoor power environment, the integrated overvoltage, overcurrent, short-circuit, and surge protection circuit successfully withstands sudden grid voltage fluctuations and lightning surges.

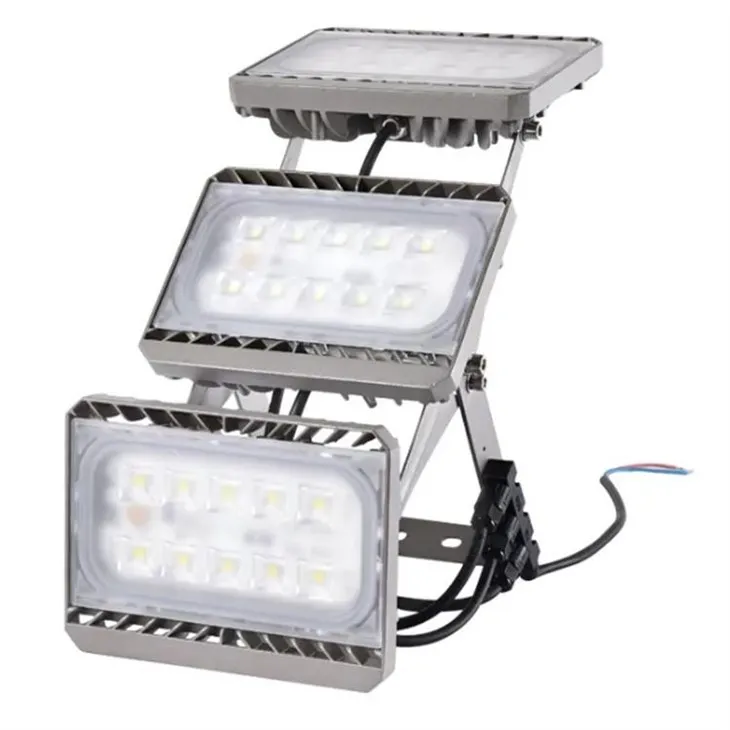

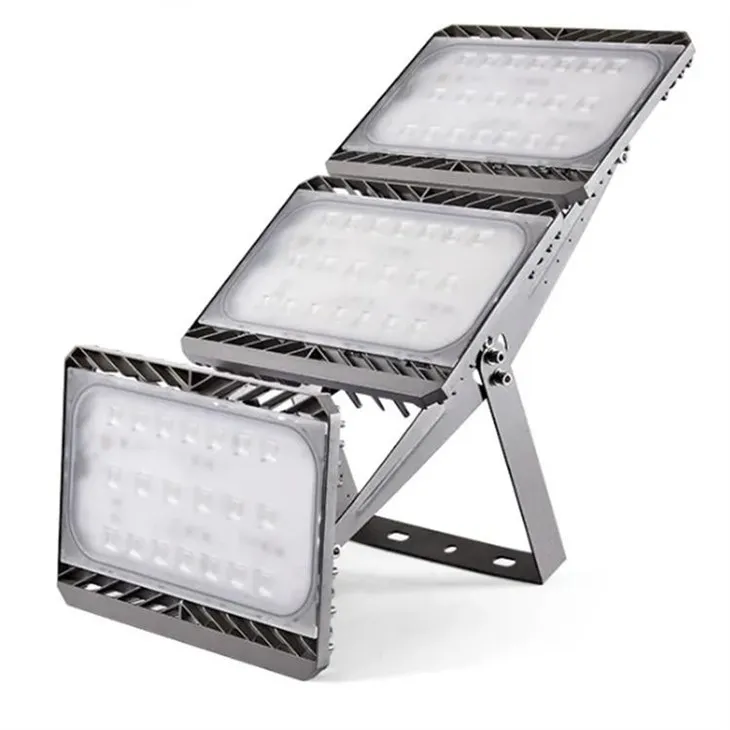

This LED fixture reduces overall power consumption by 65%–78% under equivalent lumen output when compared to conventional halogen/metal halide floodlights; single module standard power options are 50W, 100W, 150W, and 200W; users can freely splice 2/3/4 modules to assemble a 100W–800W high-power combined lamp based on project requirements.

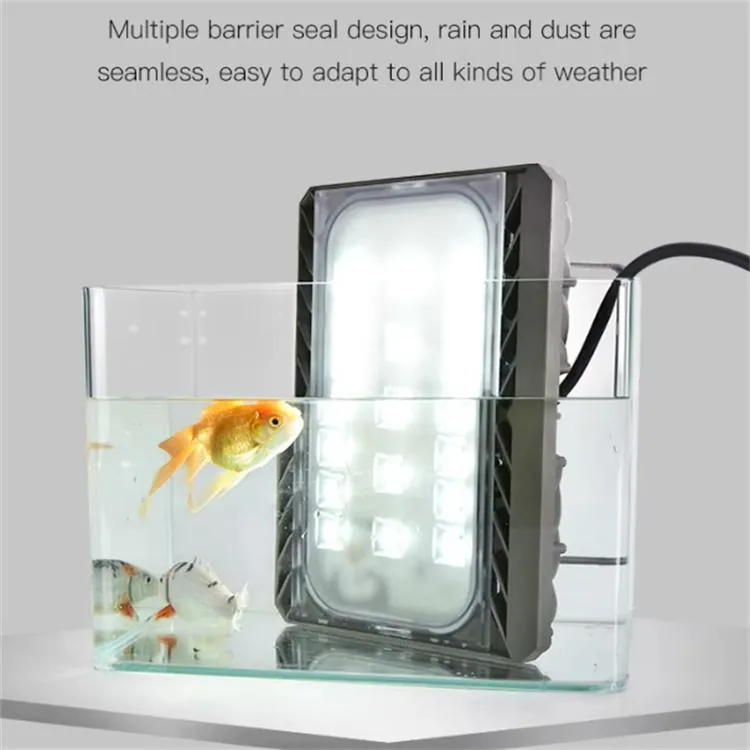

The full aluminium die-casting lamp body with multi-layer barrier sealing achieves IP67 waterproof and dustproof rating, passes the full underwater soak test to adapt to rainy, snowy, coastal high-humidity salt-fog harsh ambient conditions, and has no risk of internal circuit short-circuit due to water infiltration. Low standby power loss with high PF＞0.95 power factor reduces reactive power waste to save industrial electricity expense for commercial and factory customers.
Application Scenarios
Industrial & Construction: Factory workshop high bay lighting, construction site temporary floodlighting, container yard & warehouse perimeter illumination, mine open-air regional lighting;
Commercial & Leisure: Large supermarket outdoor parking lot, stadium/sports field, golf course, park landscape, plaza square, amusement park floodlighting;
Architectural & Infrastructure: Billboard spotlighting, building exterior wall wash lighting, highway toll station, tunnel entrance auxiliary lighting, port dock cargo area lighting;
Agricultural & Special: Large greenhouse crop supplementary fill light, farm livestock breeding barn lighting, fishing port open-area night operation lighting.
How To Cooperate With Us?
Our firm prides itself on owning its own factory, guaranteeing complete control over the production process and the quality of our goods. We are not only agents; we are manufacturers committed to offering our clients the most competitive rates available. We invite consumers to evaluate our samples first, as we are assured that the quality and pricing of our items are self-evident. Our dedication to excellence and client satisfaction compels us to consistently perform at our best and provide superior quality products.
