comparison of product parameters
|
Input Voltage(V) |
AC 120-277V |
IP Rating |
IP65 |
|
Lamp Luminous Efficiency(lm/w) |
150 |
Application |
Sports Stadiums |
|
Certification |
CE |
Light Distribution Shape |
20° / 40°/ 60° / 90° |
|
Lifespan (Hours) |
50000 |
Warranty(Year) |
5-Year |
|
Color Temperature(CCT) |
3000K, 4000K, 5000K, 6500K |
Color Rendering Index(Ra) |
80 |
|
Installation |
Wall Mount, Surface Mounted, High Mast |
Support Dimmer |
No |
|
Material |
Aluminum |
Working Time (hours) |
50000 |
|
Control Method |
socket |
Lighting solutions service |
Lighting And Circuitry Design, Project Installation |
|
Special Feature |
High Bright, Plus Size |
Light Source |
LED |
|
Led chip |
SMD |
Beam Angle(°) |
20, 40, 60, 90 |
|
Lamp Luminous Flux(lm) |
120000lm |
Place of Origin |
Guangdong, China |
|
CRI (Ra>) |
80 |
Working Temperature(℃) |
-30-50 |
✦ Core Optical & Electrical Performance
Premium imported SMD LED patch chips serve as the light source, realizing high luminous efficiency with bright, uniform beam output. The professional optical lens optimizes light distribution, effectively eliminating harsh glare and improving visual comfort for long-duration viewing scenarios.
Remarkable energy-saving performance: compared with traditional HID, halogen and high-pressure sodium lamps, it cuts power consumption drastically while maintaining equivalent brightness, greatly lowering long-term electricity expenditure for large lighting projects.

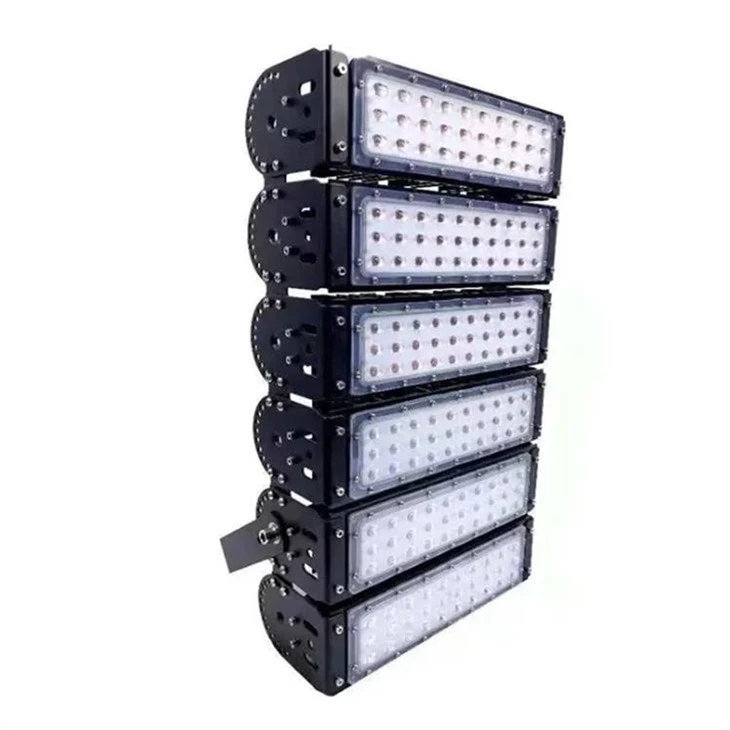

Flexible modular combination design: single modules can be freely assembled and stacked to adjust total power and lighting coverage according to site demands. Damaged individual modules can be replaced separately instead of changing the whole fixture, which slashes after-sales maintenance expense.
Wide voltage compatibility, built-in surge and overvoltage protection circuits. It resists instantaneous voltage fluctuation common in industrial power grids, supporting stable continuous operation without flicker.
High color rendering option available, restoring true color of objects, perfectly suited for construction sites, stadium competition areas and cargo inspection zones.
✦ Service Lifespan & Light Attenuation Control
Rated average service life reaches more than 50,000 hours under standard operating conditions, far exceeding conventional lighting fixtures. With normal daily use, it can run stably for over 8 years, avoiding frequent lamp replacement work.
Optimized finned aluminum heat dissipation structure rapidly conducts and dissipates internal heat generated by LED chips, lowering junction temperature effectively. Low working temperature suppresses chip aging and slows light decay.
Strict light attenuation control: adopting high-quality LED packaging technology, lumen retention remains above 70% after 50,000-hour operation, meeting international long-life industrial lighting standards.
Low comprehensive loss: low thermal loss thanks to excellent thermal management; low power loss of high-efficiency constant current driver. System overall efficiency is maximized, reducing invalid energy conversion loss into heat.
No mercury, no ultraviolet radiation, eco-friendly solid-state light source, no risk of fragile glass bursting, safe for long-term unattended operation in public and industrial spaces.
✦ Protection Grade & Environmental Durability
Official IP65 Ingress Protection Rating: fully dust-tight with zero dust penetration; protected against low-pressure water jet from any direction. It adapts to outdoor rainy days, coastal humid salt fog environment and dusty factory yards.

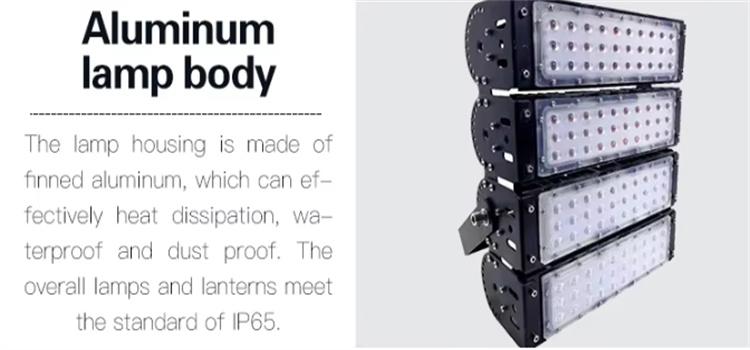

Whole lamp housing adopts finned cast aluminum alloy material, featuring high structural strength, anti-corrosion and anti-rust properties after surface oxidation treatment, resisting impact and external scratching.

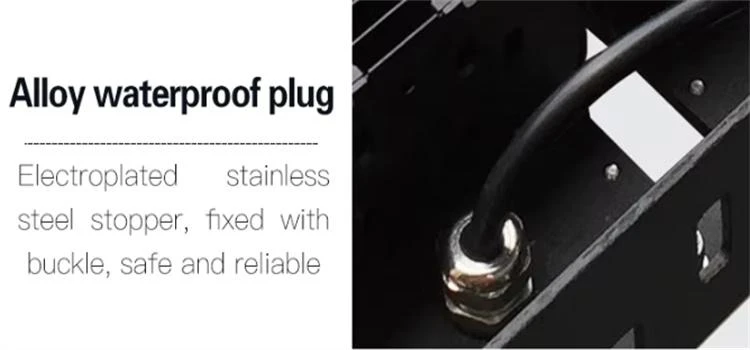

Alloy electroplated stainless steel waterproof cable gland with buckle locking design. It forms a reliable sealed junction at the wire outlet, preventing water seepage and cable pulling damage, guaranteeing safe and stable wiring connection.
High-temperature resistant silicone sealing gasket is applied on every split joint of modules, avoiding seal aging and water leakage caused by temperature alternation between day and night.
Adjustable multi-angle mounting bracket with scale positioning holes. It supports precise beam angle adjustment, and can be installed on poles, walls and elevated supports for diversified project layout.
