comparison of product parameters
|
Input Voltage(V) |
AC85-265V |
IP Rating |
IP65 |
|
Lamp Luminous Efficiency(lm/w) |
120 |
Application |
Theme Park |
|
Certification |
CE, Emc, LVD, Reach, RoHS |
Light Distribution Shape |
type v, Type IV Lifespan (Hours) |
|
Lifespan (Hours) |
50000 |
Warranty(Year) |
5-Year |
|
Color Temperature(CCT) |
6000K (Daylight Alert) |
Color Rendering Index(Ra) |
80 |
|
Installation |
Wall Mount, Embedded |
Support Dimmer |
No |
|
Material |
Aluminum |
Control Method |
Remote Control, Touch |
|
Lighting solutions service |
Lighting And Circuitry Design, Dialux Evo Layout, Litepro Dlx Layout, Agi32 Layout, Auto Cad Layout, Onsite Metering, Project Installation |
Special Feature |
Plus Size, High Bright |
|
Light Source |
LED |
Led chip |
Cob |
|
Beam Angle(°) |
120 Degree |
Lamp Luminous Flux(lm) |
120lm/w |
|
Keyword |
led medule flood light |
Color Temperature(CCT) |
2700-7000K |
|
Working Lifetime(Hour) |
50000 |
Working Time (hours) |
50000 |
✦ Core Lighting Performance
uses premium SMD LED chips to provide high luminous effectiveness up to 130–150 lm/W, which significantly reduces total power consumption when compared to conventional HID, metal halide, and halogen lamps. This results in consistent, anti-glare bright light that doesn't flicker or strobe.

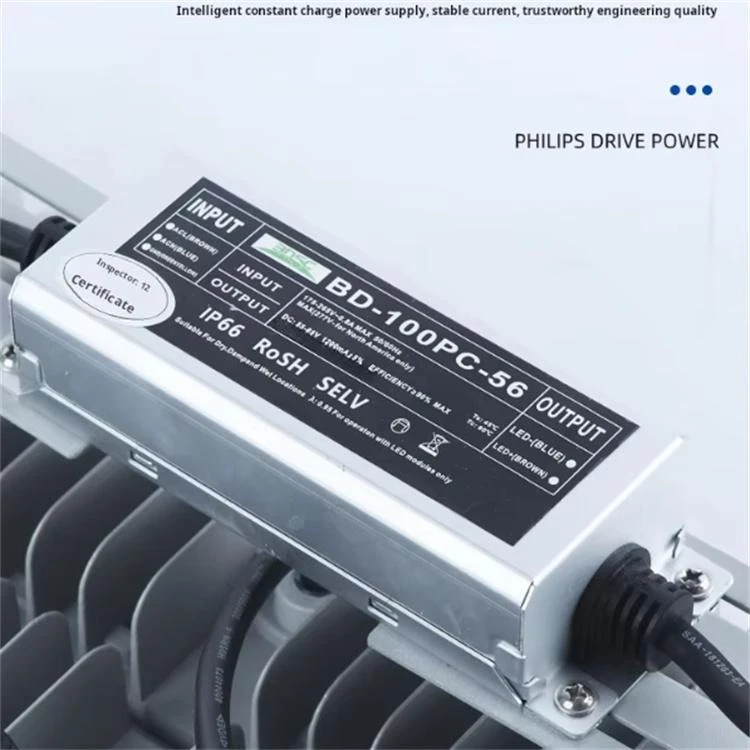

Integrated intelligent constant-current driver with a high power factor of at least 0.95, steady output current, and superior resistance to surge and voltage fluctuations (Philips power supply optional). It removes the possibility of frequent brightness fluctuations by guaranteeing steady light output even in the face of fluctuating grid voltage.
For various project circumstances, a variety of adjustable beam angle lenses are available to satisfy specific lighting requirements, increasing light efficiency and minimising light waste.
Large-area parallel engineering wiring is supported, and a wide operating voltage compatibility (100–277V AC, 50/60Hz) makes it appropriate for worldwide power networks.
With a broad operating temperature range of -25°C to +55°C, reliable luminous performance is maintained in both very hot summer temperatures and extremely cold winter outdoor temperatures.
✦ Service Life & Light Loss Characteristics
Theoretically, they may last between 50,000 and 80,000 hours, which is significantly longer than that of conventional gas discharge lights. The fixture can operate around the clock for over five years under normal operating circumstances, significantly reducing the cost of replacement and maintenance labour.
Strict L70 lumen maintenance requirement: lumen retention must be over 70% after 50,000 working hours, indicating gradual and manageable light attenuation. Effective chip ageing is prevented by superior heat control.

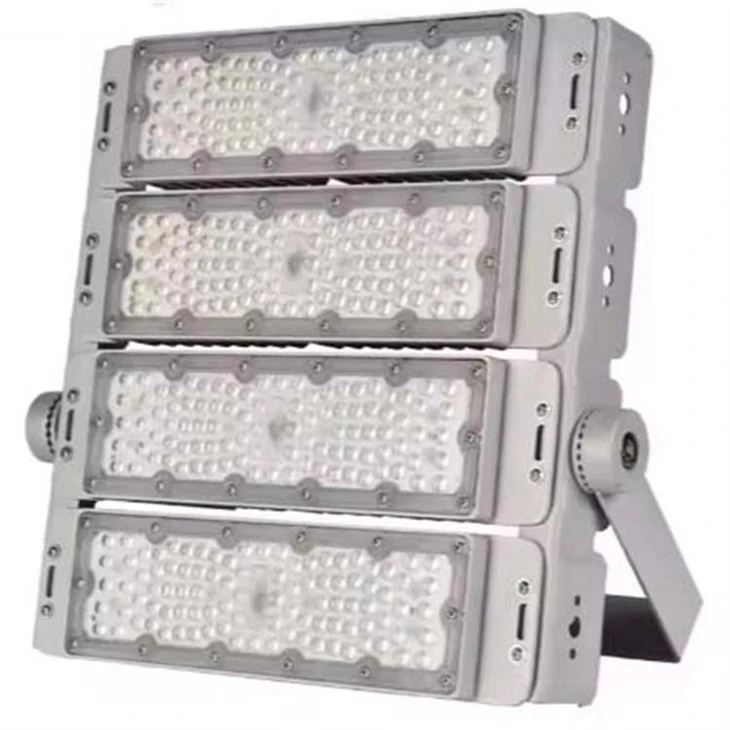

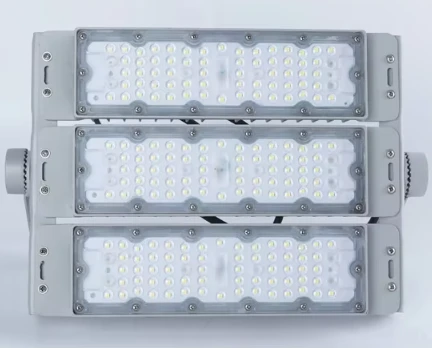

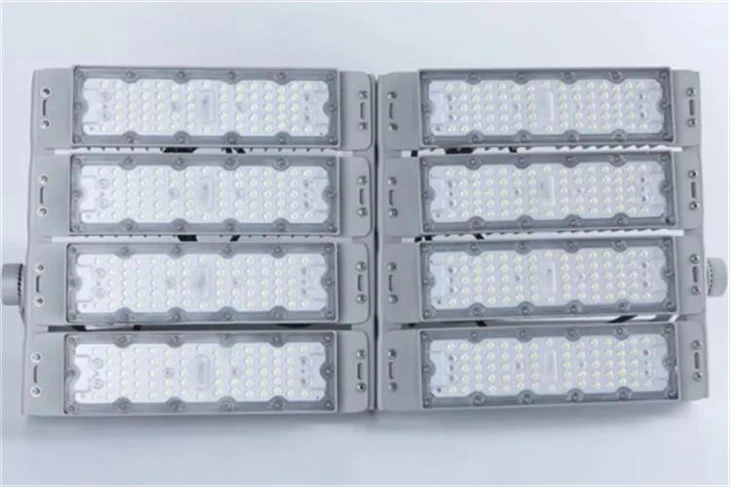

Modular split design reduces on-site maintenance time and saves spare part costs by allowing broken light modules to be changed individually rather than replacing the whole lamp.
By preventing local LED chip overheating, an optimised thermal conduction channel prolongs the system's service life by reducing light deterioration, lens yellowing, and driver ageing.
Eco-friendly, complies with RoHS regulations, free of mercury and UV radiation, and inexpensive to handle hazardous waste after scrapping.
✦ Protection Grade & Durability
IP66 is the official rating for ingress protection. Dust-tight (6): prevents dust from entering the lamp chamber; waterproof (6): completely shielded from strong, high-pressure water jet splashes from all angles, suitable for rainy days, water washing, and humid coastal salt-spray conditions.

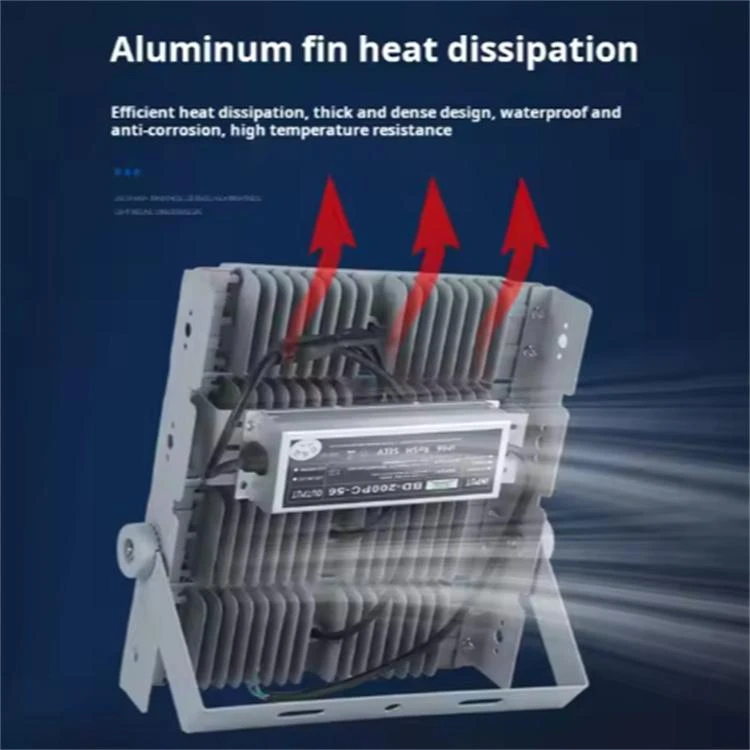

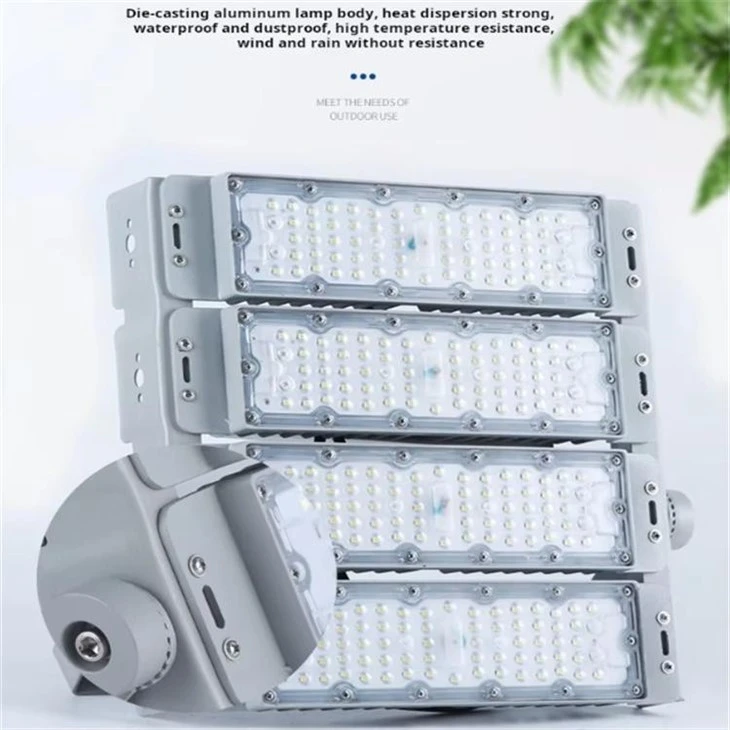

The whole lamp housing is composed of die-cast aluminium alloy with a thickened fin heat dissipation structure, an anti-corrosion surface coating, and resistance to corrosion from wind, sun, acid rain, and salt fog.
High-transmittance tempered optical cover that is resistant to impact, scratches, and long-term UV rays.
Flexible angle placement for upward, downward, and horizontal illumination; compatible with pole mounting, wall mounting, and ground bracket installation; 180° rotatable adjustable mounting bracket with locking screw design.
The driver is shielded from short circuit failure by a watertight cable gland and sealed wiring chamber that keep dust and water vapour out of the power supply compartment.
