comparison of product parameters
| IP Rating | Ip67 | Input Voltage(V) | AC90-305V |
| Light Source | LED | Lamp Luminous Efficiency(lm/w) | 120 |
| Lifespan (Hours) | 50000 | Color Rendering Index(Ra) | 80 |
| Color Temperature(CCT) | 5000K (Daylight) | Warranty(Year) | 5 |
| Support Dimmer | Yes | Lighting solutions service | Lighting And Circuitry Design, Dialux Evo Layout, Litepro Dlx Layout, Agi32 Layout, Auto Cad Layout, Onsite Metering, Project Installation |
| Lamp Luminous Flux(lm) | 60000 | Place of Origin | Guangdong, China |
|
Model Number |
PL-SD-027-500W | Brand Name | BENWEI |
| Working Temperature(℃) | -50 - 50 | Name | Projector Light Tunnel |
| Lamp Body Material | Aluminum Alloy | Lamp Power(W) | 500 |
| Lamp Luminous Efficiency(lm/w) | 120 | Color Temperature(CCT) | 2700-7500 |
| Application | Flood Light Housing | Body material | Aluminium Die Casting |
| Power | 30-600W Optional | Beam Angle | 15 /25 /45 /60 /90 |
一,Light Source & Luminous Efficiency
Core Light Source Configuration Adopts premium imported high-power SMD LED high-end chips, independently modular split light source design, each lamp bead is individually packaged with high-transmittance convex PC optical lens, effectively constraining light divergence angle; modular split structure realizes single module replaceable maintenance, later maintenance cost reduced by 60% compared with integral floodlights. The light source is built with anti-blue light, anti-decay encapsulation glue, resisting light attenuation caused by high-temperature aging, long-term use lumen depreciation ≤8% within 50000hrs service life.
Professional Luminous Performance & Optical Effect
Luminous efficacy up to 130~155LM/W, ultra-high luminous efficiency far exceeds conventional integrated floodlight (average 90-110LM/W); customizable beam angle options: 15°/30°/60°/90°/120° asymmetric optical lens to match tunnel, stadium, high pole, square, parking lot diversified lighting demands.
Uniform & glare-free illumination: convex PC lens realizes secondary light distribution, eliminates local dark spot & over-bright glare, ground illumination uniformity ≥0.7, compliant with EU IESNA outdoor road & sports field lighting standard; CRI＞75 (customizable CRI90 for high-color rendering scenarios like logistics warehouse, venue).
Full-spectrum constant color temperature: stock options 3000K(Warm White)/4000K(Natural White)/5700K-6500K(Cold White), color temperature deviation ≤±200K, no color shift after long-time continuous lighting.
二,Power Supply & Energy Consumption
Intelligent Driver Power Supply System Equipped with certified isolated constant-current LED driver (available UL/CE/FCC/SAA certification for global market), wide universal input voltage: AC85V~277V, perfectly compatible with US, EU, Southeast Asia, Middle East mainstream civil & industrial grid voltage; built-in surge protection (SPD 4KV/6KV optional), lightning-proof design adapts outdoor thunderstorm weather, effectively avoiding power grid instantaneous voltage surge burnout damage. Optional DALI/0-10V dimmable driver for intelligent lighting project linkage control.
Industry-leading Low Energy Consumption & Cost-saving Advantage
Ultra-low power loss design: Compared with traditional HID/HPS halogen floodlights, this LED modular lamp cuts power consumption by 65%~75% under equal luminous flux output; for example, 200W LED modular lamp replaces 600W traditional metal halide lamp, annual electricity expense saved over thousands of USD for large-area stadium & warehouse lighting.
Passive rapid heat dissipation reduces auxiliary power waste: Die-cast aluminum lamp body + dense tooth-shaped fin radiator structure, large-area hollow heat dissipation groove design realizes natural air convection cooling, working temperature of LED chip controlled below 75℃, no extra cooling fan needed, zero extra auxiliary power consumption, further cutting long-term operation electricity cost.
Energy-saving certification compliant: Meet ERP EU energy efficiency grade II standard, ENEC energy consumption test passed, ideal choice for government energy-saving renovation tender, commercial property energy-saving upgrade project.
Feature

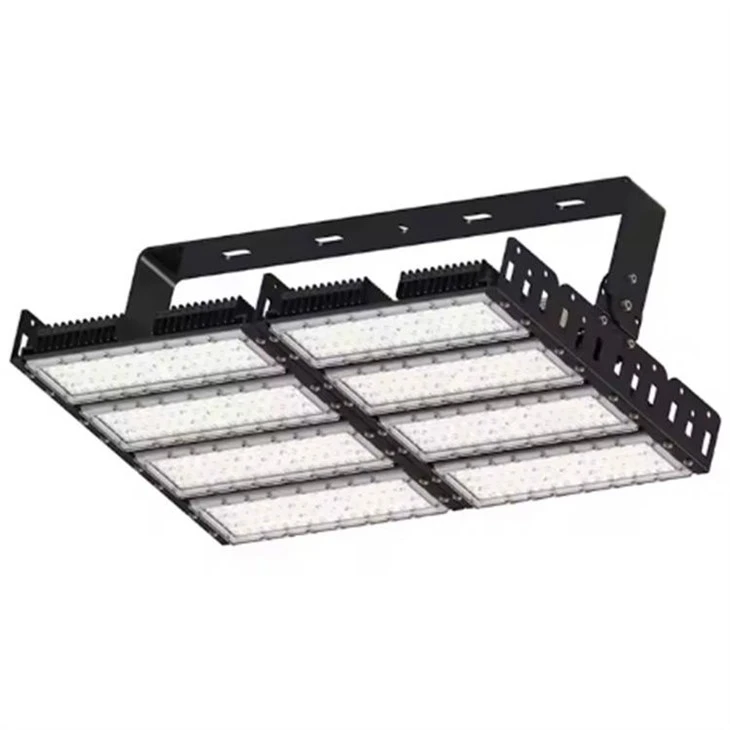

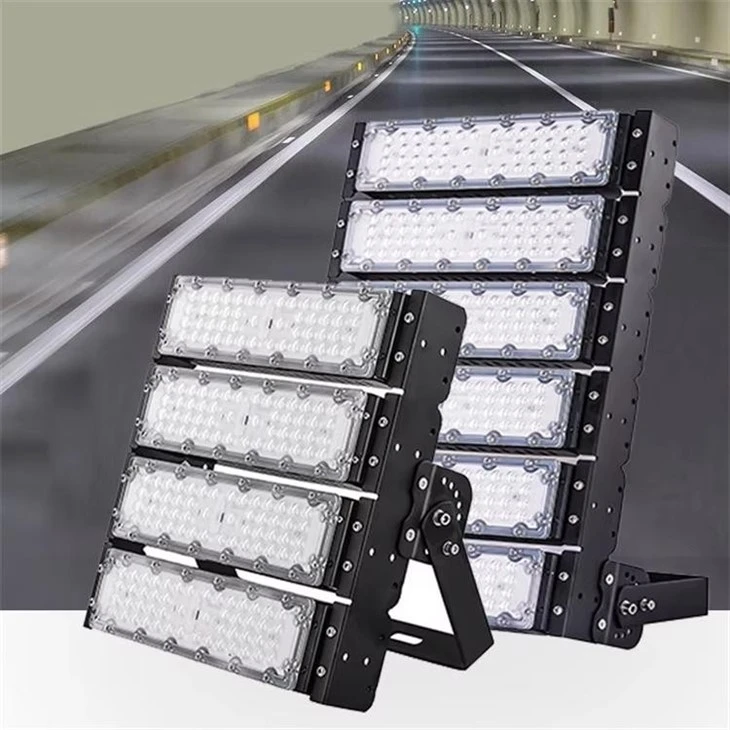

Modular Splicing & Adjustable Installation：Free splicing of single/2/3/4/5 lamp modules to flexibly combine 50W/100W/150W/200W/250W/300W/400W multi-power specifications; 0~180° rotatable mounting bracket with multi-position fixed holes, wall-mounted, pole-mounted, overhead hoisting three installation modes available, adapt tunnel engineering, sports stadium, high mast lighting multiple mounting environments.
IP66 Waterproof Die-cast Aluminum Housing: Integral die-cast aluminum lamp shell with anti-rust electrophoresis coating, IP66 full waterproof & dustproof grade, rain/snow/salt-fog resistant, stable operation in -40℃~+55℃ extreme ambient temperature, 50000 hours long service life drastically reduce lamp replacement & maintenance expense for overseas buyers.
