comparison of product parameters
| Application | Sports Stadiums | Light Source | OTHER |
| Input Voltage(V) | AC100-265V | IP Rating | IP65 |
| Lamp Luminous Efficiency(lm/w) | 100 | Lifespan (Hours) | 50000 |
| Color Temperature(CCT) | 2700-6500K | Color Rendering Index(Ra) | 70 |
| Lamp Body Material | Dia Casting Aluminum | Warranty(Year) | 2-Year |
| Support Dimmer | Yes | Lighting solutions service | Lighting And Circuitry Design, Project Installation |
| Base Type | OTHER | Working Temperature(℃) | -20-50 |
| Place of Origin | Guangdong, China | Model Number | ZL-HB-L 100w |
| Brand Name | BENWEI | Beam Angle(°) | 60/90/150*80° |
| Lamp Luminous Flux(lm) | 10000 | Product Name | SMD Outdoor Waterproof IP65 10w 30w 50w 80w 100w led flood light |
| Power |
50w/100w/150w/200w/250w/300w/400w/500w /600w/700w/800w/900w/1000w/2000w |
Material | Dia Casting Aluminum |
| Voltage | AC100-265V | CCT | 2700-6500k |
Light Source & Luminous Efficiency
Adopts premium original SMD3030 high-lumen LED chips with optimized silicon-based packaging structure and precisely calibrated phosphor formulation, delivering outstanding intrinsic efficacy ranging from 130–155LM/W. Multiple correlated color temperatures are optional: 3000K warm white, 4000K natural white and 5700K cool white to satisfy diverse site illumination requirements.
Equipped with high-transmittance integrated PMMA optical lens via precision injection molding, available in 15° narrow beam, 60° medium beam and 120° flood beam optics. Sharp focused projection for high-pole stadium lighting and uniform wide-area illumination for yard & warehouse use, effectively eliminating glaring spots and uneven dark fringes. Front tempered explosion-proof glass boasts over 92% light transmittance with excellent impact resistance against hail and grit erosion.
Modular split-source design enables flexible power combinations from 50W up to 200W. Individual malfunction of one single module never disables the whole luminaire, cutting subsequent maintenance cost drastically. Aviation-grade ADC12 die-cast aluminum finned heat sink forms three-dimensional air convection channels to control chip junction temperature below 75℃, restraining lumen depreciation effectively. Rated lifespan hits 50,000 hours with lumen decay less than 15% after 30,000 working hours, outperforming ordinary industrial floodlights on the market.
Power Supply & Energy Consumption

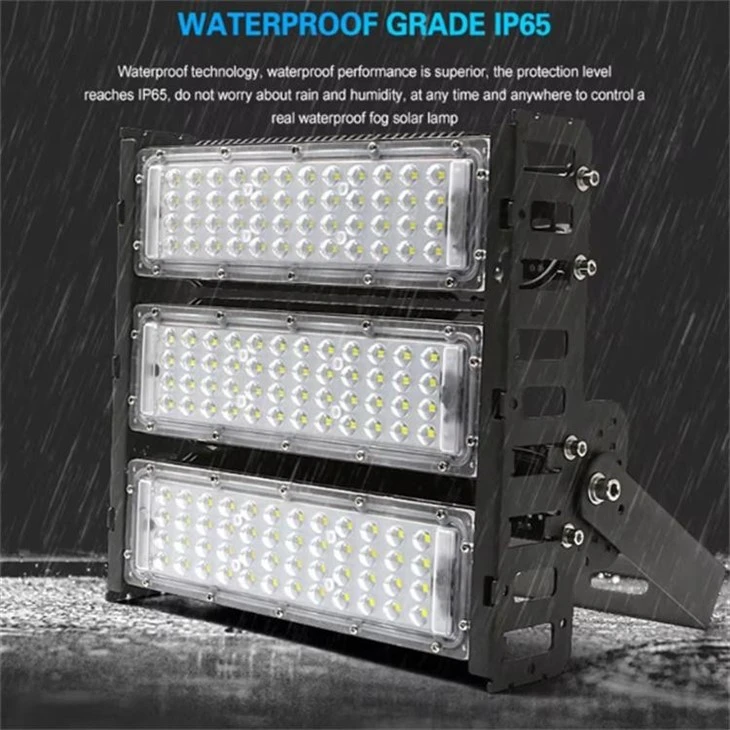

Fitted with external isolated constant-current IP65 waterproof LED driver supporting wide universal input voltage AC85V–265V, compatible with mainstream grid power across North America, Europe, Southeast Asia and Middle East. Dimmable versions with 0–10V dimming function are optional for smart park and municipal energy-saving projects. Built-in overvoltage, overcurrent, short-circuit and surge lightning protection circuits ensure stable startup from -35℃ to +65℃ without flickering or sudden blackout under extreme ambient temperatures. Full IP65 dustproof & waterproof sealed structure stands heavy rain, coastal salt fog and heavy dust working conditions for all-year-round outdoor exposure.
This LED floodlight cuts power consumption by 65%–75% versus traditional HID / metal halide lamps. Only 100W of our fixture matches the brightness of a conventional 250W MH lamp. No preheating power loss; instant full brightness once powered on. Constant-current control avoids invalid power waste under unstable voltage fluctuation, meeting US ENERGY STAR energy efficiency standards and qualifying for local government energy-saving subsidy projects overseas. Mass replacement projects bring remarkable long-term electricity savings for factory, stadium and logistics park operators.
Wide Range of Commercial & Industrial Application Scenarios
Sports & Athletic Venues Perfect for outdoor basketball courts, tennis courts, soccer fields, gym outdoor playgrounds and community sports grounds. Adjustable beam angle realizes uniform ground illuminance to meet professional sports lighting standards for night training and competitions.
Industrial & Warehouse Lighting Ideal for large manufacturing workshops, factory production lines, logistics warehouses, cargo loading yards and container storage zones. High lumen output covers expansive working areas to guarantee safe daytime & nighttime cargo handling and production operation.
Parking & Traffic Areas Applicable for large commercial parking lots, community outdoor parking zones, highway service area parking grounds and roadside roadside toll stations, improving nighttime driving safety with anti-glare wide flood lighting.
Commercial Exterior & Billboard Lighting Designed for high-rise building facade accent lighting, large outdoor advertising billboards, supermarket exterior walls, shopping mall perimeter and hotel outdoor landscape lighting to upgrade commercial night view display effect.
Municipal & Public Infrastructure Suitable for municipal park squares, scenic area plazas, campus outdoor grounds, railway station outer yards, port docks and expressway service areas, adapting all-weather outdoor harsh environment.
Agriculture & Special Outdoor Use Available for large livestock farms, open-air breeding grounds and outdoor plantation yards, delivering stable long-hour lighting for farming daily management.
