LED Modular Flood Light Outdoor

Core Performance & Technical Advantages

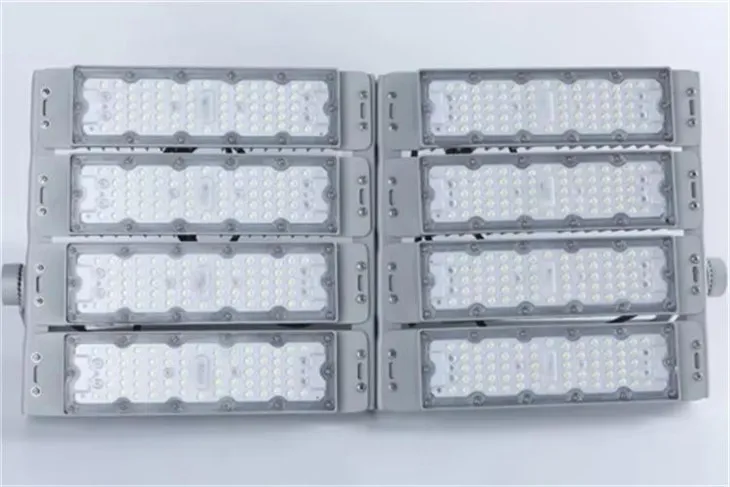

• Scalable Modular Design

  • Customizable multi-module configuration (1-4 modules) allows power output from 50W to 400W+, matching diverse lighting requirements from small parking lots to large sports fields.

  • Each module operates independently, ensuring continued functionality even if one unit experiences minor issues, minimizing downtime and maintenance costs.

• High-Efficiency LED Light Source

  • Equipped with high-brightness LED chips, delivering an impressive luminous efficacy of up to 130-150 lm/W, which significantly reduces energy consumption compared to traditional HID or halogen flood lights.

  • Available in multiple color temperature options (3000K warm white to 6500K daylight white) to suit different application scenarios, from accent lighting to high-visibility industrial illumination.

  • Uniform light distribution with anti-glare optics eliminates harsh shadows and light pollution, ensuring comfortable, high-quality illumination for both functional and public spaces.

• Stable, Reliable Philips Driver System

  • Powered by a Philips-certified constant-current driver with intelligent power management, ensuring stable current output and consistent performance across wide voltage fluctuations (100-277V or 220-240V options available).

  • Built-in over-voltage, over-current, and short-circuit protection safeguards the LED chips, extending the overall lifespan of the fixture.

  • Low power consumption and high power factor (≥0.95) reduce energy waste and meet international energy efficiency standards.

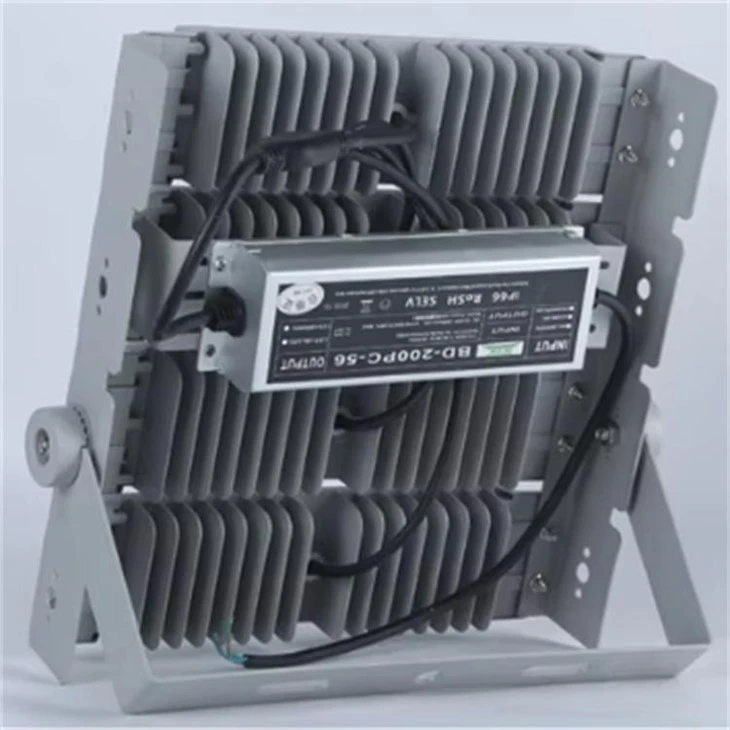

• Superior Thermal Management

  • Die-cast aluminum housing with integrated finned heat sinks maximizes heat dissipation, efficiently drawing heat away from the LED modules to maintain optimal operating temperatures.

  • The rugged, corrosion-resistant aluminum alloy construction ensures long-term structural integrity, even in high-temperature, high-humidity, or coastal environments with salt spray exposure.

Lifespan & Performance Degradation

• Ultra-Long Operational Lifespan

  • The LED modules feature a rated lifespan of 50,000+ hours under normal operating conditions, far exceeding the 10,000-hour lifespan of traditional metal halide or high-pressure sodium lamps.

  • Backed by rigorous accelerated life testing to ensure consistent performance over years of continuous use.

• Minimal Light Degradation (Lumen Maintenance)

  • Utilizes high-quality LED chips with advanced thermal packaging, ensuring L70 lumen maintenance of 50,000 hours, meaning the light output will remain at 70% of its initial brightness after 50,000 hours of operation.

  • Slow lumen depreciation (≤3% per 10,000 hours) eliminates the need for frequent lamp replacements, reducing long-term maintenance costs and labor expenses.

  • No mercury or hazardous materials, ensuring environmentally friendly operation and safe disposal at the end of life.

Protection Rating & Environmental Durability

• IP66 Ingress Protection Rating

  • Certified to IP66 standards, the fixture is completely dust-tight and protected against powerful water jets from any direction, making it suitable for heavy rain, splashing water, and dusty industrial environments.

  • Sealed optical chambers with high-strength tempered glass lenses prevent moisture and debris from entering the light modules, ensuring consistent performance in harsh outdoor conditions.

• Impact & Vibration Resistance

  • The die-cast aluminum housing and reinforced module design provide excellent impact resistance, withstanding accidental knocks, vibrations from nearby machinery, and harsh weather conditions like strong winds.

  • The adjustable mounting bracket is engineered with durable hardware and locking mechanisms, maintaining stability and alignment even in high-wind areas.

• Wide Operating Temperature Range

  • Designed to operate reliably in extreme temperatures, from -40°C to +55°C (-40°F to +131°F), making it suitable for use in cold northern regions, hot desert climates, and tropical environments alike.

  • Resistant to UV radiation, ensuring the housing and lens materials do not yellow, crack, or degrade under prolonged exposure to direct sunlight.

• Corrosion & Weather Resistance

  • The aluminum housing is treated with a powder-coated finish that provides excellent resistance to corrosion, rust, and salt spray, ideal for coastal areas, ports, and marine applications.

  • All external fasteners are made of stainless steel, preventing rust and ensuring long-term structural integrity in humid or corrosive environments.
