comparison of product parameters
| Input Voltage(V) | AC 85-265V | IP Rating | Ip67 |
| Lamp Luminous Efficiency(lm/w) | 120 | Application | Residential |
| Certification | RoHS, CE, FCC | Light Distribution Shape | Type IV, type v, Adjustable, 45°, Wide Flood |
| Lifespan (Hours) | 50000 | Warranty(Year) | 3-Year |
| Color Temperature(CCT) | 6000K (Daylight Alert) | Color Rendering Index(Ra) | 80 |
| Installation | Wall Mount, Embedded, Recessed, Surface Mounted | Support Dimmer | No |
| Material | Aluminum | Working Time (hours) | 50000 |
| Control Method | Bluetooth, Voice, Remote Control, Touch, App Control, Light Sensor | Lighting solutions service | Lighting And Circuitry Design, Onsite Metering, Dialux Evo Layout, Litepro Dlx Layout, Auto Cad Layout, Agi32 Layout, Project Installation |
| Special Feature | High Bright | Light Source | LED |
| Lamp Luminous Flux(lm) | 6000 | Place of Origin | Guangdong, China |
| Beam Angle(°) | 60 °/90° | CRI (Ra>) | 80 |
| Working Temperature(℃) | -10 - 60 | Product Weight(kg) | 3.2 |
Light Source & Luminous Efficiency
Configuration of Light Sources
Each modular lamp board is an independent sealed light source unit with an isolated constant-current drive structure, equipped with premium high-power SMD3030/5050 LED chips sourced from top-tier semiconductor foundries. Each module incorporates 42 pieces of high-reliability LED beads, and each LED component goes through a rigorous anti-static and ageing screening process to eliminate dead light risk. For bulk project customers, the modular split construction significantly reduces post-maintenance costs by enabling single-module replacement without the need to trash the whole lamp.
Luminous Performance & Light Efficiency
Lab-tested initial luminous efficacy up to 130~145 lm/W; high CRI Ra80 option available for high-color rendering required scenarios; accurate secondary optical PC lens with adjustable beam angle (15°/30°/60°/90° optional); efficiently centralise light output to reduce stray light & light waste; uniform illuminance across target surface without dazzling glare or dark spots. Long-term lumen maintenance: 85% lumen retention after 50,000 hours of continuous operation, much better than the light decay performance of a conventional HID bulb.
Power Supply & Energy Consumption

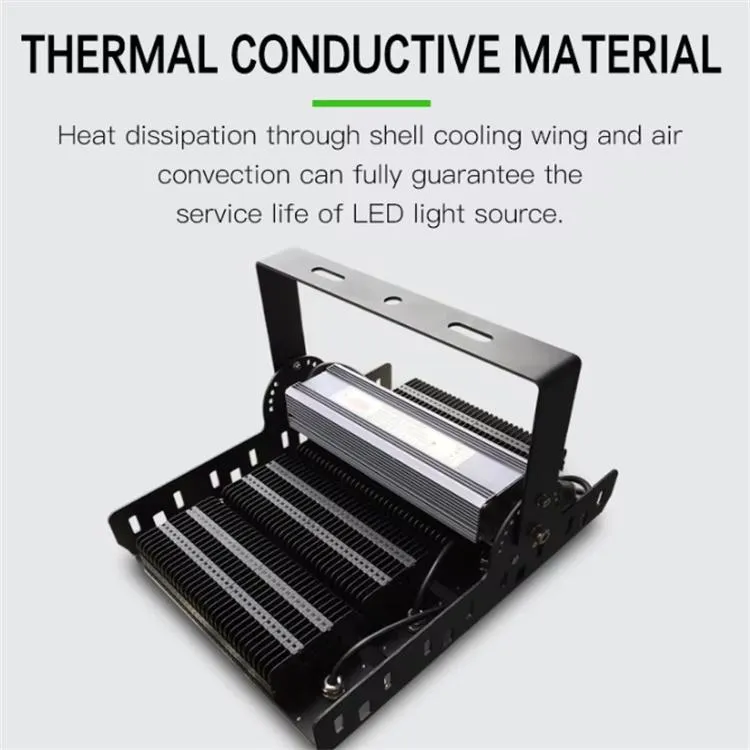

Power Supply Solution uses an isolated constant-current IP65 waterproof LED driver that is compatible with international commercial and industrial power grid standards (110V/120V/220V/230V) and has a full-range AC input (AC85~265V universal wide voltage). Surge protection up to 4KV, overvoltage, overcurrent, short-circuit and overheat auto-cutoff protection, and stable operation under unstable grid voltage fluctuation are all built-in multi-level protection circuits. The driver is independently installed inside a hollow aluminium heat sink cavity to avoid direct contact with the external humid environment, significantly extending the driver's service life.
Benefits of Energy Saving and Energy Consumption Equal-lumen LED modular lamps reduce power consumption by 60% to 70% when used in place of traditional 250W/400W metal halide flood lights. The single module's rated power is 50W, and its assembled specs vary from 50W/100W/150W/200W/250W/300W. Zero infrared and UV radiation, instantaneous maximum brightness upon power-on without idle power loss, minimal operational heat production, and no preheating starting delay minimise ambient air conditioning's additional power usage for enclosed spaces. Calculable ROI for business clients: monthly power bill reductions allow typical industrial users to recoup the cost of purchasing lamps within 12 to 24 months.
Wide Application Scenarios
Transportation Infrastructure: Highway tunnels, underpass, bridge deck, toll station, highway roadside large-area lighting, railway platform & cargo yard illumination.
Industrial & Logistics Area: Large manufacturing factory workshop, container port, logistics warehouse yard, mineral mining open pit, construction engineering temporary site lighting.
Sports & Public Venues: Outdoor basketball/football stadium, running track, community public square, large parking lot, garden scenic spot flood lighting.
Commercial & Municipal Project: Municipal engineering road auxiliary lighting, commercial plaza exterior wall floodlight, wholesale market outdoor cargo area, large supermarket open-air parking field.
