comparison of product parameters
|
Input Voltage(V) |
AC100-277V |
IP Rating |
IP65 |
|
Lamp Luminous Efficiency(lm/w) |
120 | Application | Garden |
|
Certification |
CCC |
Light Distribution Shape |
Type IV |
|
Lifespan (Hours) |
25000 |
Warranty(Year) |
3-Year |
|
Color Temperature(CCT) |
RGB, Other |
Color Rendering Index(Ra) |
80 |
|
Installation |
Embedded |
Support Dimmer |
No |
|
Control Method |
Touch |
Lighting solutions service |
Lighting And Circuitry Design, Dialux Evo Layout, Litepro Dlx Layout, Agi32 Layout, Auto Cad Layout, Onsite Metering, Project Installation |
|
Special Feature |
High Bright |
Light Source |
LED |
|
Led chip |
SMD |
Beam Angle(°) |
90 Degree |
|
Lamp Luminous Flux(lm) |
100Lm/W |
Place of Origin |
Guangdong, China |
|
CRI (Ra>) |
80 |
Product Weight(kg) |
4KG |
|
Working Temperature(℃) |
-25 - 40 |
Voltage |
AC100-277V |
Core Optical Performance & Lighting Advantages

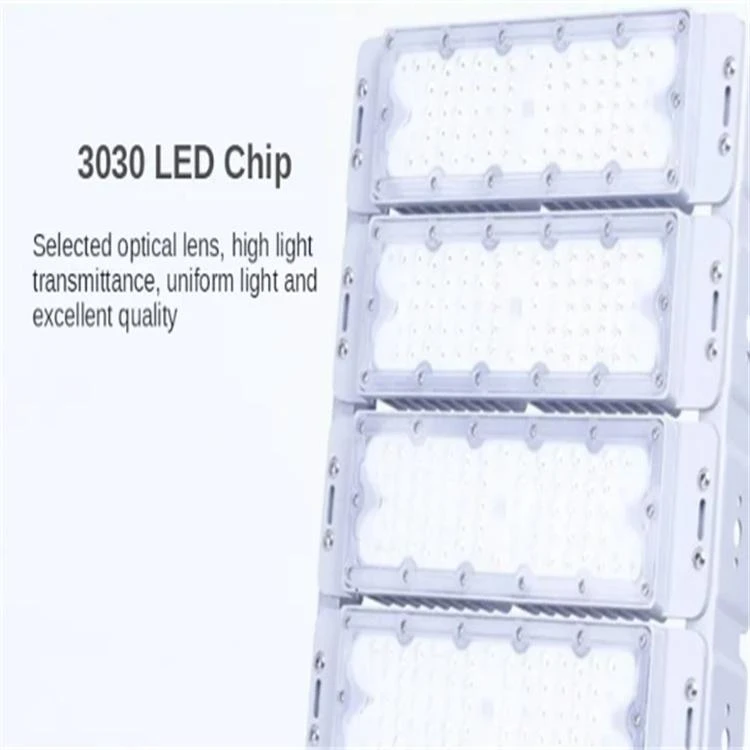

Equipped with premium 3030 SMD LED chips, featuring high lumen output, low thermal resistance and stable luminous performance, single module reaches outstanding brightness output to meet large-scale high-brightness lighting demand.
Custom high-transmittance optical lens matched for each light module, light transmittance rate up to 92%+, eliminates light loss caused by ordinary flat cover.
Uniform light distribution with no dark zones, no dazzling glare and soft light projection; multiple beam angle lens options (15°/30°/60°/90°/120°) available to fit narrow long-distance projection or wide-area flood lighting scenarios.
High color rendering index (CRI Ra≥80, optional Ra90 for high-color-demand venues), restores true color of objects, ideal for sports courts, exhibition yards and commercial outdoor landscapes.
Housing Structure & Heat Dissipation Performance

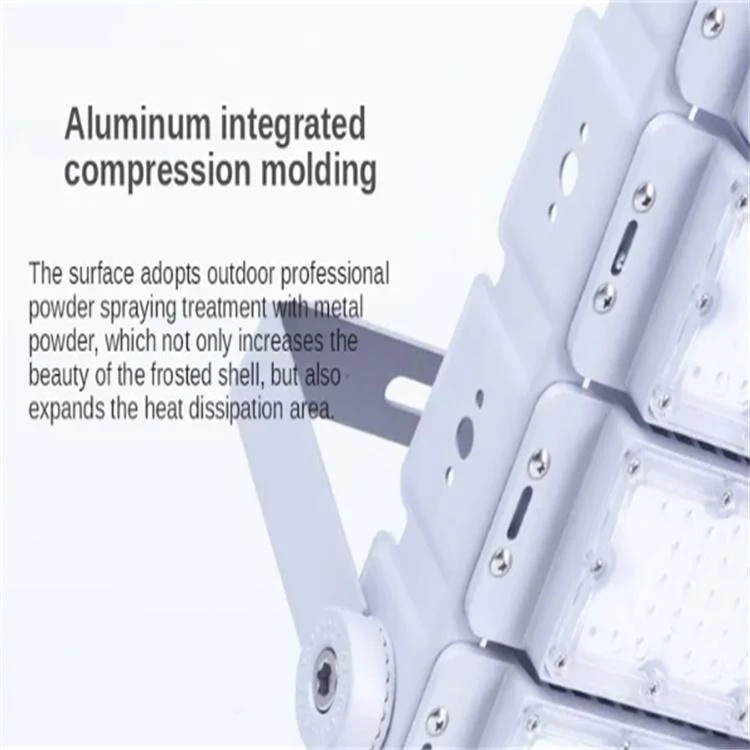

Whole lamp body adopts one-piece integrated aluminum compression molding technology, high-strength die-cast aluminum alloy raw material with strong compression and impact resistance, not easy to deform under outdoor heavy collision.
Outer surface treated with outdoor special metal powder electrostatic spraying, anti-oxidation, anti-corrosion, anti-yellowing; withstand long-term exposure to rain, snow, salt fog coastal environment without shell rust or paint peeling.

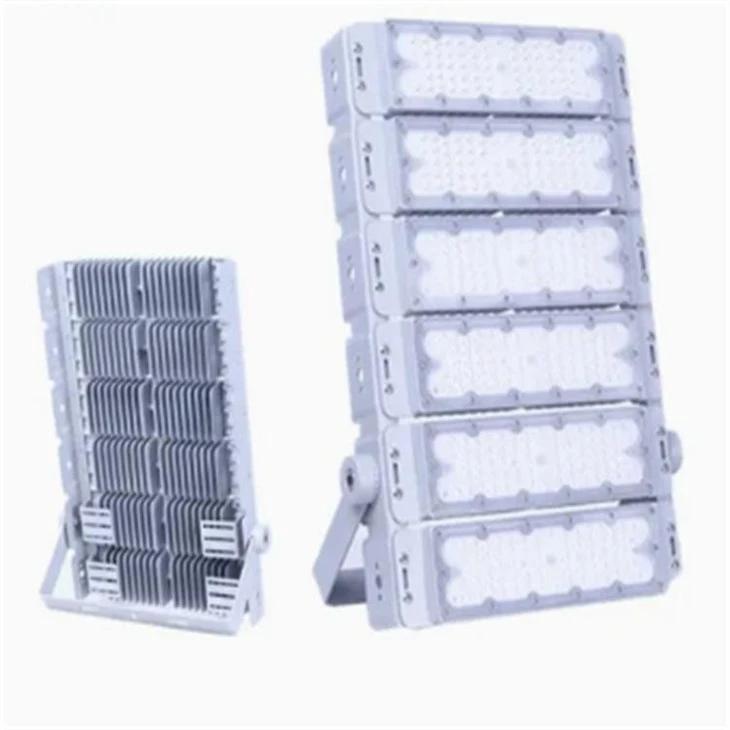

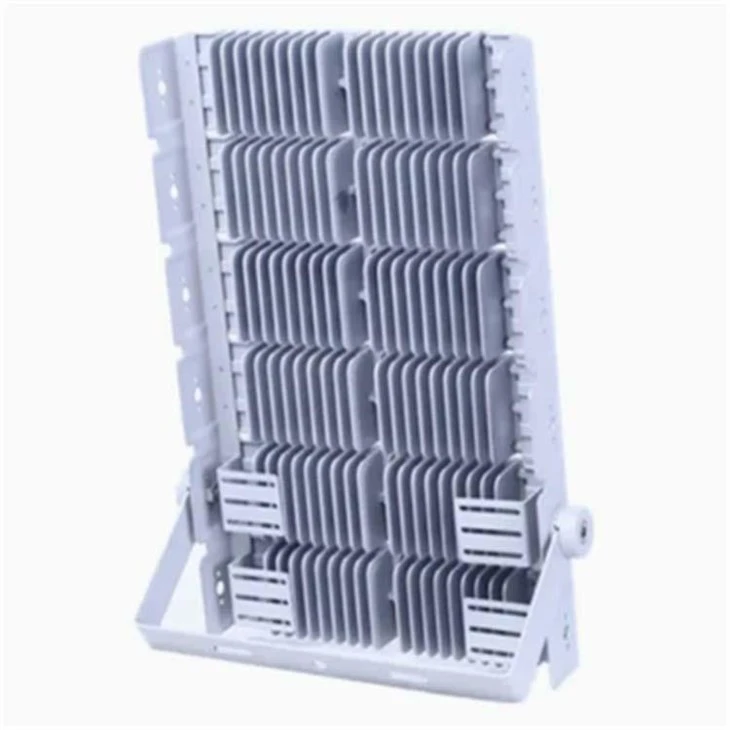

Deep dense vertical rib heat sink on the back of each module, maximizes heat dissipation contact area with air; layered heat conduction path quickly export heat generated by LED chips, prevent light source premature aging caused by high temperature accumulation.
Adjustable Installation & Modular Flexible Configuration

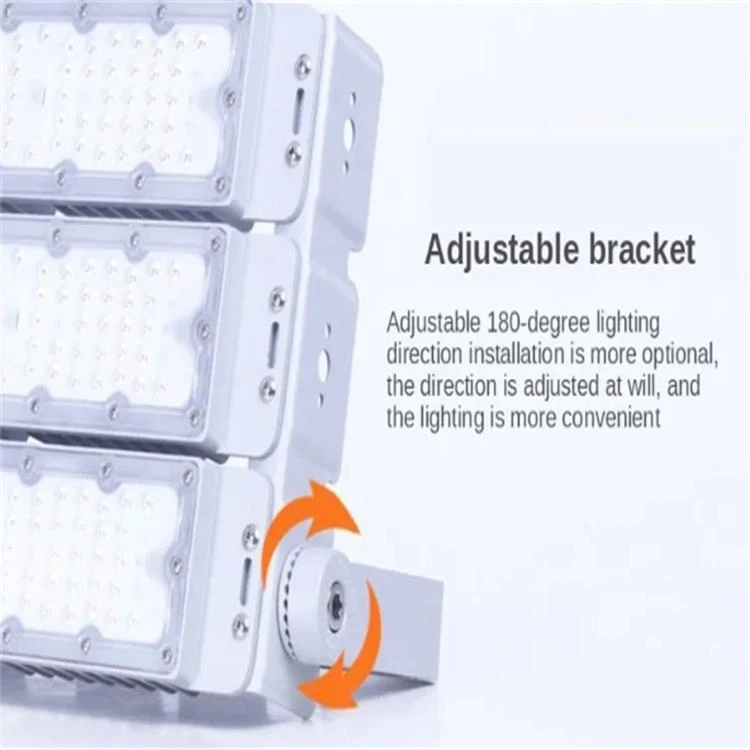

180° freely adjustable angle mounting bracket with locking positioning knob, arbitrary lock the lamp irradiation angle according to actual lighting demand, realize upward, downward, horizontal multi-direction flood lighting.

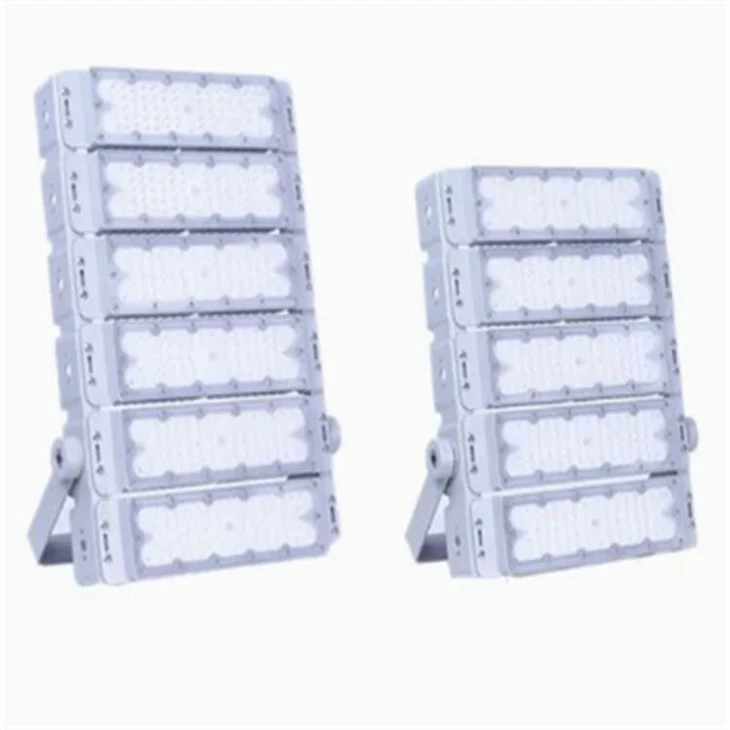

Flexible power modular combination: each independent light module is fixed power unit, freely assemble 2/3/4/5/6 modules to form 100W, 150W, 200W, 250W, 300W, 400W total power output, meet different area brightness demand.
Multiple installation ways supported: wall-mounted, pole-mounted, ground stand-mounted, overhead hoisting, applicable for stadium, highway toll station, industrial factory, parking lot, construction temporary lighting, port container yard, square landscape.
Reserved multi-position mounting holes on aluminum bracket, compatible with standard light poles, wall fixed accessories, easy and fast on-site installation without complex auxiliary tools.
