comparison of product parameters
|
Input Voltage(V) |
AC 100-277 VAC |
IP Rating |
IP66 |
|
Lamp Luminous Efficiency(lm/w) |
160 |
Application |
Theme Park |
|
Certification |
RoHS, CE |
Light Distribution Shape |
Type IV, Type II, Type III |
|
Lifespan (Hours) |
50000 |
Warranty(Year) |
5-Year |
|
Color Temperature(CCT) |
3000K/4000K/5000K/5700K/6500K |
Color Rendering Index(Ra) |
80 |
|
Support Dimmer |
Yes |
Material |
Aluminum |
|
Lighting solutions service |
Lighting And Circuitry Design, Dialux Evo Layout, Litepro Dlx Layout, Auto Cad Layout |
Special Feature |
Plus Size, High Bright, Lightweight |
|
Light Source |
LED |
Lamp Luminous Flux(lm) |
4500-80000 |
|
Place of Origin |
Guangdong, China |
Working Temperature(℃) |
-30 - 45 |
|
Product Name |
Led Flood Light |
Power |
30/50/80/100/120/150/200/250/300/400/500/600W |
| Material |
Aluminum(ADC12), Tempered Glass |
CRI |
Ra≥80 |
|
Color |
Black | Feature |
High Brightness |
Superior Performance & Advanced Optical Engineering
High-Efficacy Light Source: Equipped with premium 3030 SMD LEDs, this fixture delivers a highly concentrated, uniform beam with exceptional luminous efficacy. Depending on the configuration, it achieves an output of up to 125-140 lm/W, ensuring brilliant visibility while significantly reducing energy consumption compared to traditional HID or halogen systems.
Precision Optics: The UV-proof optical PC lens and nano-plastic reflector work in tandem to maximize light extraction and control. Available with multiple beam angle options (e.g., 60°, 90°, or asymmetric distributions), it ensures that light is directed precisely where it is needed, eliminating wasted spill light and light pollution.
Visual Comfort: Designed for professional environments, the integrated driver ensures flicker-free operation and a high color rendering index (CRI>80), providing clear, natural, and safe illumination for high-speed sports or detailed security surveillance
Robust Lifespan & Minimal Lumen Depreciation
50,000-Hour Rated Life: Engineered for longevity, the entire system is rated for a minimum operating life of 50,000 hours (L70/B50 or L80/B10), which translates to over a decade of maintenance-free operation under normal usage conditions.

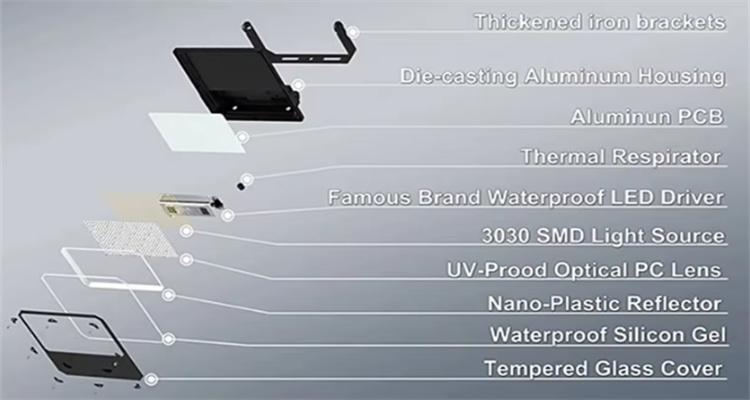

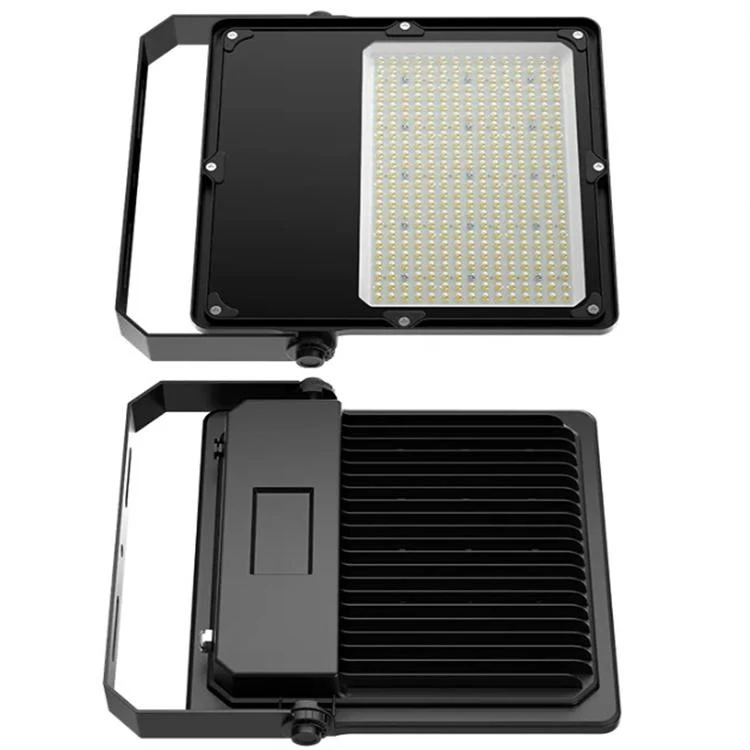

Elite Thermal Management: At the heart of its durability is the heavy-duty die-casting aluminum housing with an optimized, dense fin structure. This design dramatically increases the surface area for heat dissipation, keeping the LED junction temperatures low even during extended full-power operation.

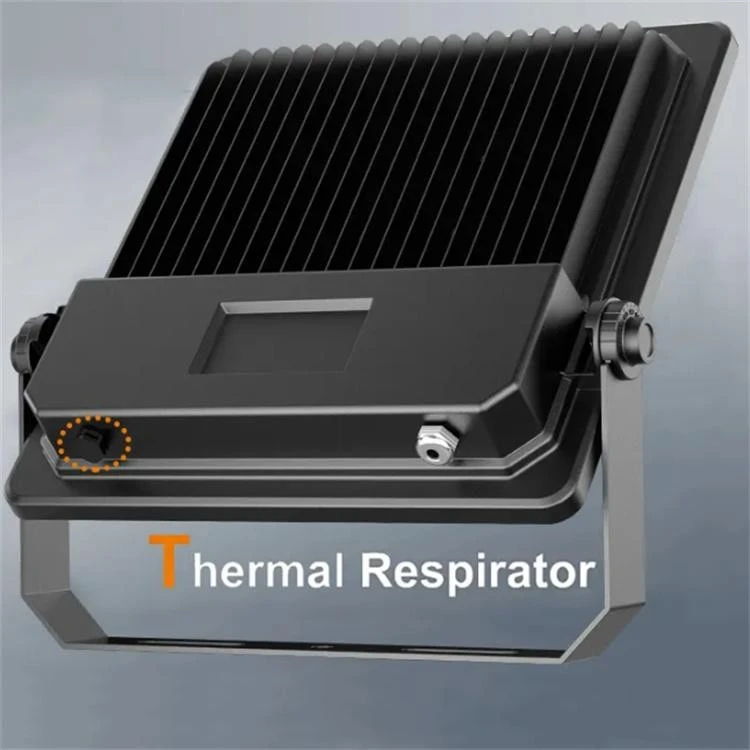

Thermal Respirator Technology: A specialized Thermal Respirator (pressure-equalization valve) is integrated into the housing. This professional feature prevents the buildup of internal pressure from temperature fluctuations, effectively stopping moisture ingress and extending the lifespan of internal components while preventing condensation on the lens.
Low Total Cost of Ownership: By combining high luminous efficacy with an exceptionally long lifespan and robust thermal design, this fixture virtually eliminates routine lamp replacement costs and minimizes electrical waste, offering an outstanding return on investment.
Ultimate Protection & Industrial-Grade Durability
IP66 Ingress Protection: Certified to the stringent IP66 standard, the fixture is completely dust-tight and protected against powerful water jets from any direction. It is fully equipped to withstand heavy rain, storms, and demanding wash-down environments.
IK08 Impact Resistance: The front is sealed with high-strength tempered glass, and the die-cast housing is built to resist significant mechanical impacts (IK08), making it suitable for public spaces, car parks, and industrial zones where vandalism or accidental damage is a concern.
Corrosion & Weather Resistance: The aluminum housing undergoes a phosphate treatment and is finished with a robust powder coating, offering excellent resistance to corrosion and UV degradation. It operates reliably in extreme ambient temperatures ranging from -40°C to +60°C, ensuring stable performance in any climate.

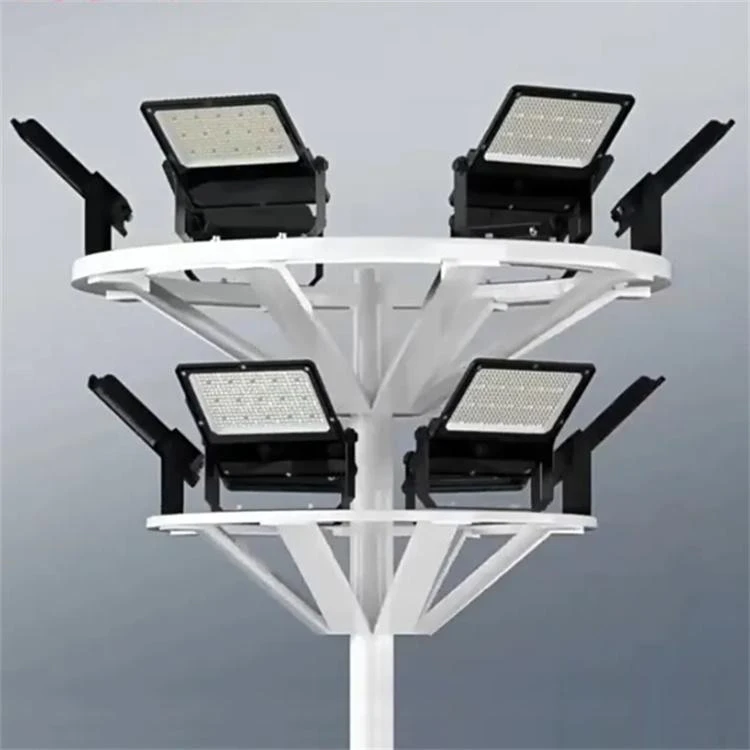

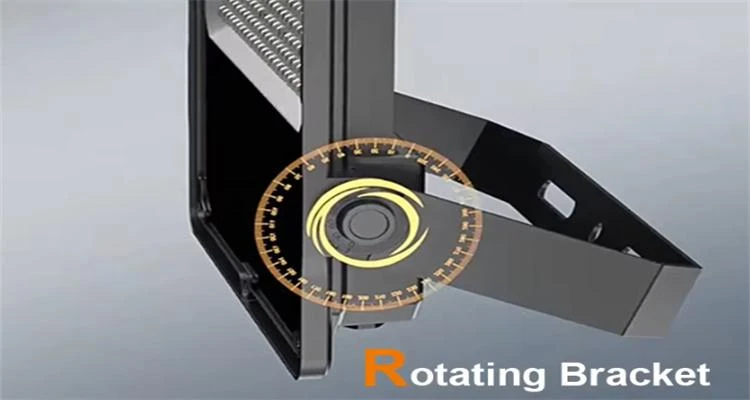

Professional Installation Features: The heavy-duty rotating bracket allows for precise, tool-free angle adjustment during installation. Constructed from thickened iron, it provides stable, wind-resistant mounting for high-mast or pole-top applications. The fixture also features a waterproof cable gland and a high-quality branded driver for safe, secure, and long-term electrical connection.
