comparison of product parameters
| Application | Warehouse | Input Voltage(V) | AC 85-265V |
| Lamp Luminous Efficiency(lm/w) | 120 | IP Rating | IP65 |
| Color Temperature(CCT) | 6500k | Ambient Temp. Range | -20°F ~ 104°F |
| Lifespan (Hours) | 50000 | Warranty(Year) | 2-Year |
| Color Rendering Index(Ra) | 80 | Support Dimmer | No |
| Control Method | SWITCH CONTROL | Light Source | LED |
| Led chip | SMD2835 | Lamp Body Material | Aluminum |
| Feature | High Brightness, Easy Installation, Eco-Friendly, Water Resistant | Lighting solutions service |
Lighting And Circuitry Design, Onsite Metering |
| Place of Origin | Guangdong, China | Brand Name | Benwei |
| Lamp Luminous Flux(lm) | 10000 | Product Weight(kg) | 2.6 |
| Working Temperature(℃) | -20 - 60 |
Light Source & Luminous Efficacy
Configuration of Light Sources

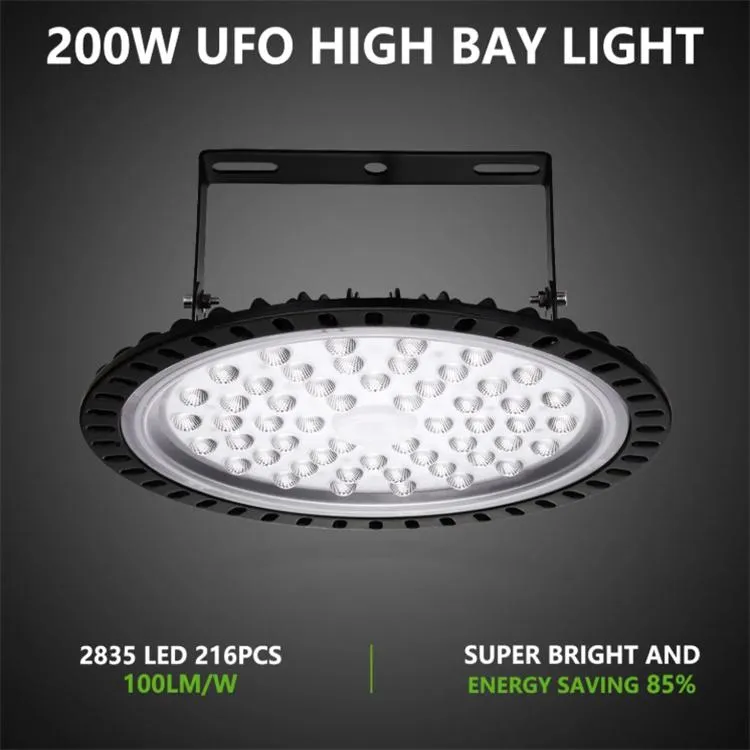

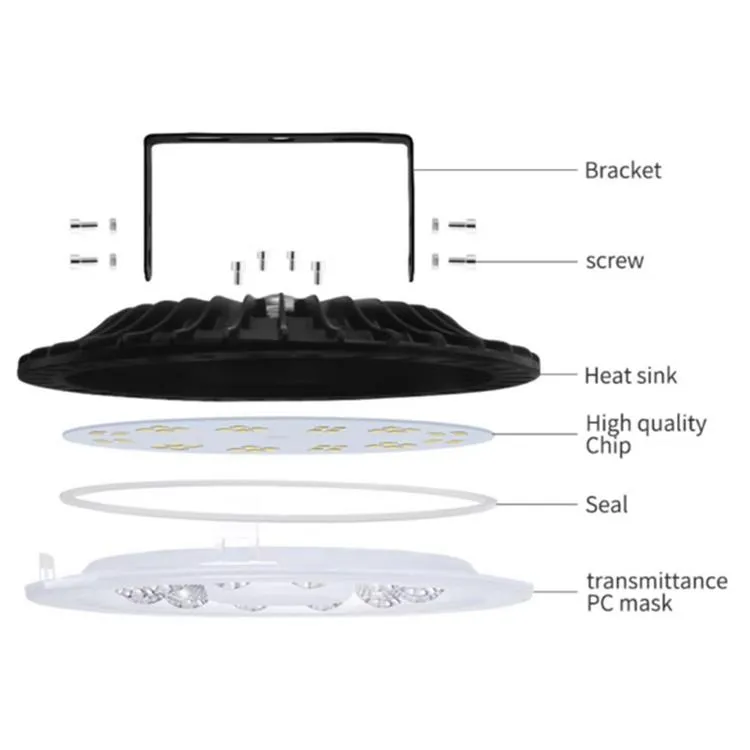

High-efficiency 2835 SMD LED chips, specifically 216 LED beads integrated inside the 200W model (various chip amounts matched proportionally for 50W/100W variants). With its stable luminescence, low light decay rate, and superior colour rendering performance, the 2835 LED chip is a widely used mainstream industrial light source. All LED beads are evenly arranged in an optimised circular layout to eliminate dark spots and uneven lighting phenomena, resulting in full-area homogeneous light output without glaring glare. In order to protect internal LED chips from moisture, dust, and corrosive workshop air erosion, the light source is completely enclosed with a high-transmittance anti-aging PC lens cover and a full-ring silicone sealing gasket.
Luminous Efficiency Performance
Up to 100 lumens per watt (100LM/W) of ultra-high luminous effectiveness. Using the 200W standard as an example, highly focused high-brightness light is produced when the total lumen output reaches 20,000LM. Its lumen maintenance rate is significantly better than that of traditional metal halide high bay lamps of the same brightness level: annual luminous depreciation is controlled below 5%, guaranteeing consistent lighting brightness over long-term continuous operation; customised beam angle design focuses effective light onto target working plane, significantly reducing invalid light waste and improving effective space utilisation of luminous flux.
Power Supply & Energy Consumption
Specifications for Power Input
Wide AC input ranges are supported by the universal wide-voltage built-in isolated constant-current LED driver (standard AC85-265V; customised 277V/480V available for North America industrial grid as an option). The driver undergoes over-voltage, over-current, short-circuit, and surge multi-protection circuit design, adapting to the unstable power supply environment of factories, warehouses, and large commercial spaces across various countries. The constant-current driver effectively stabilizes output current to prevent LED chip burnout caused by instantaneous grid voltage fluctuation.
Energy-saving and Energy-consumption Benefits
Compared to conventional incandescent, mercury vapour, and HID high bay lights, it can save up to 85% of the energy. Our 200W UFO LED high bay light may save facility owners more than 75% on power costs by replacing an 800W traditional HID high bay lamp alone while retaining the same illumination output. In addition to having a low operational power draw, the fixture's ultra-low heat production lowers the additional air conditioning load for enclosed workshops, thereby reducing overall facility energy costs. It also has no preheat waiting time and instantaneously maximum brightness once switched on without idle power loss.
Wide Application Scenarios Copy

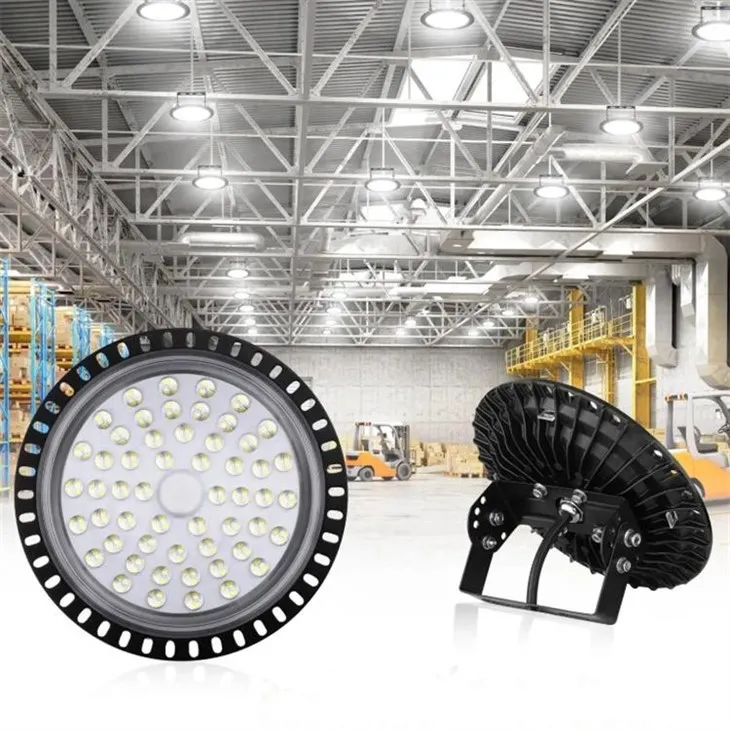

Perfectly tailored for all high-ceiling indoor large-space lighting applications:
Industrial Field: Manufacturing workshops, processing factories, large production plants with 4m-12m ceiling height;
Logistics & Storage: Large distribution warehouses, automated storage racking warehouses, cargo transit depots;
Commercial Venues: Supermarket hypermarkets, wholesale market malls, indoor shopping atriums;
Sports & Leisure: Indoor basketball gymnasium, badminton stadium, multi-functional sports arena;
Auxiliary Spaces: Underground large parking garages, basement storage rooms, exhibition halls, livestock breeding large barns and other high-bay required sites.
