comparison of product parameters
|
Input Voltage(V) |
AC 220-240V |
Lamp Luminous Efficiency(lm/w) |
100lm/w |
|
Color Temperature(CCT) |
2700-6500K |
IP Rating |
IP20 |
|
Lifespan (Hours) |
30000 |
Color Rendering Index(Ra) |
80 |
|
Support Dimmer |
No |
Lamp Body Material |
Aluminum Frame+PMMA LGP |
|
Application |
School,hospital,study,kitchen,bedroom,bathroom, |
Warranty(Year) |
5-Year |
|
Design Style |
Modern |
Lighting solutions service |
Dialux Evo Layout |
|
Light Source |
LED |
Place of Origin |
China |
|
Lamp Luminous Flux(lm) |
3600-5500 |
Working Temperature(℃) |
-20 - 35 |
|
Shape |
Square, Rectangle |
Beam angle |
120° |
|
Power Factor |
>0.95 |
LED Driver |
Constant Current LED Drive |
| UGR |
<19 or <22 |
LED Chip |
SMD4014 |
| Power |
30/36/40/60W |
Material |
Alluminum Frame+PMMA/PSA LGP |
Key Feature

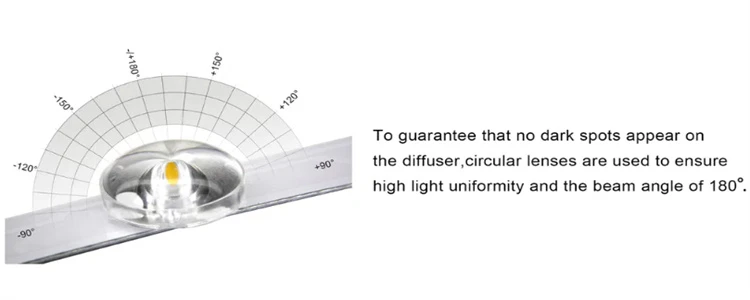

Superior Optical Performance & Consistent Lighting Effect It attains a broad 180° beam angle thanks to its high-precision round lenses. Dark areas on the diffuser panel are completely removed by the scientific light dispersion. In order to provide soft, relaxing, and high-quality diffused lighting that successfully reduces eye fatigue for long-term users, light distributes uniformly over the whole luminous surface without local bright zones or shadows.
Superior Luminous Efficiency & Stable Light Output High-grade LED chips effectively convert electric energy into visible light. It completely satisfies high-standard commercial and institutional lighting needs by maintaining constant brightness throughout extended hours of continuous operation, eliminating flickering and stroboscopic phenomena.
Key Feature
Long Service Life Rated average lifespan reaches 50,000 hours under normal operating conditions. With optimized thermal conduction structure and excellent heat dissipation aluminum backplate, heat generated by LED chips can be dissipated rapidly, slowing down component aging greatly and extending the whole luminaire service cycle. Frequent lamp replacement and maintenance costs are sharply cut down.
Ultra‑Low Lumen Depreciation Thanks to professional heat management system and high‑quality LED chips, it realizes ultra‑slow light decay. After 30,000 hours of continuous operation, the lumen retention rate remains above 85%. Brightness will not drop rapidly in the early and middle use period, keeping stable lighting performance year after year.
Key Feature
High Safety & Eco‑friendly Lighting No mercury, no ultraviolet or infrared radiation. It generates little heat while working. Constant‑current isolated driver ensures stable voltage and current supply, avoiding burnout risks caused by current surge, offering safe and green indoor lighting.
Wide Application Scenarios Perfectly applicable for office buildings, classrooms, hospital wards, supermarkets, retail shops, conference rooms and public corridors. It satisfies high demands of uniform illumination, long‑term continuous lighting and low maintenance for commercial projects.
