comparison of product parameters
|
Input Voltage(V) |
AC 220-240V |
Lamp Luminous Efficiency(lm/w) |
100lm/w |
|
Color Temperature(CCT) |
2700-6500K |
IP Rating |
IP20 |
|
Lifespan (Hours) |
30000 |
Color Rendering Index(Ra) |
80 |
|
Support Dimmer |
No |
Lamp Body Material |
Aluminum Frame+PMMA LGP |
|
Application |
School,hospital,study,kitchen,bedroom,bathroom, |
Warranty(Year) |
5-Year |
|
Design Style |
Modern |
Lighting solutions service |
Dialux Evo Layout |
|
Light Source |
LED |
Place of Origin |
China |
|
Lamp Luminous Flux(lm) |
3600-5500 |
Working Temperature(℃) |
-20 - 35 |
|
Shape |
Square, Rectangle |
Beam angle |
120° |
|
Power Factor |
>0.95 |
LED Driver |
Constant Current LED Drive |
| UGR |
<19 or <22 |
LED Chip |
SMD4014 |
|
Power |
30/36/40/60W |
Material |
Alluminum Frame+PMMA/PSA LGP |
✅ Excellent Optical & Lighting Performance
Equipped with circular optical lens, realizing a wide 180° beam angle, thoroughly eliminate dark spots and uneven brightness on the diffuser panel, achieve ultra‑uniform surface lighting without glare.
High CRI high color rendering index (High Ra), faithfully restore the real texture and natural color of objects, greatly optimize visual fidelity, ideal for commercial and high‑standard lighting occasions.
3‑level CCT adjustable by built‑in dip switch: 3000K warm white /4000K neutral white /5000K cool white, one lamp meets multiple scene lighting demands.
Flicker‑free constant‑current drive design, no stroboscopic interference, effectively reduce eye fatigue during long‑time work and reading.

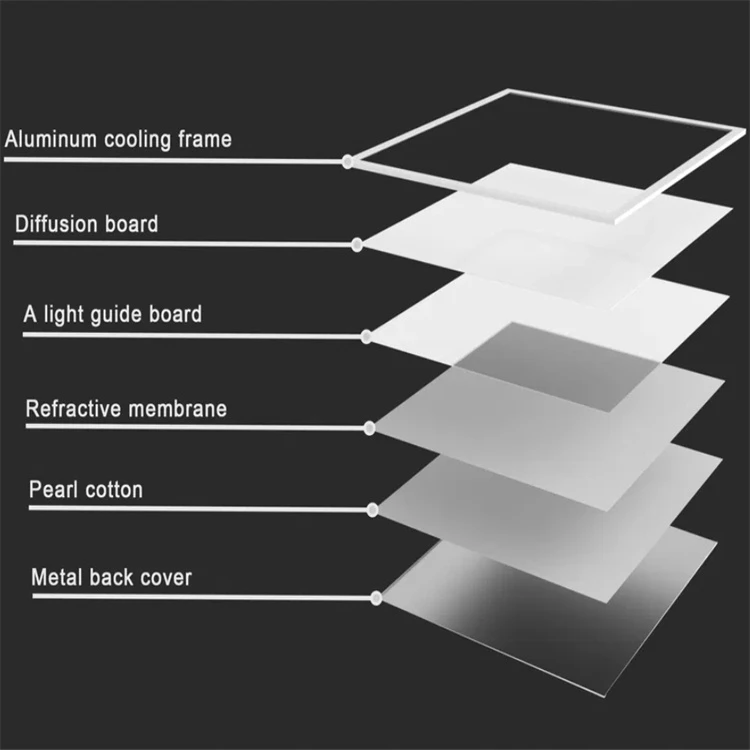

Multi‑layer composite light structure: aluminum cooling frame + diffusion board + light guide plate + refractive membrane + pearl cotton + metal back cover, soft light output while locking light efficiency, avoid light loss.
✅ Service Life & Light Attenuation Characteristics
Long rated service life up to 50,000 hours, far exceeding traditional fluorescent panels, greatly cut replacement and maintenance costs.
Adopts high‑quality LED chips and integrated aluminum heat dissipation frame, rapidly conduct and dissipate working heat, restrain chip aging.
Ultra‑low lumen depreciation: Less than 20% luminous attenuation after 50,000 hours of continuous operation, maintain stable brightness in long‑term use.
No rapid brightness decline within the first 30,000 working hours, consistent lighting effect year after year.
Solid metal back cover isolates heat and protects internal optical films and light strips, slow down aging of internal components and extend effective working cycle.
✅ Protection Grade & Structural Reliability
Standard dust‑proof design, effectively block dust from entering the internal optical assembly, prevent dust accumulation which causes brightness drop.
Sealed layered panel structure, solid integrated aluminum frame, anti‑deformation, anti‑oxidation, resist daily ambient corrosion.
Stable built‑in isolated LED driver, surge resistance, withstand slight voltage fluctuation, avoid sudden lamp failure caused by unstable power supply.
Slim integrated molding structure, moisture‑resistant internal material, suitable for dry indoor commercial and office environments.
Safety isolation drive unit, low leakage current, conform to international electrical safety standards, long‑term use is safer and more stable.
