comparison of product parameters
| Input Voltage(V) | AC120-277V/220-240V | IP Rating | IP40 |
|
Lamp Luminous Efficiency(lm/w) |
115 |
Lifespan (Hours) |
40000 |
|
Color Temperature(CCT) |
Single CCT or CCT tunable |
Color Rendering Index(Ra) |
80 |
|
Support Dimmer |
Yes |
Warranty(Year) |
5-Year |
|
Lamp Body Material |
Alumium |
Application |
Office, meeting room, workshop, supermarket |
|
Lighting solutions service |
Project Installation, Auto Cad Layout, Dialux Evo Layout, Lighting And Circuitry Design |
Light Source |
LED |
|
Material |
Plastic |
Place of Origin |
Guangdong, China |
|
Lamp Luminous Flux(lm) |
4000 |
Product Weight(kg) |
3.5 |
|
Working Temperature(℃) |
-30-42 |
Product name |
Ultra-thin LED Panel Lights |
|
Dimmable |
0-10v Dimmable |
Dimension |
60x60 or 1200x60 |
|
Installation |
Reccessed, suspended |
Efficiency |
110lm/w or 125lm/w |
|
Material |
Almiunum |
CCT |
single cct or cct tunable |
Core Features & Performance Highlights
✅ Superior Uniform Lighting Performance Equipped with 1.2mm thick high-transmittance PS diffusion plate, matched with lens optimized 3030 LED light source layout. Light is evenly scattered across the whole surface to eliminate hotspot, shadow and dark zone, achieving seamless homogeneous illumination without glaring spots. Comfortable soft light effectively reduces visual fatigue for long-hour indoor environments.
✅ Multi-Parameter Adjustable Design for Inventory Optimization Supports switchable CCT color temperature tuning and selectable wattage within single model. Customers can flexibly adjust lighting output and color tone on-site according to project demands. Greatly reduce SKU quantities, cut overstock pressure and improve capital turnover for wholesalers.

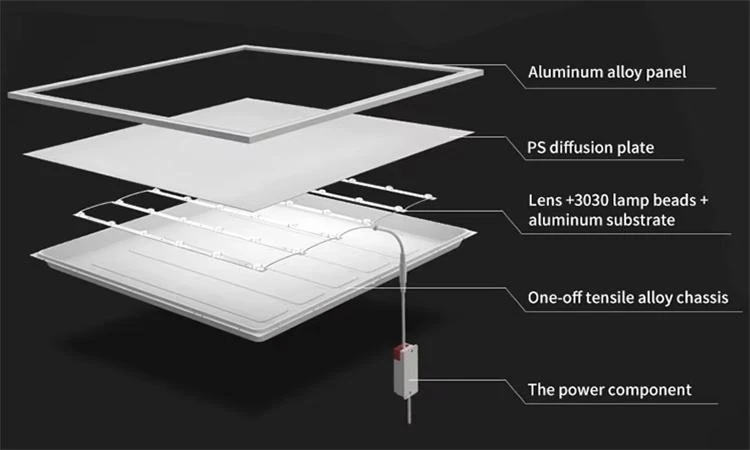

✅ Precision Heavy-Duty Mechanical Construction Adopts integrated one-off tensile alloy chassis + durable aluminum alloy frame. High structural rigidity ensures anti-deformation performance under long-term operation. Precision splicing structure eliminates light leakage around edges, maintaining consistent lighting appearance throughout service cycle.
Service Life & Lumen Maintenance
Rated 50,000 hours long service life under standard rated operating condition
L70 lumen maintenance standard: After 50,000 hours continuous operation, luminous flux still retains ≥70% of initial brightness
Slow luminous attenuation curve thanks to excellent thermal management system. Effectively avoid rapid brightness drop commonly seen in low-cost panel lights. Stable lighting performance remains consistent year after year for long-term commercial usage
Constant current certified power component prevents instantaneous current impact on LED chips, lowering premature failure risk and extending whole fixture lifespan
Protection Grade & Safety Specification
Ingress Protection: IP40 (Indoor commercial standard) Effectively block solid foreign objects larger than 1mm, prevent dust accumulation inside the luminaire which may cause light decay or short circuit. Designed for dry indoor ambient use.
Insulation safety structure, built-in isolated constant current driver, anti-surge capability to resist voltage fluctuation interference
Flame retardant raw materials adopted for internal components, pass rigorous safety testing; available with CE, ETL, ISO recognized certifications for global market clearance
