comparison of product parameters
|
Input Voltage(V) |
AC 85-265V |
Lamp Luminous Efficiency(lm/w) |
>120LM/W |
|
Lifespan (Hours) |
50000 |
Color Temperature(CCT) |
3000k, 4000k, 6500k |
|
Color Rendering Index(Ra) |
80 |
Support Dimmer |
No |
|
Overall Dimensions |
595*595*12mm |
Application |
Supermarket |
|
Warranty(Year) |
5-Year |
Lighting solutions service |
Project Installation, Lighting And Circuitry Design, Dialux Evo Layout |
|
Type |
Industrial lighting |
Product Weight(kg) |
2.13 |
Light Source & Optical Performance
Adopts high‑quality SMD2835 LED chips paired with professional optical lens, utilizing reflection‑refraction optical principle to achieve even light output without dark zones or hotspot glare.
High luminous efficiency, achieves up to 50% energy‑saving performance versus traditional fluorescent grille lamps.
Multiple color temperature options available: cool white 6000K, neutral white, warm white, meets diverse scene lighting demands.

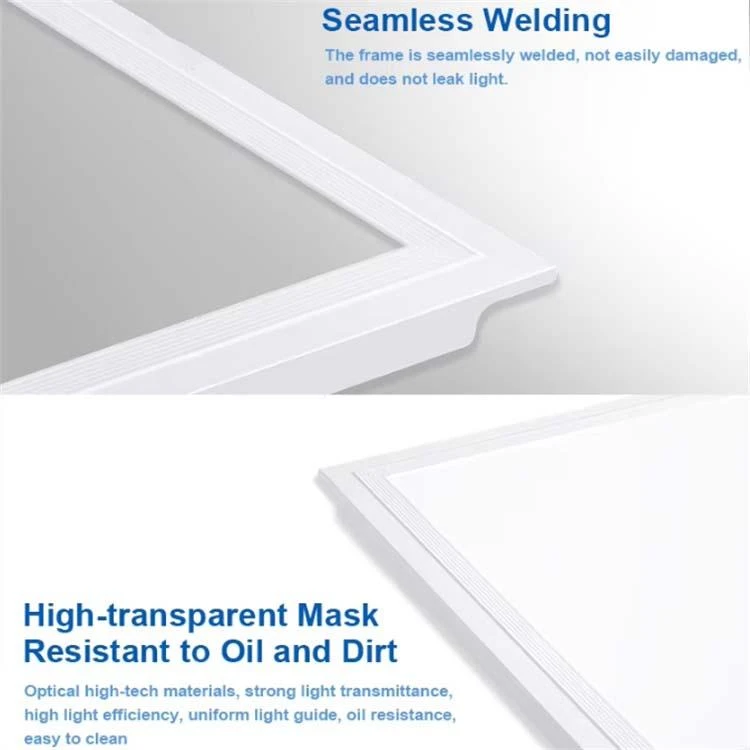

High‑transmittance anti‑oil & anti‑dust optical diffuser mask, delivers soft diffused light, effectively reduces visual fatigue for long‑time indoor activities.
Seamless welded frame structure prevents light leakage, no stray light spill‑over for neat ceiling visual effect.
Driver & Electrical Performance
Equipped with high‑efficiency constant‑current LED driver, supports fast instant start‑up, zero flicker and zero humming noise during long‑term operation.
Stable current output resists voltage fluctuation interference, protects LED chips from current surge damage.
Wide input voltage compatibility, adapts to most global commercial and household power supply environments.
Heat Dissipation, Service Life & Light Attenuation
High‑strength painted aluminum alloy frame, excellent thermal conductivity rapidly conducts internal heat outwards, lowers working temperature of LED light source.
Rust‑proof, moisture‑proof and high‑temperature‑resistant aluminum housing, anti‑deformation even under continuous long‑hour working status.
Rated average lifespan up to 50000 hours, greatly cuts down replacement and maintenance frequency.
Optimized thermal management suppresses light decay: low lumen depreciation, maintains ≥70% initial brightness after long‑time running, slow brightness loss over service cycle.
Solid stick‑on PCB board enhances structural stability for chips, reduces failure risk caused by vibration or heat stress.
