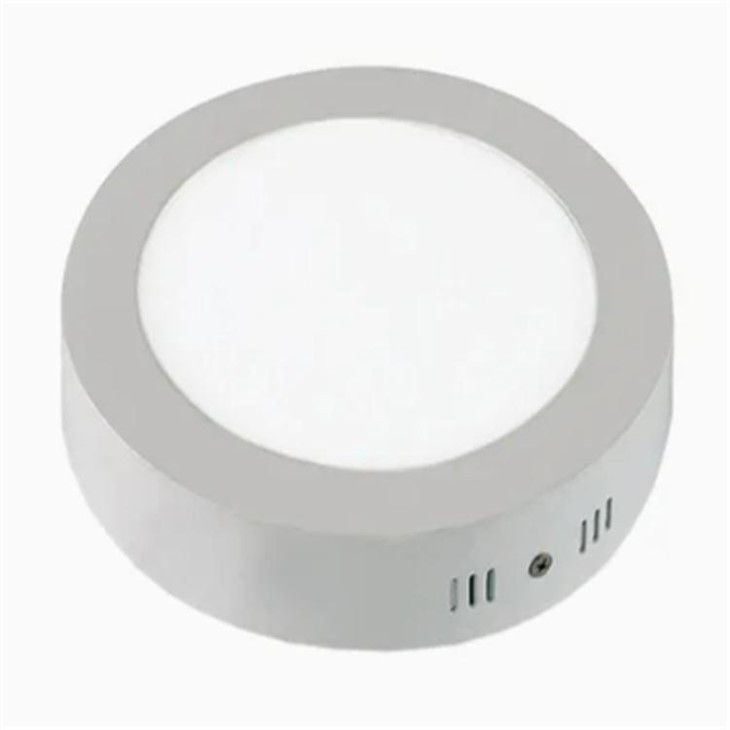

Led Panel Light Circular/square Surface-mounted

Led Panel Light Circular/square Surface-mounted
Details:
With our high-performance Round LED Ceiling Light, you can take your home, business, or hospitality area to the next level. This light is designed to combine a sleek contemporary design, sophisticated optical technology, and strong performance into a single, seamless package. Built for worldwide markets and long-term durability, this light provides illumination that is bright and easy on the eyes, is simple to install, and requires no maintenance. As a result, it is an excellent option for homeowners, facility managers, and contractors alike.
Send Inquiry
Description
Send Inquiry


 product Specification
Input Voltage(V) 85-265V Light Source LED
Lamp Luminous Efficiency(lm/w)

80

Lifespan (Hours) 50000
Color Temperature(CCT) 3000k-6000k Working Temperature(℃) -20 - 60
Lamp Luminous Flux(lm) 1920 Application

Home Office

Warranty(Year) 3-Year Lamp Body Material Alumnium
Color Rendering Index(Ra) 80 Lighting solutions service Lighting And Circuitry Design





surface mount led flat panel

Core Product Features

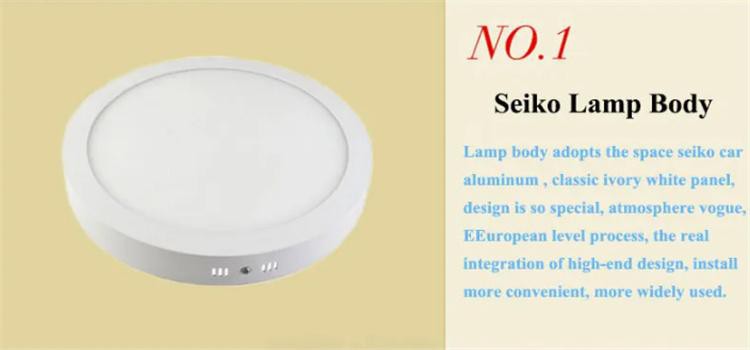

1. Introducing the Seiko Aluminium Lamp Body:

Where Timeless Style and Durability Meet The body of the lamp is constructed from precision-engineered aluminium of aerospace quality, and it is designed to resist years of continuous usage while retaining its beautiful, contemporary appearance. Featuring a slender profile that matches any interior style, the classic ivory white panel is completed with European-level workmanship. It is suitable for use in minimalist homes, upmarket hotels, and modern businesses. Even in high-traffic areas or humid situations, the durable aluminium structure is resistant to warping, discolouration, and impact damage. This level of structural rigidity is achieved by the use of aluminium.

The neutral white finish offers a versatile design that allows it to fit in smoothly with any ceiling colour or décor style. This eliminates the need for frequent replacements due to aesthetic deterioration.

Simple Installation Compatibility: The body, which is both lightweight and sturdy, is intended for applications that are surface-mounted as well as recessed, providing an unrivalled degree of flexibility for any space arrangement.

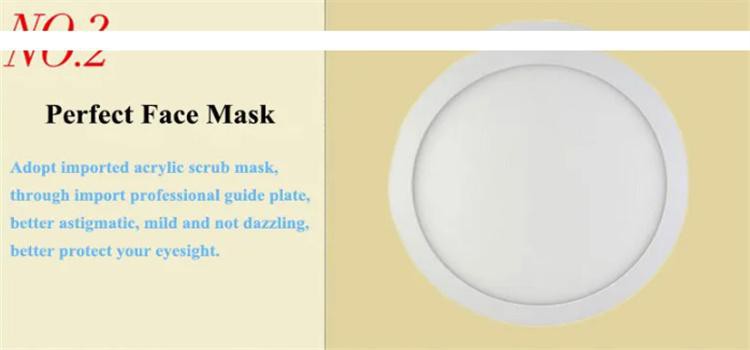

2. Glare-free and eye-care-friendly illumination provided by a premium acrylic diffuser The diffuser of this lamp is made of high-transmission acrylic that was imported from another country. It was precision-engineered with a professional light guide plate to ensure that it emits a light that is consistent and gentle, without any flickering or harsh glare.

The sophisticated diffuser prevents hotspots and uneven lighting, ensuring that the brightness is uniform throughout the whole surface. This is referred to as astigmatic light distribution. Eye Protection: The light output is gentle and non-dazzling, which minimises eye strain and tiredness. This makes it a great choice for bedrooms, schools, workplaces, and other areas where prolonged usage is commonplace.

High Light Transmittance: The high-grade acrylic material maintains a light transmission efficiency of more than 90 percent, which allows it to maximise lumen production while maintaining the natural, gentle character of the light.

Core Product Features

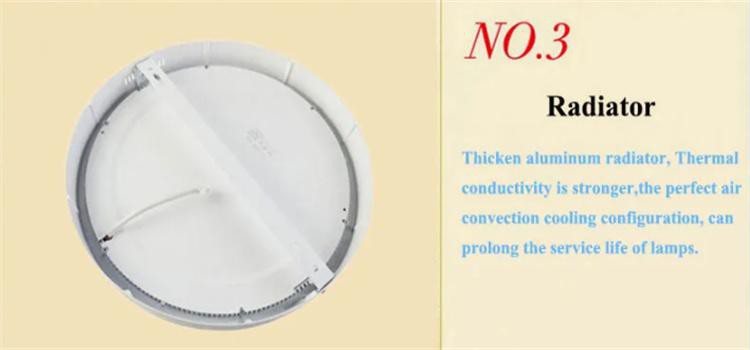

3. Thermal Management System with Highly Efficient Operation
This ceiling light is designed with a thicker aluminium radiator, and it boasts an optimised air convection cooling system that quickly distributes heat. This configuration ensures that the internal components remain at acceptable working temperatures.
Improved Heat Dissipation: The ribbed aluminium heat sink helps to speed up the transmission of heat from the LED chips and driver, which helps to prevent the LED chips from overheating even when they are operating continuously around the clock.
The fixture's lifetime may be extended to 30,000 hours or more, which is three to five times longer than the lifespan of standard ceiling lights. Additionally, effective thermal management protects crucial components from heat-related deterioration, which extends the fixture's longevity.
Stable Performance: Ensures that the light output and colour temperature remain constant over its entire career, so preventing the brightness degradation or colour shift that are often associated with LED fixtures of lower quality.

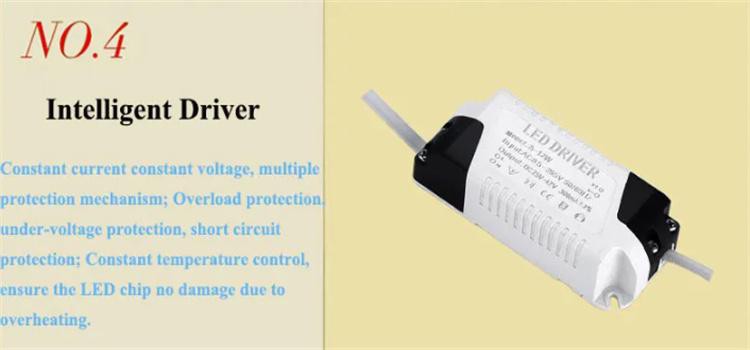

4. The Intelligent Constant-Current Driver offers unparalleled levels of both safety and dependability.
This light has a high-performance intelligent LED driver, which ensures a steady and flicker-free performance. Additionally, it offers numerous levels of security, allowing users to go about their day without worry.
Constant Current and Voltage Regulation: The driver ensures that the LED chips get a constant current flow all the time, so protecting them from being damaged by voltage fluctuations or power surges.
Overload protection, undervoltage protection, short-circuit protection, and constant temperature control are some of the comprehensive protection mechanisms that are included in this product. These mechanisms are designed to protect the fixture and avoid potential safety issues.
Universal Voltage Compatibility: By supporting an AC input range that extends from 85 to 265 volts, this device is compatible with electrical systems all around the globe, from North America to Europe to Asia and beyond.



surface led panel light










flat panel led lights surface mount 20W

How to Install & Use Your Round LED Ceiling Light

Step 1: Pre-Installation Preparation

Safety First: Turn off the power at the circuit breaker and verify with a voltage tester to avoid electrical shock.

Choose Your Mounting Method:

Surface Mount: Ideal for solid ceilings (drywall, plaster). Mark the mounting holes, drill pilot holes, and secure the included mounting bracket with screws.

Recessed Mount: For drop ceilings or pre-cut openings. Ensure the cutout size matches the fixture's specifications for a flush fit.

Inspect the Fixture: Check the lamp body, diffuser, and driver for any damage during shipping. Confirm all components are included (mounting hardware, driver, user manual).

Step 2: Installation Process

Wire the Driver: Connect the LED driver's input wires to the power supply, following the wiring diagram provided. Secure connections with wire nuts to prevent loose wiring.

Secure the Fixture:

For surface mount: Align the fixture with the mounting bracket and twist or snap it into place.

For recessed mount: Squeeze the built-in spring clips (if included) and insert the fixture into the ceiling cutout. Release the clips to hold it securely.

Restore Power: Turn the circuit breaker back on. The light will illuminate instantly at full brightness, with no warm-up time or flickering.

Step 3: Maintenance & Care

Regular Cleaning: Wipe the diffuser and lamp body with a soft, dry cloth every 3–6 months to remove dust and maintain light transmission efficiency. Avoid using harsh chemicals or abrasive materials that can scratch the surface.

Inspect Connections: Periodically check the driver and wiring for loose connections, especially in humid environments.

Long-Term Reliability: With minimal moving parts and a durable design, the fixture requires no routine maintenance beyond basic cleaning.











surface mount flat panel led 20W

flat panel surface mount led
