product Specification
| Input Voltage(V) | AC 85-265V | Light Source | LED |
| IP Rating |
IP20 |
Lifespan (Hours) | 50000 |
| Color Temperature(CCT) | 4100K (Neutral White), 6000K (Daylight Alert), 2700K (Soft Warm White) | Working Temperature(℃) | -20 - 55 |
| Product Weight(kg) | 2.3 | Application |
Home Office |
| Warranty(Year) | 3-Year | Lamp Body Material | Alumnium |
| Color Rendering Index(Ra) | 80 | Lighting solutions service | Litepro Dlx Layout |
Core Product Features
1. Superior Light Quality: Uniform, Eye-Friendly Illumination
At the core of our panel light is an advanced three-layer optical system engineered for perfect light distribution:
Premium SMD 2835 LED Chips: Powered by international brand chips (SAN'an/EPISTAR), the side-emitting design delivers bright, energy-efficient light with true color reproduction and zero color shift.
Multi-Layer Light Guide System: The PC diffusion plate offers high light transmittance and yellowing resistance; the PS light guide plate ensures even light distribution without hotspots; and the reflective cardboard prevents light leakage, resulting in 100% uniform, glare-free illumination.
Flicker-Free Performance: Paired with a high-PF constant current driver, the panel eliminates strobing, making it ideal for long hours of use in offices, classrooms, and healthcare facilities to reduce eye strain and boost productivity.
2. Industrial-Grade Durability: Built to Last in Any Environment
Crafted for longevity, every component is engineered to withstand the rigors of commercial use:

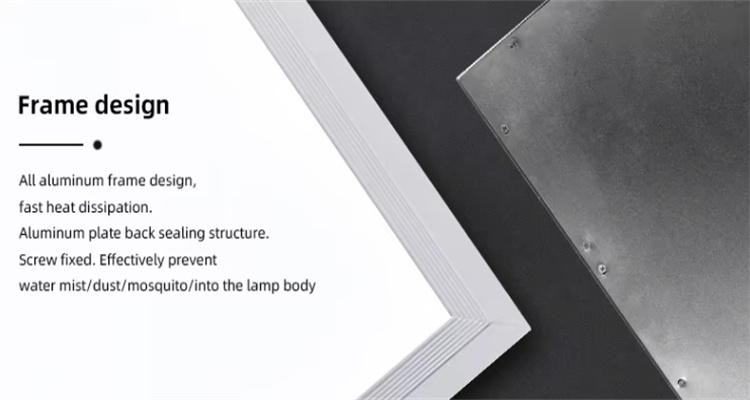

All-Aluminum Frame Construction: The full aluminum frame acts as an efficient heat sink, rapidly dissipating heat to keep internal components cool and extending the panel's lifespan to 50,000+ hours - far exceeding the industry average.
Sealed Back Structure: The aluminum plate back cover, secured with screws, creates a tight seal that blocks water mist, dust, insects, and debris from entering the lamp body, preventing damage in humid or high-dust environments.
Corrosion-Resistant Materials: The frame and back plate resist rust, discoloration, and impact damage, maintaining a pristine appearance even in high-traffic commercial spaces.
Core Product Features
3. Reliable & Safe Operation: Comprehensive Protection Features

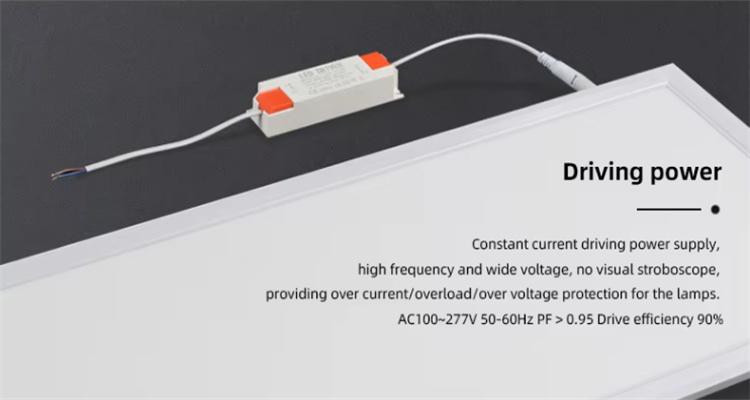

Equipped with an intelligent constant current driver, this panel light ensures stable, safe performance worldwide:
Universal Voltage Compatibility: Supports AC 100–277V (50/60Hz), making it compatible with electrical systems in North America, Europe, Asia, and beyond - no voltage adapters required.
Advanced Protection Mechanisms: The driver includes over-current, over-load, over-voltage, and short-circuit protection, safeguarding the panel from power surges and unstable grids.
High Efficiency & Power Factor: With a power factor (PF) > 0.95 and drive efficiency of 90%, the panel maximizes energy savings while minimizing power waste, reducing electricity bills by up to 70% compared to fluorescent panels.

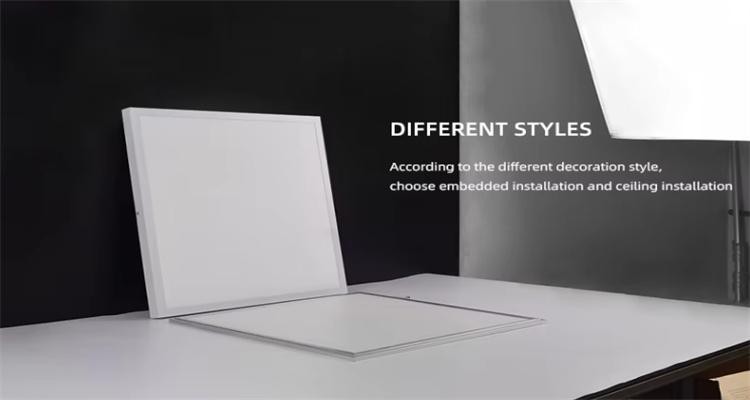

4. Flexible Installation: Adaptable to Any Ceiling Layout
Designed for hassle-free integration, the panel light supports two primary installation methods to match your space's design:
Recessed (Embedded) Installation: Flush-mounted into drop ceilings, drywall, or suspended ceilings for a sleek, integrated look - ideal for modern offices and retail spaces.
Surface-Mounted Installation: Directly attached to ceiling surfaces using a mounting frame (included or optional) for quick, tool-free setup in spaces where recessed installation isn't possible.
Versatile Sizing: Available in standard commercial sizes (e.g., 600x600mm, 300x1200mm) to fit most standard ceiling cutouts, eliminating the need for custom modifications.
Professional Installation Methods & Usage Guide
1. Pre-Installation Preparation
Safety First: Turn off the power at the circuit breaker and verify with a voltage tester to avoid electrical shock.
Confirm Compatibility: Ensure the ceiling material (drop ceiling, drywall, or solid surface) and cutout size match the panel's specifications. For recessed installation, confirm the ceiling cutout is the correct size to avoid gaps or misalignment.
Gather Tools: Depending on the installation method, you may need a screwdriver, wire strippers, and a mounting frame (for surface installation).
2. Step-by-Step Installation
Recessed (Embedded) Installation
Prepare the Fixture: Remove the panel from its packaging and ensure all components (driver, mounting clips, screws) are included.
Wire the Driver: Connect the LED driver's input wires to the power supply, matching live, neutral, and ground wires. Secure connections with wire nuts to prevent loose wiring.
Insert the Panel: Lift the panel into the ceiling cutout, aligning the mounting clips with the ceiling grid or frame. The clips will lock the panel in place, creating a flush fit.
Test the Panel: Restore power to the circuit. The panel will illuminate instantly at full brightness, with no warm-up time or flickering.
Surface-Mounted Installation
Mount the Frame: Secure the surface mount frame to the ceiling using screws, ensuring it is level and stable.
Wire the Driver: Connect the LED driver to the power supply, following the same wiring steps as recessed installation.
Attach the Panel: Slide the panel into the surface mount frame and secure it with the included clips or screws.
Restore Power: Turn on the circuit breaker and verify the panel operates correctly.
3. Maintenance & Care
Regular Cleaning: Wipe the panel's surface with a soft, dry cloth every 3–6 months to remove dust and maintain light transmittance. Avoid harsh chemicals or abrasive materials that can scratch the diffuser.
Inspect Connections: Periodically check the driver and wiring for loose connections, especially in humid environments. Tighten any loose wires to prevent flickering or safety hazards.
Long-Term Reliability: With minimal moving parts and a durable design, the panel requires no routine maintenance beyond basic cleaning, reducing long-term labor costs.
